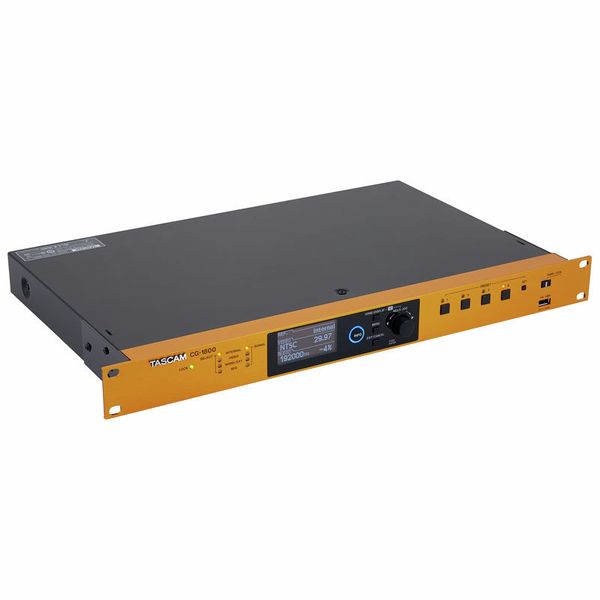

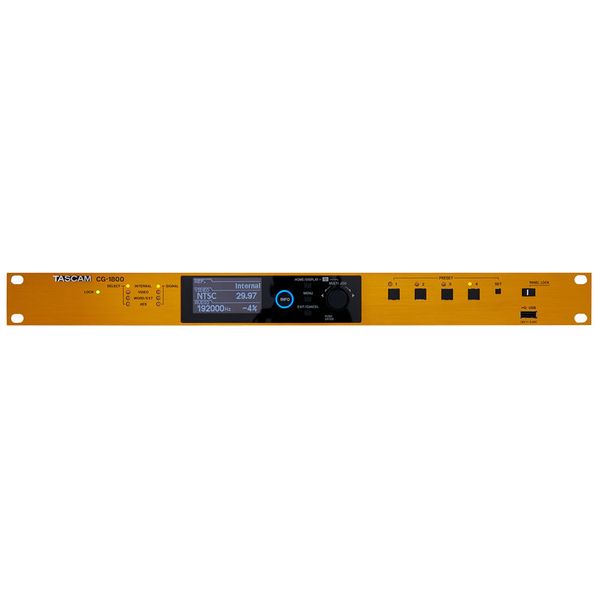

Tascam CG-1800

Masterclock Generator

• For small to medium sized postproduction studios
• Precise generation of the clock signal via quartz oscillator
• Stable synchronisation between picture and sound
• Flexible system setup with a variety of audio and video formats (audio: Wordclock, AUS3, AES11, SPDIF, video: NTSC, PAL, HD tri-level)
• Jitter management circuit
• Clock input supports clock rates up to 10 MHz

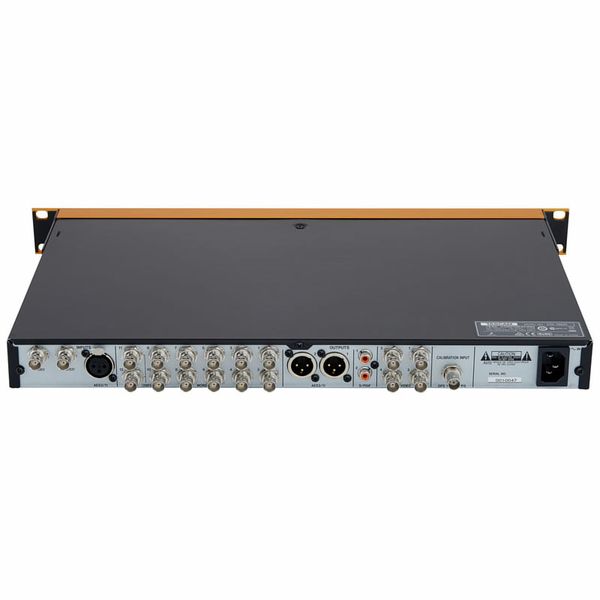

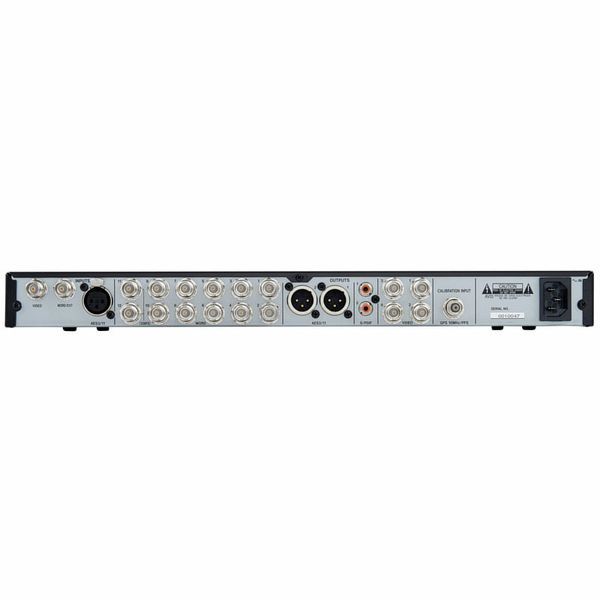

• 4 Video sync outputs

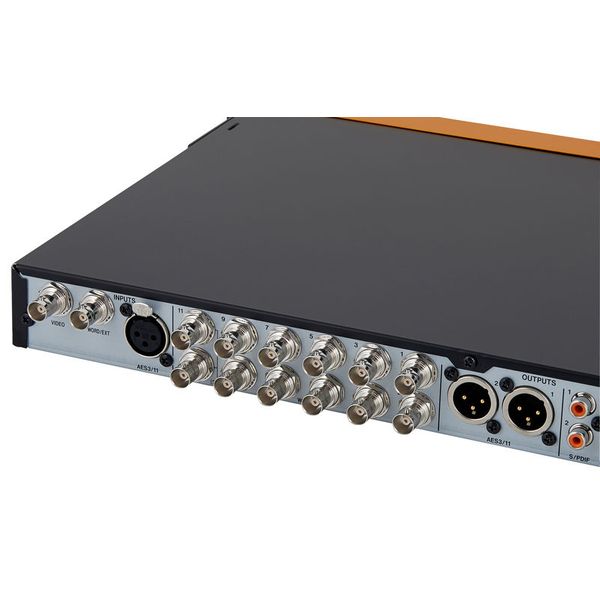

• 12 Word clock outputs

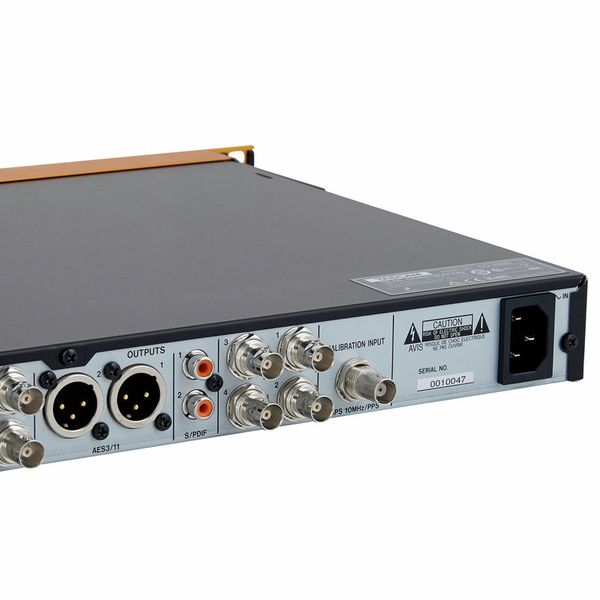

• 2 AES3 / AES11 outputs
• 2 SPDIF outputs
• 2 Wordclock outputs support Fs/4, Fs/2, 2 Fs, 4 Fs and 256 Fs for use with ProTools and other DAW programs
• Support for 0.1% or 4% pull-up / pull-down
• Output levels of the wordclock ports can be customised
• Analyser function
• Logging function

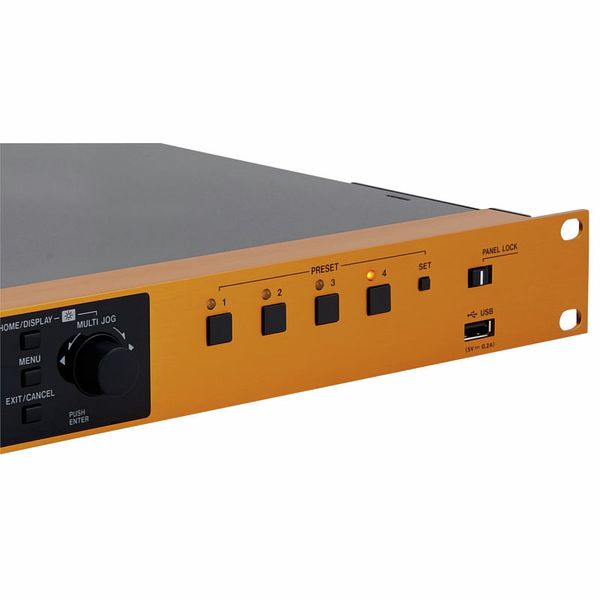

• Up to 4 system settings can be stored

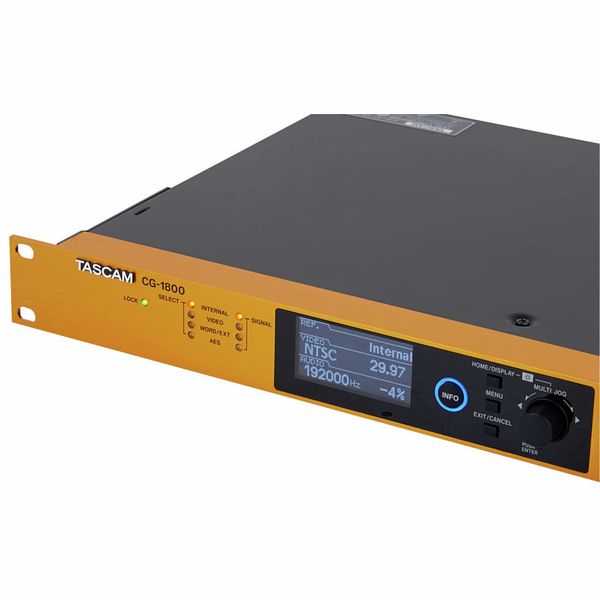

• Organic EL display
• Design: 19" / 1 U
• Dimensions: 483 x 44 x 310 mm
• Weight: 3.2 kg
