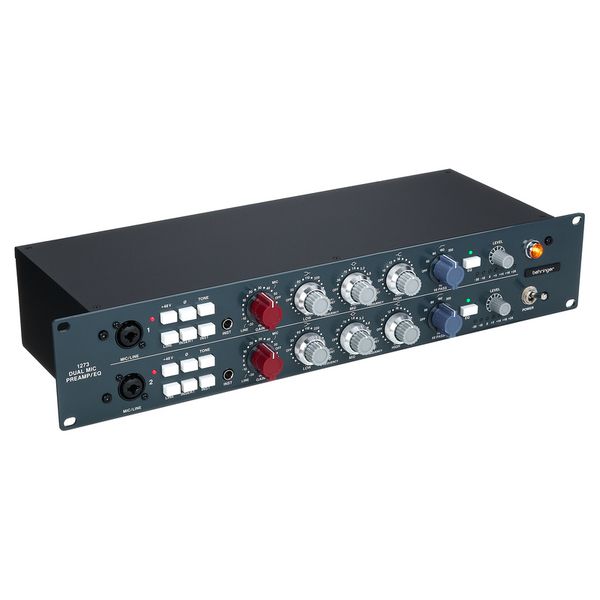

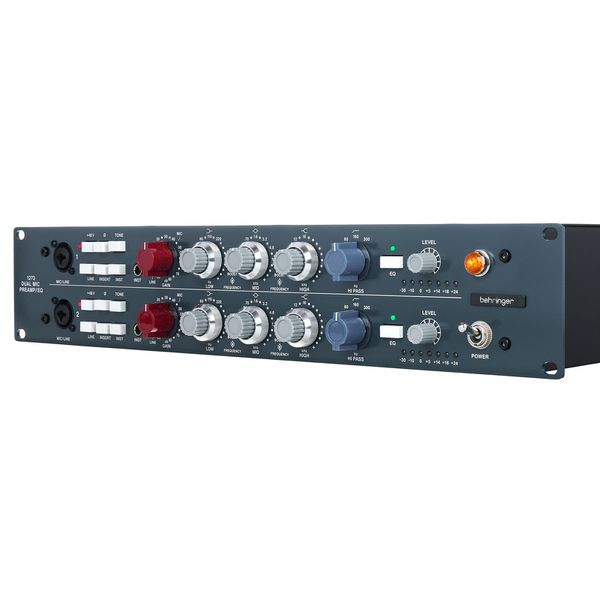

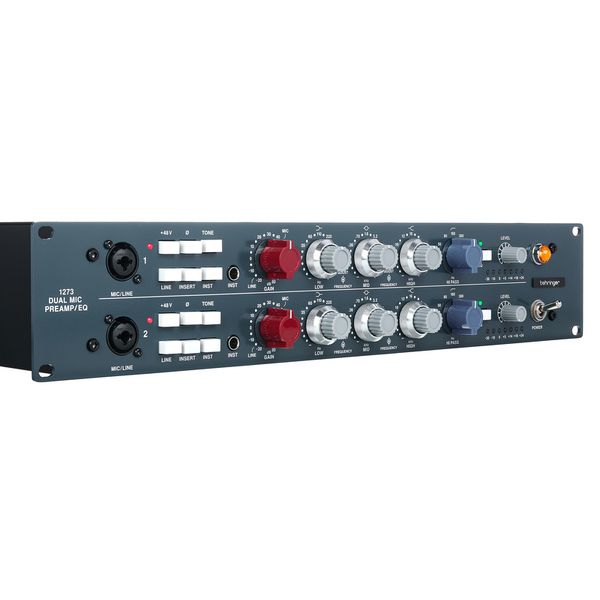

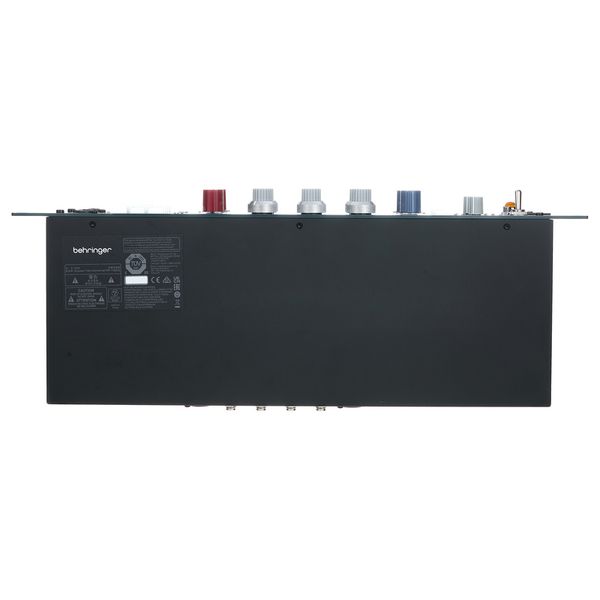

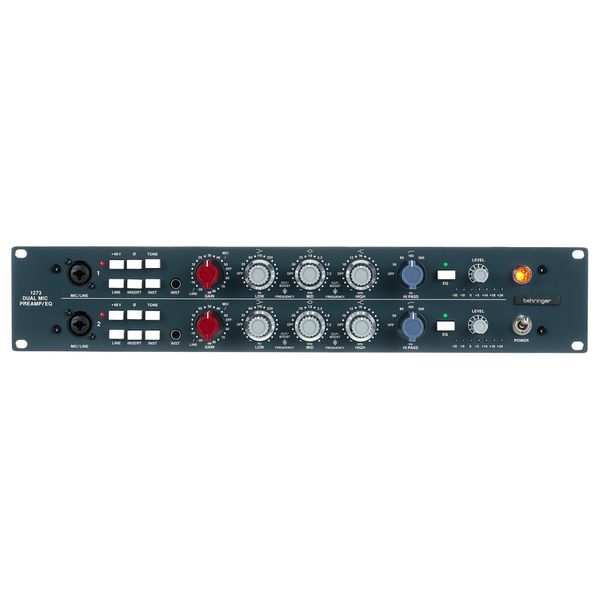

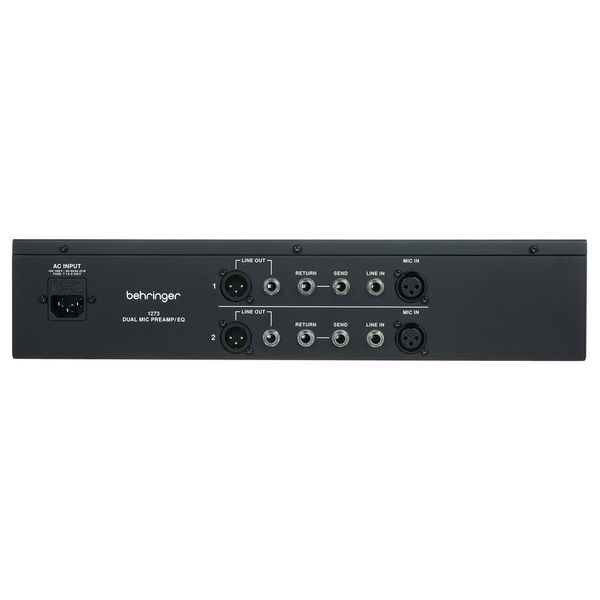

Behringer 1273

Two-Channel Microphone Preamplifier with 3-Band Equaliser

• Fully discrete Class A circuit
• Customised Midas input and output transformers
• 2 Combo inputs: Mic / Line (XLR / jack)
• 2 Instrument inputs: 6.3 mm jack
• 80 dB Gain
• Tone function changes the impedance of the input transformer
• Separate switches for phase, tone, insert, line, instrument and phantom power for each channel
• Switchable induction-based equaliser section with passive third-order high-pass filter
• Boost/cut of the low frequencies at 35, 60, 110 or 220 Hz
• Boost/cut of the mid frequencies at 360, 700, 1,600, 3,200, 4,800 or 7,200 Hz
• Boost/cut of the high frequencies at 10,000, 12,000 or 16,000 Hz
• 5-Stage high-pass filter per channel: 50, 80, 160 or 300 Hz
• LED signal level display with 7 segments per channel
• Format: 19" / 2 U
