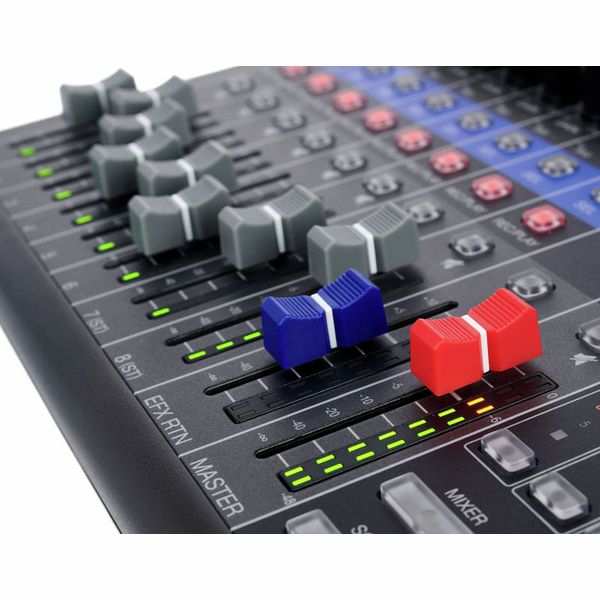

Zoom LiveTrak L-8
Quantity
-
Detail

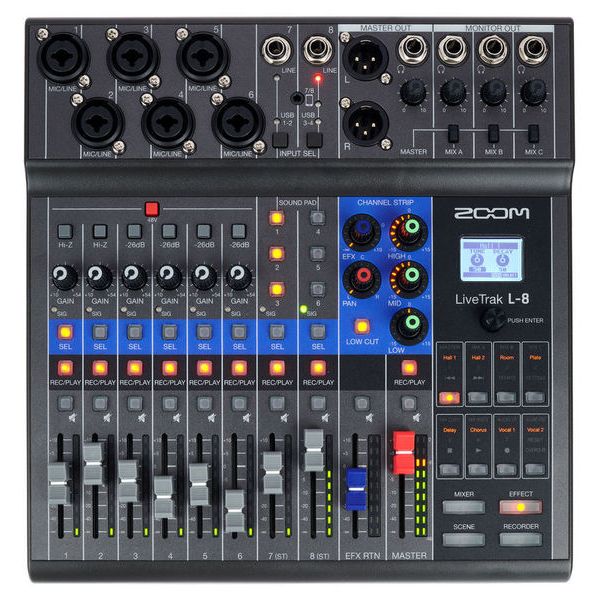

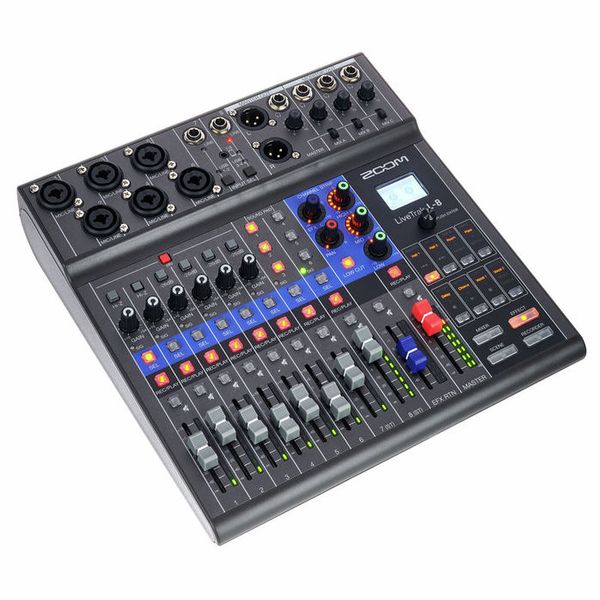

Compact Podcast Mixer, Audio Interface and Recorder
- 8-Channel mixer

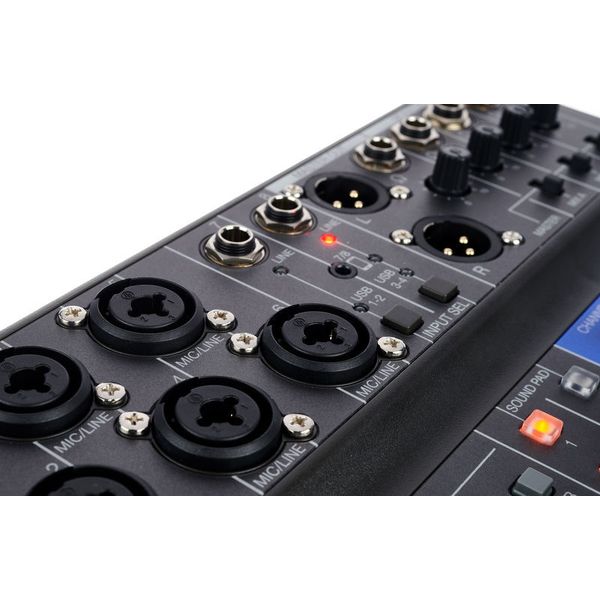

- Channels 1-2 for microphone, line and instrument signals - XLR / TRS combo socket
- Channels 3-6 for microphone and line signals - XLR / TRS combo socket
- Channels 7-8 for line signals - 6.3 mm jack
- USB stereo playback and telephone playback - 3.5 mm TRRS
- Mix-minus function for preventing audio feedback from dial-in guests

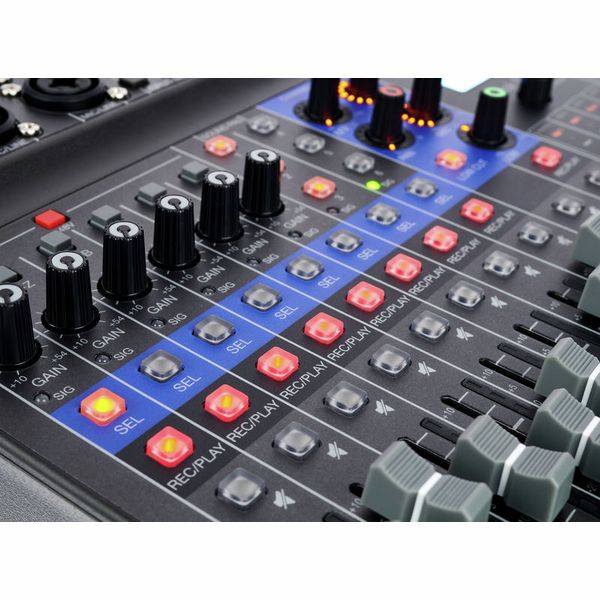

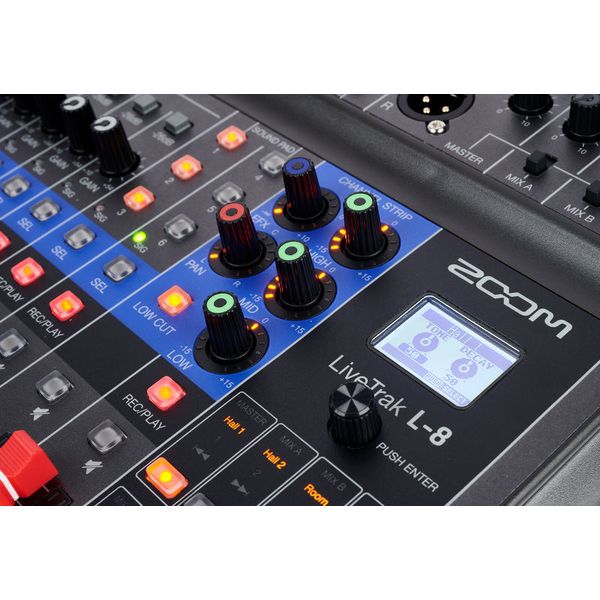

- Per channel: 3-Band EQ, low-cut filter, panorama control, effects loop
- 48 V Phantom power switchable
- Effects section with 8 different programs
- 6 Assignable sound pads for jingles, intros, outros and sound effects

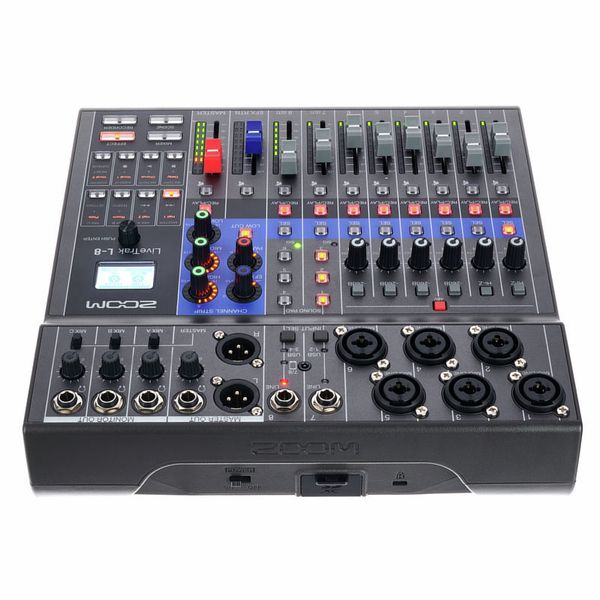

- 4 Headphone outputs (6.3 mm TRS) for main mix and 3 monitor mixes
- Balanced stereo output (XLR)
- 7 Scene memory slots for mixes

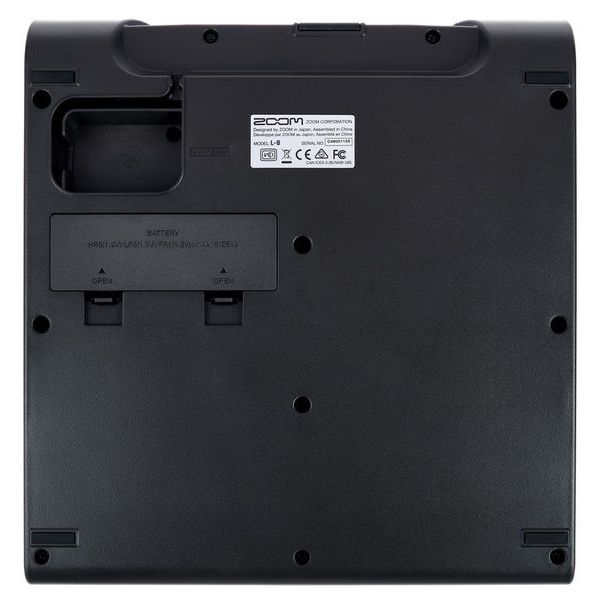

- Battery operation possible (4x AA Mignon, not included in the delivery)

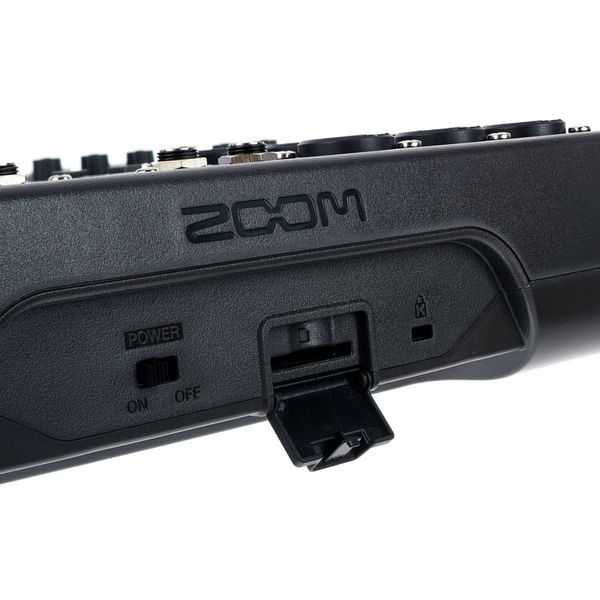

- Record up to 12 tracks on SD card or computer (USB) with a maximum of 24-bit / 96 kHz
- Simultaneously recording on SD card and computer is possible with a maximum of 24-bit / 48 kHz
- Integrated USB audio interface with 12 inputs and 4 outputs
- USB 2.0
- System requirements: Windows 7 or later, macOS 10.12 or later
- Dimensions (W x D x H): 282 x 268 x 74 mm
- Weight: 1.56 kg
- Includes 3.5 mm TRRS cable, USB cable and AD-17 power adapter
- Suitable case: Art.502745 (not included in the delivery)
- Suitable case: Art.498148 (not included in the delivery)
- Available sinceDecember 2019
- Item number477037
- Sales Unit1 piece(s)
- Number Of Tracks12
- Simultaneous Recording: Amount Of Tracks12
- EffectsYes
- Storage MediumSD, USB
- Phantom powerYes
- XLR Connectors6
- Jack Connectors8
- RCA ConnectorsNo
- MIDI InterfaceNone
- USB connectionYes
- Digital ConnectionsNone
- Miscellaneous ConnectorsLineout
- Headphone connectionYes
- Recording / Playback Channels12x4
- User InterfacePhysical
- Number of Mic Inputs6
- Number of faders10
- DSP Input channels8
- Number of Line Inputs8
- DSP Output Channels4
- Instrument Inputs2
- Busses4
- Number of Line Outs2
- Mic Preamp6
- Headphone Outs4
- Mono-Line Input6
- Stereo-Line Input2
- Number of S/PDIF Connectors0
- Number of ADAT Connectors0
- Physical outputs6
- Digital stagebox connectionNo
- Numer of AES/EBU Connectors0
- Ethernet0
- Number of MADI Connectors0
- Word ClockNo
- HotspotNo
- Multitrack RecordYes
- Other ConnectorsNo
- Soundcard interfaceMicro Usb Type B
- Options6 Sound Pads
- integratated Player/Rec via USB/SDMultitrack
- Max. sample rate (kHz)96 kHz
- Recorder FormatWAV
- Max. resolution in bit24 bit
- USB Bus-PoweredYes
- RTANo
- Incl. power supplyYes
- FX Processor1
- USB Version2.0
- 31 Band EQ0
- Width in mm282 mm
- Matrix0
- Depth in mm268 mm
- Height in mm74 mm
- DCA/VCA Groups0
- Midi ConnectorNo
- Sample rate48 kHz
- Separate Personal Monitor systemNo
- Expansion Card slots0
- Digital ADATNo
- Included in delivery3.5mm TRRS cable, USB cable, AD-17 Power Supply, Quick Start Manual
- Digital SPDIFNo
- Digital AES3/ASESEBNo
- Digital MADINo
- Zero latency monitoringYes
- Connection FormatUSB port Micro B
- Digital DanteNo
- 110V capableYes
- CaseNo
- 19" RackmountNo
- Height74 mm
- Width282 mm
- Depth268 mm
- Weight1,5 kg
