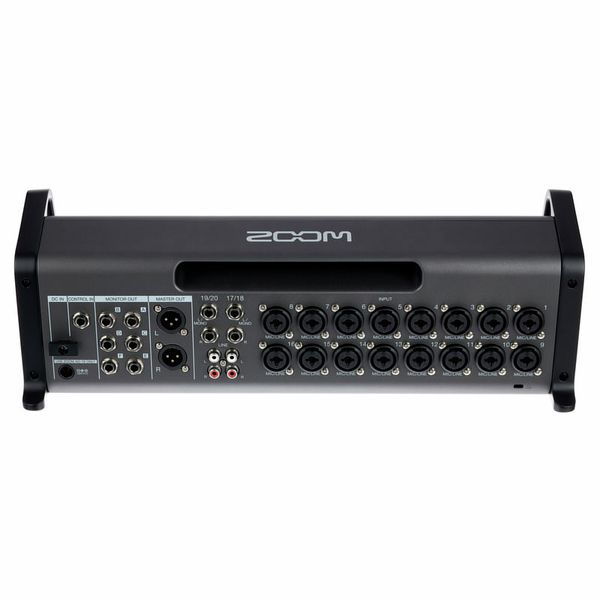

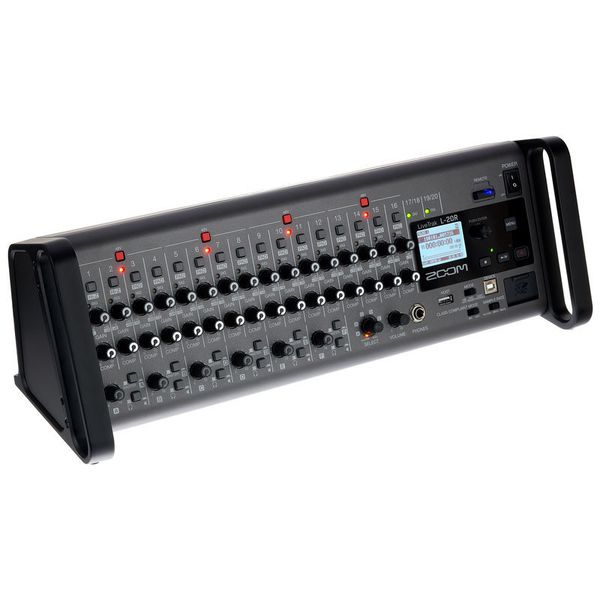

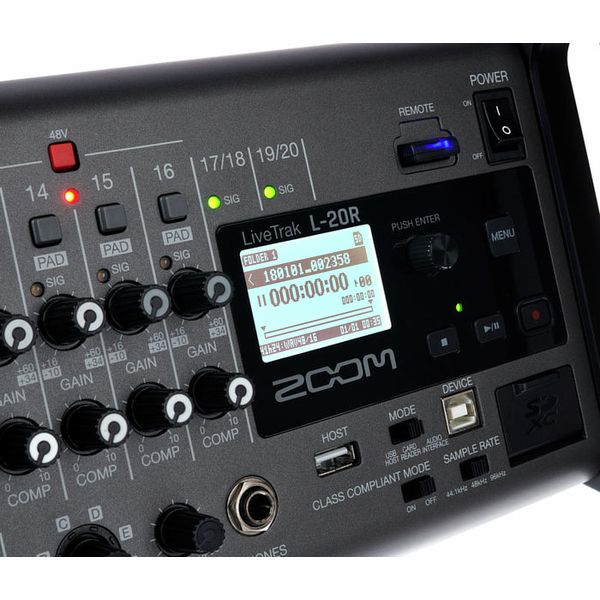

Zoom LiveTrak L-20R
Quantity
-
Detail
Rack-Mountable Digital Mixer, Audio Interface and Recorder
- 20 Input channels: 16 Mono- and 2 stereo channels

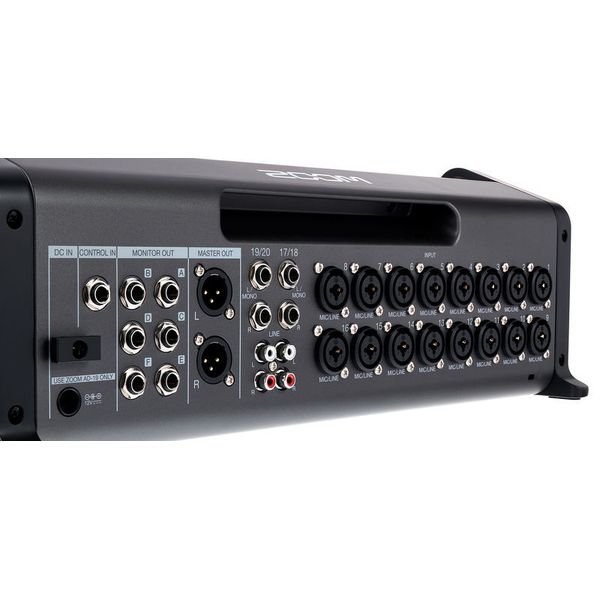

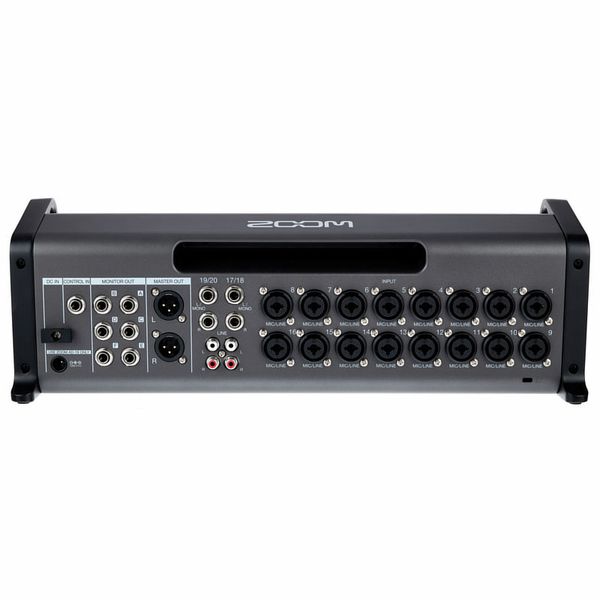

- 16 XLR/TRS combo jacks
- Stereo channels with 2x 6.3 mm TS phone/RCA pin

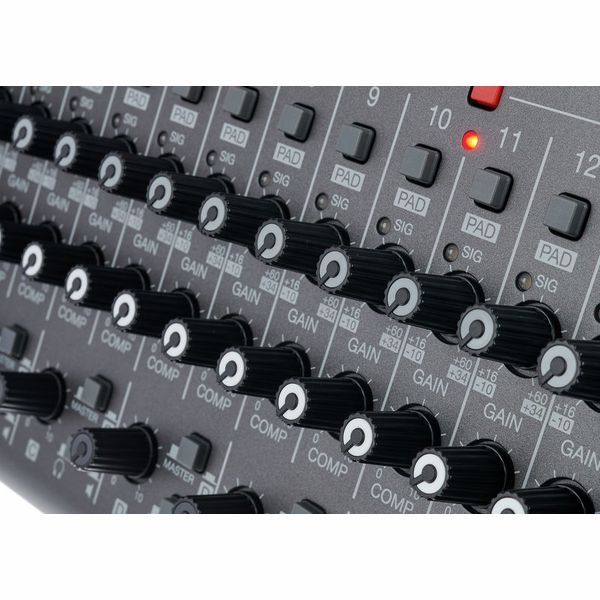

- Per channel: Gain control, 3-band equalizer, panorama, compressor and 2 effects busses
- Hi-Z connections for channels 1-2
- Switchable 26 dB pad for channels 3 to 16
- Low cut per channel, adjustable between 40 - 600 Hz

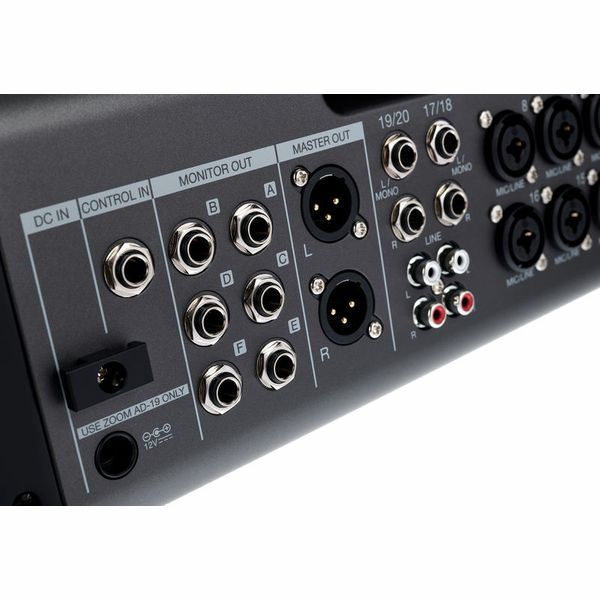

- 6 Configurable monitor paths (6.3 mm jack)
- Monitor outputs can be configured as a headphone output or a normal line level output
- +48 V phantom power, switchable in 4 groups
- 20 Built-in and editable chorus-, delay- and reverb effects
- USB audio interface with 22 inputs and 4 outputs
- Audio recording with up to 24-bit/96 kHz to an SD card (max. 512 GB)
- Memory function for up to 9 mixer scenes
- Compatible with the Remote Mixer app for iPad
- Dimensions (W x D x H): 438 x 158.2 x 151.7 mm
- Weight: 2.49 kg

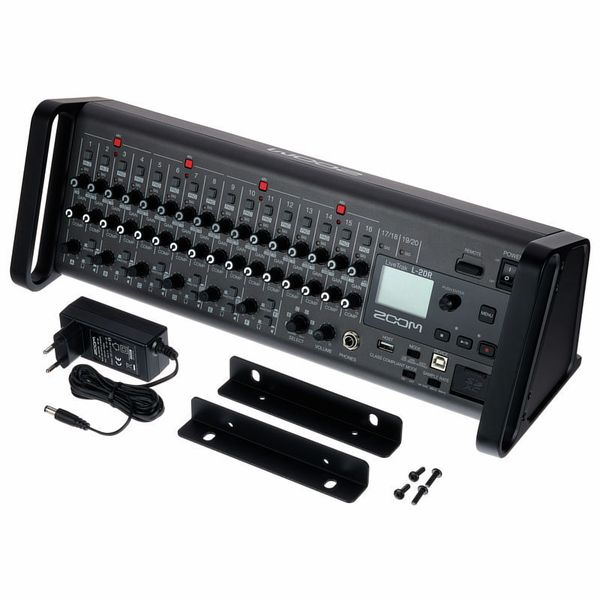

- Includes an AD-19 power supply, BTA-1 Bluetooth adapter, rack ears, and a quick start guide
- Suitable case available under Article Nr 174159 (not included)
- Available sinceAugust 2019
- Item number467749
- Sales Unit1 piece(s)
- Number Of Tracks22
- Simultaneous Recording: Amount Of Tracks22
- EffectsYes
- Phantom powerYes
- XLR Connectors16
- Jack Connectors4
- RCA ConnectorsYes
- MIDI InterfaceNone
- USB connectionYes
- Digital ConnectionsUSB
- Miscellaneous ConnectorsFoot Switch
- Headphone connectionYes
- Recording / Playback Channels22x4
- User Interfaceremote
- Number of faders0
- Number of Mic Inputs16
- DSP Input channels20
- Number of Line Inputs20
- DSP Output Channels8
- Instrument Inputs2
- Number of Line Outs8
- Busses6
- Mic Preamp16
- Headphone Outs7
- Mono-Line Input16
- Stereo-Line Input2
- Number of S/PDIF Connectors0
- Physical outputs8
- Number of ADAT Connectors0
- Numer of AES/EBU Connectors0
- Digital stagebox connectionNo
- Ethernet0
- Number of MADI Connectors0
- Word Clock0
- HotspotBluetooth
- Multitrack RecordYes
- Other ConnectorsUSB
- Soundcard interfaceUSB-B
- OptionsNone
- integratated Player/Rec via USB/SDMultitrack
- Max. sample rate (kHz)96 kHz
- Recorder FormatWAV
- Max. resolution in bit24 bit
- RTANo
- Incl. power supplyYes
- FX Processor2
- 31 Band EQ0
- USB Version2.0
- Width in mm438 mm
- Matrix0
- Depth in mm158,2 mm
- Height in mm151,7 mm
- DCA/VCA Groups0
- Midi ConnectorNo
- Sample rate96 kHz
- Separate Personal Monitor systemNo
- Expansion Card slots0
- Digital ADATNo
- Included in deliveryPower adapter (AD-19), BTA-1 Bluetooth adapter, rack bracket, quick start guide
- Digital SPDIFNo
- Digital AES3/ASESEBNo
- Digital MADINo
- Zero latency monitoringYes
- Connection FormatUSB port Type B, Type A
- Digital DanteNo
- 110V capableYes
- CaseNo
- 19" RackmountYes
- Height152 mm
- Width438 mm
- Depth158 mm
- Weight2,5 kg
