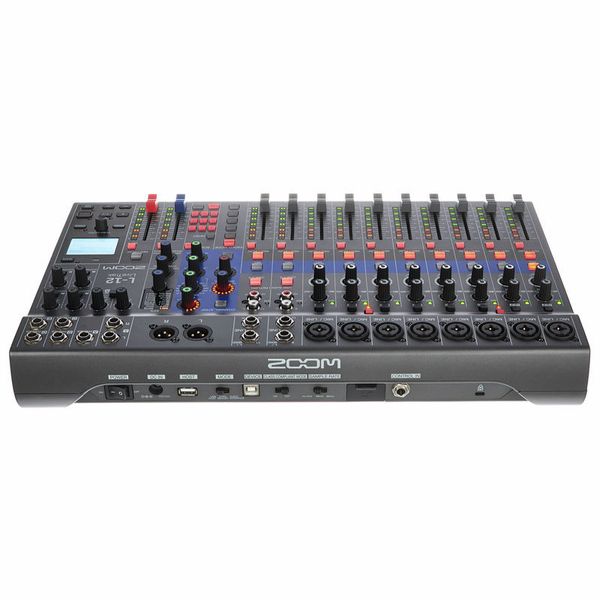

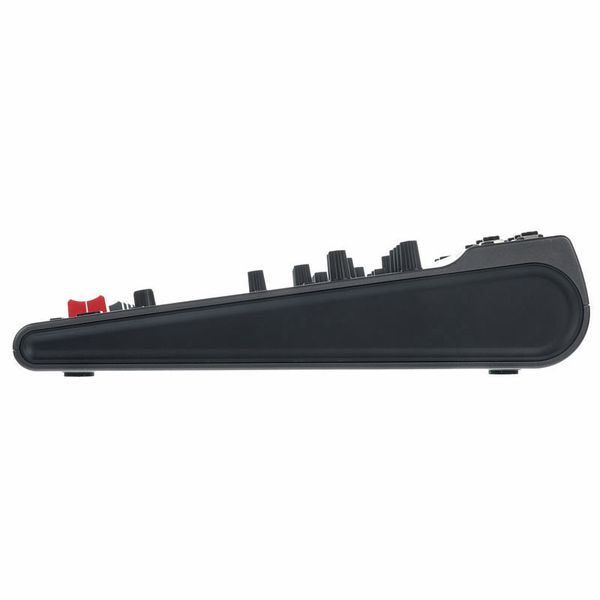

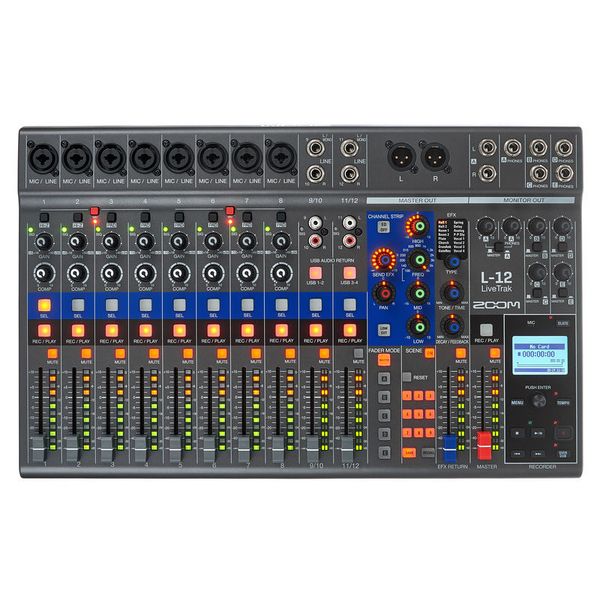

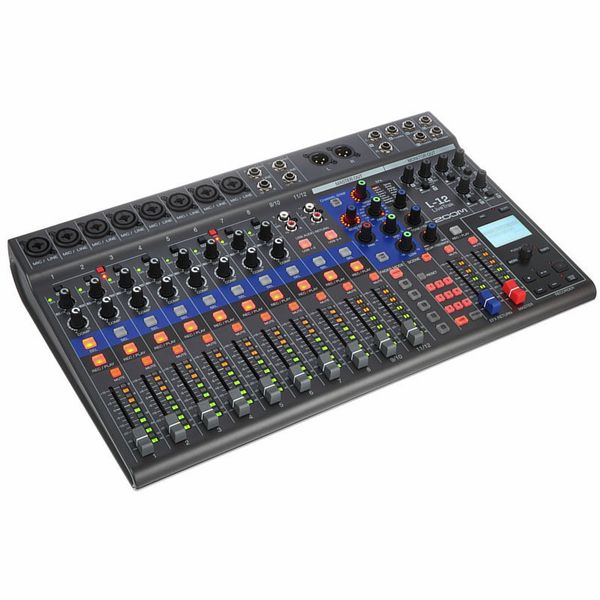

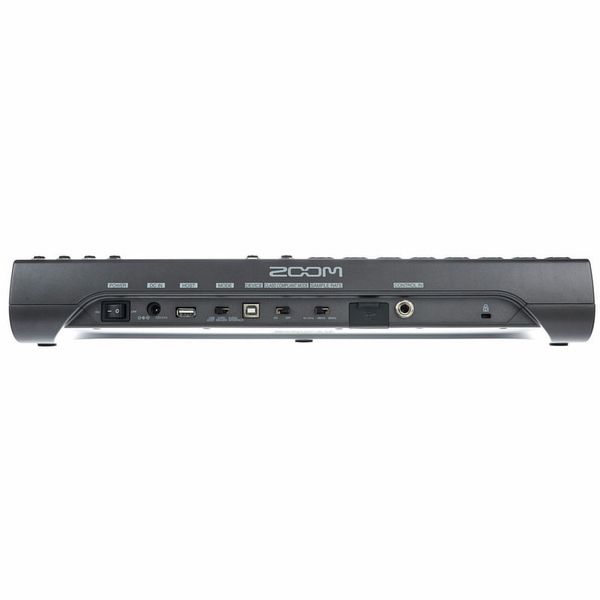

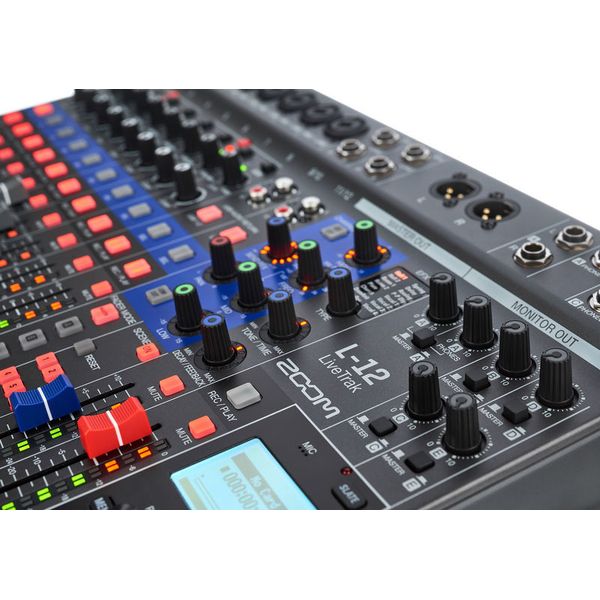

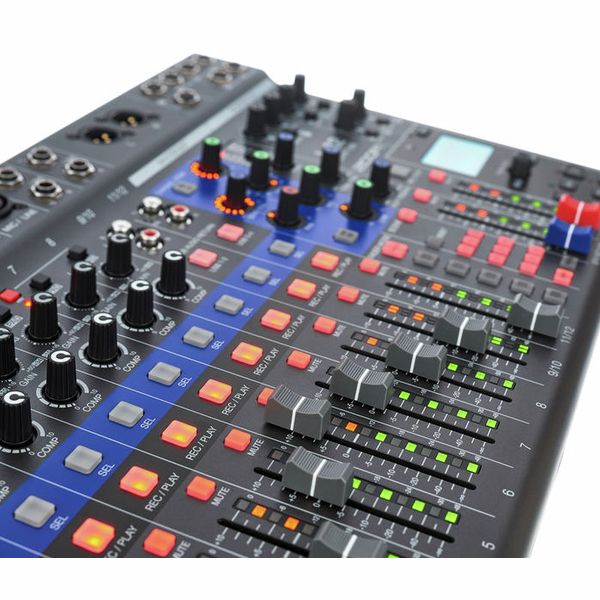

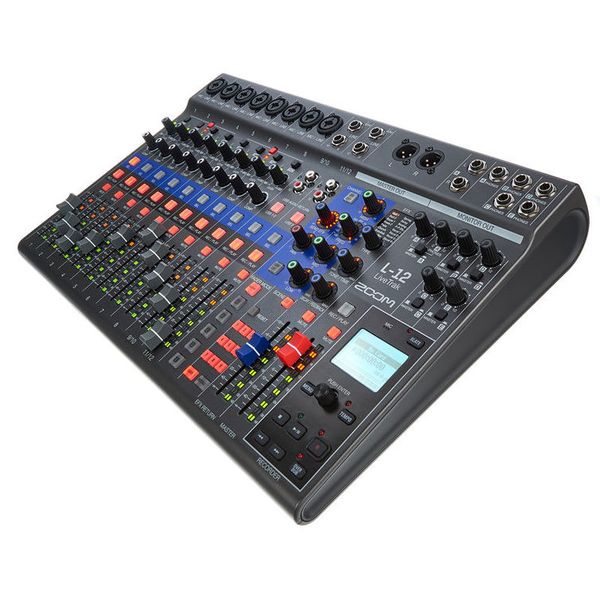

Zoom LiveTrak L-12
Quantity
-
Detail
Combined Mixer, Audio Interface and Recorder
- 12 Discrete channels (8 mono plus 2 stereo) with XLR and 6.3 mm jack
- Simultaneous recording of 14 tracks
- Playback of 12 tracks
- USB audio interface with 24 inputs and 4 outputs
- Sampling frequency: 44.1 / 48/96 kHz
- Five powerful headphone outputs with individually adjustable monitor mixes
- Expand your live stream and recording with backing and click tracks from the computer
- Line inputs in RCA and TS jack format
- 48 V phantom power: channels 1 to 4 and 5 to 8
- Hi-Z Connectors (channels 1-2)
- 26 dB Pad (channels 3 to 8)
- Integrated compressor controller: channels 1 to 8
- Master mute button
- High-pass regulator
- Adjustable stereo panorama
- Master and monitor outputs A-E
- Memory function for up to nine mixer scenes
- 16 Internal, editable chorus, delay and reverb effects
- Built-in talkback microphone
- Class-compliant operation (for iOS compatibility)
- SD-card slot
- Built-in metronome
- Ability to automatically start and stop recording
- Project protection function
- Import and export of projects via the USB 2.0 interface
- Latency compensation for A-D conversion
- Compatible functions for the ZOOM FS01 footswitch
- Includes power supply (AD-19), USB 2.0 cable and quick start guide
- Dimensions (W x D x H): 445 x 282 x 70.5 mm
- Weight. 2.53 kg
- Optional case 492951 (not included)
- Available sinceSeptember 2017
- Item number419407
- Sales Unit1 piece(s)
- Number Of Tracks12
- Simultaneous Recording: Amount Of Tracks14
- EffectsYes
- Storage MediumSD, USB
- Phantom powerYes
- XLR Connectors8
- Jack Connectors4
- RCA ConnectorsYes
- MIDI InterfaceNone
- USB connectionYes
- Digital ConnectionsNone
- Miscellaneous ConnectorsControl In
- Headphone connectionYes
- Recording / Playback Channels14x4
- User InterfacePhysical
- Number of Mic Inputs8
- Number of faders12
- DSP Input channels12
- Number of Line Inputs12
- DSP Output Channels6
- Instrument Inputs2
- Busses6
- Number of Line Outs6
- Mic Preamp8
- Headphone Outs4
- Mono-Line Input8
- Stereo-Line Input2
- Number of S/PDIF Connectors0
- Number of ADAT Connectors0
- Physical outputs9
- Digital stagebox connectionNo
- Numer of AES/EBU Connectors0
- Ethernet0
- Number of MADI Connectors0
- Word ClockNo
- HotspotNo
- Multitrack RecordYes
- Other ConnectorsNo
- Soundcard interfaceUSB-B
- OptionsAudiointerface, Compressor
- integratated Player/Rec via USB/SDMultitrack
- Max. sample rate (kHz)96 kHz
- Recorder FormatWAV
- Max. resolution in bit24 bit
- RTANo
- Incl. power supplyYes
- FX Processor1
- USB Version2.0
- 31 Band EQ0
- Width in mm445 mm
- Matrix0
- Depth in mm282 mm
- Height in mm70,5 mm
- DCA/VCA Groups0
- Midi ConnectorNo
- Sample rate44,1/48/96 kHz
- Separate Personal Monitor systemNo
- Expansion Card slots0
- Digital ADATNo
- Included in deliveryPower Supply
- Digital SPDIFNo
- Digital AES3/ASESEBNo
- Digital MADINo
- Zero latency monitoringYes
- Connection FormatUSB port Type B, Type A
- Digital DanteNo
- 110V capableYes
- CaseNo
- 19" RackmountNo
- Height70 mm
- Width445 mm
- Depth282 mm
- Weight2,5 kg
