RME M-32 DA Pro II
Quantity
-
Detail
32-Channel High-End DA Converter AVB
- 24 Bit / 192 kHz
- Fully balanced circuit design
- Signal-to-noise ratio: 120 dBA

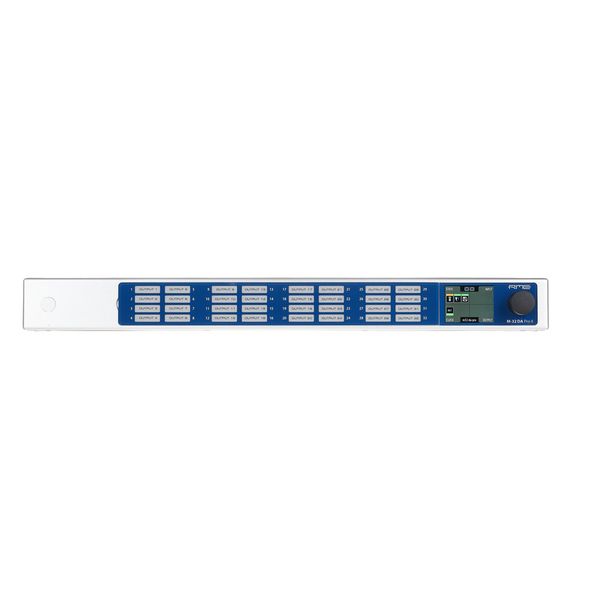

- Large, three-colour backlit channel display with peak / RMS display
- 2" display with rotary knob for complete device control
- SyncCheck and ICC
- Five preset memories
- Channel labelling fields with magnetic cover
- Redundant power supply
- Format: 19" / 1U
- Dimensions (W x H): approx. 483 x 44 mm
- MILAN certified

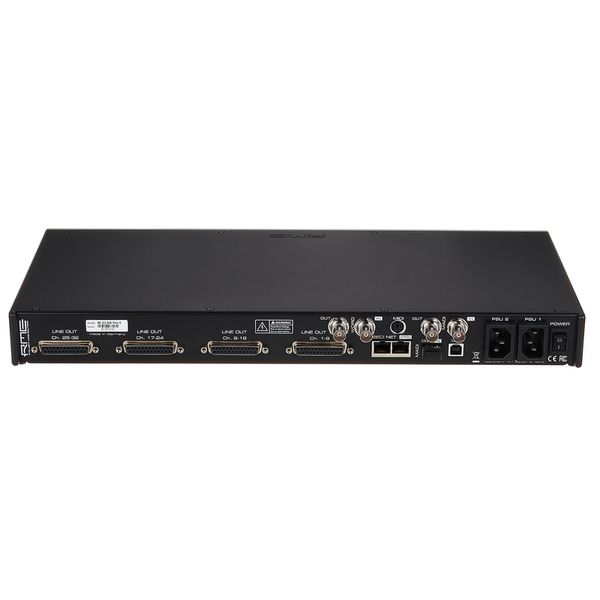

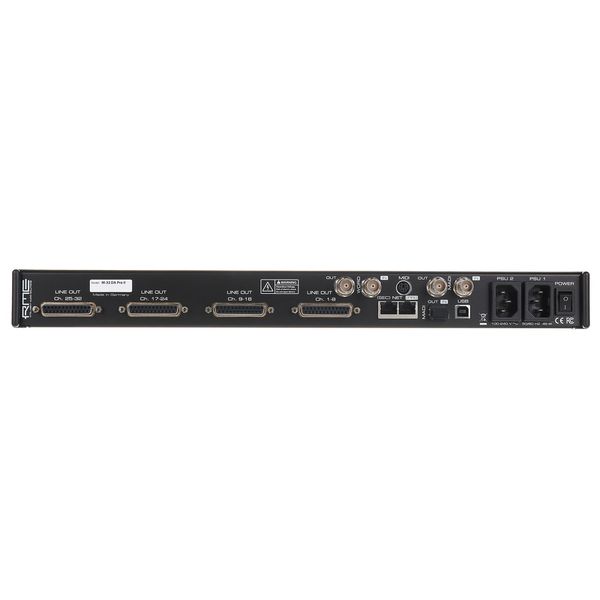

Connections:
- 32 analogue outputs via 4x Sub-D 25-pin connectors (up to +24 dBu)
- Two AVB interfaces: RJ45
- MADI input and output: Coaxial BNC (optional optical SFP module available)
- Word Clock input and output: BNC
- MIDI input and output (via adapter)
- USB 2.0 for remote control (remote control not included)
- Available sinceNovember 2023
- Item number570188
- Sales Unit1 piece(s)
- Amount Of Channels32
- AD ConversionNo
- DA ConversionYes
- Max. Resolution24 bit
- Max. sampling rate192 kHz
- S/PDIF ConnecorNo
- AES/EBU ConnectorNo
- ADATNo
- Word clockYes
- Number of analog inputs0
- Number of Analog Outputs32
- Headphone connectionNo
- Special FeaturesMADI, AVB, redundant PSU
