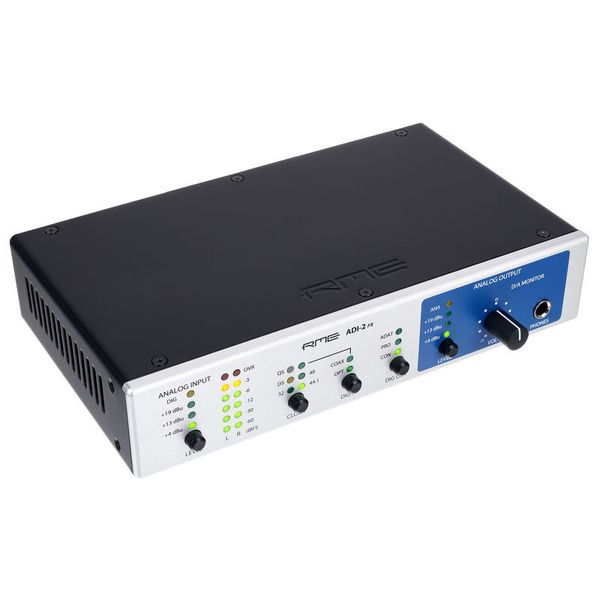

RME ADI-2 FS
Quantity
-
Detail
2-Channel Hi-End AD / DA Converter
- AD / DA conversion from / to S / PDIF, AES / EBU and ADAT up to 192 kHz
- SteadyClock FS
- 3-Stage hardware adaptation of the input and output levels

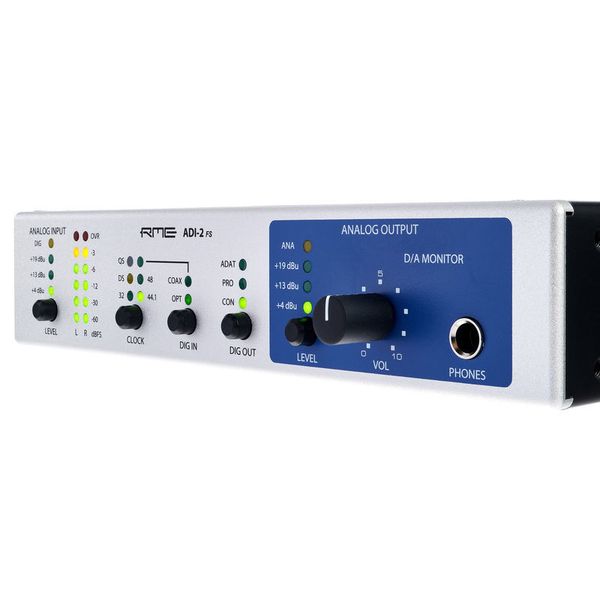

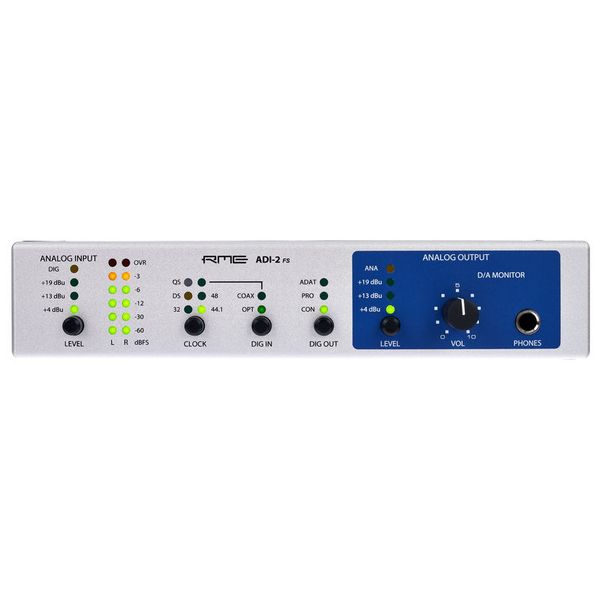

- LED meter

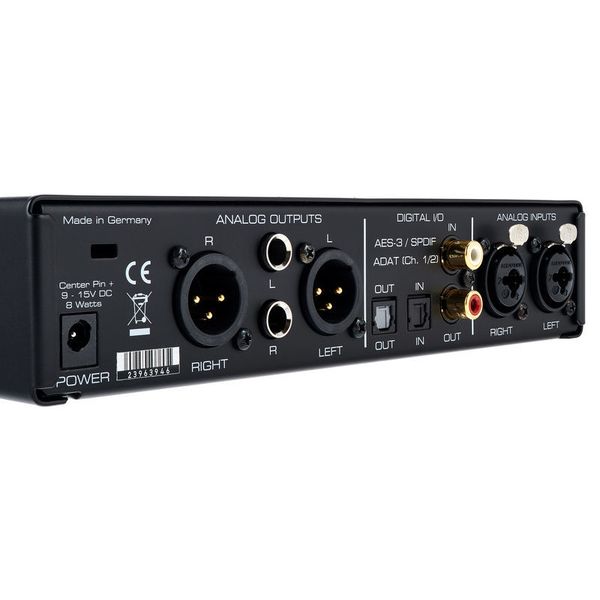

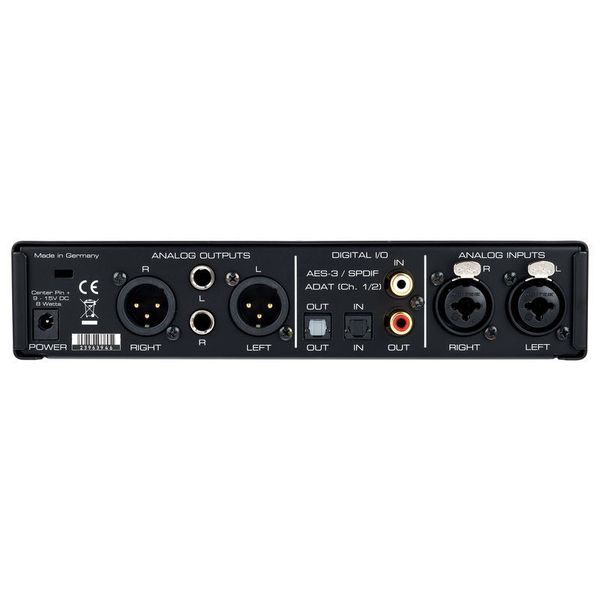

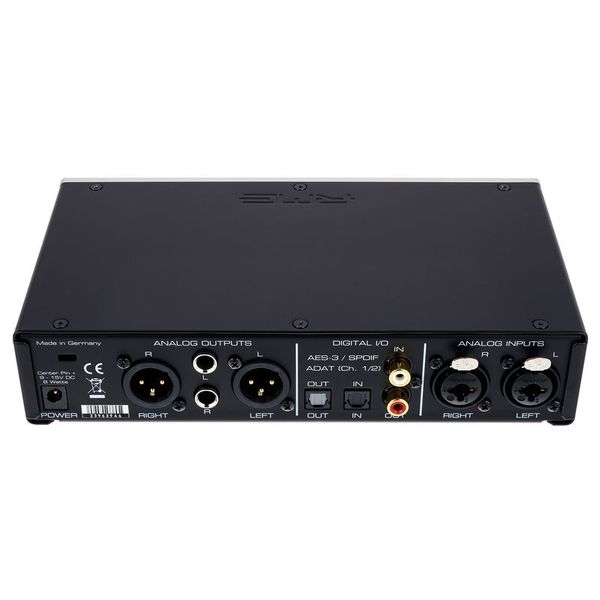

- 2x Balanced line input XLR / 6.3 mm jack combo
- 2x Balanced line output XLR
- 2x Unbalanced line output 6.3 mm jack
- S / PDIF input and output optical and coaxial (AES-3 compatible)
- ADAT input and output (combined with optical S / PDIF)
- Stereo headphone output 6.3 mm jack

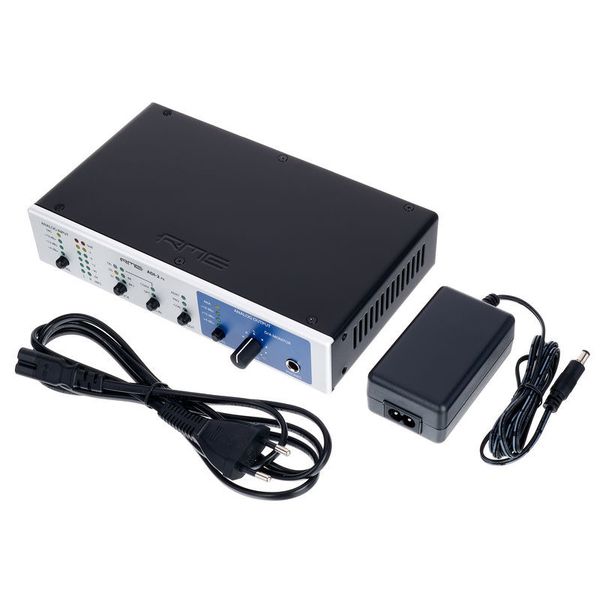

- Connection for external power supply
- Optional rack mount kit (not included)
- Type: 9.5" 1 U
- Dimensions (WxHxD): 215 x 44 x 130 mm
- Available sinceNovember 2019
- Item number448721
- Sales Unit1 piece(s)
- Amount Of Channels2
- AD ConversionYes
- DA ConversionYes
- Max. Resolution24 bit
- Max. sampling rate192 kHz
- S/PDIF ConnecorYes
- AES/EBU ConnectorNo
- ADATYes
- Word clockNo
- Number of analog inputs2
- Number of Analog Outputs4
- Headphone connectionYes
- Special FeaturesS/PDIF Interface AES3 compatible
