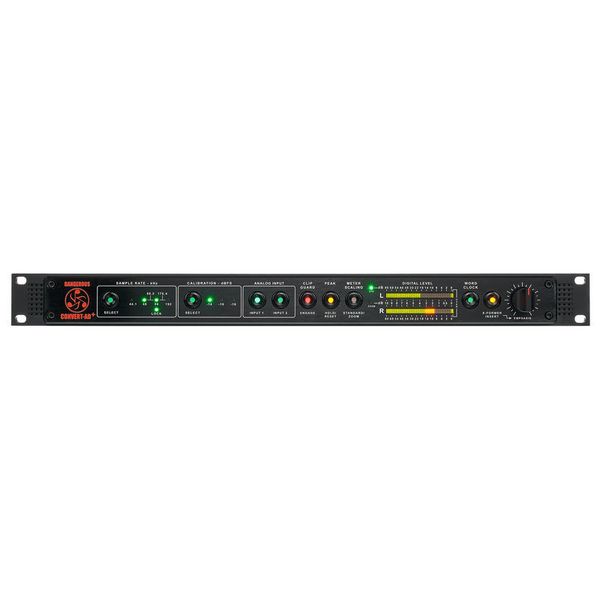

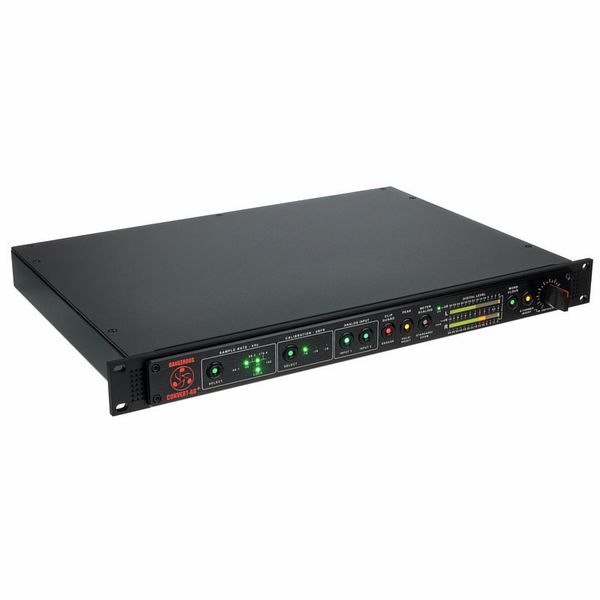

Dangerous Music Convert AD+

Stereo AD converter

• Sample frequency switchable in 6 steps
• For universal compatibility with other devices
• Calibration level in 3 steps switchable for compatibility with other devices
• Two selectable discrete stereo input paths
• "Clip Guard" prevents the red LEDs on the target (such as the DAW) from coming on
• Custom-made digital display with normal and peak hold mode for precise optical feedback
• "Zoom View" For a more accurate, enlarged resolution, only the upper 10dB of the signal level is displayed
• Word Clock with three modes: Internal, External and Master
• X Shaper

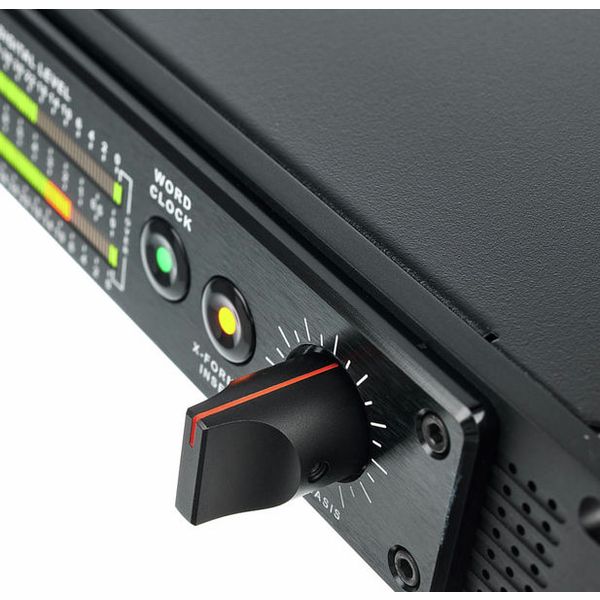

• EMPHASIS Shelving EQ / Compressor
• USB port for Mac / PC
• Frequency Response (@ 96kHz): 20Hz to 20kHz (+0 / -0.035dB)
• IMD (SMPTE): IMD 60Hz / 7kHz +4 dBu in: <0.0012%
• Jitter: 16ps (100Hz to 40KHz), 18ps (100Hz to 1MHz)
• Crosstalk attenuation: 118dBu from 15 Hz to 40kHz (+/- 0.04 dB)
• 3-Pin IEC Auto Switching Power Supply, 120V (US) / 240V (Europe)
• Dimensions: 19" 1U

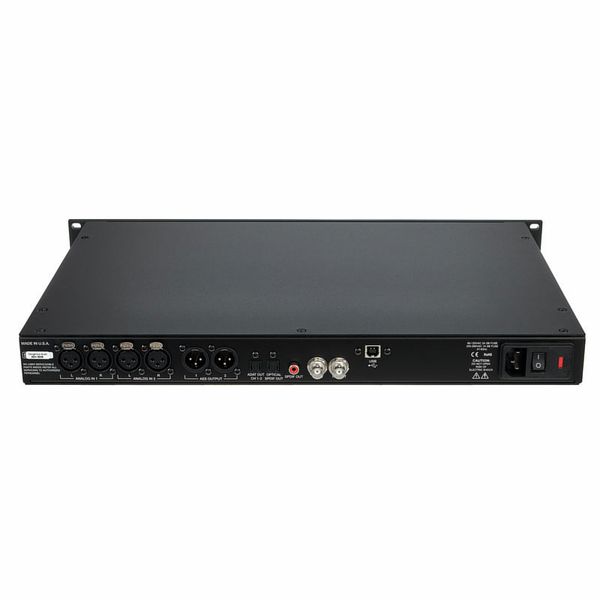

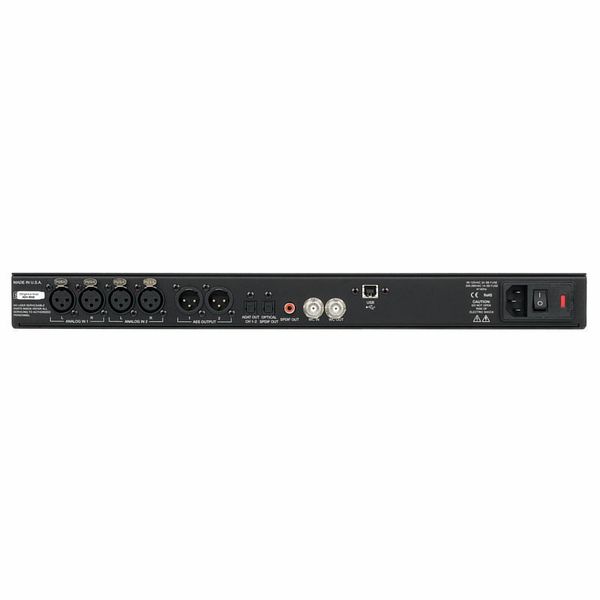

Inputs / outputs:

• 2 Switchable stereo input channels
• 2 AES outputs
• ADAT Optical output
• SPDIF Optical output
• SPDIF COAX output
