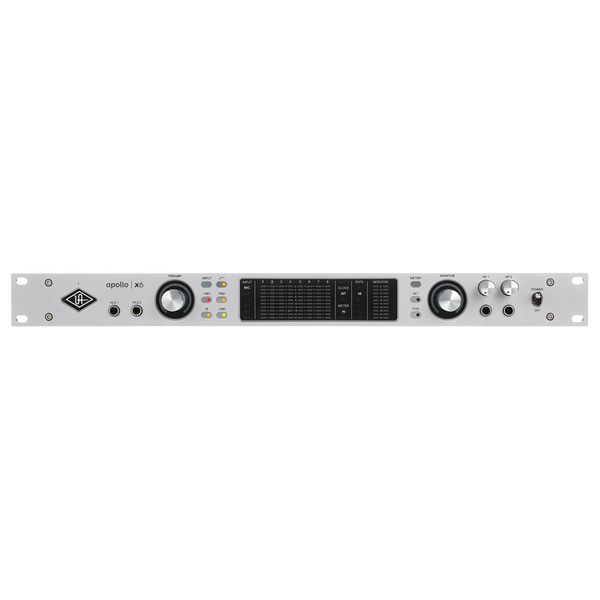

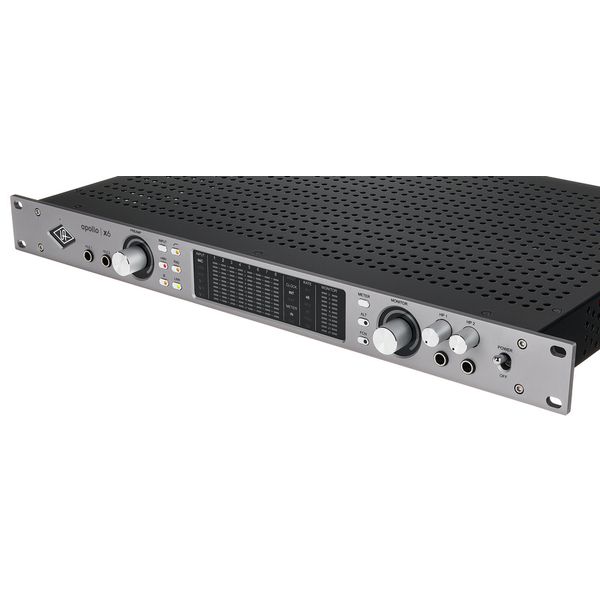

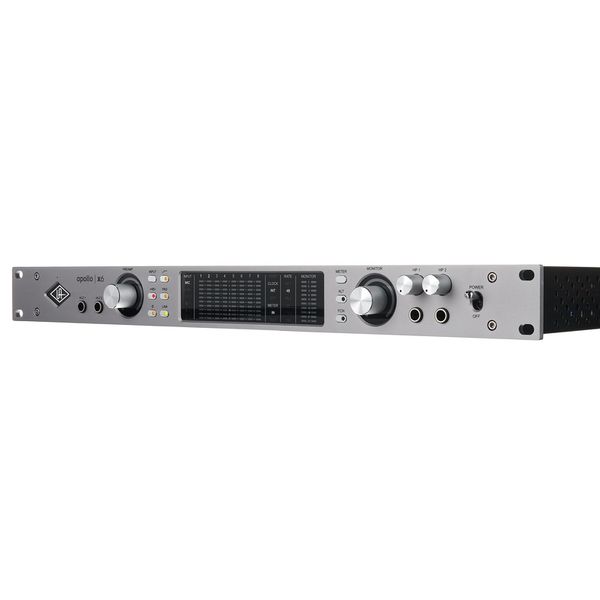

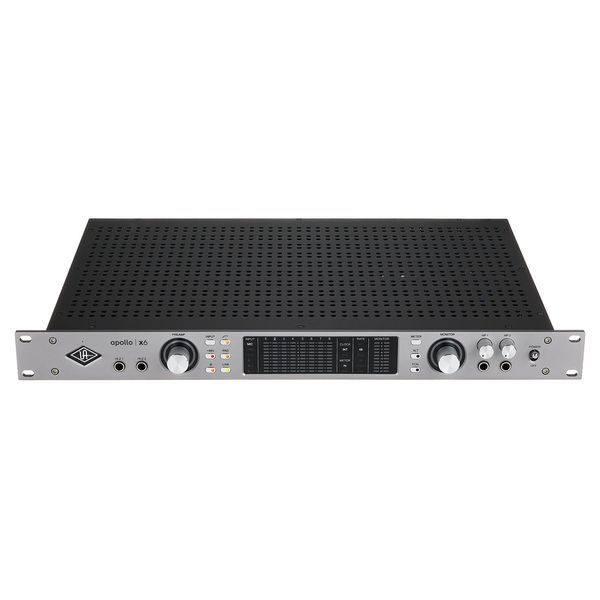

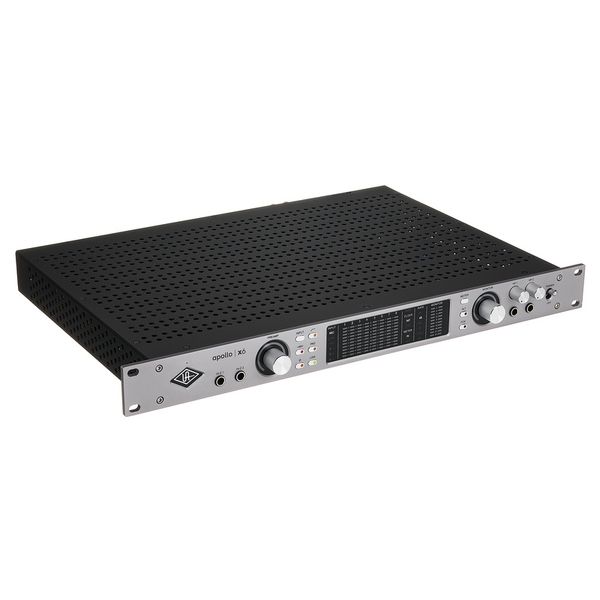

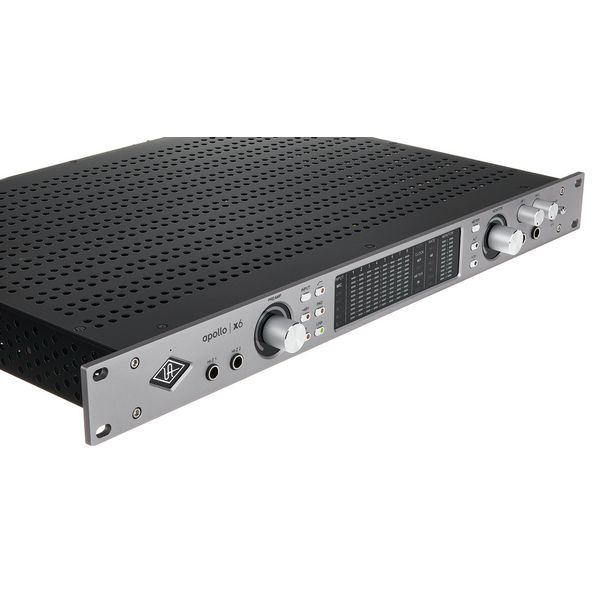

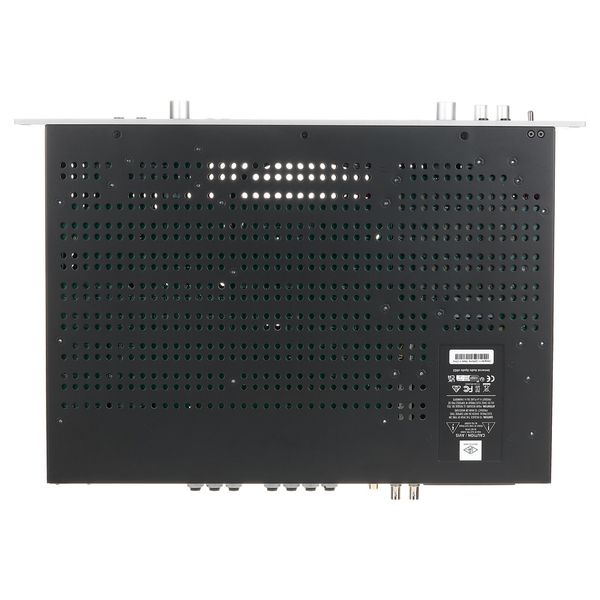

      Universal Audio Apollo x6 Gen2 Essentials+

Universal Audio Apollo x6 Gen2 Essentials+
                      Quantity

                  -
    Detail
16 x 22 Thunderbolt 3 Audio Interface
- 24 Bit / 192 kHz
 - 6-Core SHARC DSP for internal UAD real-time processing
 - 2 Unison microphone preamps
 - Auto Gain function
 - +48 V phantom power
 - Pad
 - Low-cut
 - Phase reverse
 - Switch for monitor switching
 - Dim or mono assignable function button
 - LED meter
 - Built-in talkback microphone
 - Support for surround formats up to 5.1 with speaker calibration and downmix
 - Dual Crystal Clocking for a low-jitter environment and pure artefact-free recordings and stable stereo imaging

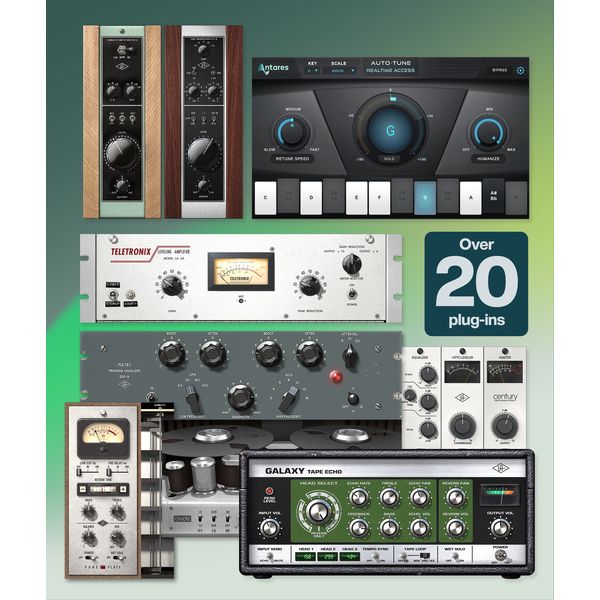

 - Includes Essentials+ Plug-in Bundle for Mac/Windows
 - Compatible with Thunderbolt 2 with optional Thunderbolt 2 to 3 adapter (not included)
 - Up to 4 Apollos cascadable with Thunderbolt connection
 - Format: 19" / 1U

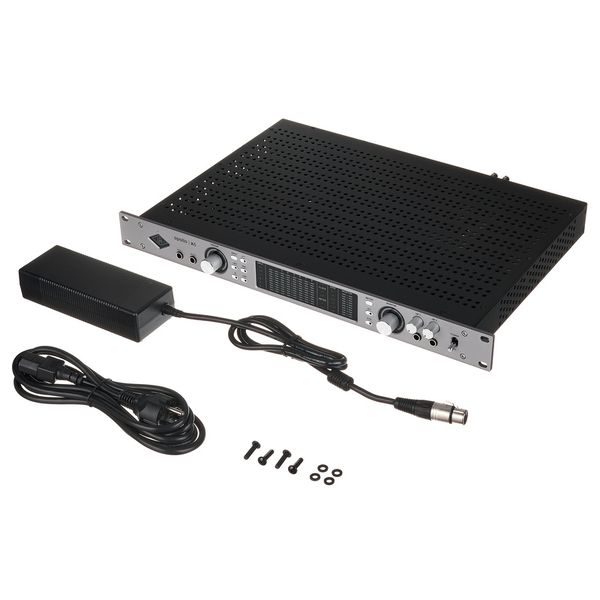

 - Includes external power supply

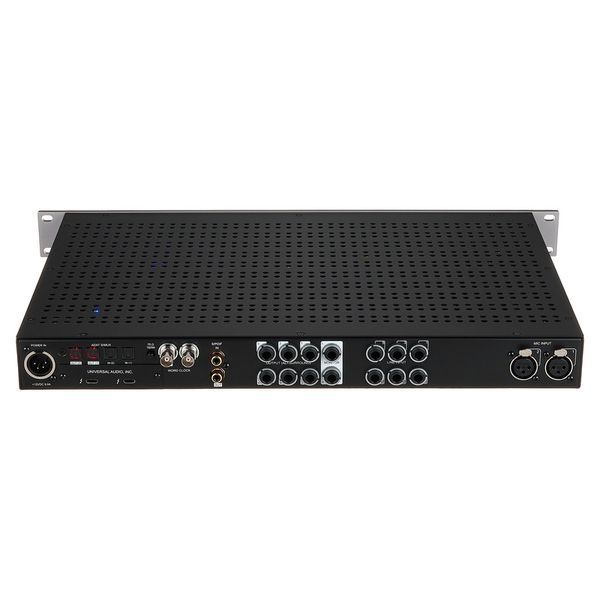

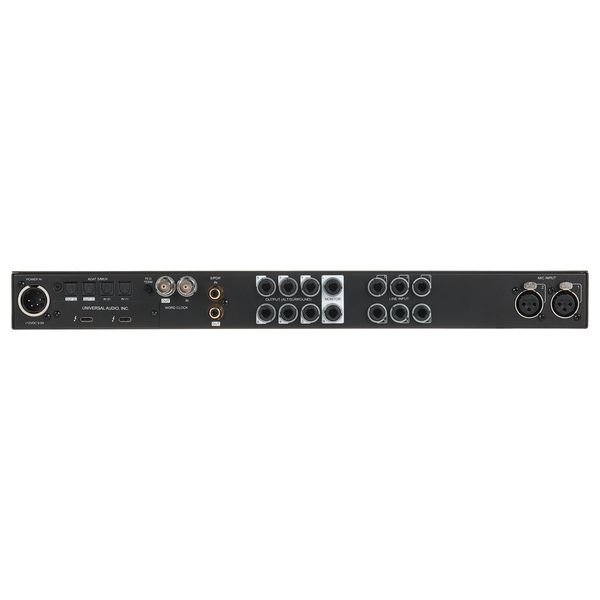

Connectors:
- 2 Microphone inputs: XLR
 - 2 Hi-Z inputs: 6.3 mm jack
 - 6 Line inputs: 6.3 mm jack
 - 2 Monitor outputs: 6.3 mm jack
 - 6 Line outputs: 6.3 mm jack
 - S/PDIF input and output: coaxial
 - 2 ADAT inputs and outputs
 - Word Clock input and output: BNC
 - 2 Headphone connections: 6.3 mm stereo jack
 - 2 Thunderbolt 3

- Available sinceOctober 2024
 - Item number598500
 - Sales Unit1 piece(s)
 - Recording / Playback Channels16x22
 - Number of Mic Inputs2
 - Number of Line Inputs6
 - Number of Instrument Inputs2
 - Number of Line Outputs8
 - Headphone Outs2
 - Phantom PowerYes
 - Number of S/PDIF Connectors1
 - Number of ADAT Connectors2
 - AES/EBU Connectors0
 - Number of MADI Connectors0
 - Ethernet0
 - Other ConnectorsNo
 - MIDI ConnectorsNo
 - Word Clock1xIn, 1xOut
 - Max. Samplerate192 kHz
 - Max. Resolution in Bit24 bit
 - Bus-PoweredNo
 - Incl. Power SupplyYes
 - Windows Thunderbolt driverYes
 - Thunderbolt Version3
 - Width in mm483 mm
 - Depth in mm308 mm
 - Height in mm44 mm
