Yamaha AG 03 MK2 Live Stream Pack BK
Quantity
-
Detail
Live Streaming Set
- Consists of AG 03 MK2 3-channel live streaming mixer + YCM-01 condenser microphone + YH-MT01 closed headphones and 3m XLR microphone cable

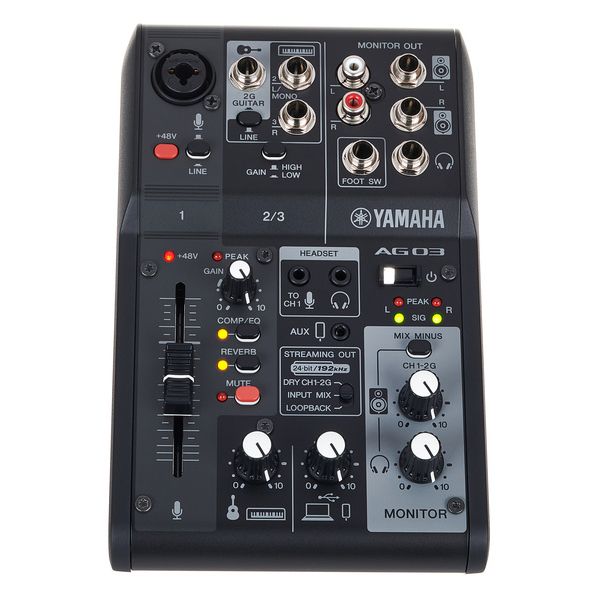

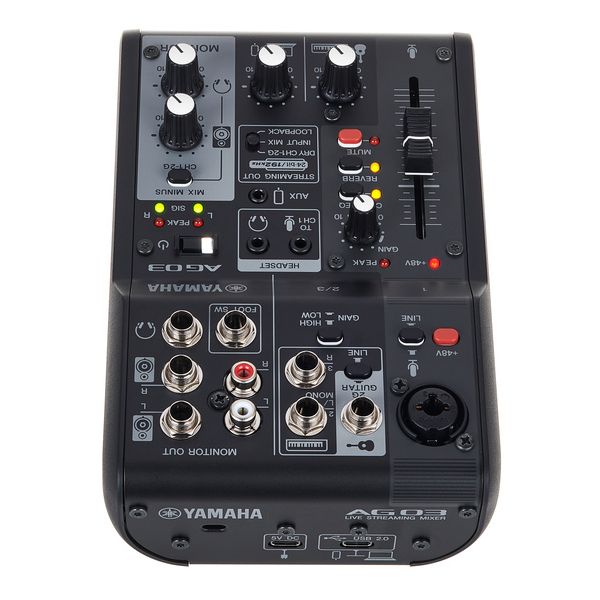

Features AG 03 MK2:
- Combined USB 2.0 audio interface and mixing console
- 24-Bit / 192 kHz
- +48V phantom power switchable
- Pad switch
- DSP effects such as compressor, equaliser and reverb
- 60 Faders
- FX bypass (via optional footswitch)
- iPad compatible with optional Camera Connection Kit (not included)
- Connections: 1x microphone/line input XLR/jack combo plug
- 1x Hi-Z jack input
- 2x Line input: 6.3 mm jack (input 2 switchable between Hi-Z and line)
- 2 Line output: 6.3 mm jack
- 2x Line-Out (RCA)
- Stereo headphone output: 6.3 mm jack
- Footswitch connection
- Headset connection: 2x 3.5 mm mini-jack (earphones and microphone)
- Aux input: 3.5 mm mini jack Stereo
- USB Type-C port
- Power supply: 5 V, 500 mA
- Includes Steinberg Cubase AI
- Dimensions: 129 x 63 x 202 mm
- Weight: 0.8 kg
- Colour: Black

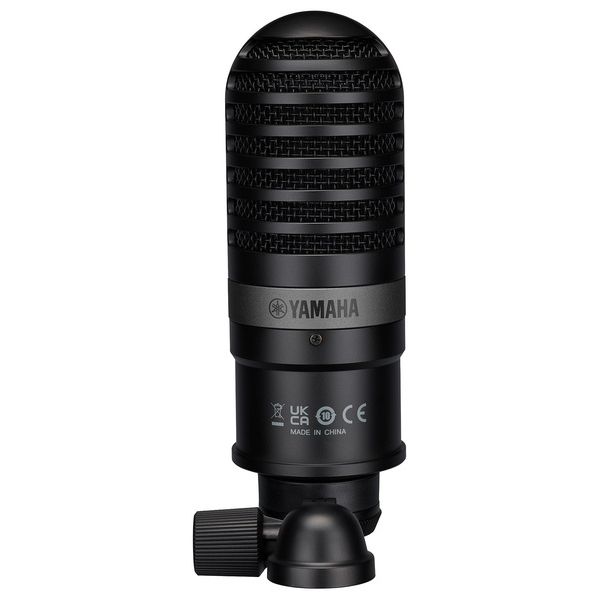

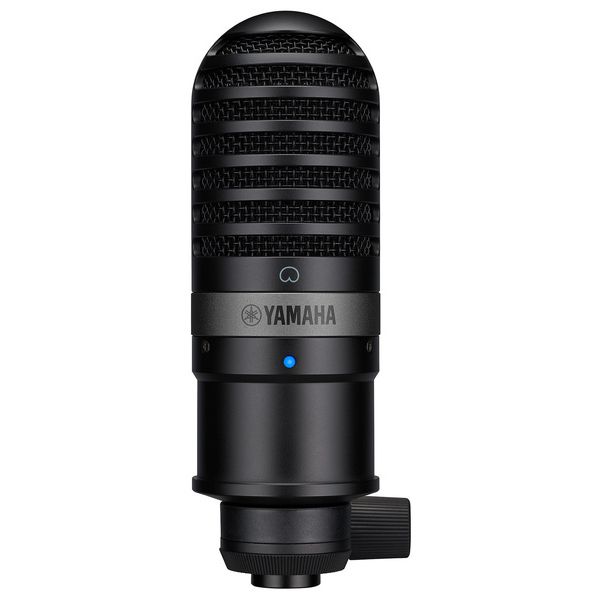

Features YCM-01 Mikrofon
- Studio Condenser Microphone
- Polar pattern: Cardioid
- Frequency range: 30 Hz - 20 kHz
- Max. SPL: 130dB (THD 1,0% 1 KHz)
- Sensitivity: -37dB±3dB (0dB=1V/Pa at 1kHz)
- Requires +48V phantom power
- Includes microphone stand holder and storage bag
- Dimensions (D x L): 55 x 166 mm
- Weight: 0.4 kg
- Colour: Black
- Available sinceOctober 2023
- Item number578143
- Sales Unit1 piece(s)
- Simultaneous channels2
- Mic-In1
- Mono Line-in2
- Stereo-In1
- Hi-Z Input1
- Phantom Power48V
- Master Out6,3 mm bal.
- Aux Ways1
- max. Pre Aux Channels0
- PC InterfaceUSB-C
- Interface Input2
- Interface Output2
- Multitrack-RecordingNo
- USB/SD Direct RecordingNo
- Rec Out (Analog)No
- Low CutNo
- InsertsNo
- Direct OutNo
- Parametric EQNo
- CompressorYes
- PanoramaNo
- PFLNo
- FX Processor1
- USB PlaybackNo
- Bluetooth PlaybackNo
- Lamp connectionNo
- FootswitchButton
- Bag203410
- MatrixmixerNo
- Zones0
- 19" RackmountNo
- Recording / Playback Channels2x2
- Width129 mm
- Depth202 mm
- Number of Mic Inputs1
- Height63 mm
- Number of Line Inputs4
- altezza63 mm
- CardioidYes
- Weight0,8 kg
- Instrument Inputs1
- Parallel usable Channels2
- Number of Line Outs4
- Mic Ins1
- Headphone Outs1
- Mono Line Ins2
- Phantom powerYes
- Number of S/PDIF Connectors0
- Stereo Ins1
- Number of ADAT Connectors0
- Numer of AES/EBU Connectors0
- Number of MADI Connectors0
- Word ClockNo
- Ethernet0
- Number of Pre Aux max.0
- Other ConnectorsNo
- Audio Interface Input2
- Max. sample rate (kHz)192 kHz
- Audio Interface Output2
- Max. resolution in bit24 bit
- USB Bus-PoweredYes
- USB/SD Direct RecordNo
- USB Version2.0
- Width in mm129 mm
- Depth in mm202 mm
- Height in mm63 mm
- Effect Processor1
- USB PlayNo
- Bluetooth PlayNo
- Lamp ConnectorNo
- Included in deliverySoftware
- Foot SwitchButton
- Zero latency monitoringYes
- Connection Format2x USB port Type C
- RackmountNo
