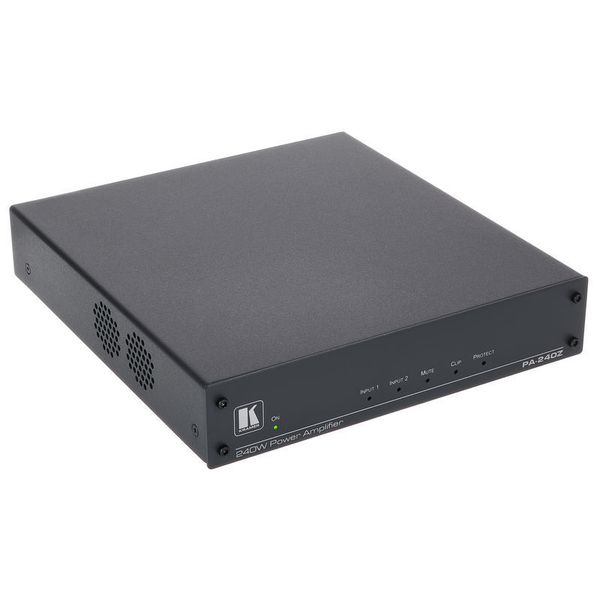

Kramer PA-240Z 240W Power Amplifier

Power Amplifier

• 1 x 240 W @ 70 V / 100 V
• 2 x 120 W @ 4 / 8 Ohm
• With balanced and unbalanced inputs and line level output
• 2 Inputs with individual reinforcement
• Each output supports independent input mixing with master volume, 3-band parametric EQ and selectable high-pass filter
• Controllable via RS-232 and IP
• Integrated DSP

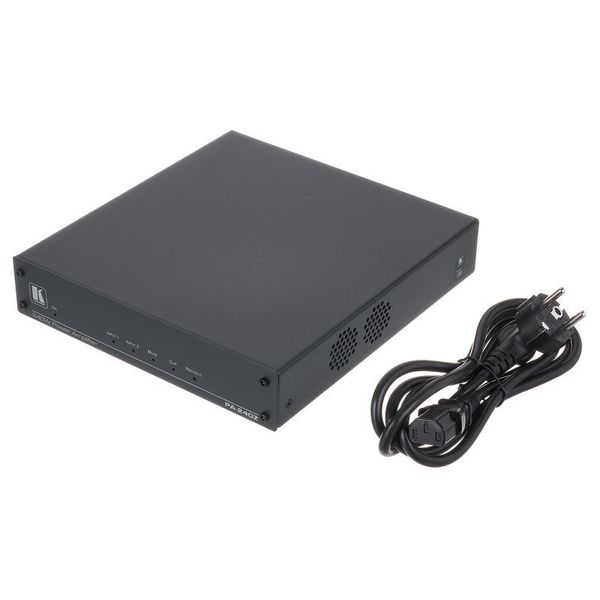

• Incl. power cable

Technical data:

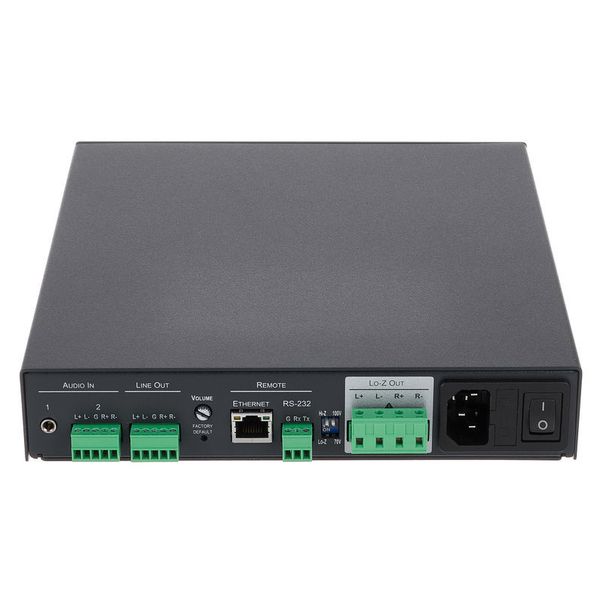

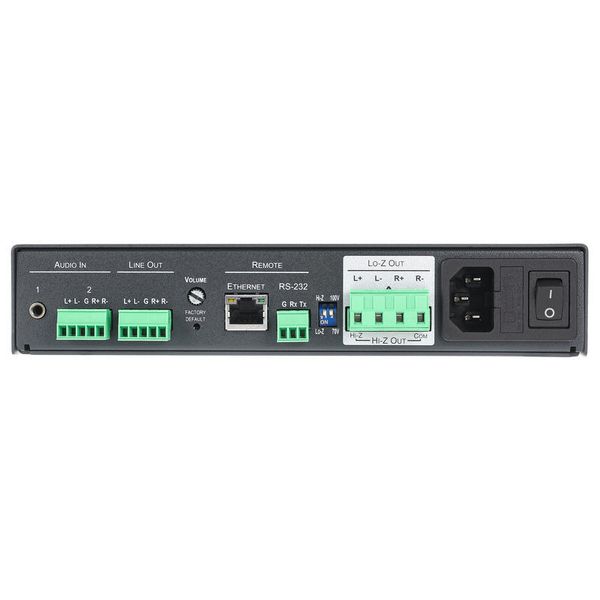

• Inputs: 1 x unbalanced stereo with 3.5 mm jack, 1 x balanced stereo +4 dBu/10 kO with 5-pole terminal block
• Outputs: 1 x balanced stereo line level with 5-pole terminal block, 1 x stereo or 1 x mono speaker output with 4-pole large terminal block
• Input sensitivity: Reaches full power at 0.3 V (-10 dBV)
• Output power: 2x 120 W @4 ohms or 8 ohms or 1 x 240 W @70 V or 100 V
• Amplifier type: Class D
• Max. voltage gain: 26 dB SE/32 dB BTL
• Dynamic range: 119 dB
• Frequency range: 20 to 20000 Hz @ +/-1 dB
• Signal to noise ratio: 80 dB - 10 dBV, 20 to 20,000 Hz
• Control: Screw trimmer as gain attenuator
• IP and RS-232
• Audio THD+noise: 0.003 % (1,000 Hz @ 1 W)
• Audio 2 harmonic: 0.08 % @75 W RMS @ 4 ohms, 6670 Hz
• Power supply: Universal mains 85 to 265 VAC (full power at 120 to 230 V)
• Overall efficiency: 89.5 %.
• Dimensions: 21.5 x 16.3 x 4.4 cm
• Weight: 0.9 kg
