QSC KLA12/KLA181 Flying Bundle
Quantity
-
Detail
Bundle offer comprising

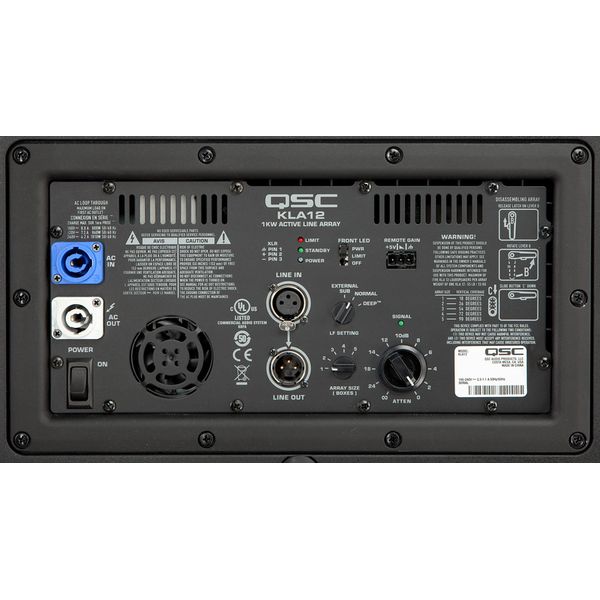

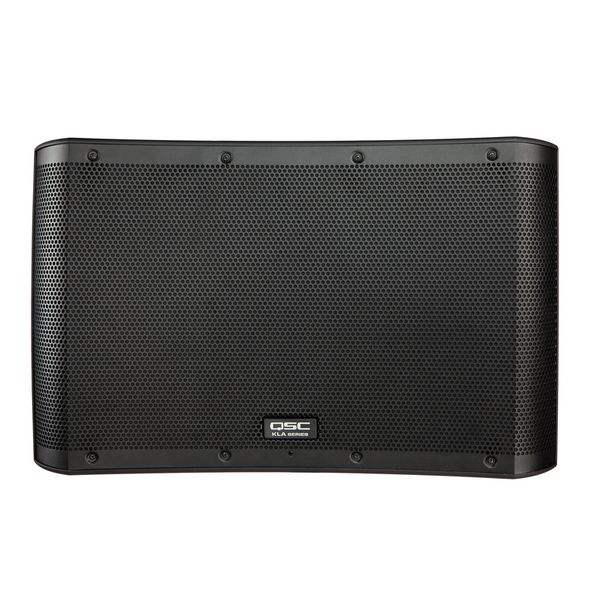

6x QSC KLA12
Speaker
- Line Array System
- Power: 500 W x 500 W amplifier
- Lightweight ABS housing

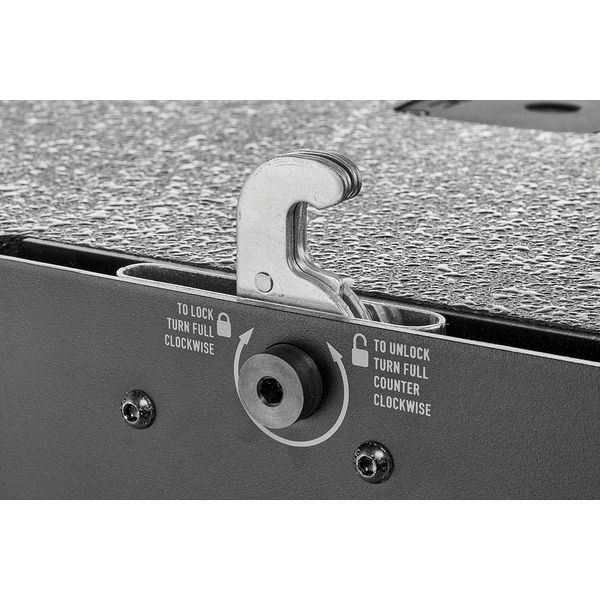

- Solo rigging system (without tools)
- Ar-Q frequency optimisation adjusts the system to the appropriate number of speakers, up to five elements (KLA12) and two basses (KLA181) on one frame
- Coverage pattern: 90° x 18°
- Equipped with: 1.75" Voice coil
- Power Twist input and output
- Pole mount
- Dimensions: 422 x 594 x 422 mm
- Weight: 25 Kg
- Suitable array frame: Art.268642 (not included in delivery)

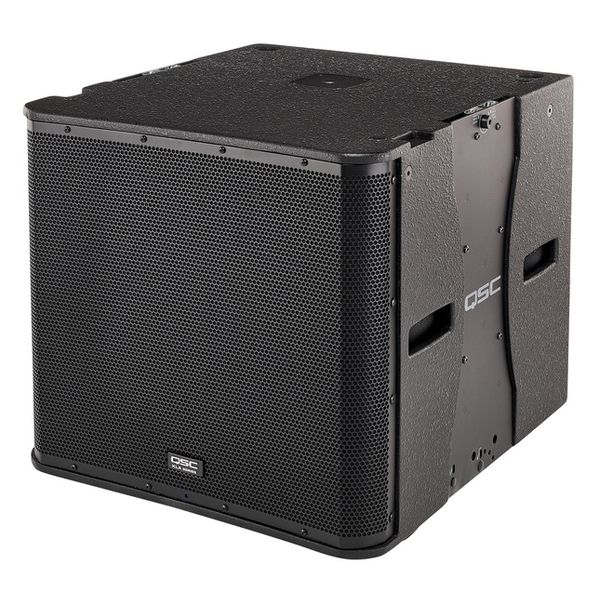

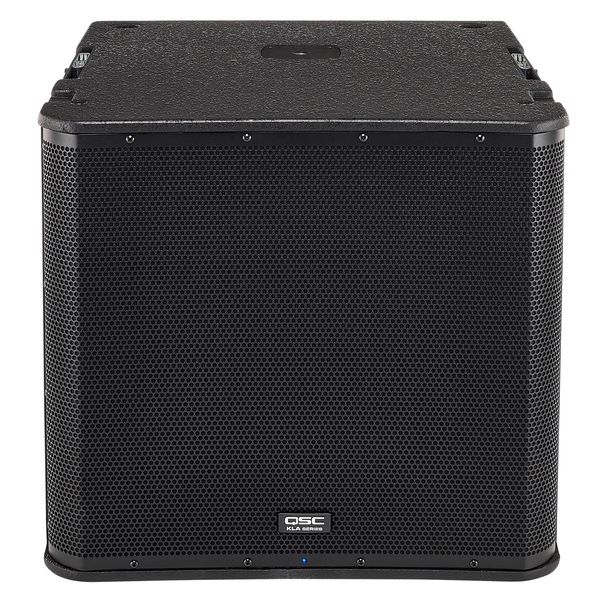

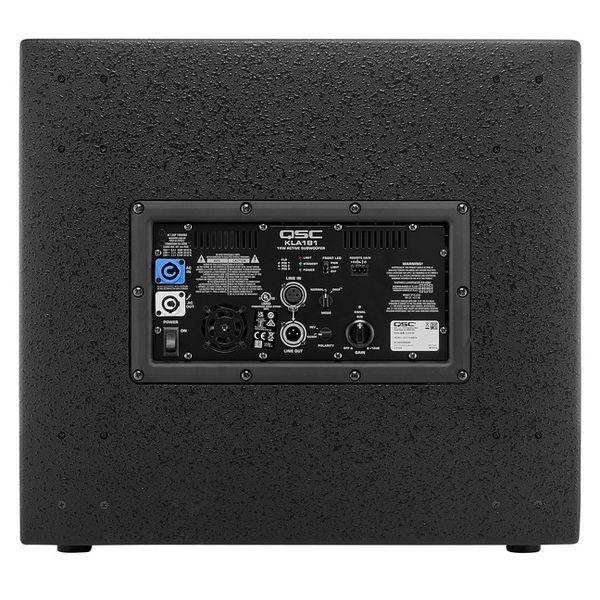

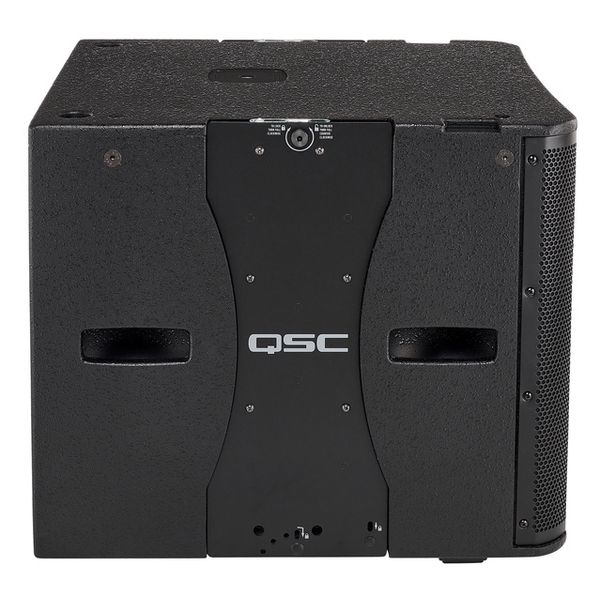

4x QSC KLA181
Subwoofer
- Power rating: 1000 Watt amplifier module
- Equipped with: 18"
- SPL: 135 dB peak SPL
- Power Twist input and output
- Dimensions: 653 x 594 x 653 mm
- Weight: 47.2 kg

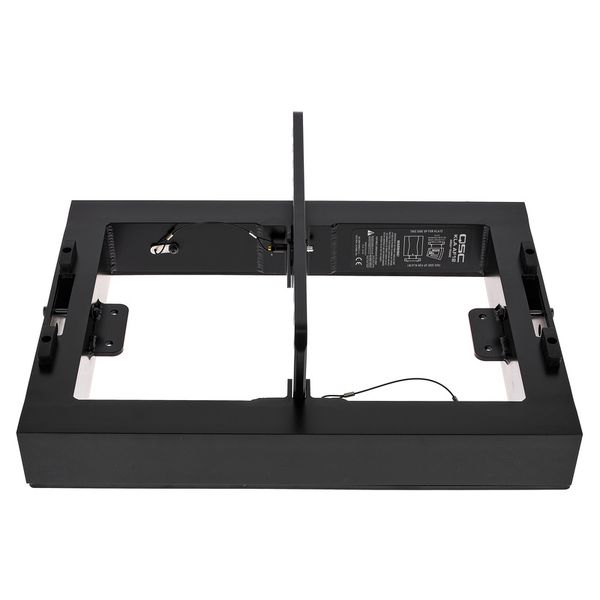

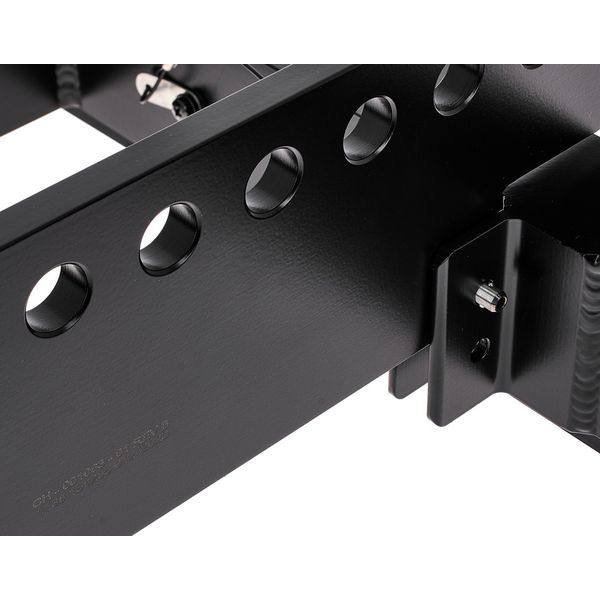

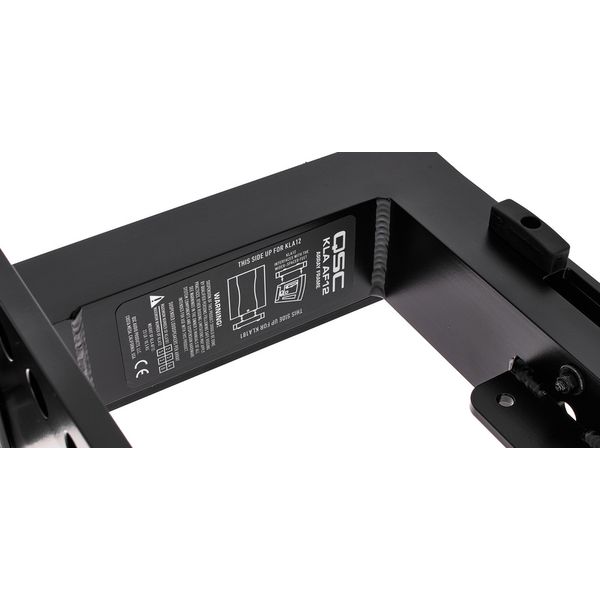

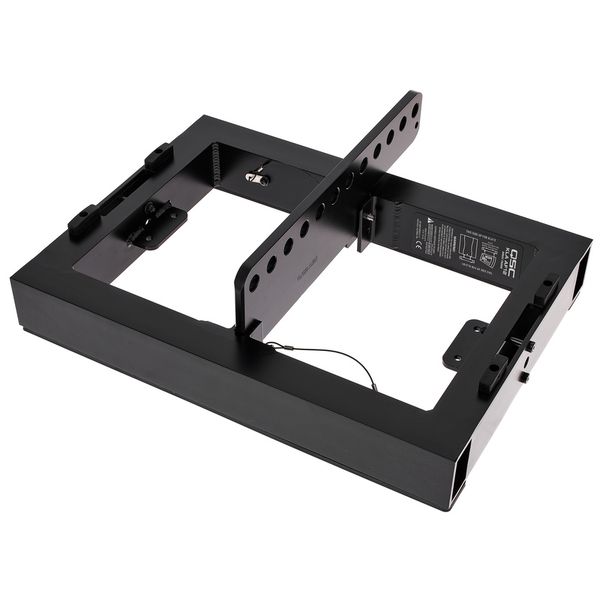

2x QSC KLA AF12 Frame
Frame
- Suitable for QSC KLA series
- Up to max. 218 kg
- For 5x KLA12 + 2x KLA 181

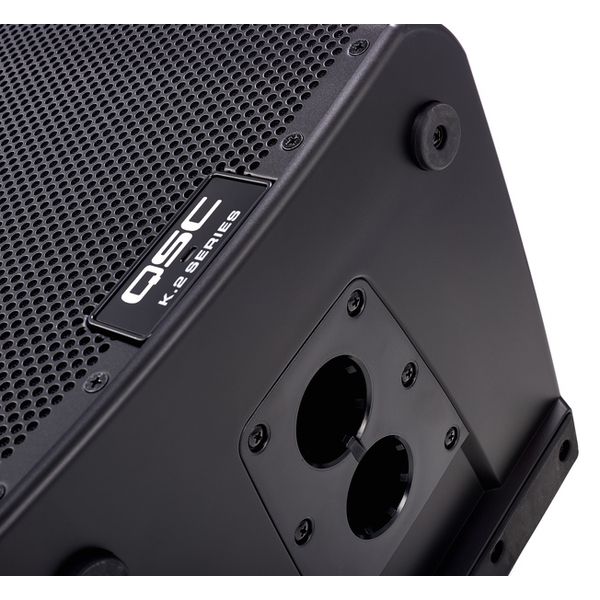

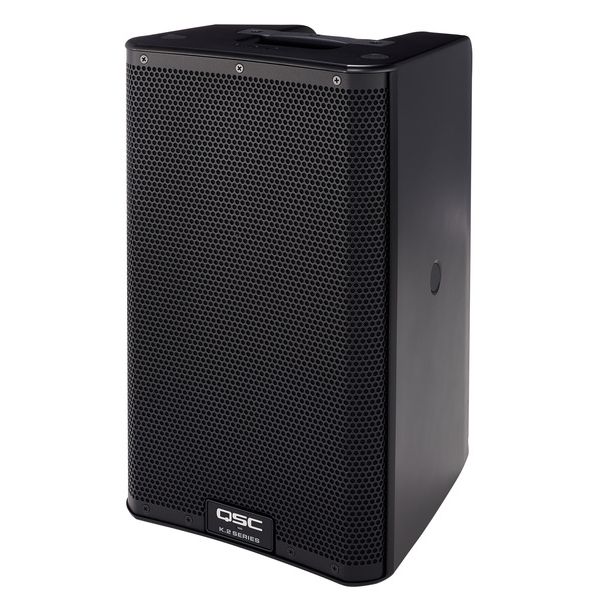

4x QSC K 8.2
Active 2-Way Full-Range Speaker
- 2000 W Class D amplifier
- Equipped with: 8" woofer, 1.4" Titan compression driver
- Dispersion pattern: 105° axisymmetric
- 45 x 25.4 mm multifunctional display / two selection buttons
- Presets/EQ settings: Dance/floor monitor/vocals/acoustic guitar/bass guitar/hand-held microphone/headset microphone etc.
- Scenes can be stored and accessed: User EQ/delay/crossover and input selection
- High-performance DSP, corrects non-linear distortions
- Frequency range: (-10 dB): 55 - 20000 Hz
- Max. sound pressure level: (1 m): 128 dB

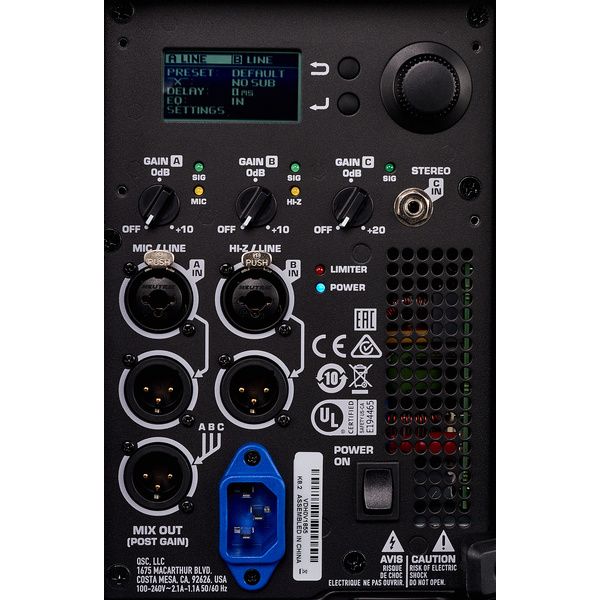

- Channel A input: One XLR / jack combo socket
- Mic / line input (switchable)
- Gain control
- Signal LED channel A output: One XLR
- Channel B input: One XLR/jack combo socket and hi-z/line input (switchable)
- Gain control
- Signal LED Channel B output: One XLR
- Channel C input: One 1 x 3.5 mm stereo jack
- Gain control
- Signal LED
- 3-channel mixer: Mix-out output (post gain): One XLR
- 55° monitor angle: Can also be used as a floor monitor
- 35 mm high-stand mounts with 0° or -7.5° orientation
- Powder-coated steel speaker grille
- Lightweight housing made of highly durable ABS/ergonomic handles
- Two M10 rigging points with integrated pull-back eyelet
- V-LOCK power cord with locking device for safe operation (C13)
- Low power consumption: Several K.2 series speakers can be operated on a 10A/230V standard line
- Dimensions (H x W x D): 449 x 280 x 269 mm
- Weight: 12.2 kg
- 6-year manufacturer's warranty upon product registration
- Suitable bags: Article no. 243080 or article no. 431993 (both not included)
- Suitable brackets for wall or ceiling mounting: Art. 414695 (not included)
- Suitable cover: Art. 304010 (not included)

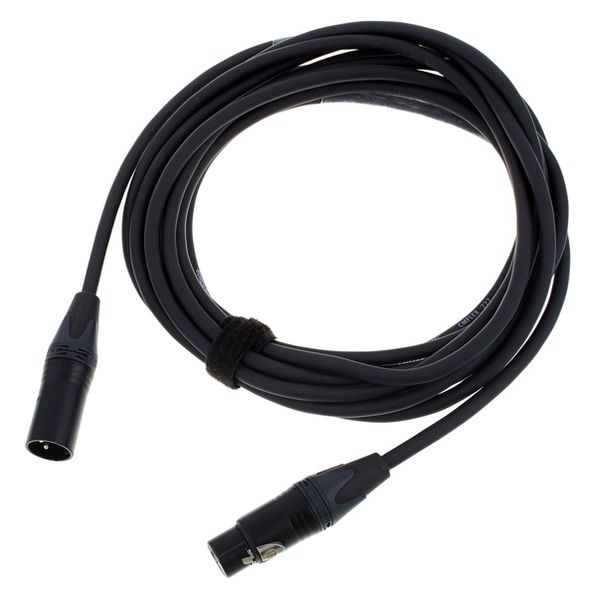

4x Cordial CPM 5,0 FM-Flex
Professional Microphone Cable
- Length: 500 cm
- CMK 222 FLEX (sold by the metre)
- 0.22 mm?
- Diameter: 6.15 ± 0.2 mm
- Conductor resistance: 85 Ohm/km
- Neutrik XLR female black / XLR male black

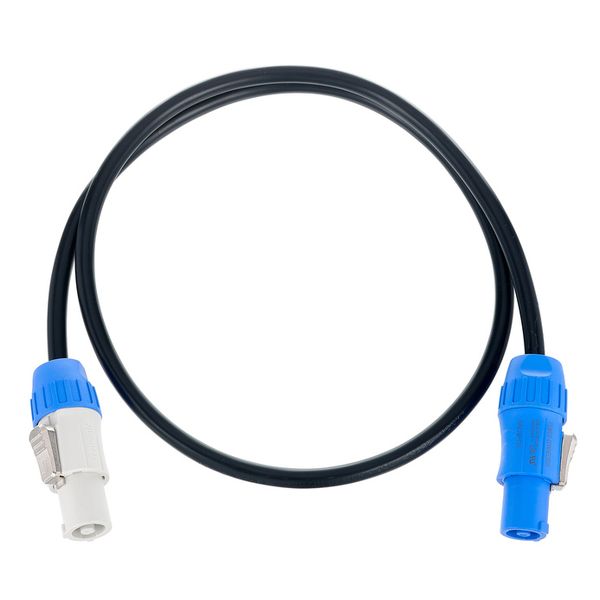

6x Varytec PT Link Cable 3x1,5mm? 1,0m
Extension cable
- Length 1.0 m
- With Power Twist connector and coupling
- 3x 1.5 mm cable with Power Twist blue and Power Twist grey connectors
- H05VV-F cable

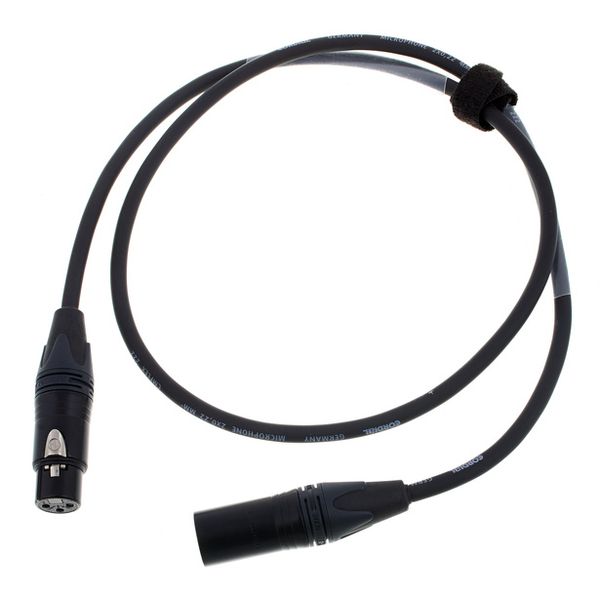

8x Cordial CPM 1,0 FM-Flex
Professional Patch Cable
- CMK 222 FLEX (sold by the metre)
- 0.22 mm?
- Diameter: 6.15 ± 0.2 mm
- Conductor resistance: 85 Ohm/km
- Length: 1 m
- Neutrik XLR female black / XLR male black
- Available sinceFebruary 2023
- Item number560399
- Sales Unit1 piece(s)
- more than 150 peopleYes
- more than 300 peopleYes
- Incl. MixerNo
- Active SpeakerYes
- Line Array / ColumnNo
- Configuration6+4:4
