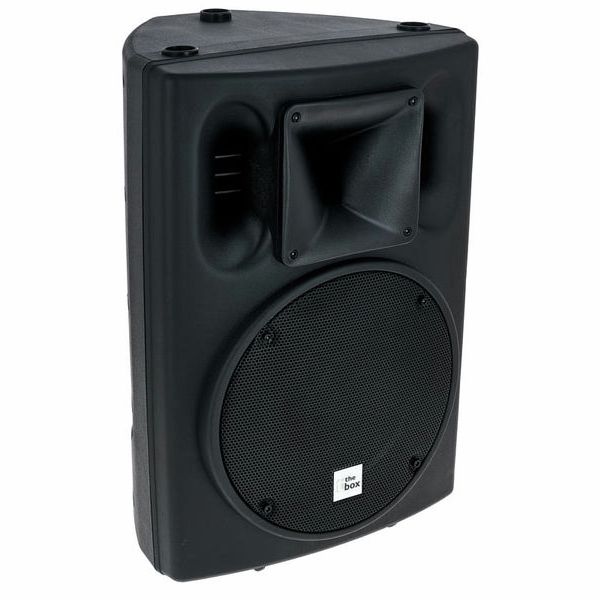

the box PA 302
Quantity
-
Detail

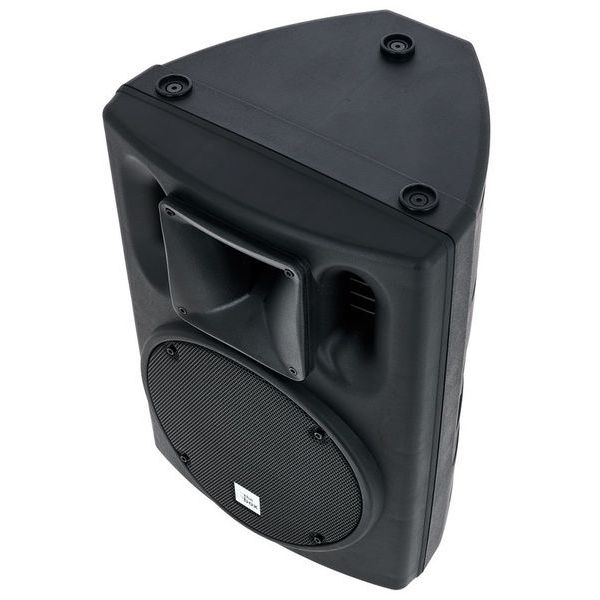

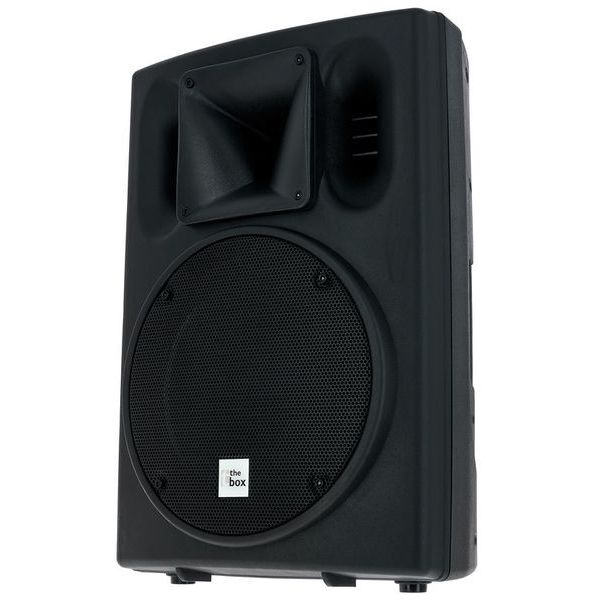

Full-Range Speaker

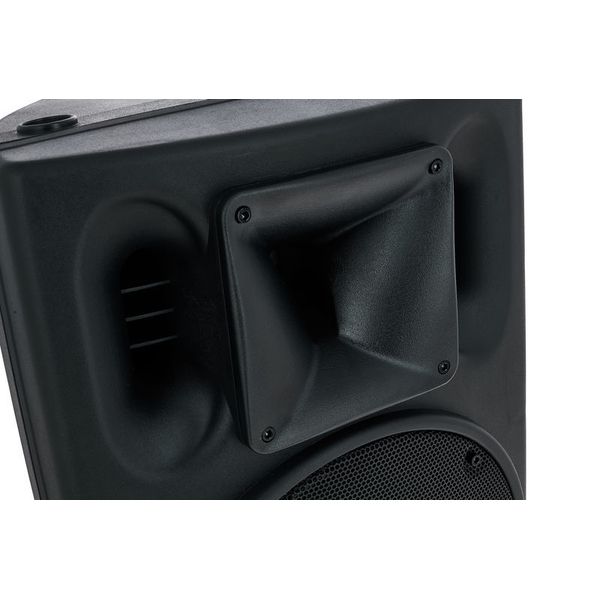

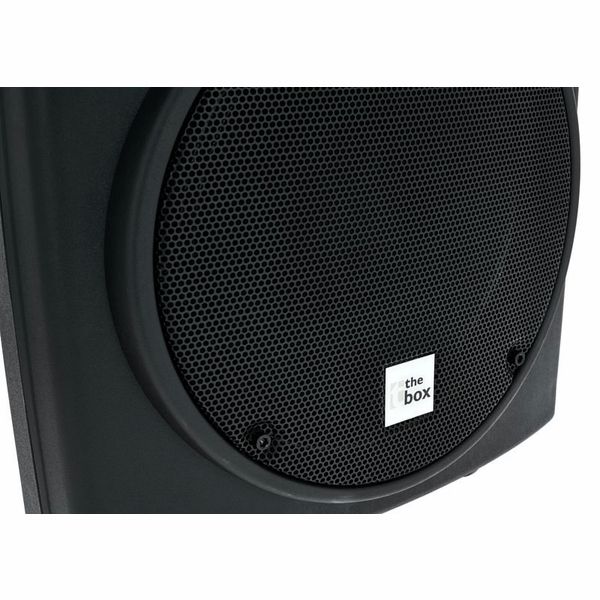

- Loudspeaker: 12" Woofer and horn with 44 mm titanium driver
- Power handling: 300 W RMS (600 W Peak)
- Impedance: 8 Ohm
- Beam angle (horn): 55° x 55°-100° (VCD)
- Maximum level: 121 dB
- Frequency range: 40 - 20,000 Hz

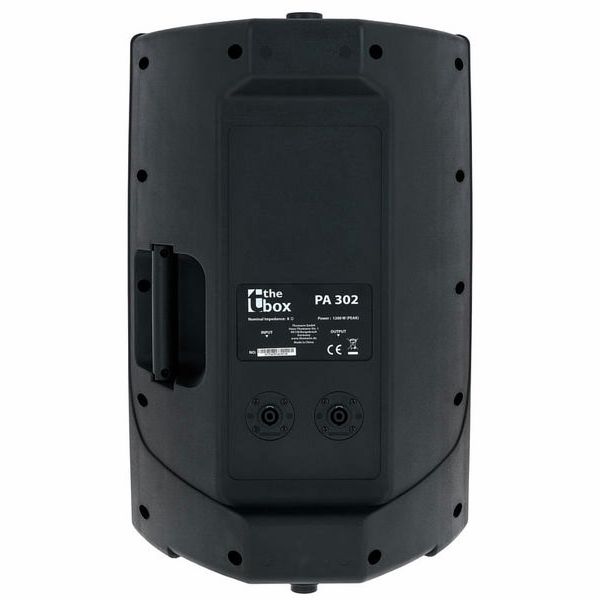

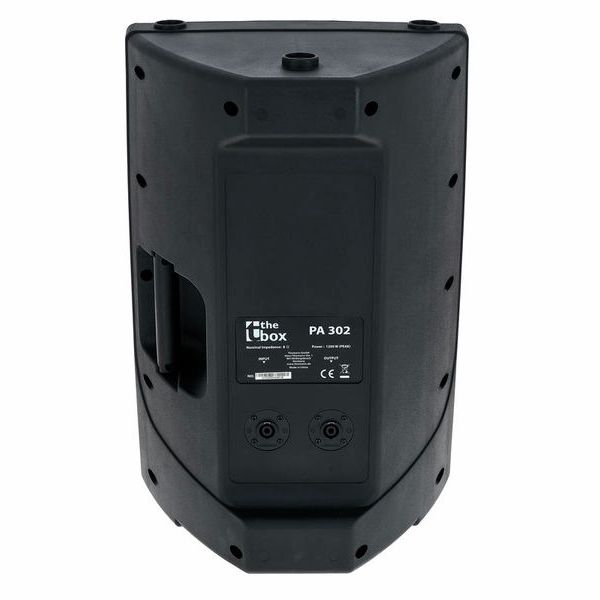

- Input/Output: SPK socket
- Tripod flange
- 3 Fly points with M8 thread on the upper side
- Housing material: Plastic (PP)
- Colour: Black
- Dimensions (H x W x D): 61.5 x 42 x 39 cm
- Weight: 18.6 kg

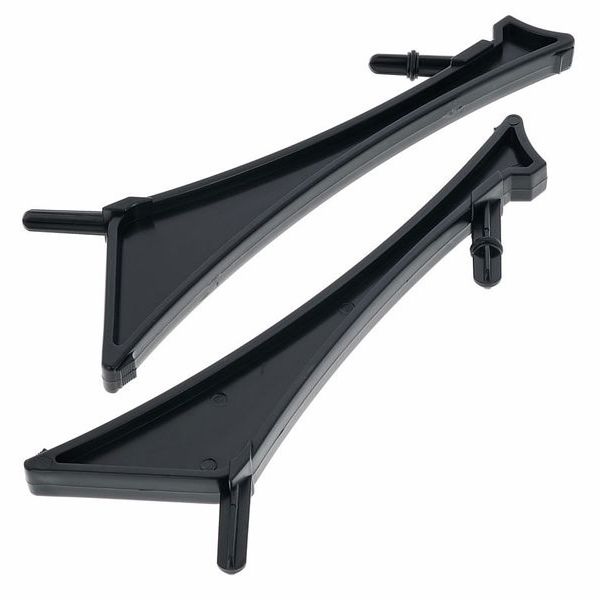

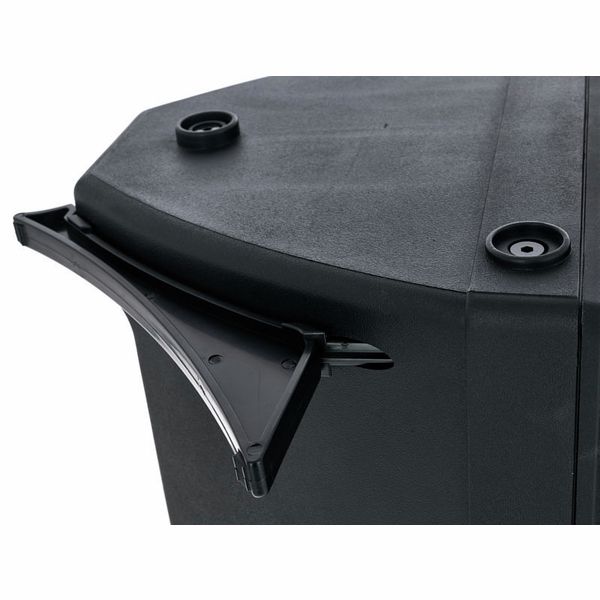

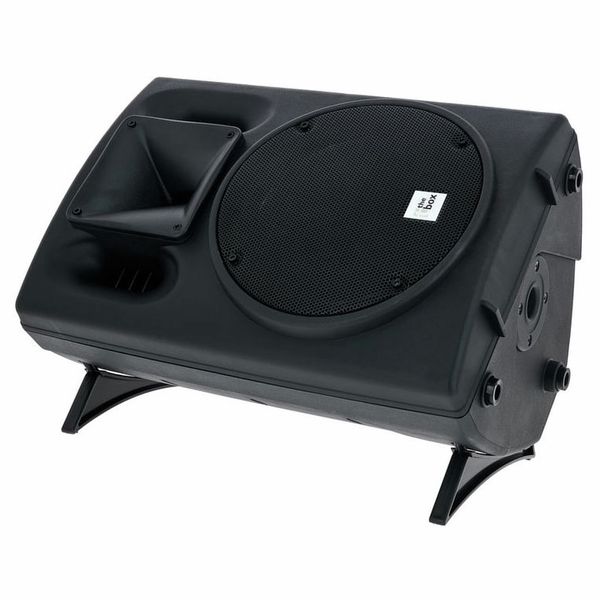

- Includes monitor feet (Article number 168359) for using the speaker as a floor monitor
- Suitable protective cover: Article number 188910 (not included)
- Available sinceOctober 2003
- Item number160811
- Sales Unit1 piece(s)
- Manufacturers Information Power Handling1200 W
- Impendance in Ohms8 Ohms
- Number of Woofers1
- Woofers in Inch12"
- ColourBlack
- Width in mm420 mm
- Depth in mm390 mm
- Height in mm615 mm
- Weight in kg18,6 kg
- Monitor AngleYes
- IP ClassNo
- RMS Power300 W
- Impedance in Ohms8 Ohms
- FlyableNo
- SPL in dB121 dB
- Number of Midrange Speakers0
- Number of Mid-Tone Speakers0
- Mid-Tone Speakers in Inchnone
- Number of HT-Speaker1
- Number of HT-Speakers1
- Stand Flange36 mm
- HT-Speakers in Inch1"
- Ways2-Way
- Housing MaterialPlastic
- ConstructionStandard Cabinet
- Frequency Range (-3dB) from50 Hz
- InputSpeaker-Twist
- Frequency Range (-3dB) to18000 Hz
- OutputSpeaker-Twist
- Horizontal Beam Angle100 °
- Vertical Beam Angle55 °
