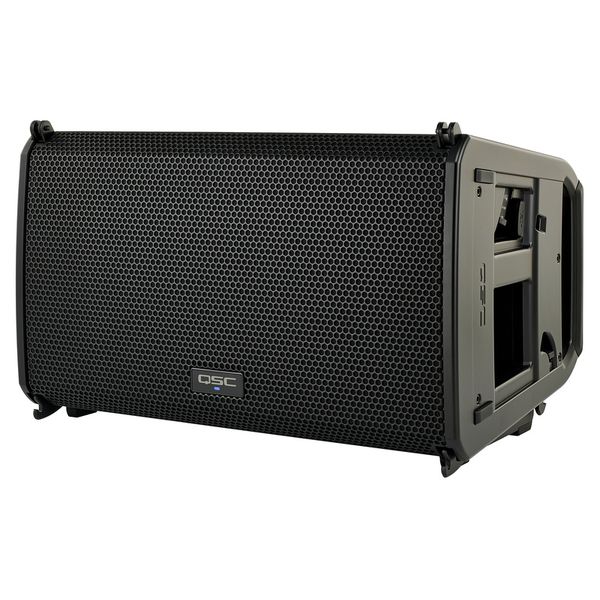

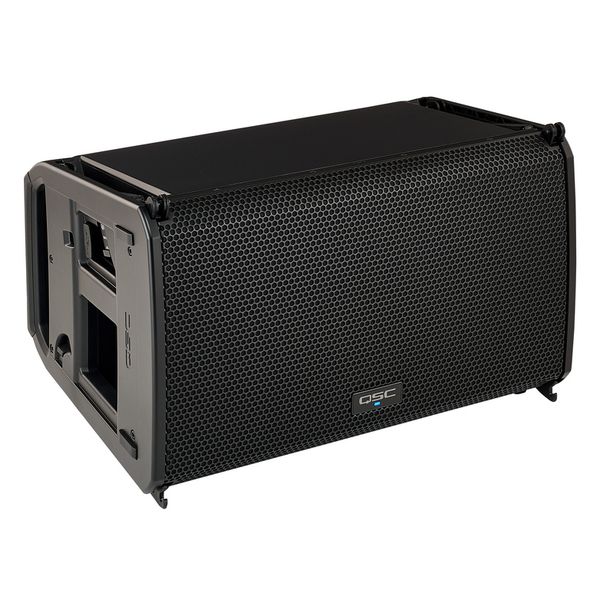

QSC LA112

Active 2-Way Speaker

• Line Array System
• Power: 2400 watts - 1600 watts woofer + 800 watts tweeter
• Class D
• Drivers: 1One 12" neodymium woofer, two 1.75" compression driver with polyimide diaphragm
• Frequency range: 53 - 20,000 Hz (-10 dB)
• Max. sound pressure level: 136 dB (peak)
• Dispersion pattern: (H x V): 90° x 15°
• 2.4" multi-function display with rotary encoder and selection buttons

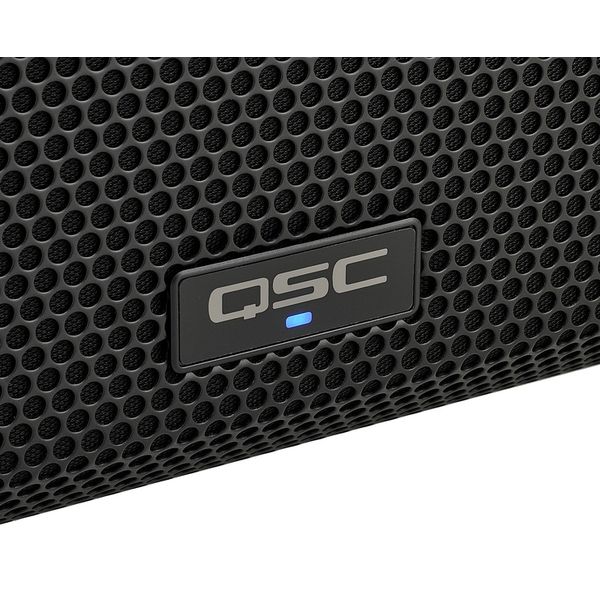

• Signal LEDs for limiter and power
• QSC SysNav (System Navigator) App
• Dante network
• QSC LEAF waveguide for defined dispersion pattern
• QSC AWARE provides wireless setup data

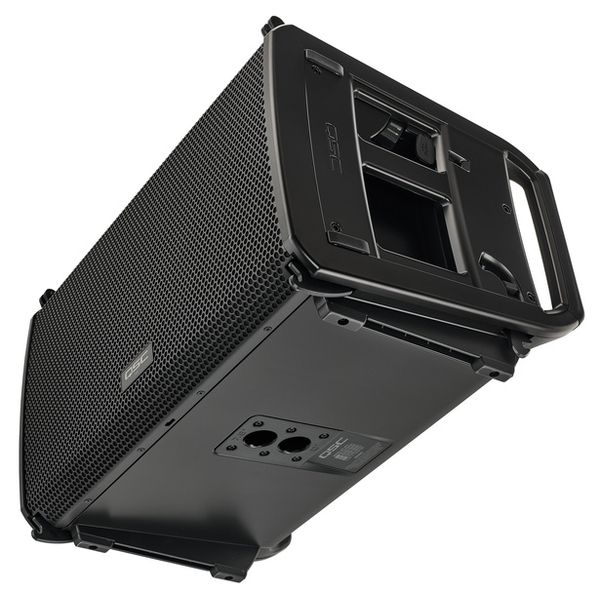

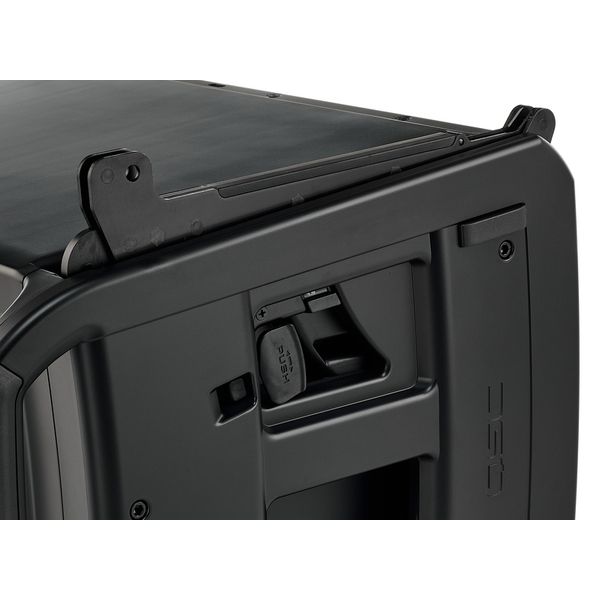

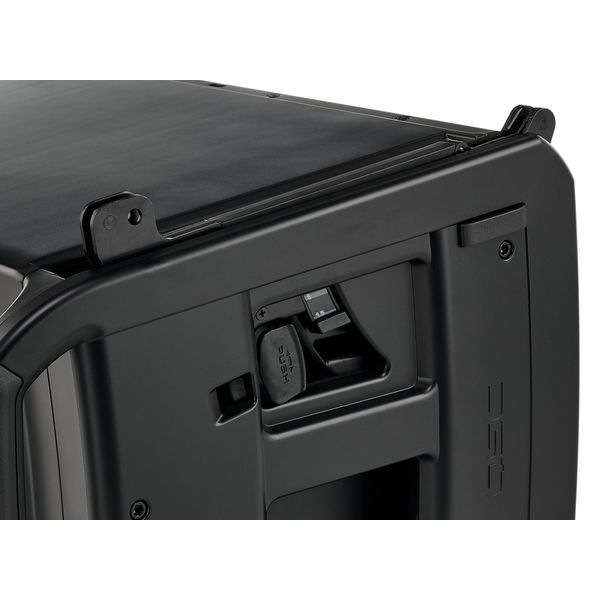

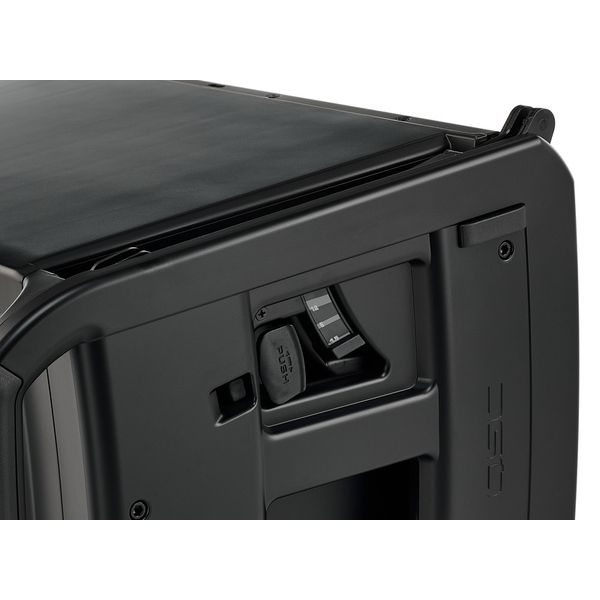

• QSC RapidDeploy Rigging System enables tool-free rigging
• AIM (Array Installation Modeling) for visualising array coverage

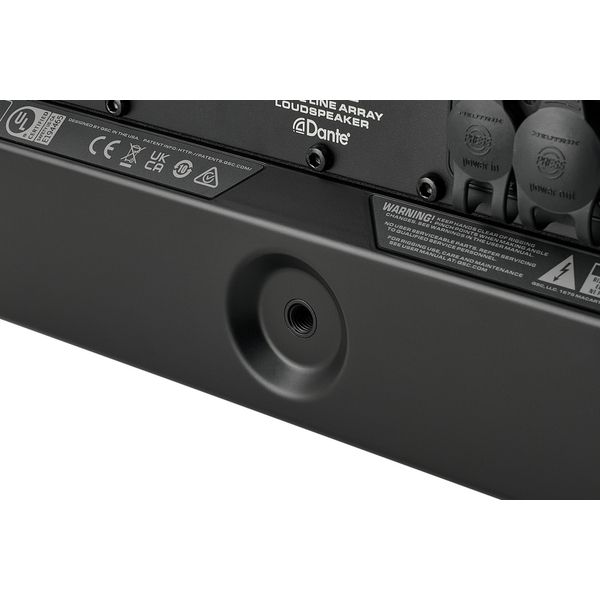

• M10 thread for pullback

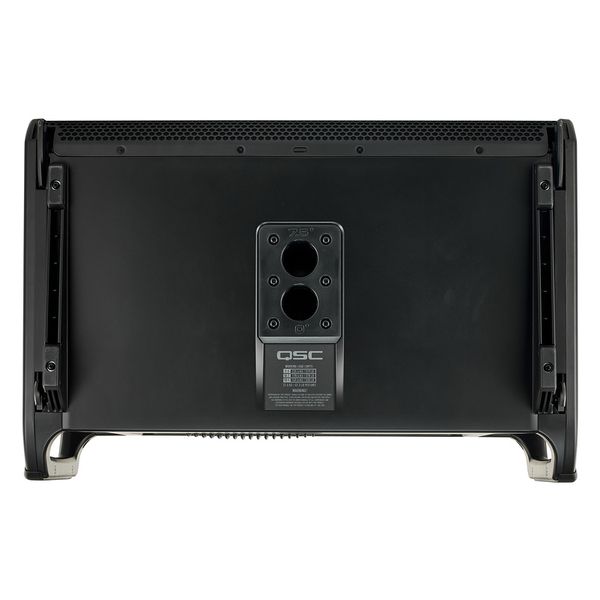

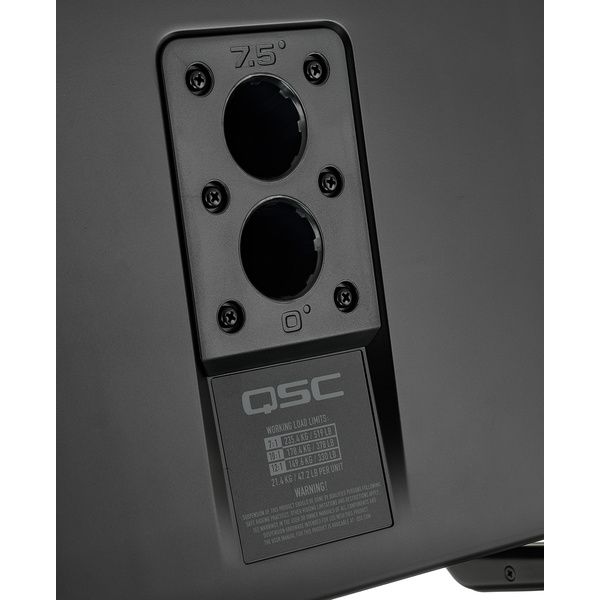

• 35 mm speaker stand flange mount for mounting up to two modules with 0° or -7.5° alignment
• Impact-resistant plastic housing made of ABS

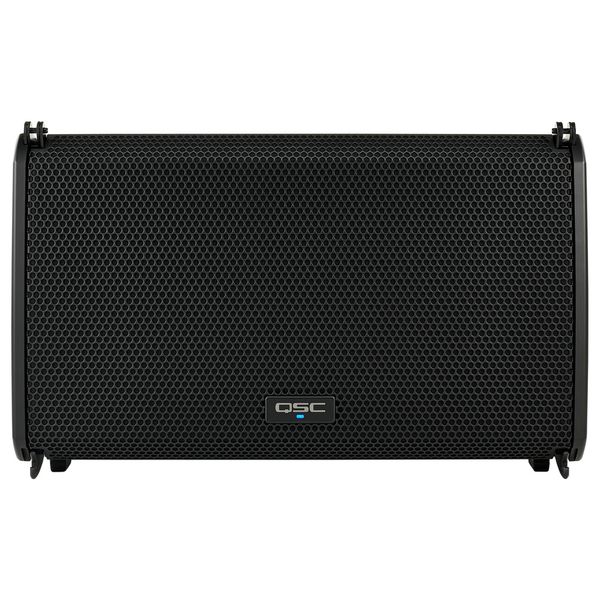

• Front grille made of powder-coated steel (18 gauge)
• Power consumption: 230 V / 1.0 A
• Dimensions (W x H x D): 630 x 392 x 417 mm
• Weight: 21.4 kg
• Colour: Black (RAL 9011)

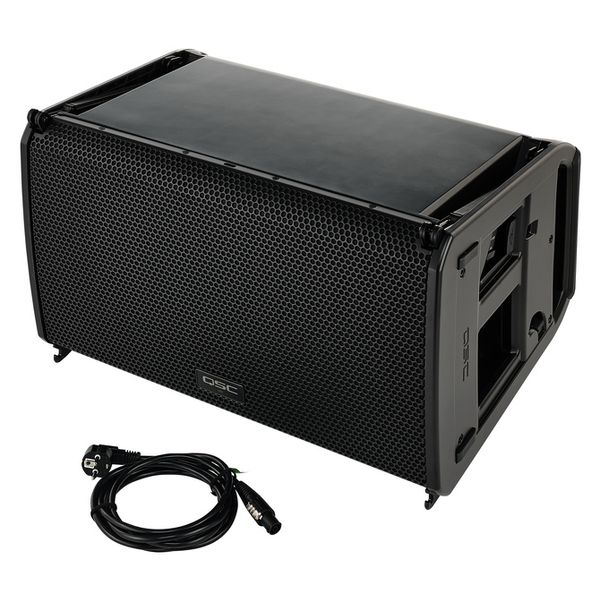

• Includes PowerCON TRUE1 power cord
• 6-year QSC warranty upon product registration

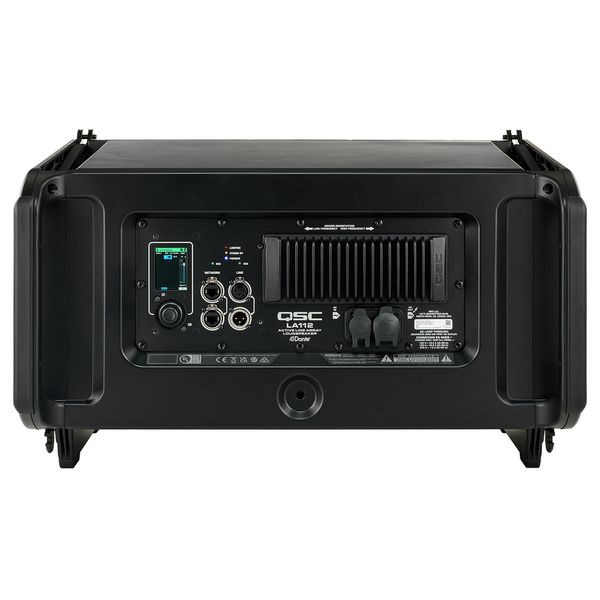

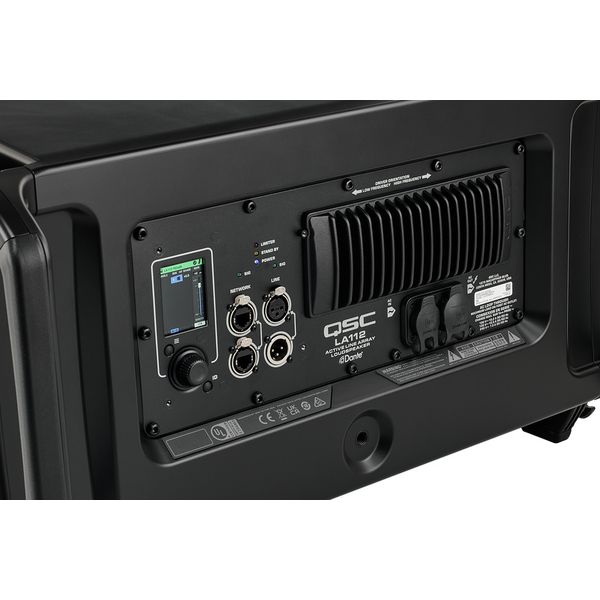

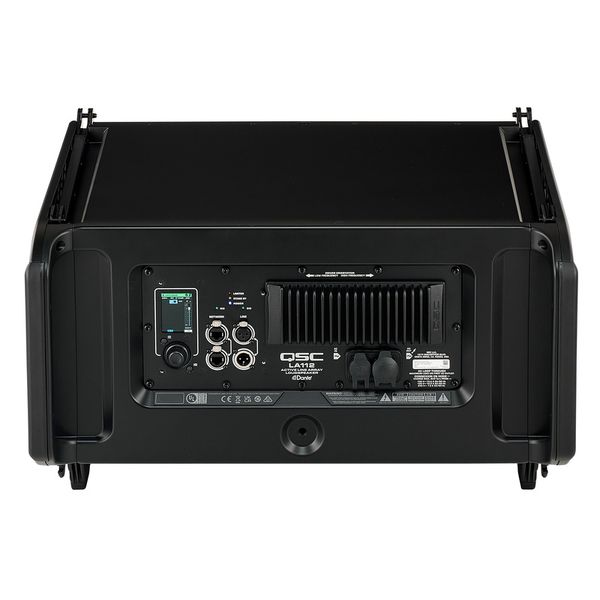

Connectors:

• One input: XLR male
• One output: XLR female
• Two EtherCON RJ45 (Dante and QSC SysNav In/Thru)

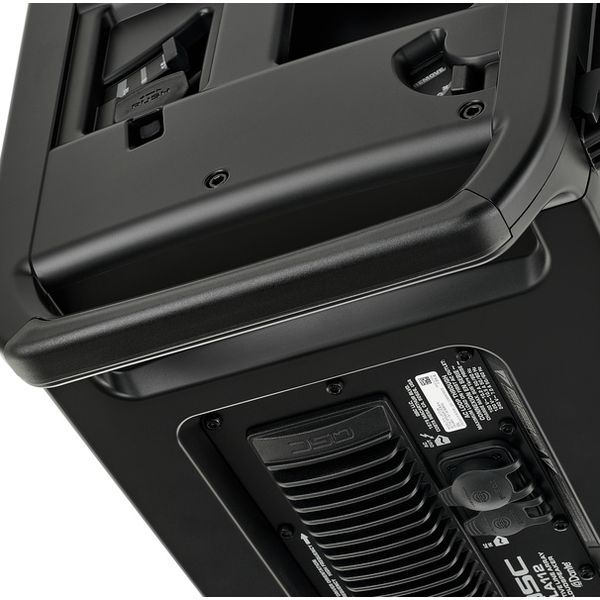

• Two PowerCON TRUE1 with sealing caps (In/Out)
