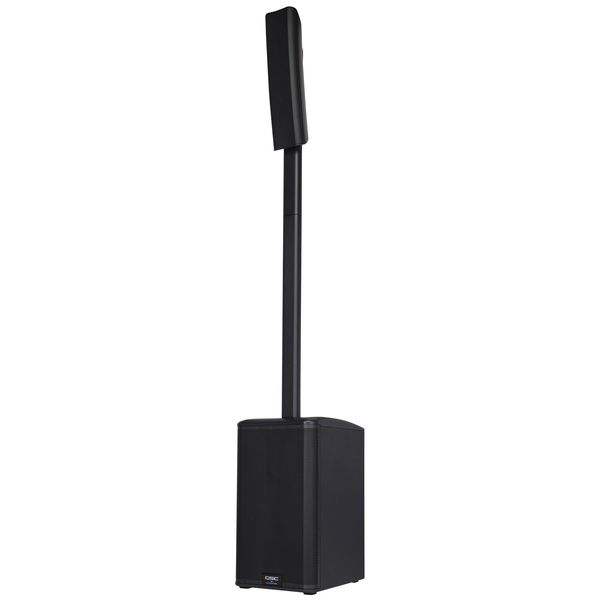

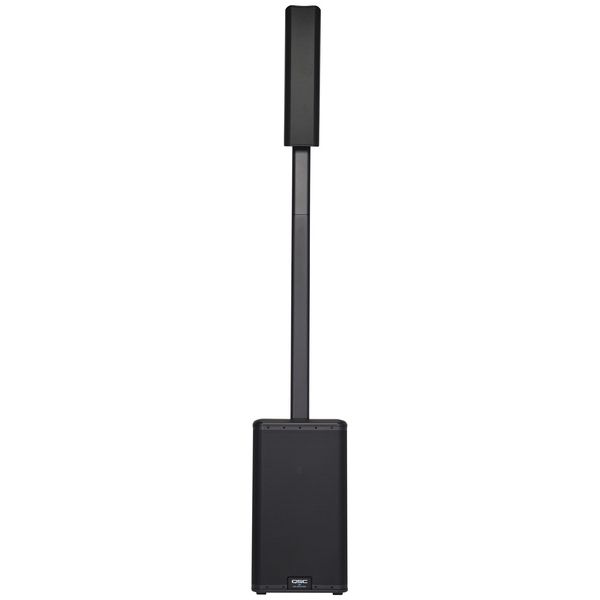

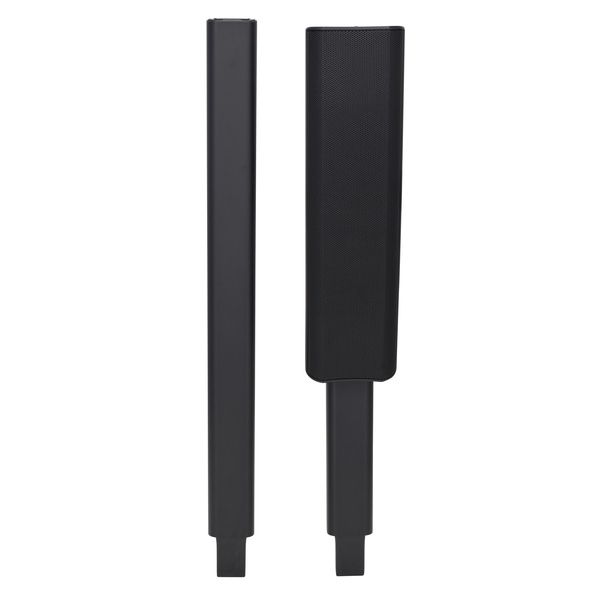

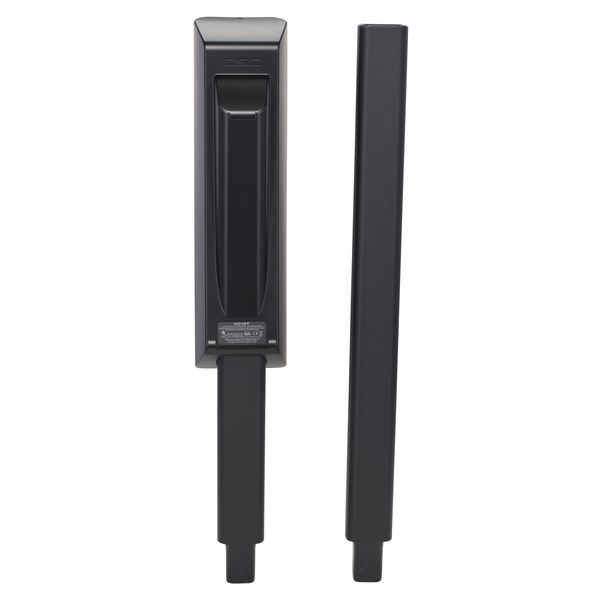

Active 3-Way Column Speaker System

• Power: 3000 watts - subwoofer 2000 watts + midrange/tweeter 1000 watts
• Class D
• Equipped with: 12" subwoofer, 2x 4" midrange drivers, 1" compression driver
• Frequency response: 40 - 20,000 Hz (- 10 dB)
• Max. sound pressure level: 132 dB (peak)
• Dispersion pattern: 145° x 35°
• Bluetooth audio with True Wireless Stereo for low-latency pairing of up to 4 KC 12 systems
• Monochrome LCD display with rotary encoder and selection buttons
• Presets/EQ settings: 7x microphone settings, 2x acoustic guitar, 2x bass/keys/e-drums and HPF per channel
• Parametric 4-band EQ, 3 reverb modes, delay from 0 - 200 ms
• Three subwoofer modes and three contour modes
• Scenes can be saved and recalled (preset, contour, sub level, delay, EQ, reverb, output)
• Security mode protects the system against unauthorised access

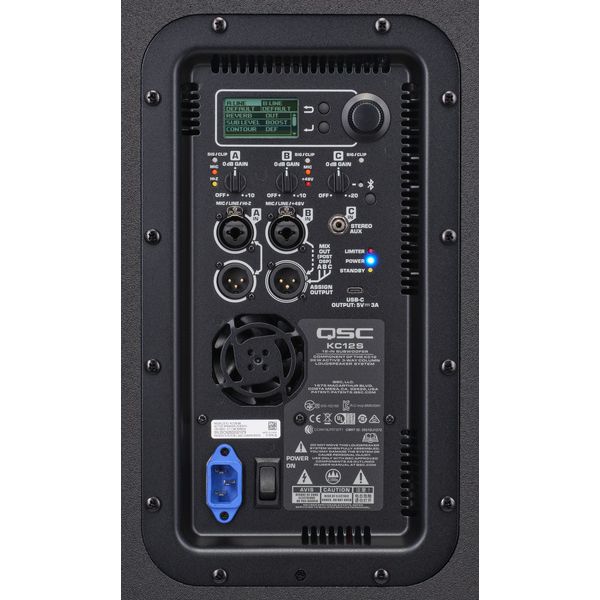

• Built-in 3-channel mixer with gain controls, signal/clip LED and +48 V phantom power
• Channel 1: Line/Mic/Hi-Z
• Channel 2: Line/Mic/Hi-Z
• Channel 3: Bluetooth or Aux input

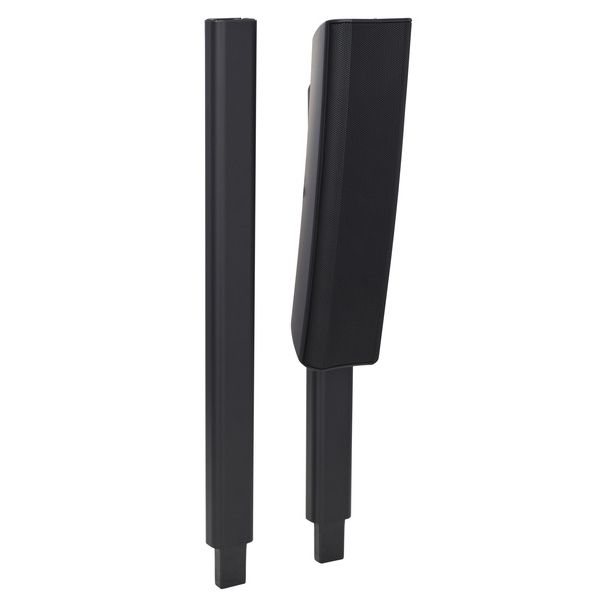

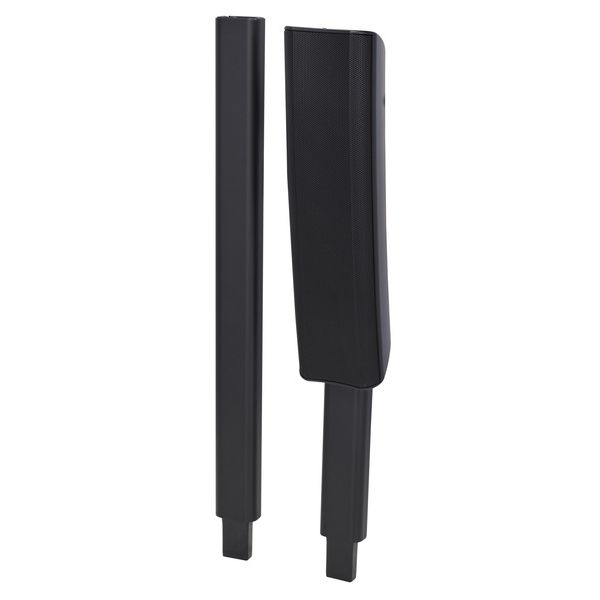

• Impact-resistant ABS plastic housing for mid/high drivers

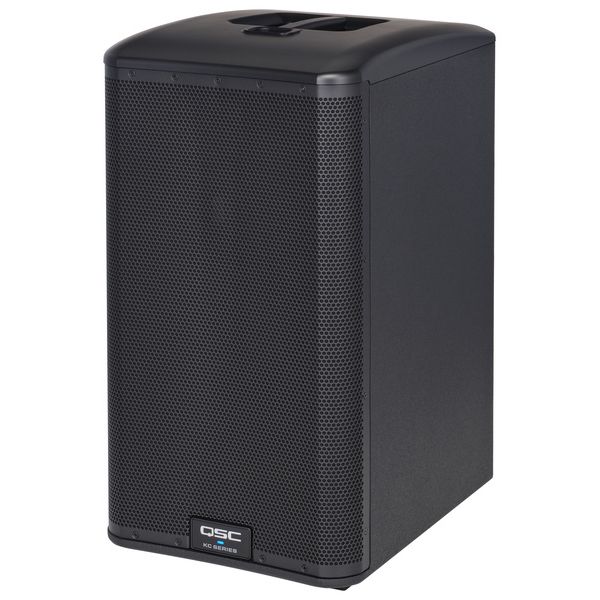

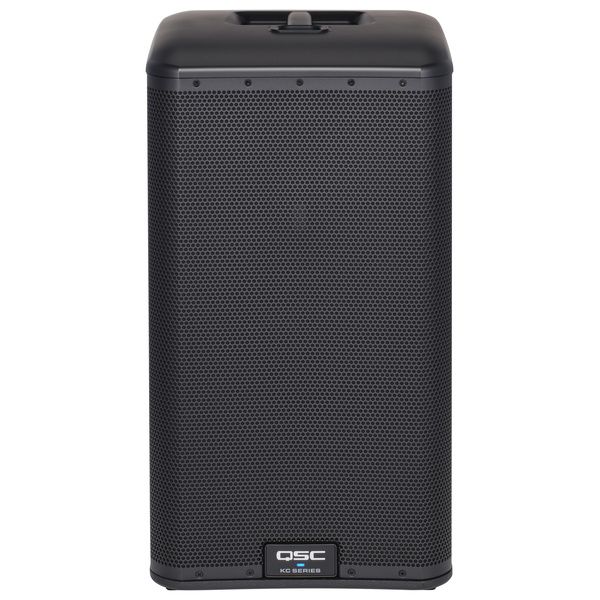

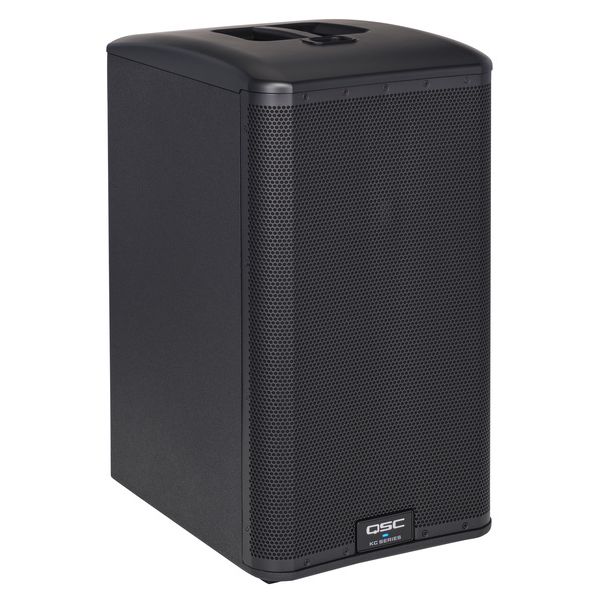

• 12 mm birch multiplex housing for subwoofer

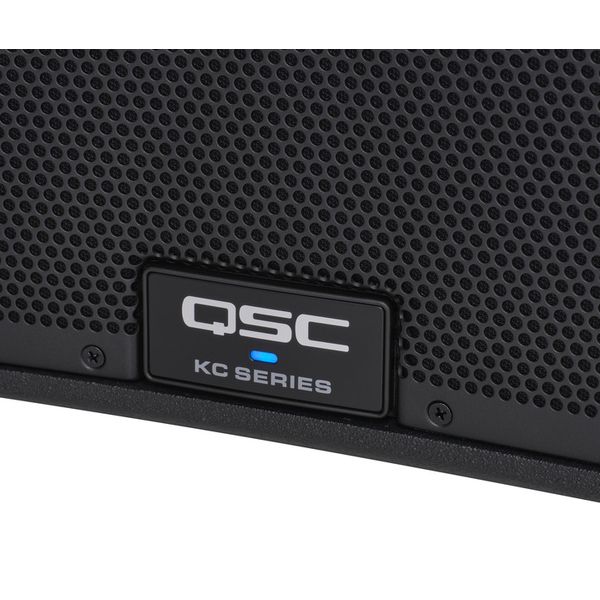

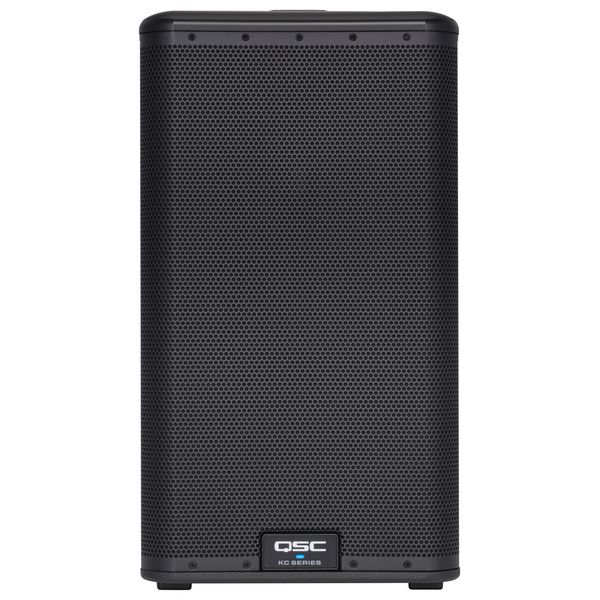

• Powder-coated steel speaker grille
• Dimensions (H x W x D): 2270 x 357 x 455 mm
• Weight: 27.3 kg
• Colour: Black (RAL 9011)

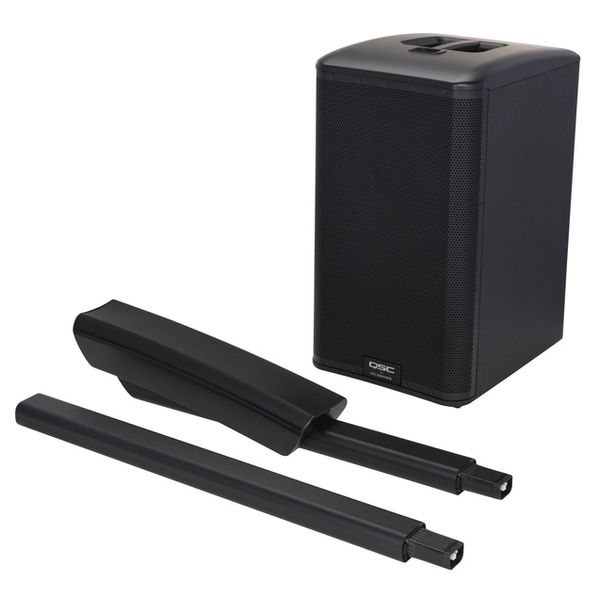

• Includes KC 12 TOTE soft cover and 810 mm spacer bar

Note: 6-year QSC warranty upon product registration.

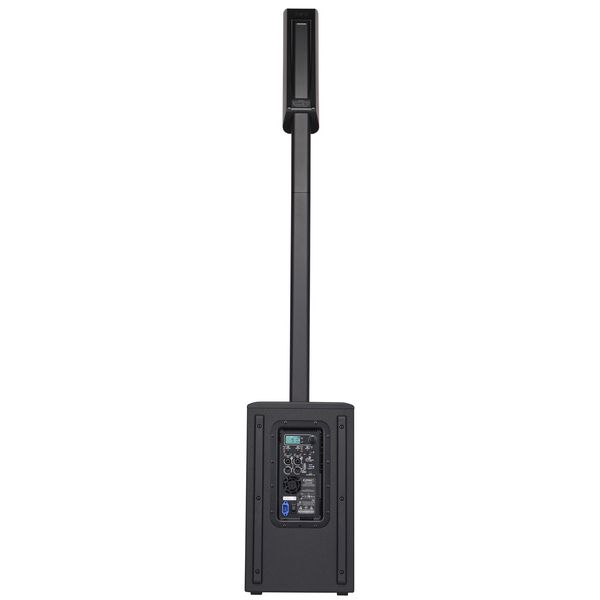

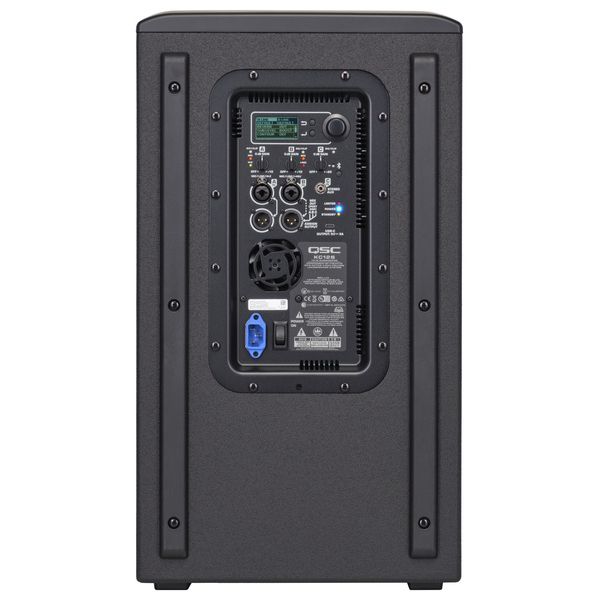

Connectors:

• Two XLR combo inputs
• Two XLR male outputs
• One 3.5 mm mini jack stereo aux input
• One USB-C
• One IEC power supply connection (lockable)
