Compact Active Speaker System

• Flexibly applicable
• Integrated 3-channel digital amplifier with 1000 W power

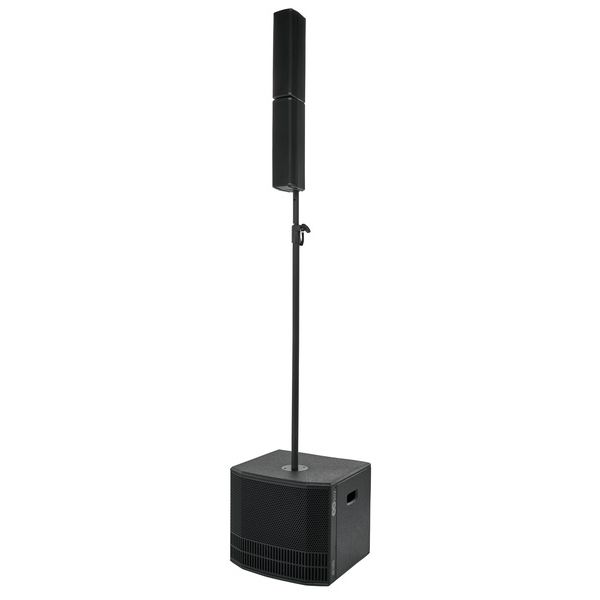

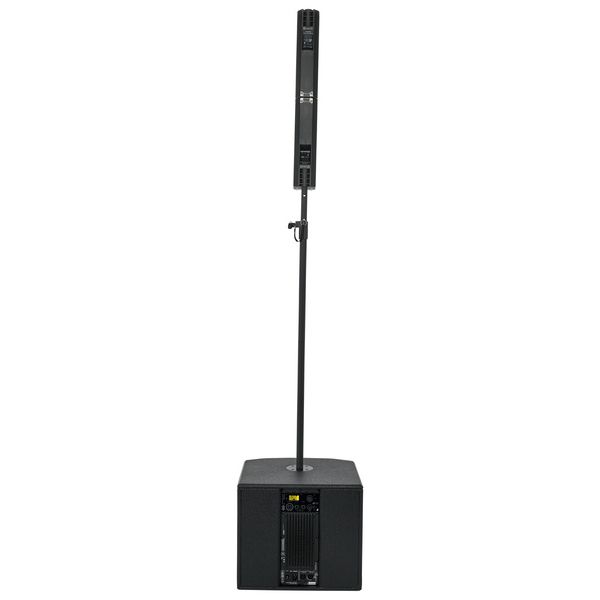

• Used both as a traditional stereo system with a subwoofer and two satellites, as well as a powerful mono system by means of a mechanical connection of the two satellites
• With two coupled ES503 systems usable as powerful stereo sound system
• Suitable cover for the subwoofer: Article Nr 373941, suitable cover for the top: Article Nr 373942 (both not included)

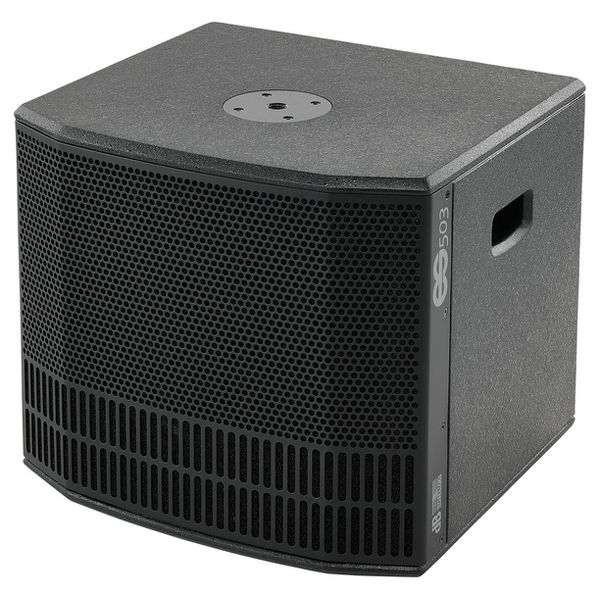

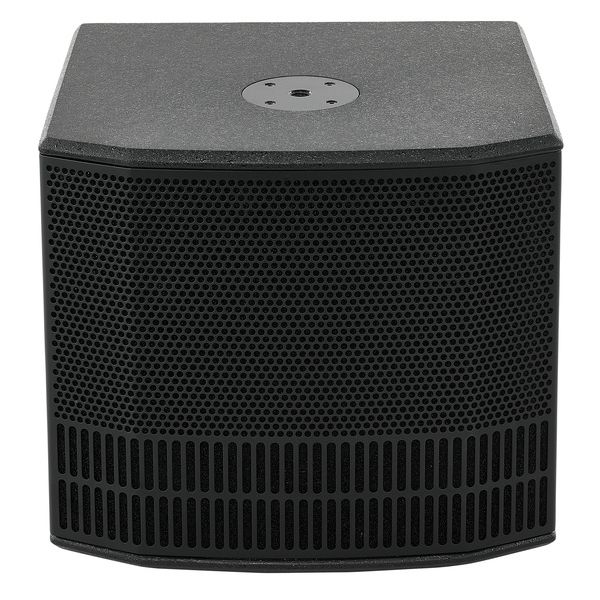

ES503 Sub:

• Equipped with: 12" Woofer with 2" voice coil

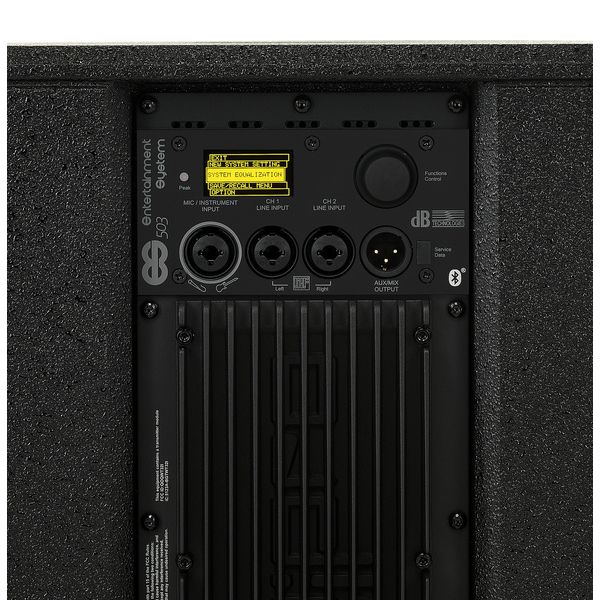

• Extensive input section with high-resolution OLED display for easy operation
• Integrated 3-channel mixer and Bluetooth receiver for audio streaming
• Subwoofer Digipro G3 digital amp with 1000 W/PRG
• OLED Display plus rotary push button encoder
• 3x Mic line inputs with XLR / TRS combo jack
• Bluetooth stereo receiver for audio streaming
• Presets for stereo, mono and dual mono setup
• Digital 4 channel mixer section
• Mini-USB port for service and updates
• XLR Output for mix or AUX output

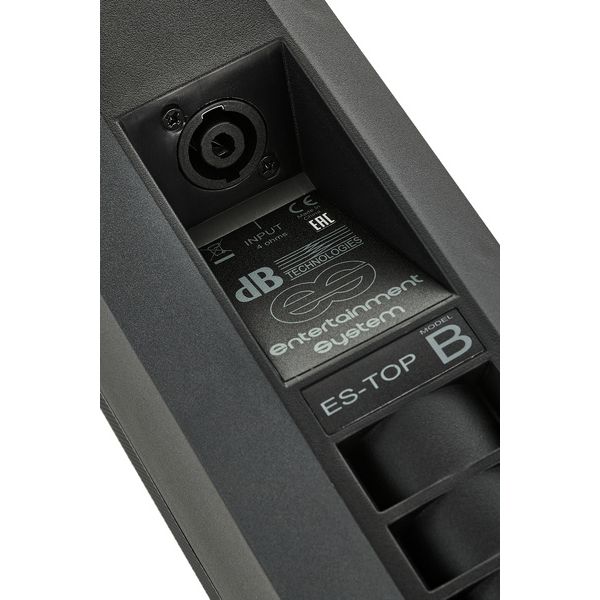

• 2x Speaker Twist connections for Mid-High tops
• Bass reflex design
• 15 mm Plywood housing
• Two handles

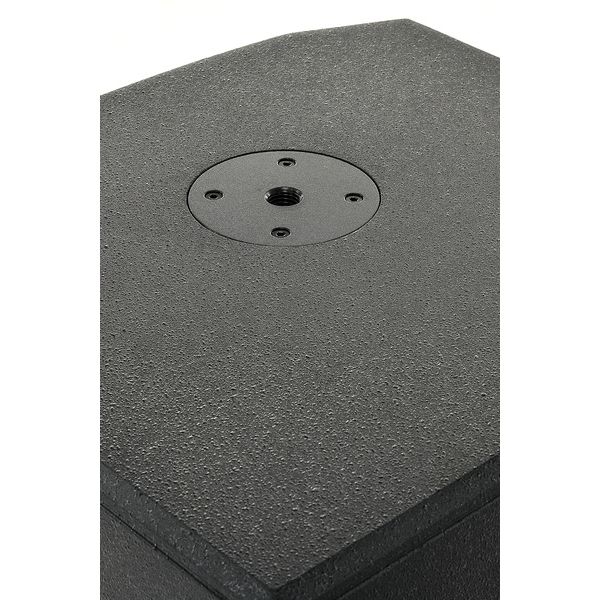

• M20 Thread
• Dimensions: 465 x 400 x 430 mm
• Weight: 16.4 kg

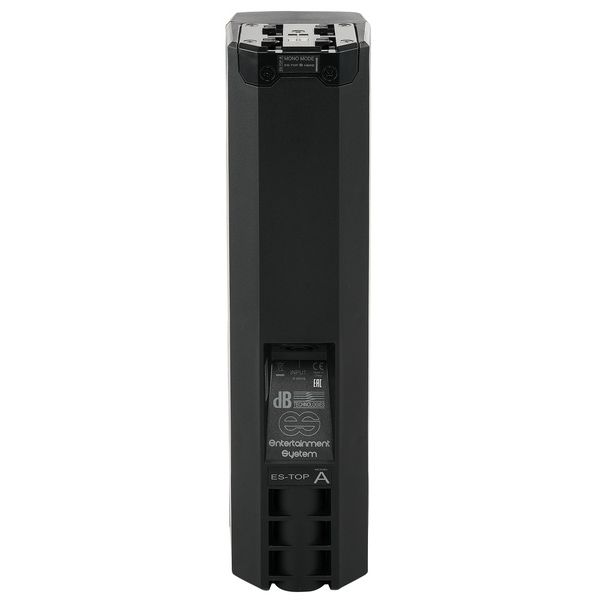

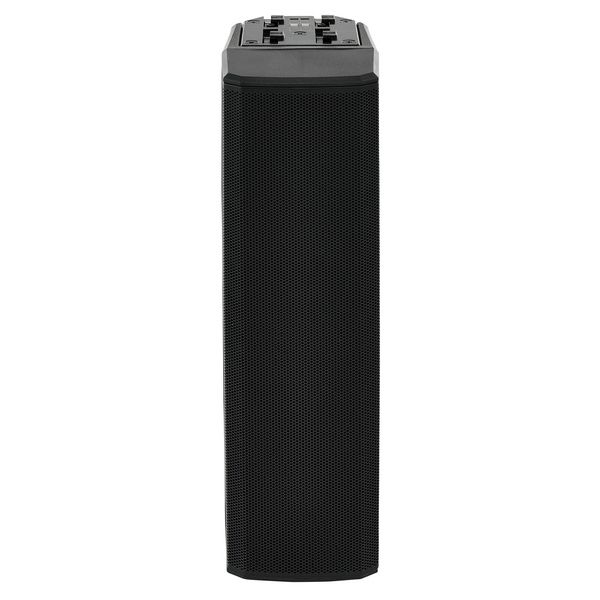

ES503 TOP A/B:

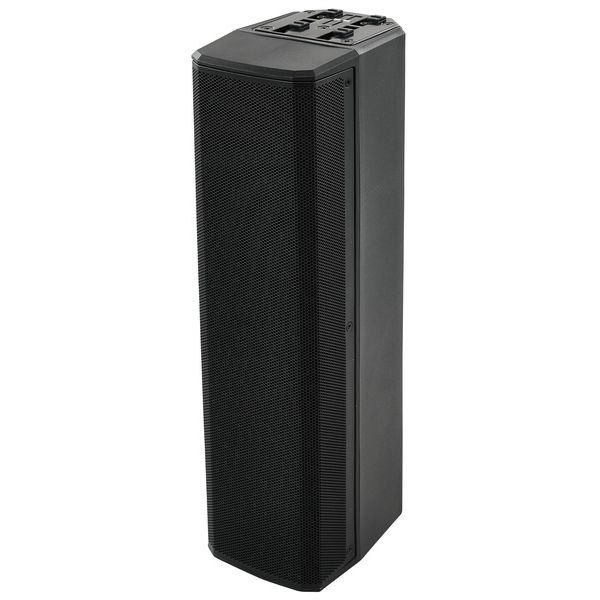

• Equipped with: 4x3" Neodymium full range speaker
• Phase-Plugs and mechanical assembly optimizing acoustic properties
• Plastic housing incl. 25 mm support holder

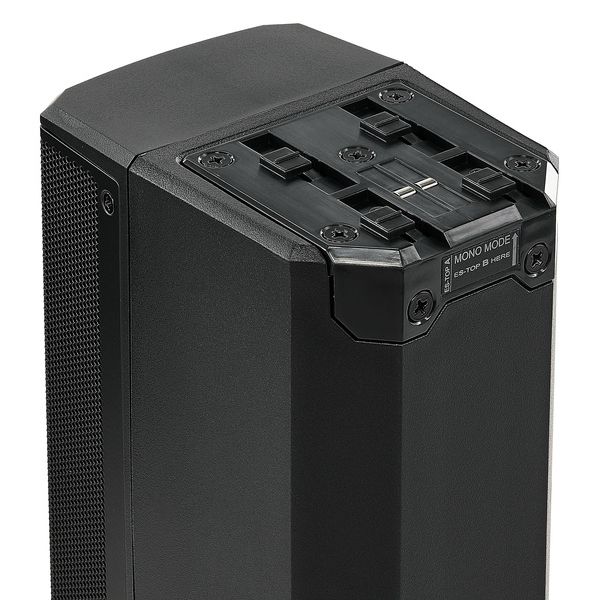

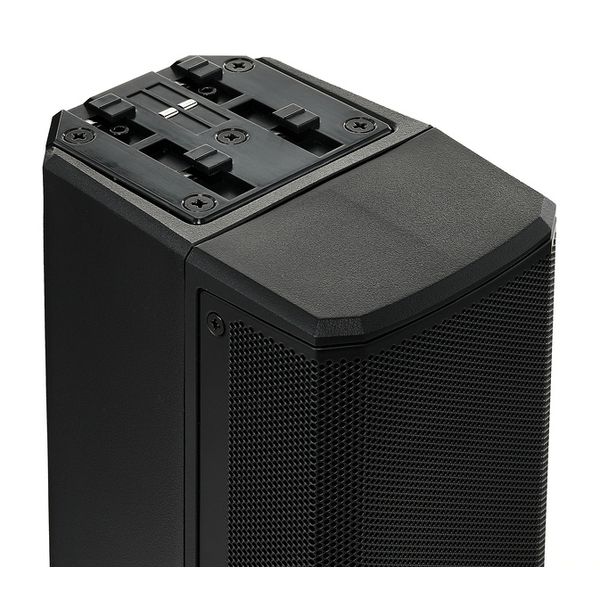

• Electrical and mechanical connections for coupling two ES503-Tops

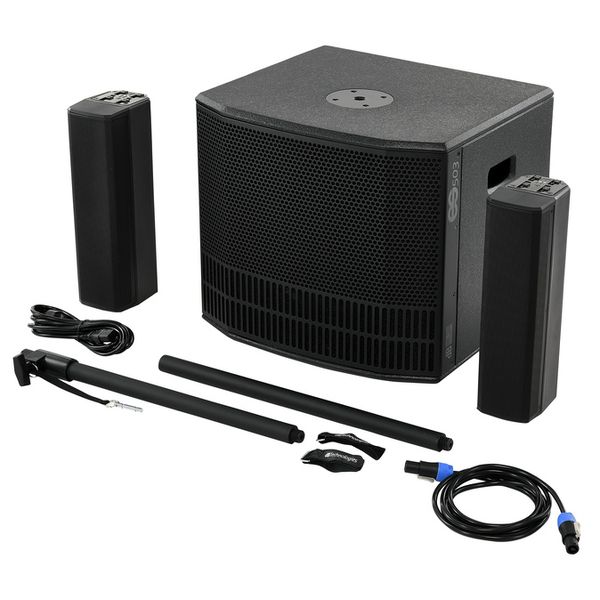

Including:

• 1x ES503 Top A
• 1x ES503 Top B
• 1x ES503 Sub

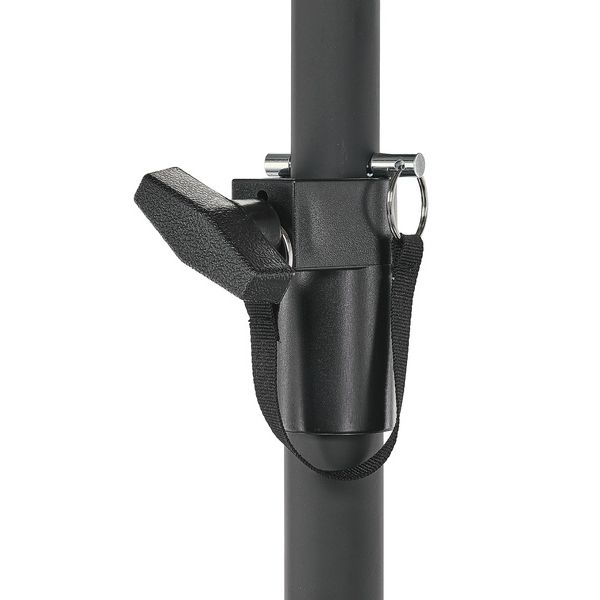

• 1x Divisible spacer bar 25 mm
• 1x Speaker Twist cable 2 m
