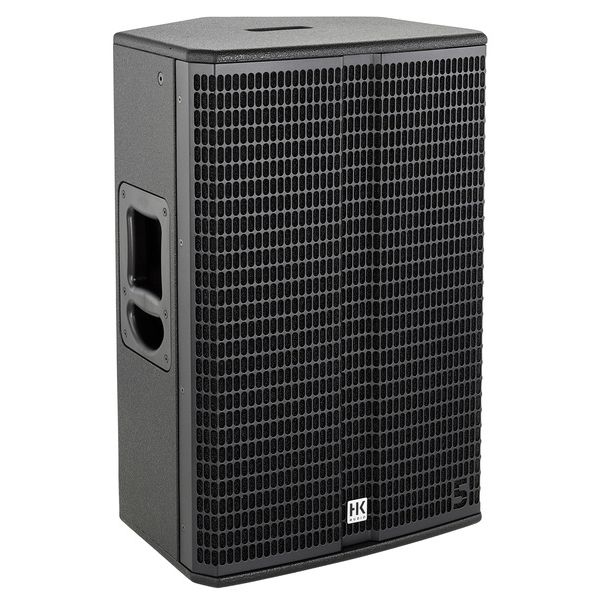

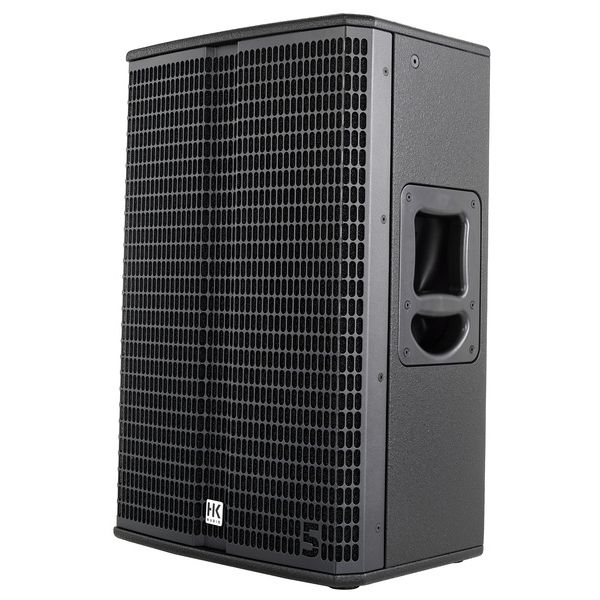

HK Audio Linear 5 MKII 115 XA
Quantity
-
Detail
Active Multifunctional Speaker
- With built-in 1200 Watts Class D power amplifier
- Speaker configuration: 1x 15" LF + 1" HF with 1.75" voice coil
- Frequency range: 59 - 19000 Hz (+/- 10 dB)
- Maximum level: 138 dB
- FIR crossover with 72 db/oct
- Remote controllable via internal DSP and network capability
- DSP functions: Fully parametric 10-band EQ with variable filter characteristics, high-pass filter, low-pass filter, polarity, level, delay, limiter, mute

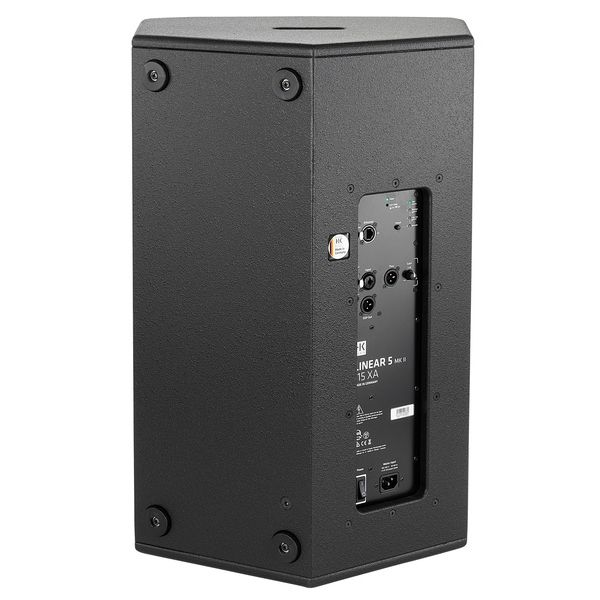

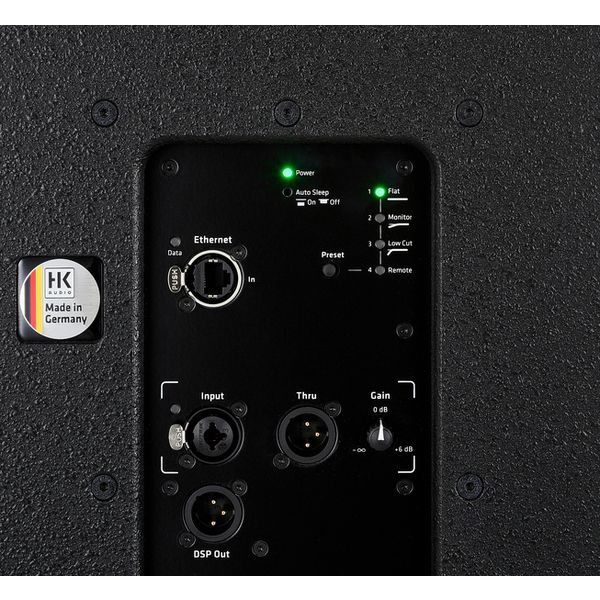

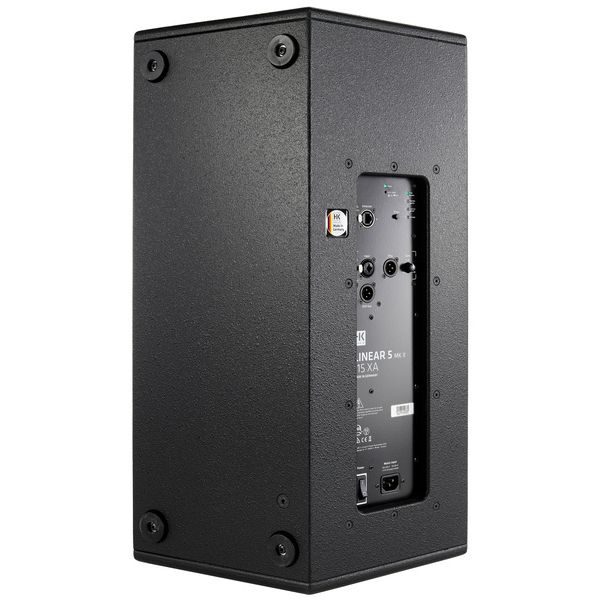

- Connector panel with 1x XLR/6.3 mm jack combo input, 1x Ethernet In, 1x XLR Thru, 1x XLR DSP Out
- Switchable EQ (Flat, Monitor, Low Cut, Remote)
- Coverage angle: 80° x 60° (H x V, rotatable)
- Housing material: Birch plywood/MDF
- Flying points: 3x M8

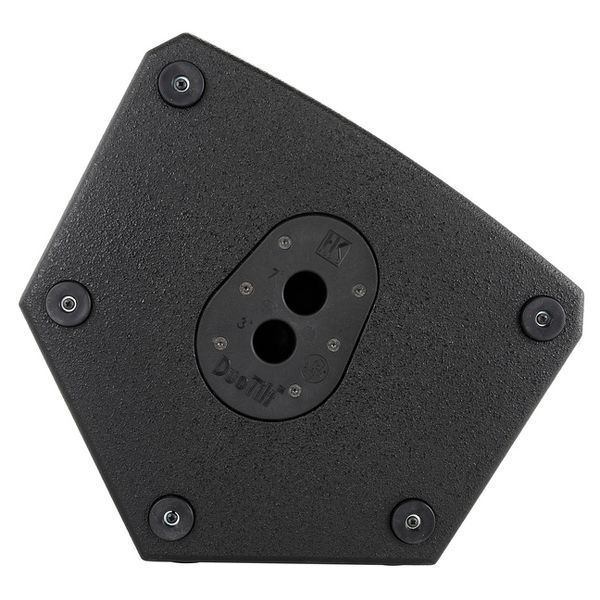

- DuoTilt stand flange

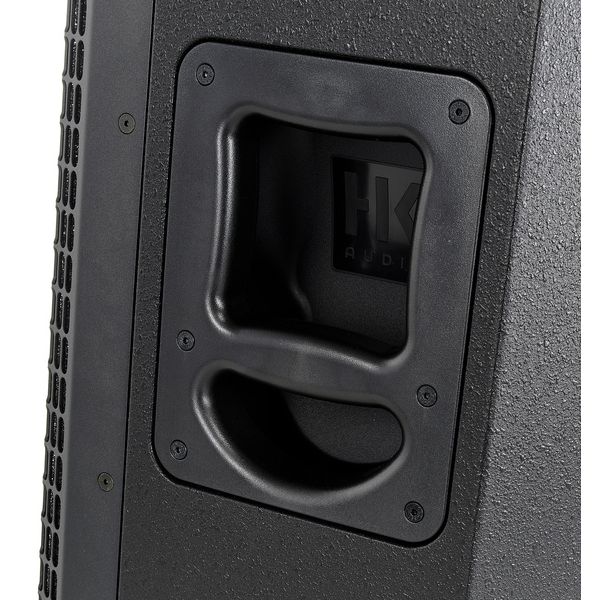

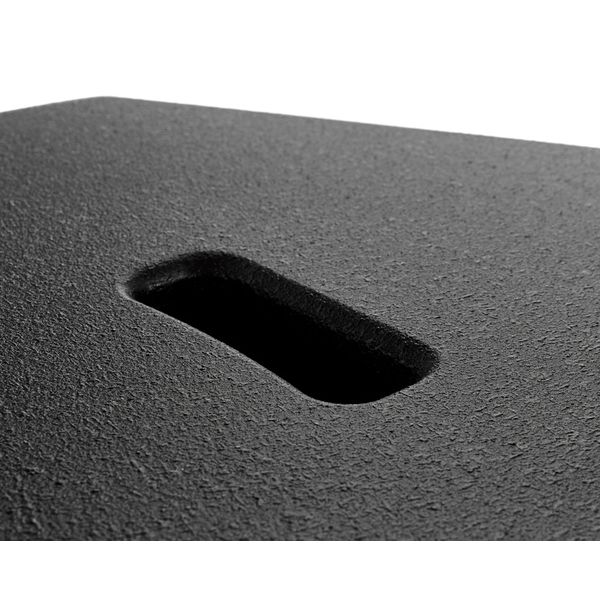

- 3 Handles
- Dimensions (W x H x D): 450 x 685 x 420 mm
- Weight: 27.6 kg
- Colour: Black
- Matching cover: art. 559351 (not included)
- Available sinceFebruary 2023
- Item number559341
- Sales Unit1 piece(s)
- Power (Manufacturers Specs)1200 W
- Bass Speaker in Inch15"
- Ways2-Way
- ColourBlack
- Weight27,6 kg
- Housing MaterialWood
- Analog Inputs2
- Microphone Input1
- Line OutXLR
- Media PlayerWifi Play
- Remote ControlRJ45
- EffectsNo
- Low CutYes

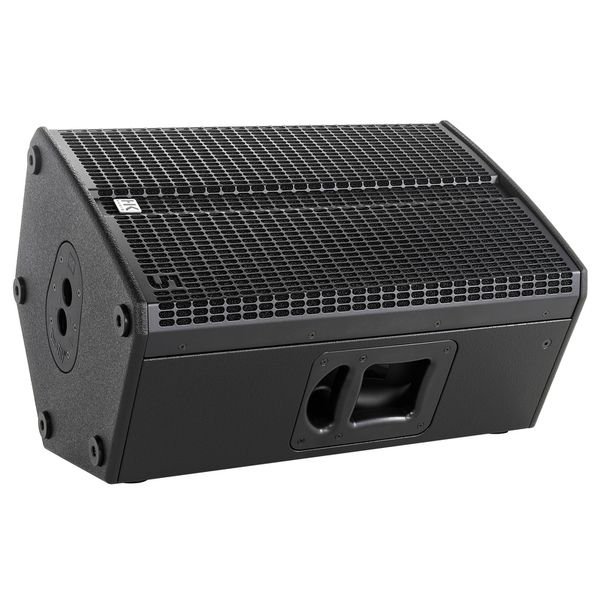

- Monitor AngleYes
- Width450 mm
- Depth420 mm
- Height685 mm
- Sound Pressure in dB138 dB
- Number of HT Speakers1
- Number of HT Speaker1
- HT Speaker in Inch1
- Number of Midrange Speaker0
- Midrange Speaker in Inchwithout
- Number of Bass Speaker1
- Number of Bass Speakers1
- AccuNo
- Stand Flange35 mm
- ConstructionStandard
- FlyableM8
- Mounting PointM8
- Line InputYes
- Horizontal Beam Angle60 °
- Vertical Beam Angle70 °
- Handheld / HeadsetNo
- Frequency Range (-10dB) from59 Hz
- Frequency Range (-10dB) to19000 Hz
- Frequency Range (-3dB) from64 Hz
- Frequency Range (-3dB) to12000 Hz
- Active CoolerYes
