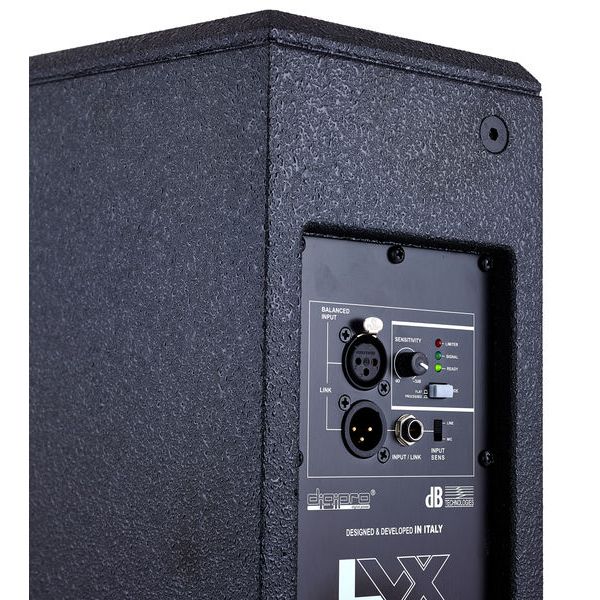

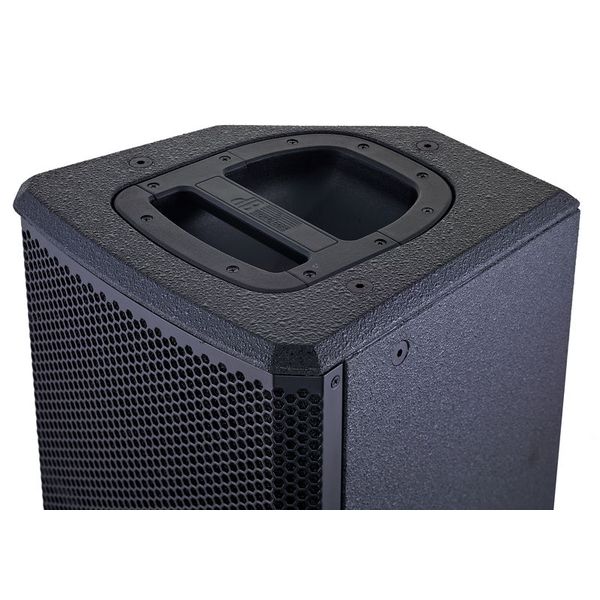

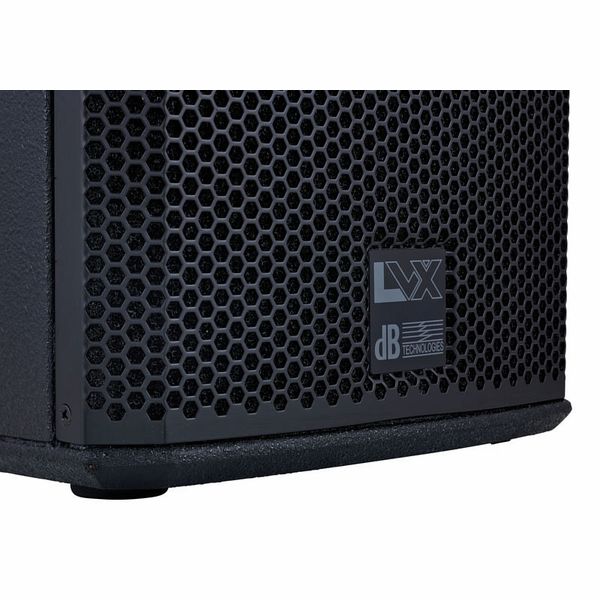

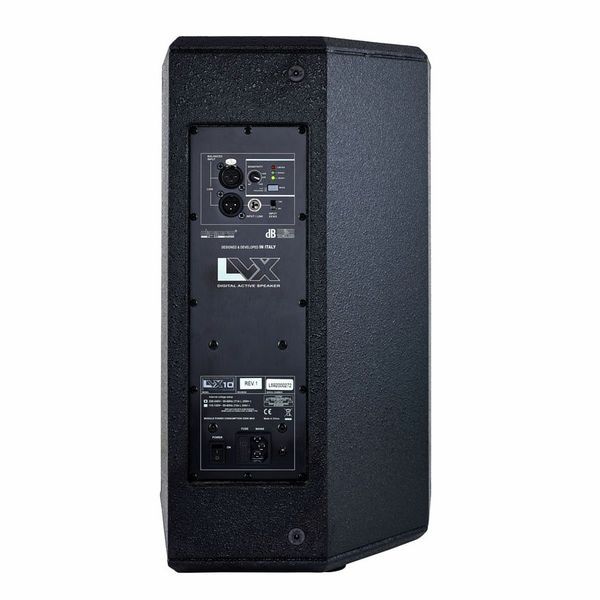

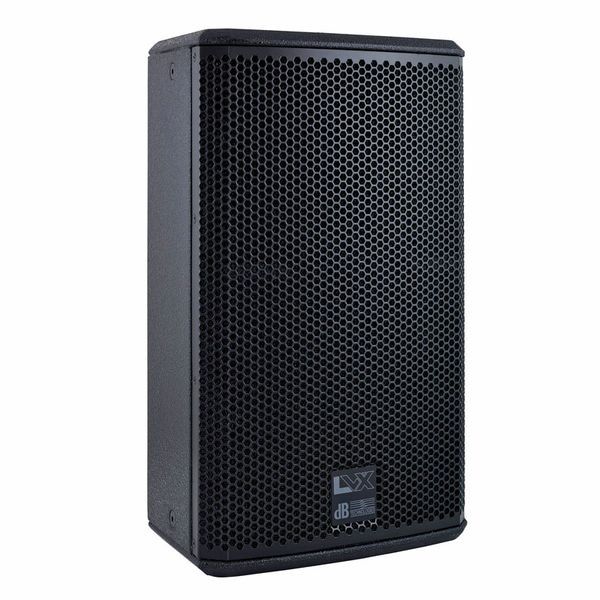

dB Technologies LVX 10
Quantity
-
Detail
Active Full-Range Speaker
- Includes a digital bi-amp power amp
- Speaker assembly: 10" woofer, 1" tweeter with 90° x 70° horn
- Power: 400 W / PRG, 200 W / RMS
- 24-Bit DSP
- Frequency range: 70-19,000 Hz
- 125 dB max. SPL (sound pressure level)
- RMS & Peak limiter
- Plywood housing
- Multifunctional housing includes 40° slanted monitor angle
- 12x M8 rigging points for a secure installation
- 35 mm Tripod / Stand flange mount
- Dimensions: 300 x 480 x 300 mm
- Weight: 13.5 kg
- Corresponding wall mount: Article Nr 410876 (not included, must be ordered separately)
- Corresponding pan-tilt bracket available (not included, must be purchased separately)
- Available sinceSeptember 2015
- Item number372338
- Sales Unit1 piece(s)
- Power (Manufacturers Specs)400 W
- Bass Speaker in Inch10"
- Ways2-Way
- ColourBlack
- Weight13,5 kg
- Housing MaterialWood
- Analog Inputs1
- Microphone Input1
- Line OutXLR
- Media PlayerNo
- Remote ControlNo
- EffectsNo
- Low CutNo
- Monitor AngleYes
- RMS Power200 W
- Width300 mm
- Depth300 mm
- Sound Pressure in dB125 dB
- Height480 mm
- Number of HT Speakers1
- Number of HT Speaker1
- HT Speaker in Inch1
- Number of Midrange Speaker0
- Midrange Speaker in Inchwithout
- Number of Bass Speaker1
- Number of Bass Speakers1
- AccuNo
- Stand Flange35 mm
- ConstructionStandard
- FlyableM8
- Mounting PointM8
- Line InputNo
- Horizontal Beam Angle90 °
- Vertical Beam Angle70 °
- Handheld / HeadsetNo
- Frequency Range (-10dB) from60 Hz
- Frequency Range (-10dB) to20000 Hz
- Frequency Range (-3dB) from70 Hz
- Frequency Range (-3dB) to19000 Hz
- Active CoolerNo
