Yamaha DM3 HP Bundle
                      Quantity

                  -
    Detail
Bundle offer comprising

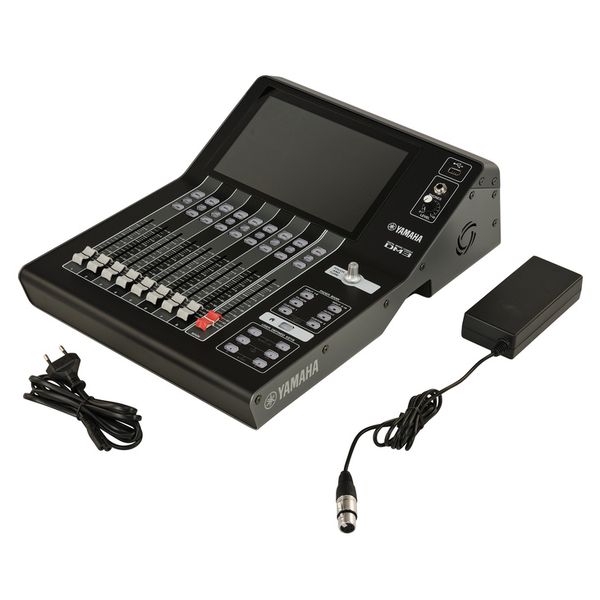

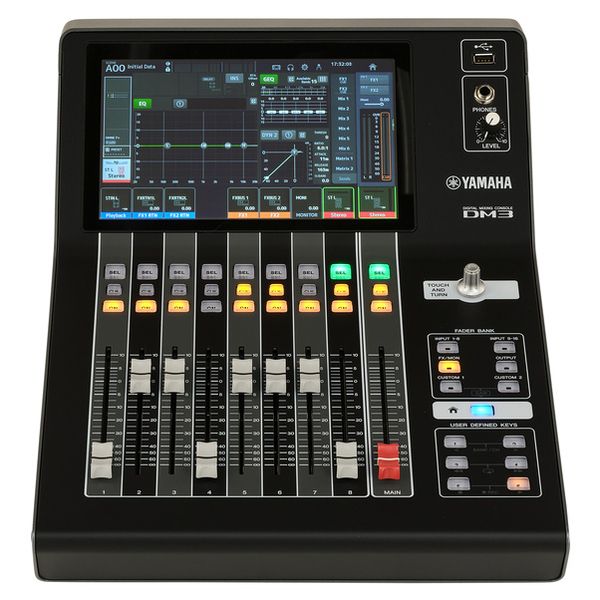

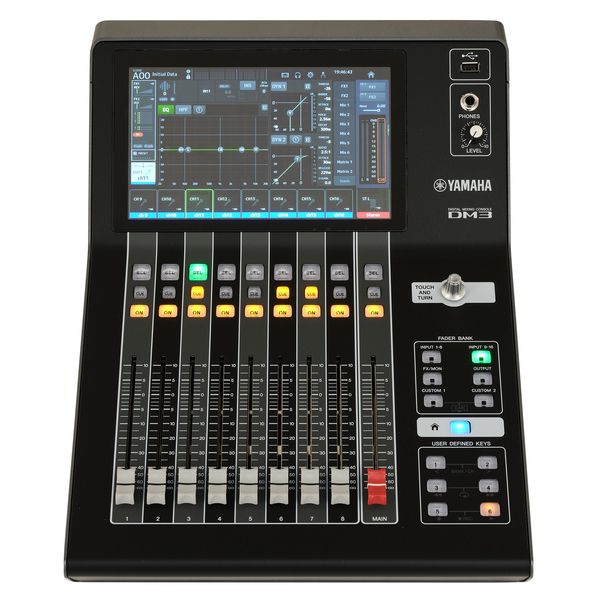

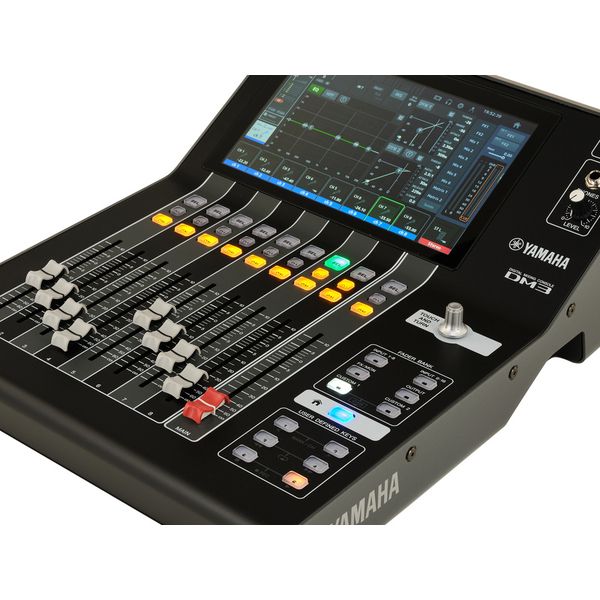

Yamaha DM3
16-Channel Mixer
- For studio, stream and live applications

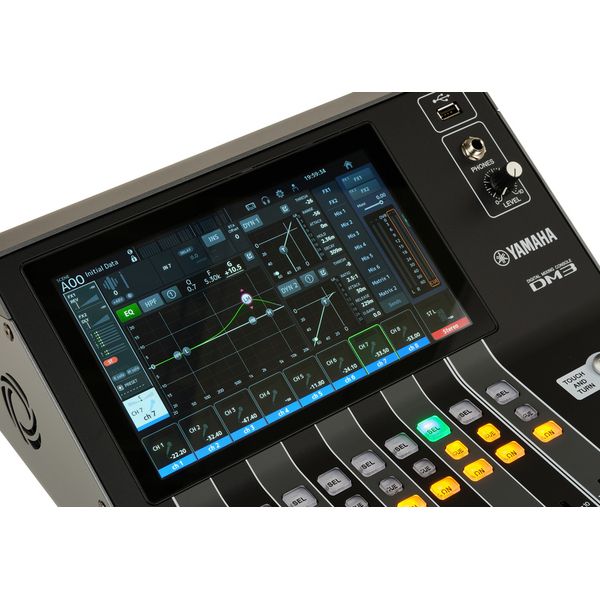

 - 9" Multi touchscreen
 - 9 Motorised faders
 - "Touch and Turn" control
 - 18 x 18 USB 2.0 audio interface 48 kHz / 96 kHz
 - 16 Mono Inputs + 1 Stereo + 2 FX Return
 - 8 Outputs
 - Buses: 1 stereo, 6 mix, 2 FX, 2 matrix (supports input to matrix)
 - DAW Remote Feature (HUI)
 - OSC support for installations
 - Editor app available for tablet (tablet not included)
 - 16 x 16 DANTE interface with 16 inputs and outputs
 - 6 Freely assignable buttons
 - 2 x 2 Channel recording/playback via USB port
 - 18 Selectable effects + GEQ on Mix 1-6 and Stereo Bus
 - 8 Groups with DCA roll-out
 - Dimensions (W x H x D): 320 x 140 x 455 mm
 - Weight: 6.5 kg
 - Includes Steinberg Cubase AI and VST Rack Elements

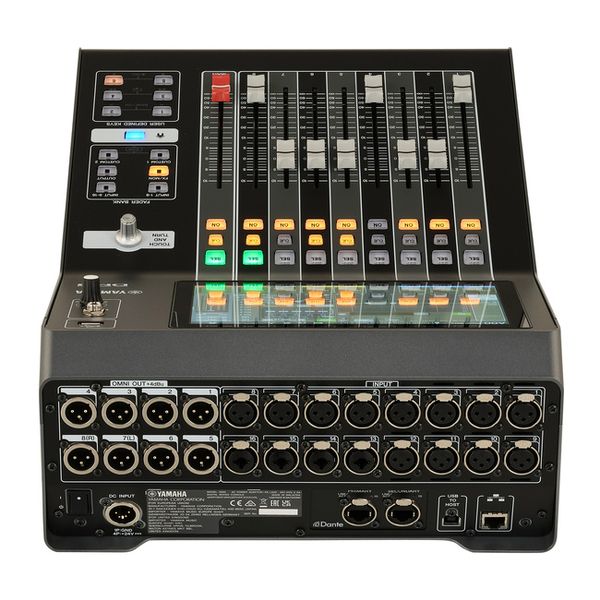

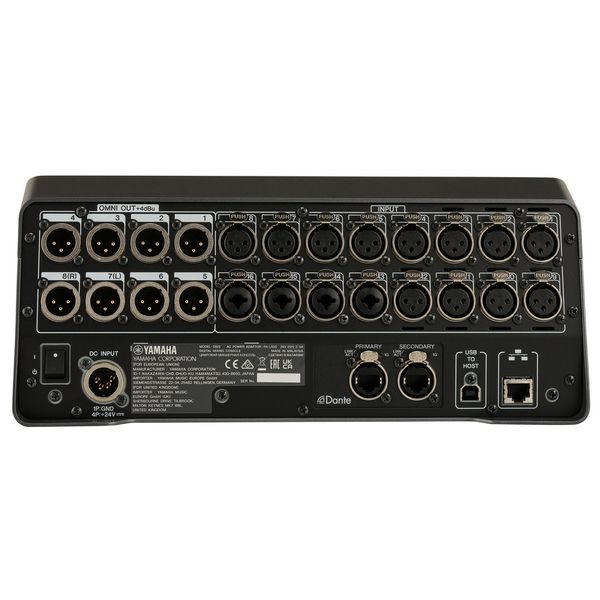

Connections
- 16 Mic/line inputs: 12x XLR, 4x combo XLR/jack 6.3 mm
 - 8 Line outputs: XLR
 - 2 x Dante input (RJ45)
 - Stereo headphone output: 6.3 mm jack
 - USB to Host
 - USB to Device
 - Ethernet RJ45

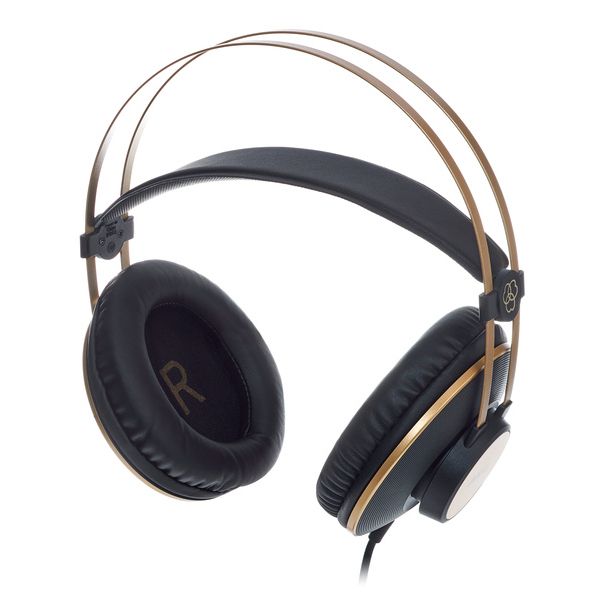

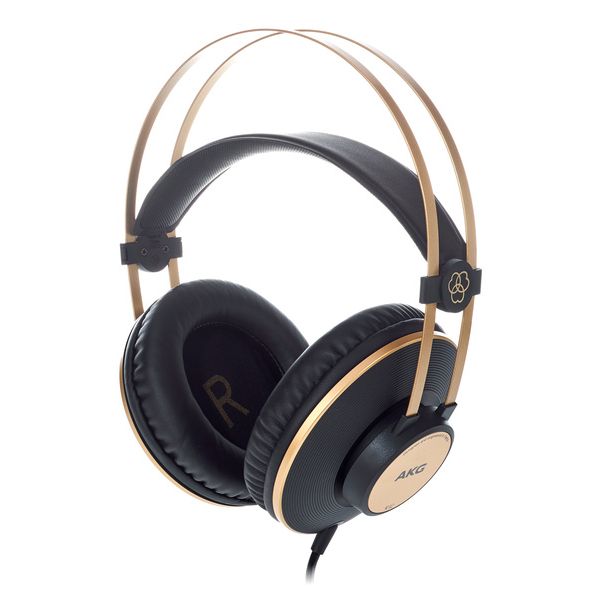

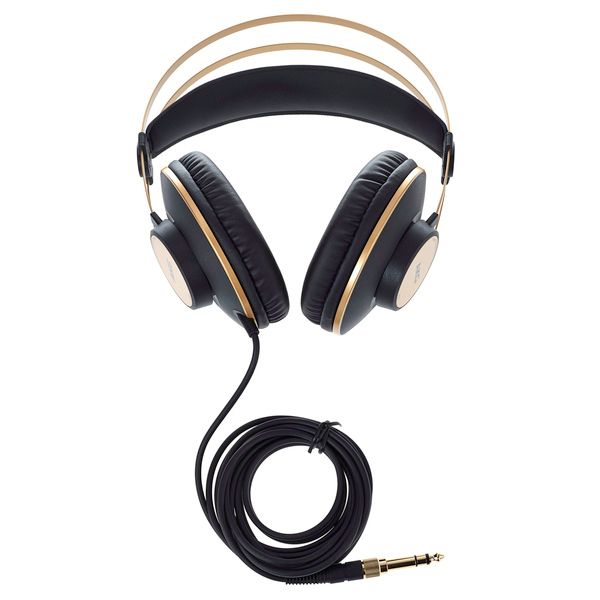

AKG K-92
Headphones
- Closed
 - Circumaural
 - Impedance: 32 Ohm
 - Sensitivity: 113 dB SPL/V
 - Frequency range: 16-22000 Hz
 - Max. input level: 200 mW
 - 3 m Cable with 3.5 mm jack and 6.3 mm adapter
 - Weight: 200 g

- Available sinceApril 2023
 - Item number565955
 - Sales Unit1 piece(s)
 - User InterfacePhysical/remote
 - Number of faders9
 - DSP Input channels16
 - Mic Preamp16
 - Physical outputs8
 - Digital stagebox connectionNo
 - HotspotNo
 - Multitrack RecordYes
 - integratated Player/Rec via USB/SDstereo
 - 19" RackmountOptional
 - Max.number of input channels16
 - Microphone Inputs16
 - Analog Line Inputs16
 - Analog Line Outputs8
 - DSP Output Channels8
 - Busses6
 - Mono-Line Input16
 - Stereo-Line Input0
 - MotorfaderYes
 - EthernetYes
 - Computer interfaceUSB
 - Special FeaturesDANTE, 18x18 USB Audio Interface
 - Soundcard interfaceUSB-B
 - Recorder FormatWAV/MP3
 - RTANo
 - FX Processor2
 - 31 Band EQ0
 - Delay InputYes
 - Delay OutputYes
 - Matrix2
 - DCA/VCA Groups0
 - Midi ConnectorNo
 - Sample rate96 kHz
 - Separate Personal Monitor systemNo
 - Expansion Card slots0
 - Digital ADATNo
 - Digital SPDIFNo
 - Digital AES3/ASESEBNo
 - Digital MADINo
 - Digital DanteYes
 - CaseNo
 - Height140 mm
 - Width320 mm
 - Depth455 mm
 - Weight6,5 kg
