Bundle offer comprising

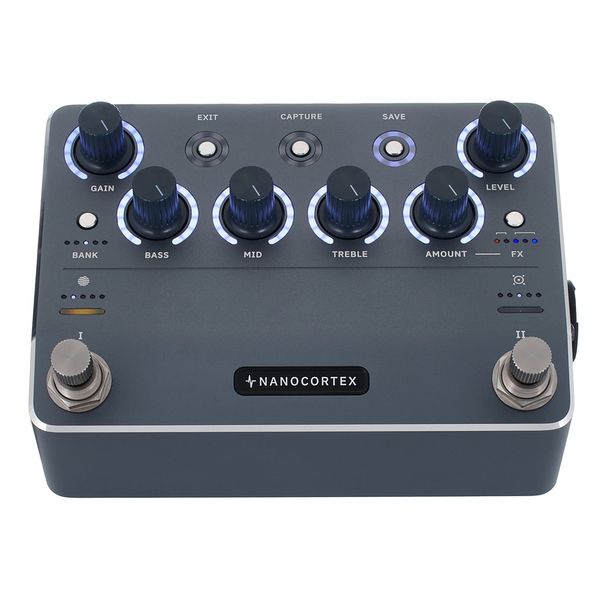

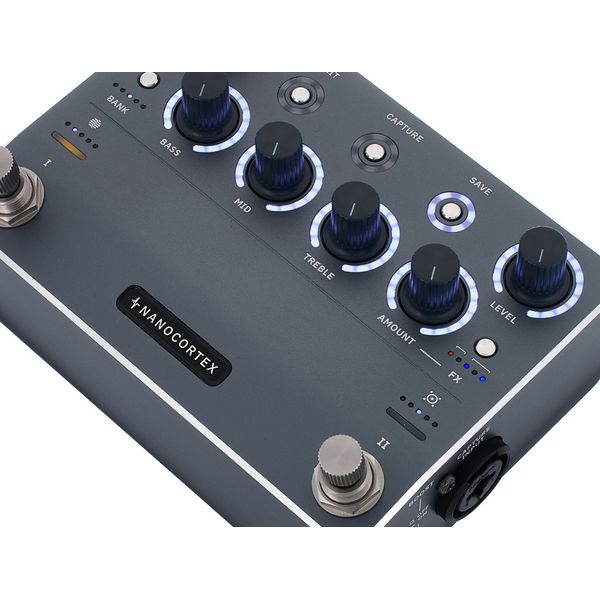

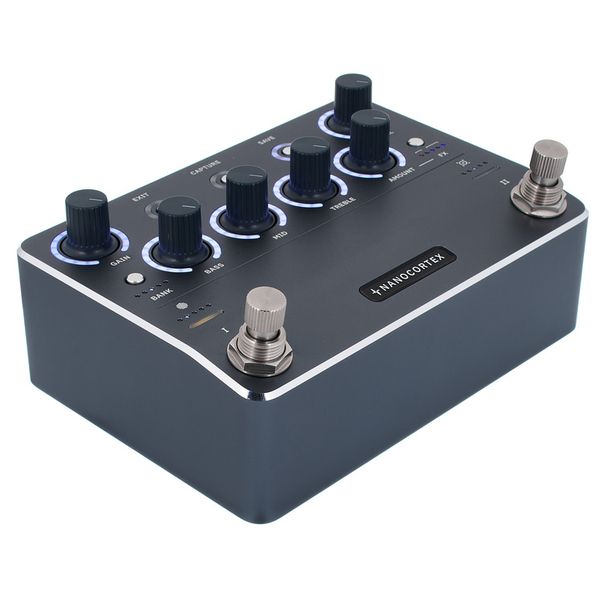

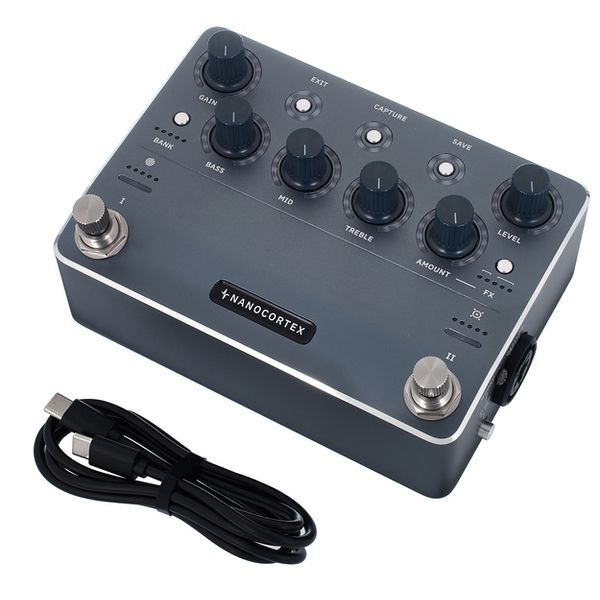

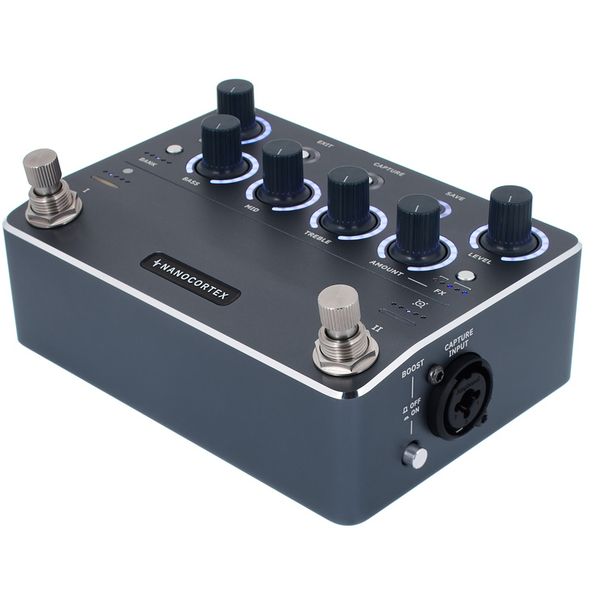

Neural DSP Nano Cortex

Multi Effect Pedal for Electric Guitar

• Digitally replicates the sound of amplifiers, speaker cabs, and pedals in the same quality and resolution as the "bigger" Quad Cortex
• Up to 64 presets and 256 Neural Captures
• Ten high-quality IRs pre-installed, each providing five different microphone options and six microphone positions
• Loads up to 256 custom IRs
• 47 effects and tools (after free Nano OS 2.0 update)
• Seven device blocks, including two freely assignable pre-FX, three freely assignable post-FX, a Neural Capture block and an extended IR loader
• Fixed signal path
• Each block can be bypassed depending on the setup
• Free access to thousands of Neural Captures from the Cortex Cloud
• Further processing possible via the Cortex Cloud App

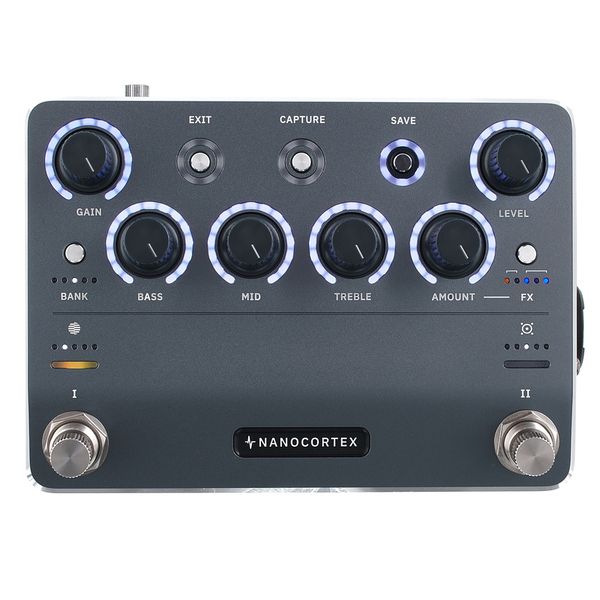

• Controls: Gain, Bass, Mid, Treble, Amount, Level, Headphone Vol
• Push buttons: Exit, Capture, Save, Bank, FX, Ground/Lift, Boost
• Footswitches: I and II
• True bypass
• Power supply via USB-C or 9-12 V DC mains adapter (not included)
• Power consumption: 600 mA
• Dimensions (W x D x H): 144 x 103 x 62 mm
• Weight: 620 g

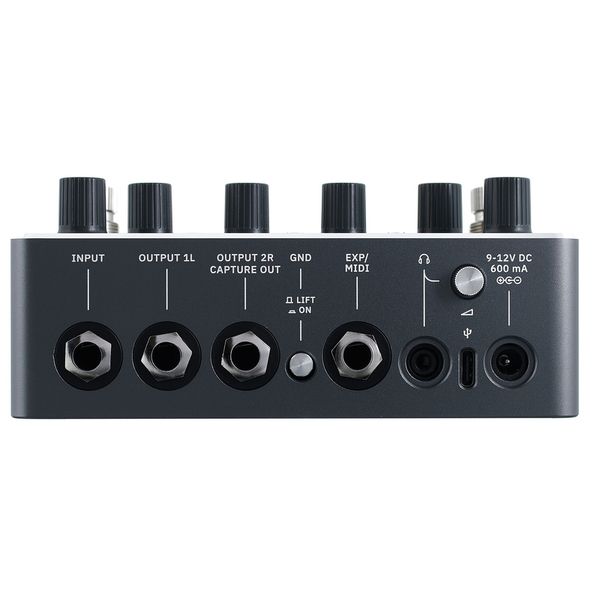

Connectors:

• Input: 6.3 mm Jack
• Output 1L: 6.3 mm stereo jack
• Output 2R/Capture output: 6.3 mm stereo jack
• Headphone output: 3.5 mm stereo jack
• Expression/MIDI: 6.3 mm stereo jack
• Capture input: XLR/6.3 mm jack combo
• USB-C port for power supply
• Power supply connection: Barrel connector 5.5 x 2.1 mm, centre negative

Note: Battery operation is not possible

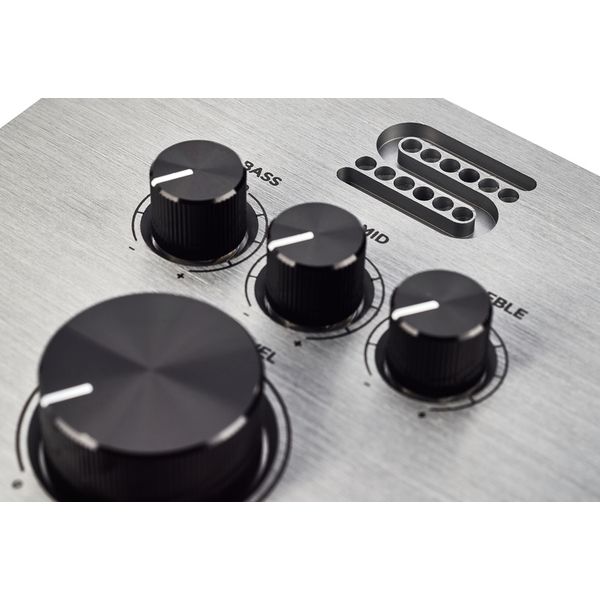

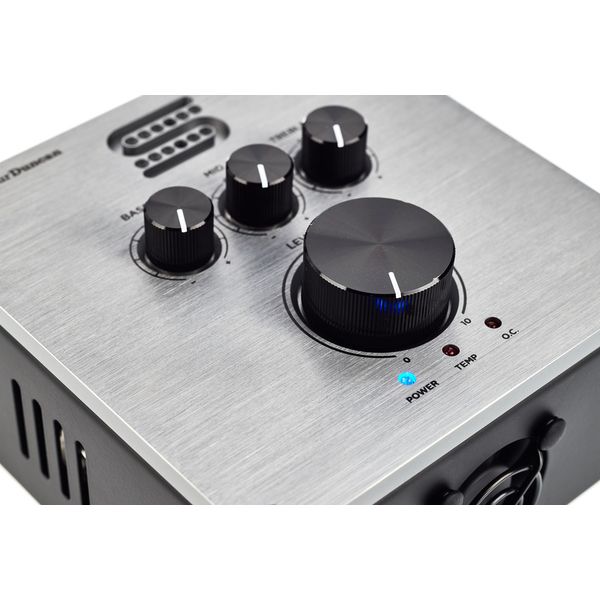

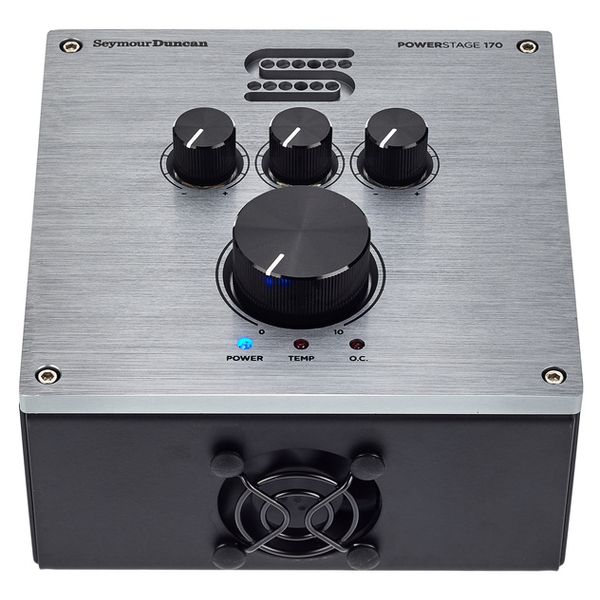

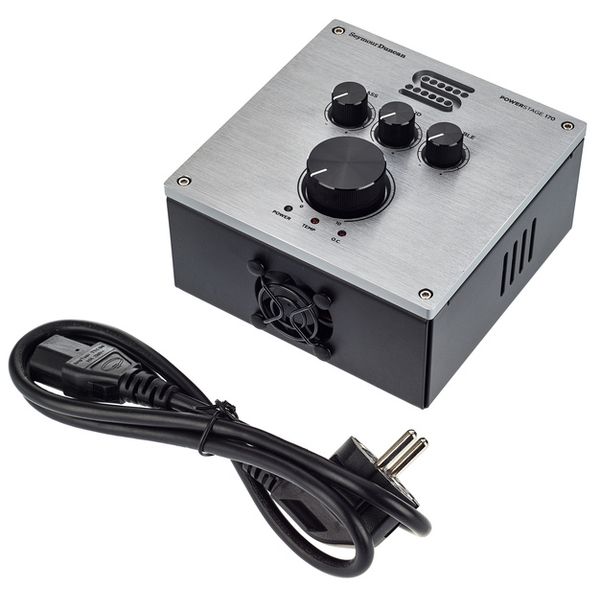

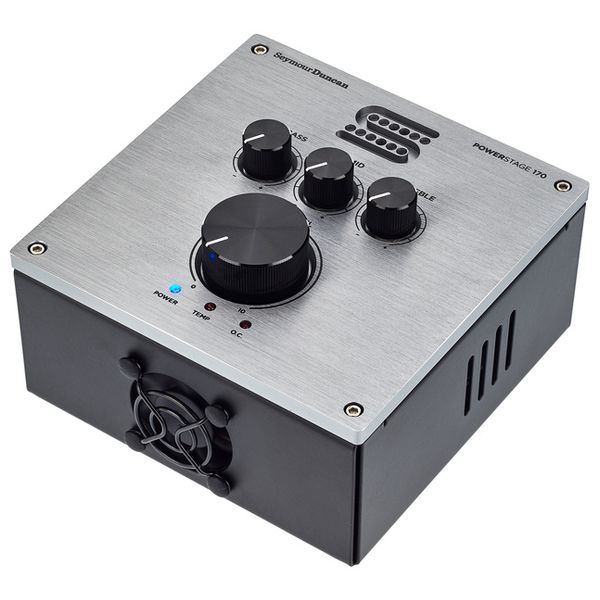

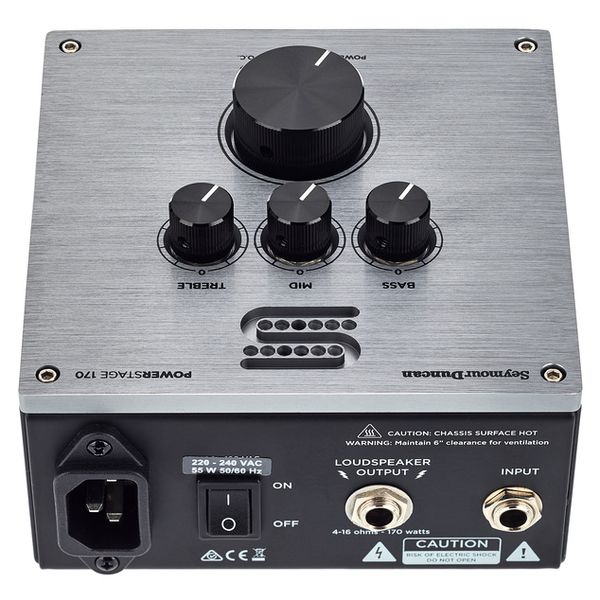

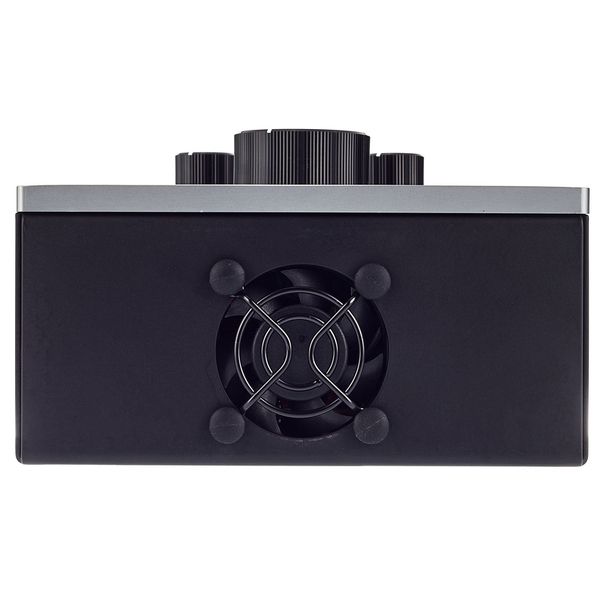

Seymour Duncan Power Stage 170

Guitar Power Amp

• Suitable for amplifying effect pedals
• Small enough for pedalboards
• Power: 170 W at 4 Ohms
• 3-Band EQ
• 13 dB boost/cut in each frequency band

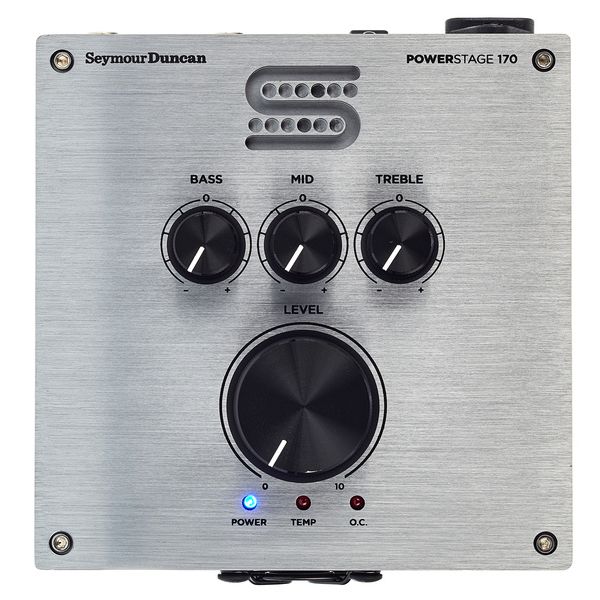

• Controls for volume, bass, mid and treble

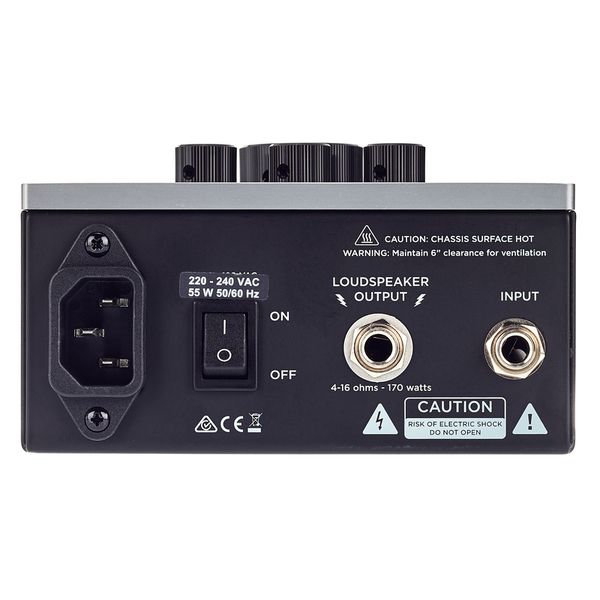

• Power switch on the back
• 1/4" mono-jack input/output on the back
• Cold device plug on the back
• Power status LED
• Temperature status LED
• O.C. status LED
• Output impedance: 4-16 Ohms
• Input voltage: 220-240V AC
• Dimensions (L x W x H): 127 x 133 x 72 mm
• Weight: 910 g
• Made in USA

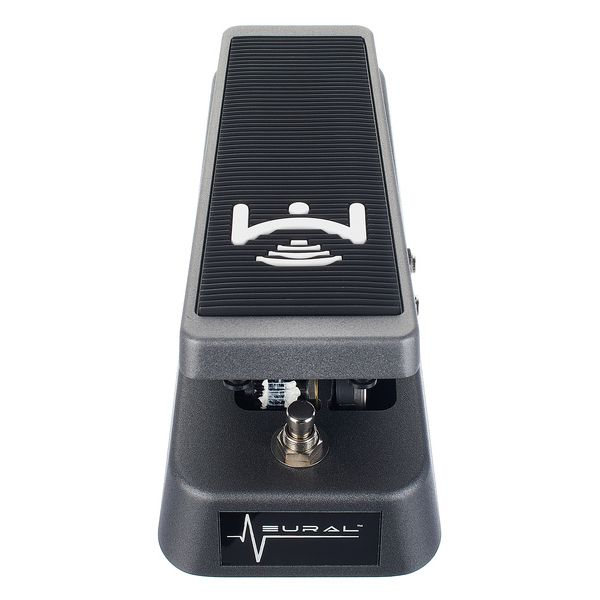

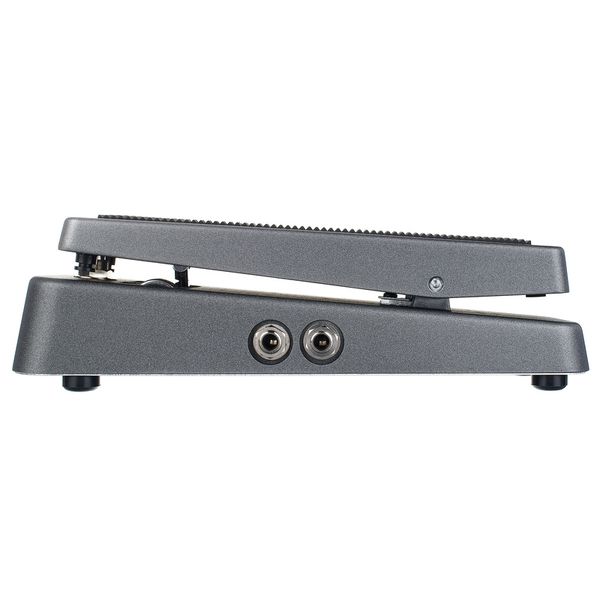

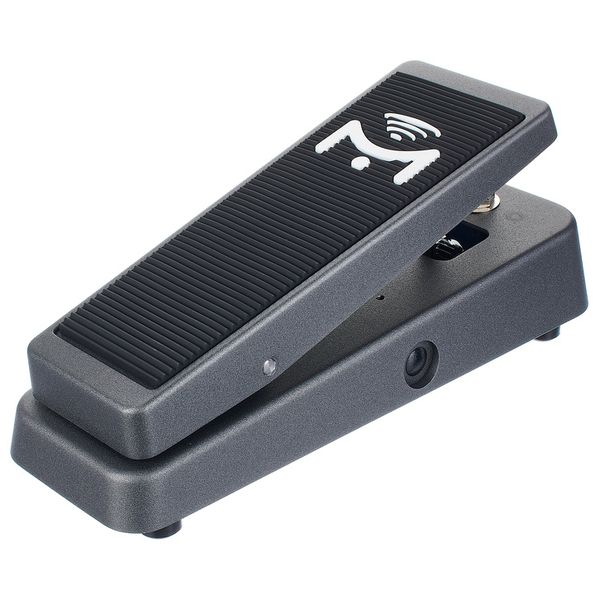

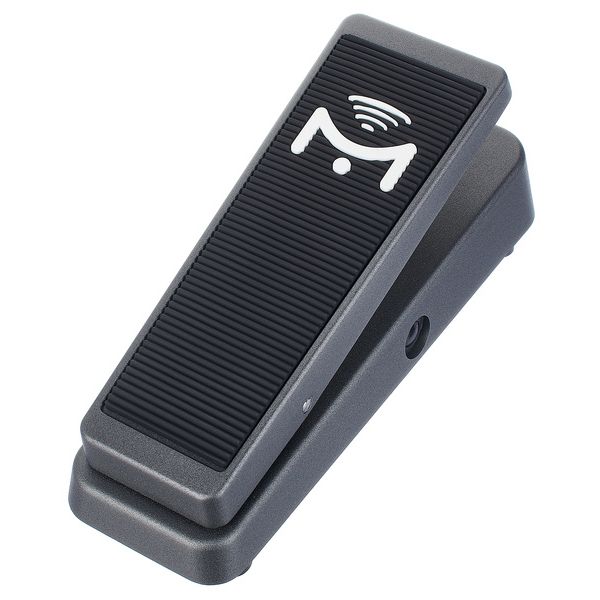

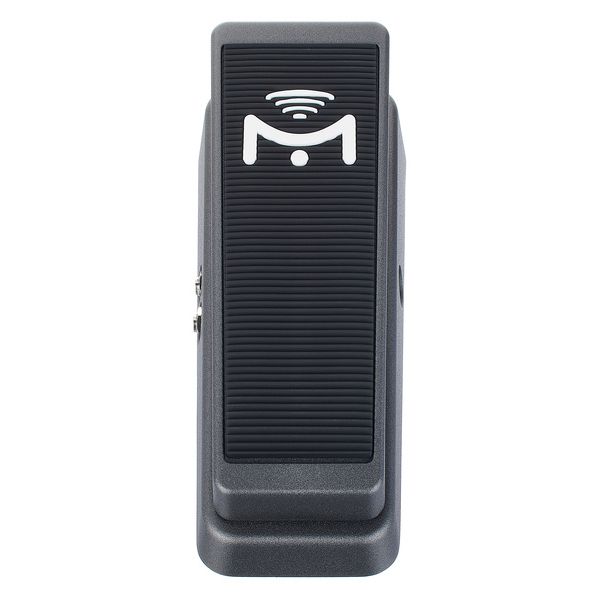

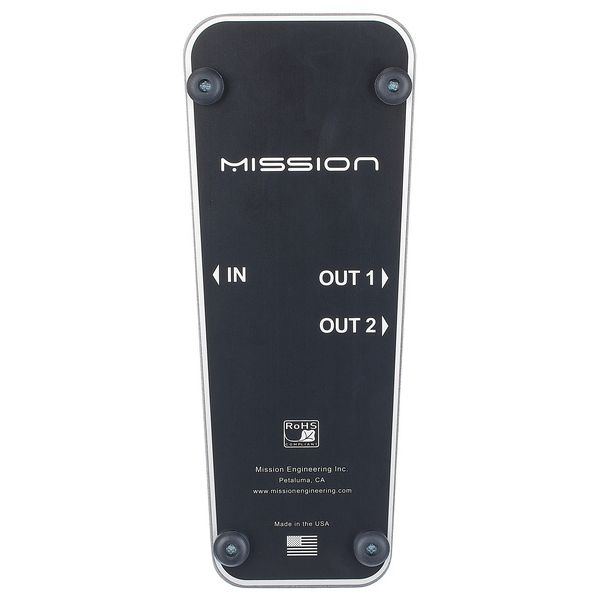

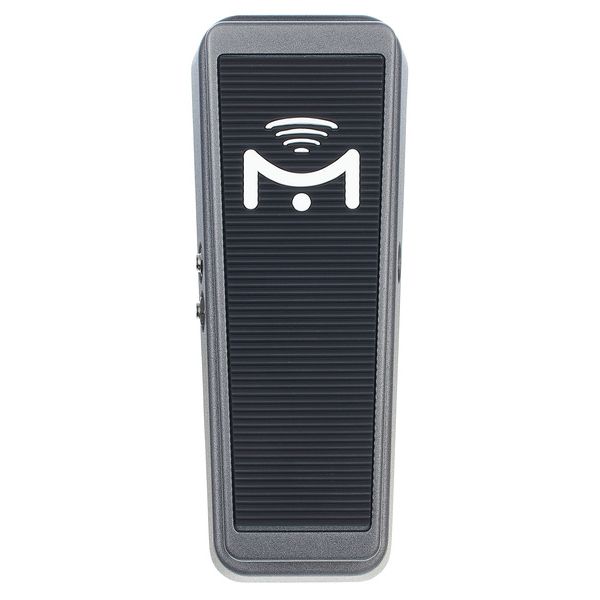

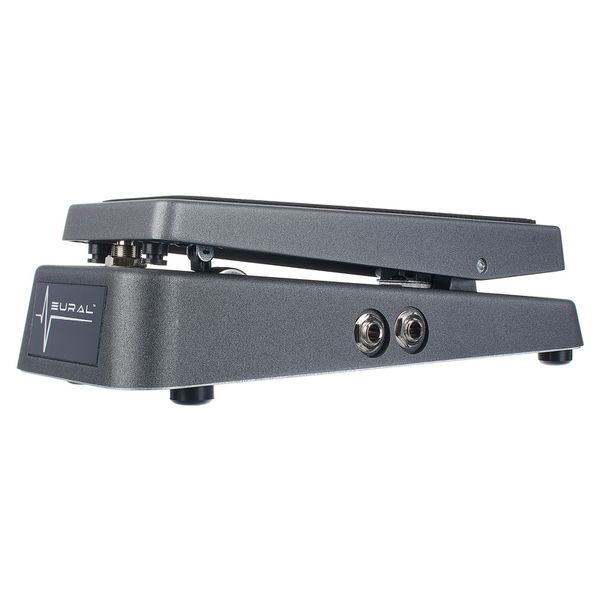

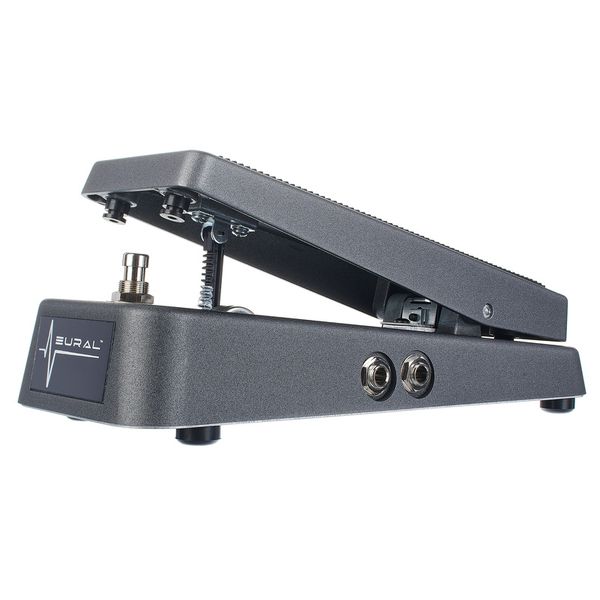

Mission Engineering SP1-ND-GY

Expression Pedal With Integrated Switch

• Specially designed to use with the Neural DSP quad Cortex
• Linear potentiometer matched to the exact specifications of the quad Cortex for precise and natural control
• Integrated toe switch to turn effects on and off without the need for a separate footswitch
• Colour: Grey Metallic
• Dimensions (L x W x H): 251 x 99 x 76 mm
• Weight: 1.43 kg

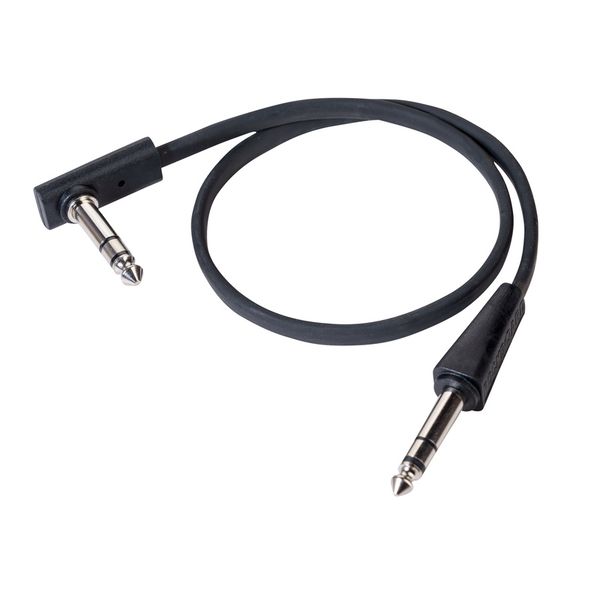

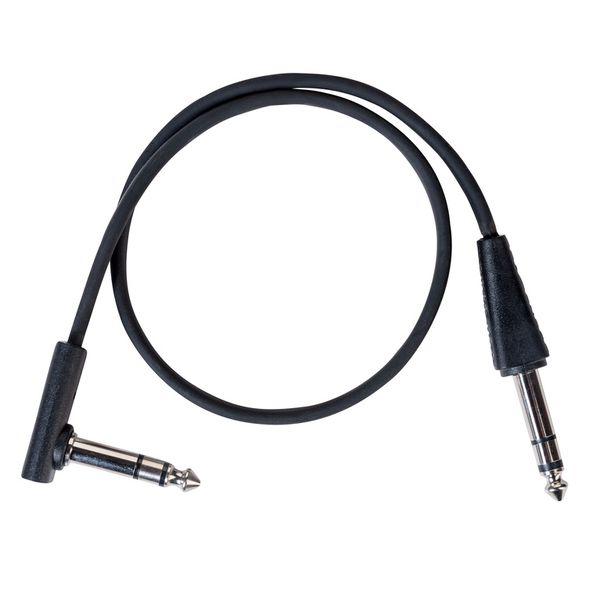

Rockboard Flat TRS Cable 40 cm

Cable for Effect Units

• Length: 40 cm
• 6.3 mm TRS stereo line < = > 6.3 mm TRS stereo angle jack
• Flat TRS cable with rectangular cross-section
• For connecting footswitches or expression pedals
• 2 Flexible copper conductors 20 x 0.12 mm
• Wound copper shield: 34 x 0.12 mm
• Polyethylene signal insulation
• PVC sheathing
• Capacitance less than 10 pF/decimetre
• Conductor resistance less than 10 mOhm/decimetre
• Working temperature: -15° C to +70° C
• Outer dimensions of the cable (W x H): 7 x 3 mm
• Outer dimensions of the plug (W x H): 12.5 x 7.5 mm
• Colour: Black

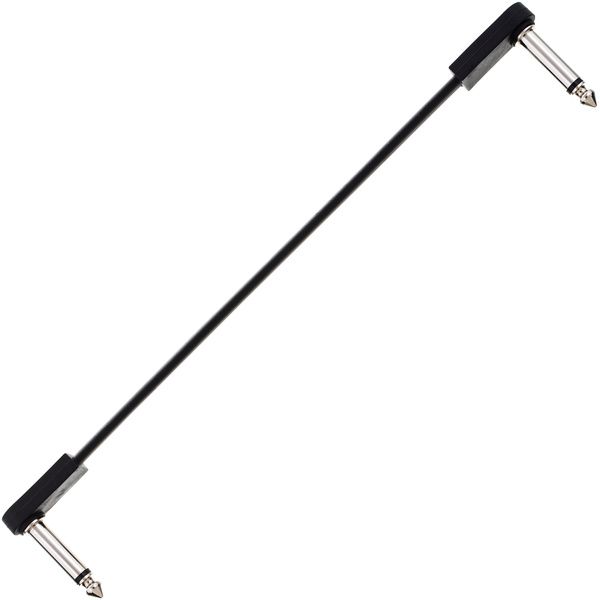

Harley Benton FPC-28 Flat Patch Cable

Patch Cable

• Length: 28 cm
• Professional patch cord for effects pedals
• Angled, on both sides, extra flat jack plug
• Saves space
• Very flexible
• Colour: Black
