the t.bone freeU Ovid Bundle 863 MHz

Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Bundle offer comprising

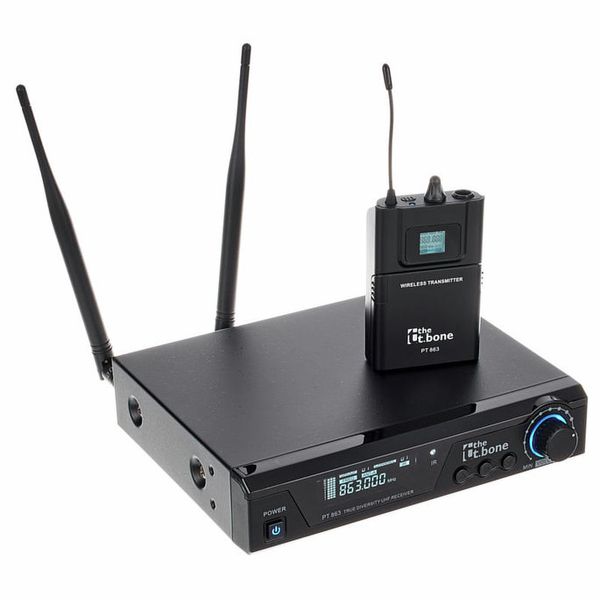

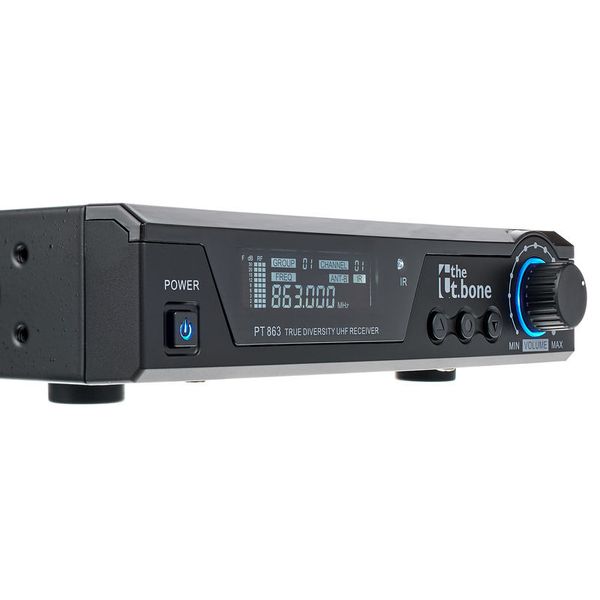

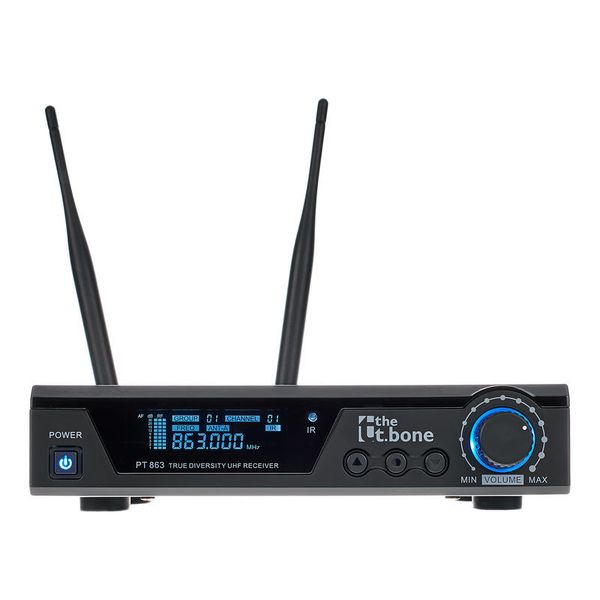

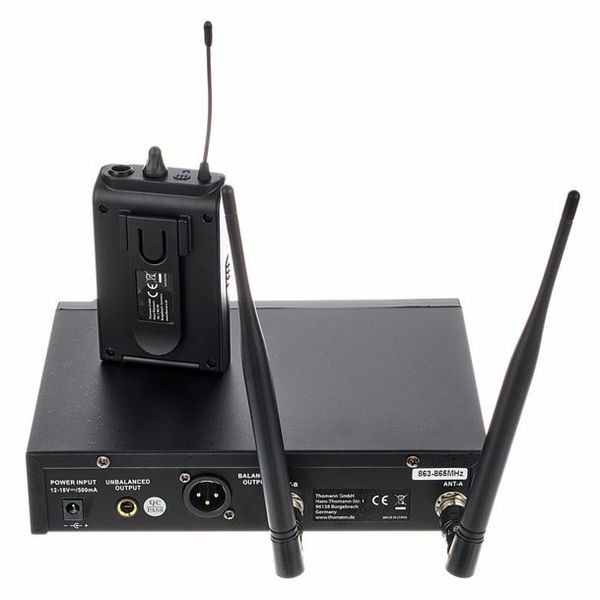

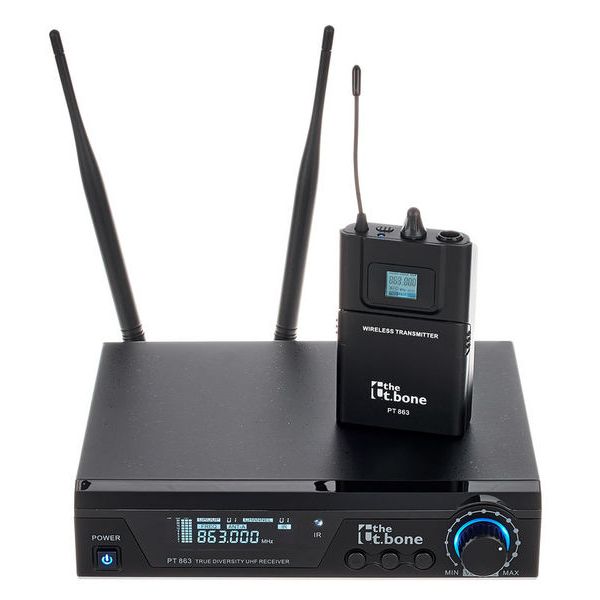

    the t.bone freeU PT 863

    UHF Wireless System

    • With pocket transmitter and guitar cable for instrument applications
    • Frequency band: 863 - 865 MHz
    • Frequency range: 50 - 16,000 Hz
    • 4 Pre-programmed frequency groups with 4 available channels each
    • Auto squelch
    • Frequency scan in the receiver
    • Adjustable AF output
    • Transmission power: 10 mW
    • Infrared transfer of the settings from the receiver to the transmitter
    • Pilot tone
    • Increments of 125 kHz
    • Modulation type: F3E
    • LCD display

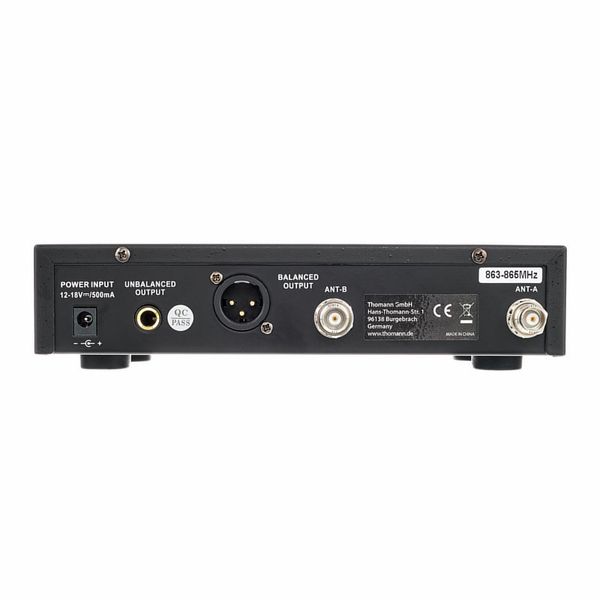

    • Housing size: 9.5", 1 U with 2 BNC antenna connectors
    • XLR- and jack output
    • Operates with 12 V, 0.5 DC power supply, centre positive

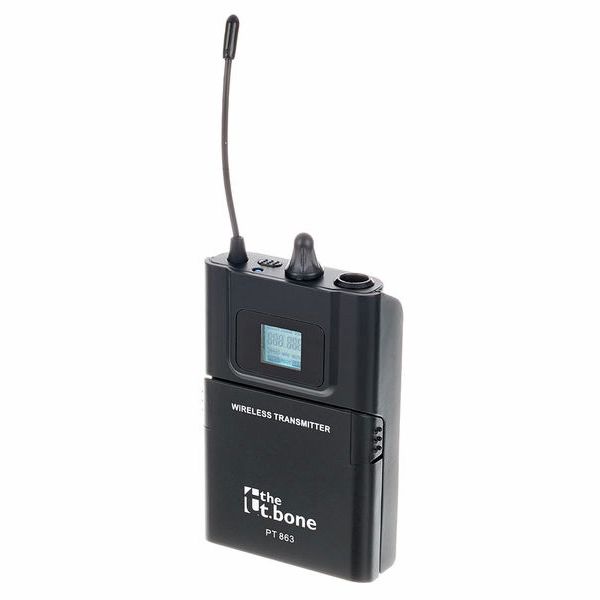

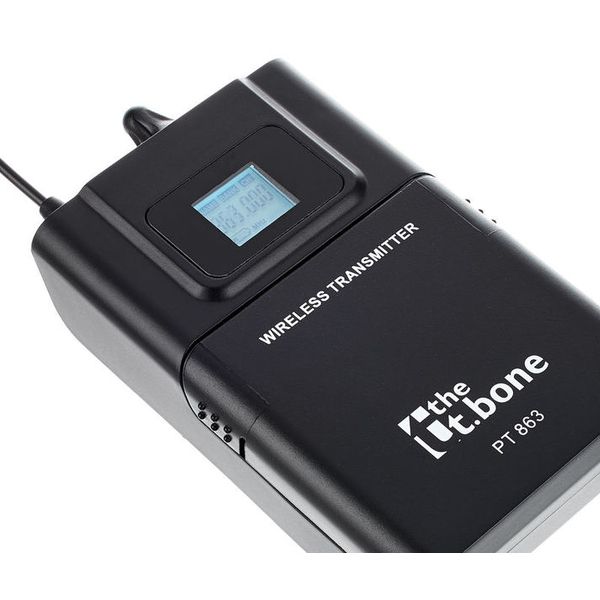

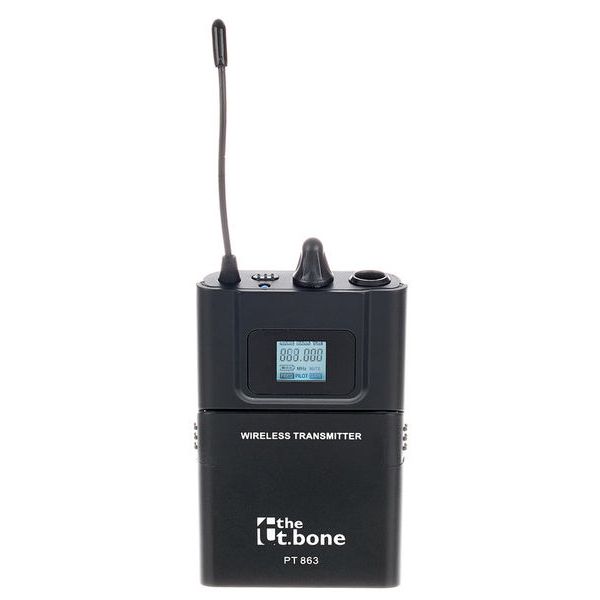

    • Pocket transmitter housing: Plastic
    • LCD display

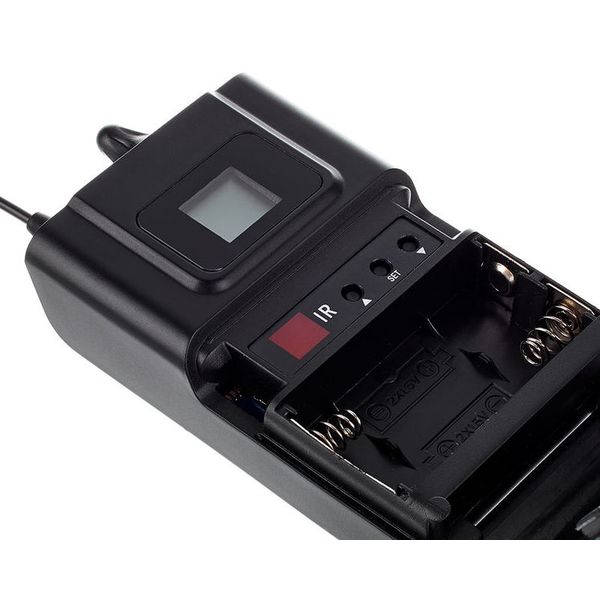

    • Operates with 2 AA batteries or rechargeable batteries

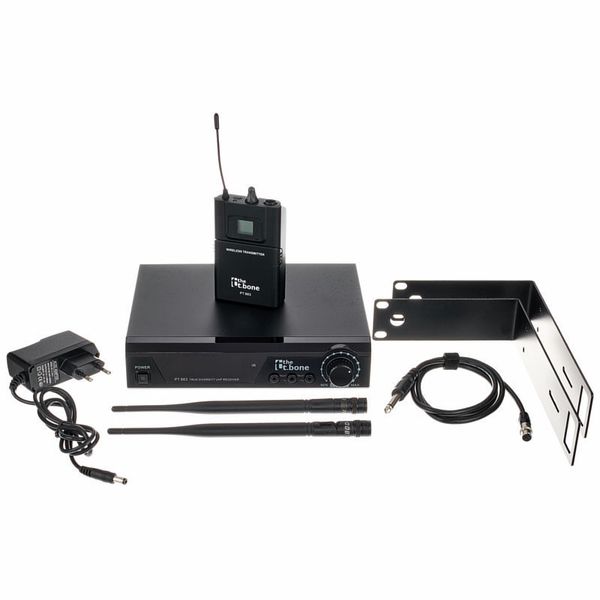

    • Includes guitar cable, antennas, EU power supply and a rack kit for the installation of an 1 U receiver
    • Suitable antenna converter: Art. 177448 (not included)

    Note: a maximum of 2 systems can be operated simultaneously in this frequency band.

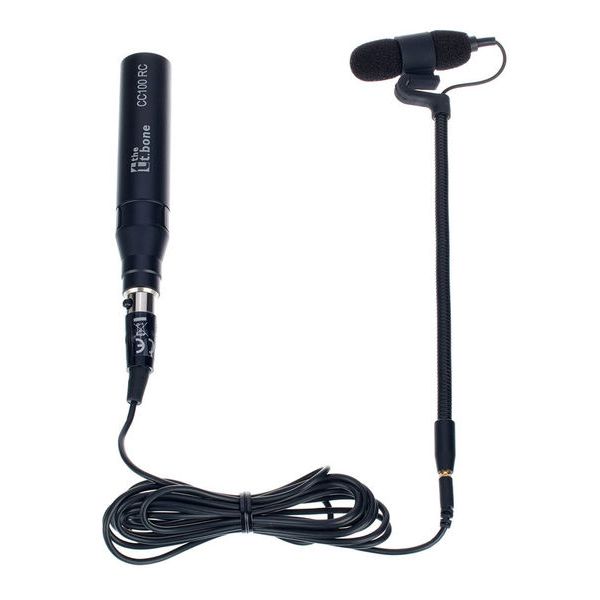

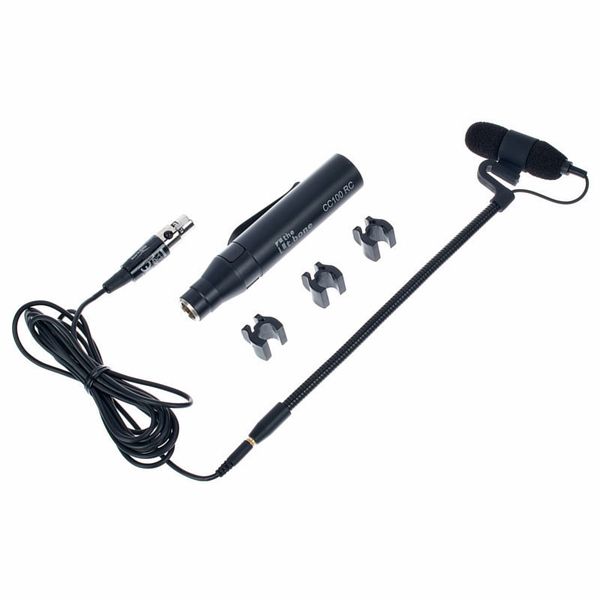

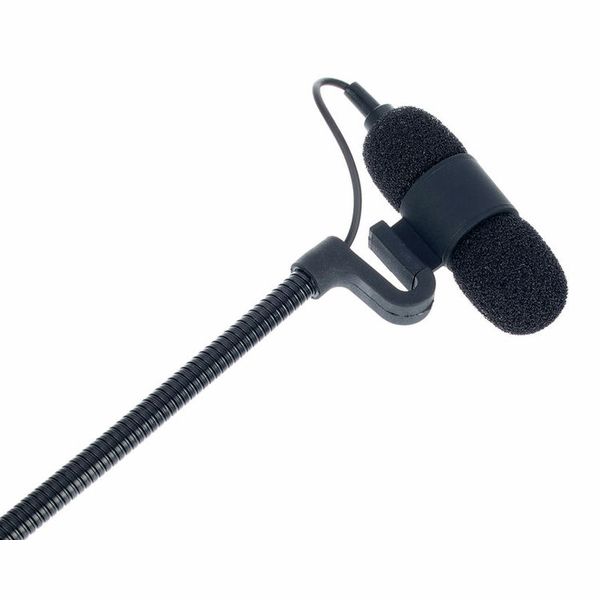

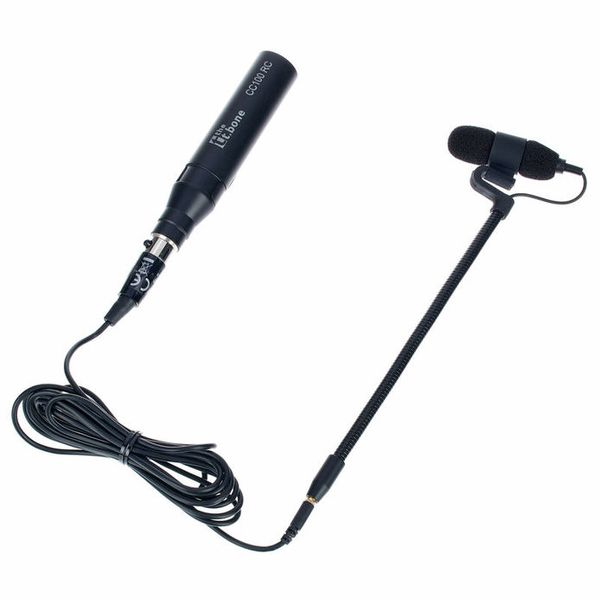

    the t.bone Ovid System CC 100 RC

    Condenser Clip Microphone for The Ovid System

    • Easy installation with different instrument holders (optional - not included)

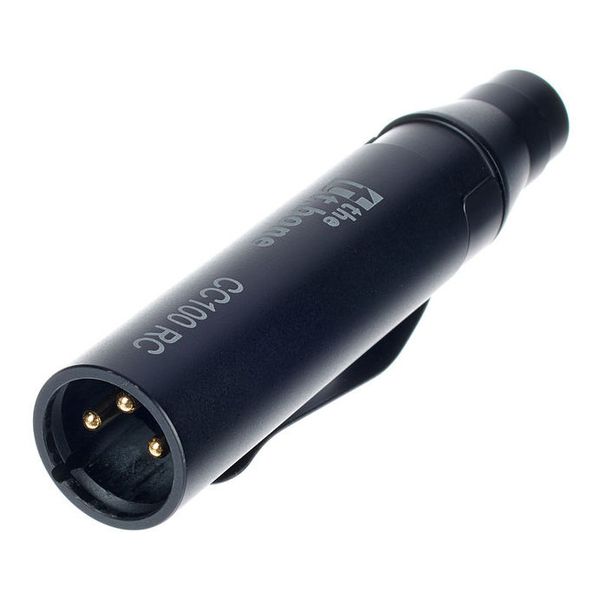

    • With phantom power adapter (phantom power required)
    • Detachable cable with screw contact
    • Directivity: Cardioid
    • Frequency range: 20 - 20,000 Hz
    • Flexible gooseneck for easy alignment on the instrument

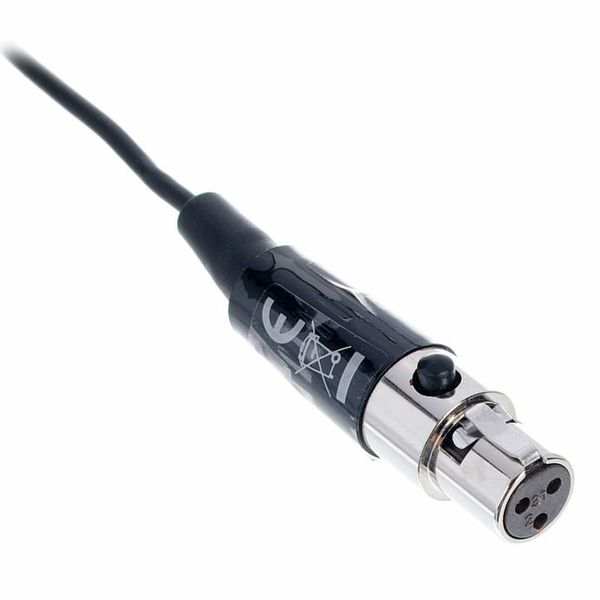

    • 3-Pin mini XLR connector for operating with t.bone wireless systems - also suitable for AKG wireless systems
    • Length of gooseneck: 130 mm
    • Cable length: 2 m
    • Optional cables with Sennheiser EW and Shure TQG connector available separately (not included)
    • Foam windshield included
    • Available sinceOctober 2018
    • Item number451130
    • Sales Unit1 piece(s)
    • Channels Instrument Microphone1
    • Transmission SystemAnalog
    • Frequency863 MHz – 865 MHz
    • Receiver TypeStationary
    • Frequency displayYes
    • Removable antennaBNC
    • Accu TransmitterNo
    • Charging SystemNo
    • DanteNo
    • DiversityYes
    • Transmitter TypePocket Transmitter
    • Mic Model439952
    • Transmission power in mW10 mW
    • Selectable frequencies16
    • Switching bandwidth in MHz2 MHz
    • Frequency scanYes
    • Monitoring the battery statusYes
    • RackkitYes
    • OutputXLR
    • Receiver width in mm210 mm
    • Receiver height in mm44 mm
    • Receiver depth in mm170 mm
    • Receiver weight in kg0,8 kg
