Shure QLXD24/KSM8B K51
Quantity
-
Detail
Bundle offer comprising
Shure QLXD2/KSM8B K51
Digital UHF Handheld Transmitter
- With dynamic Dualdyne KSM8B capsule
- Frequency band: K51 (606 - 670 MHz)
- Audio signal: 24 Bit / 48 kHz
- AES-256 encryption for uninterceptable transmission
- Up to 72 MHz switching bandwidth
- 22 Compatible channels in an 8 MHz TV band
- Switchable transmission power: 1/10 mW
- 120 dB Dynamic range
- Metal handheld transmitter with KSM8 condenser microphone capsule
- Polar pattern: Cardioid
- Frequency transmission via infrared interface
- Transmitter operation with 1.5 V AA batteries - optionally also with SB 900A lithium-ion battery
- Includes bag and microphone holder

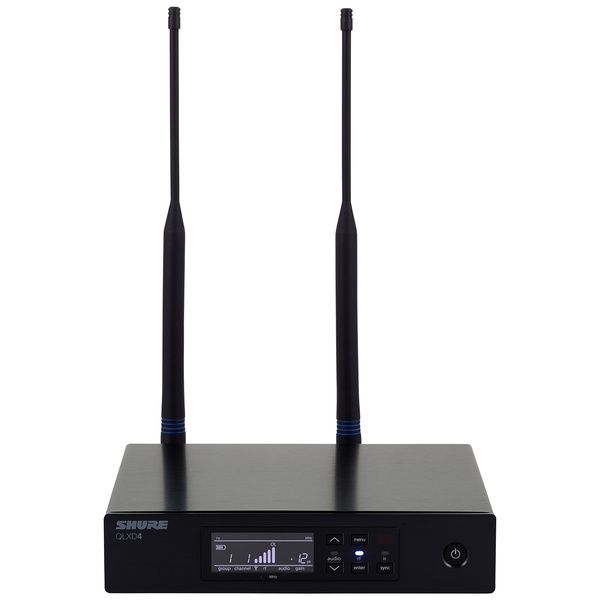

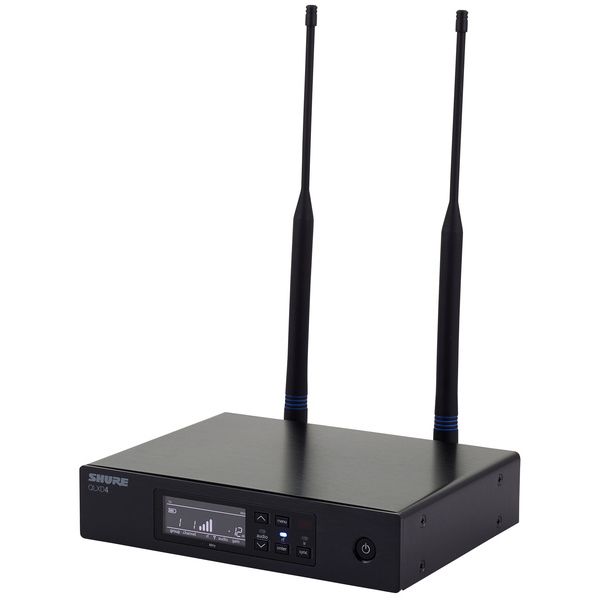

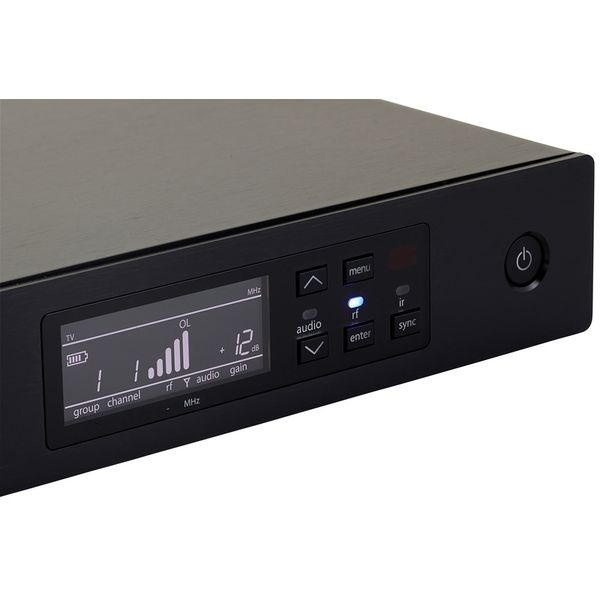

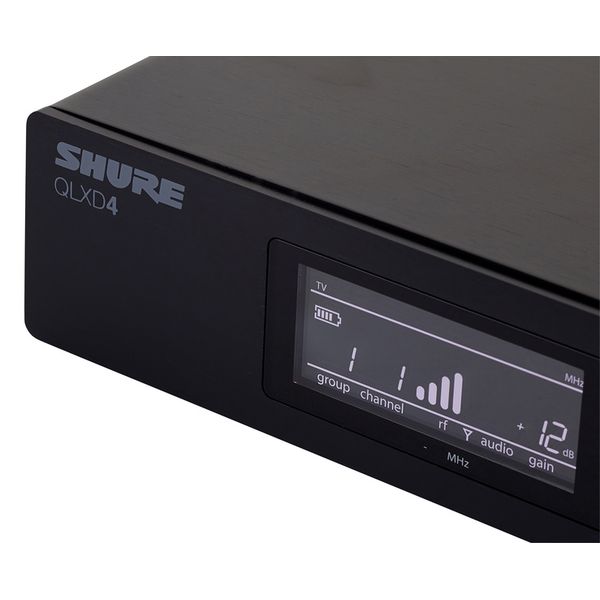

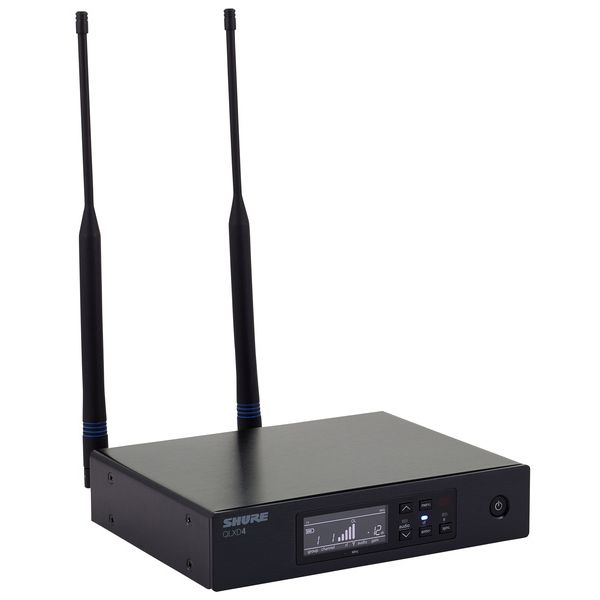

Shure QLXD4 K51
Digital UHF Receiver
- Frequency band: K51 (606 - 670 MHz)
- 24 bit / 48 kHz audio signal
- AES-256 encryption for tap-proof transmission
- Up to 72 MHz switching bandwidth
- 22 compatible channels in an 8 MHz TV band
- 9.5" housing
- Detachable BNC antennas
- Ethernet port for system monitoring and configuration
- Frequency transmission via infrared interface

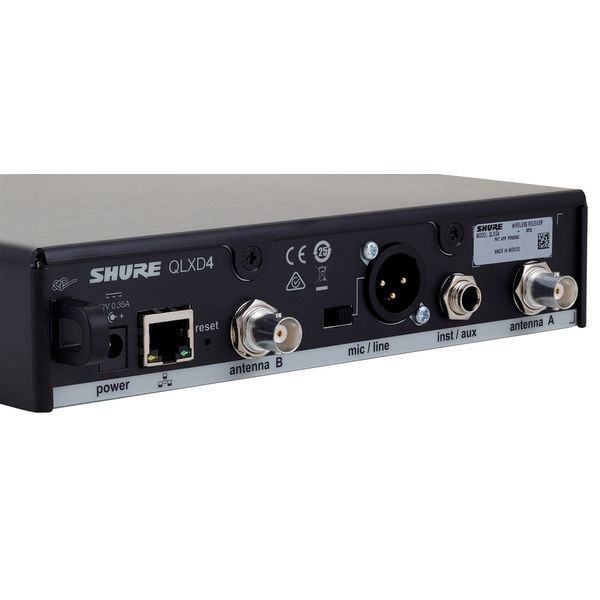

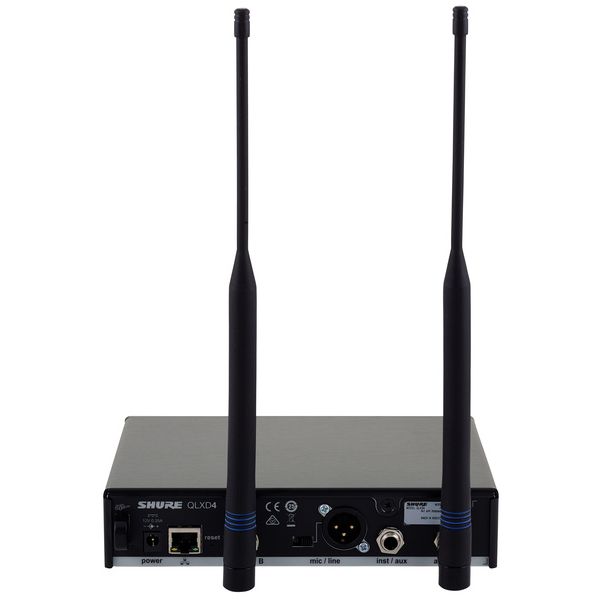

- XLR / jack output
- Includes PS23 power supply, rack mount, antennas and antenna front mounting set for antenna
- Available sinceFebruary 2024
- Item number586215
- Sales Unit1 piece(s)
- Transmission technologydigital
- Channels Handheld Transmitter1
- Capsule TypeCondenser
- PatternCardioid
- Receiver TypeStationary
- Frequency606 MHz – 670 MHz
- OutputXLR
- Charging SystemOptional
- Integrated BatteryNo
- DanteNo
- DiversityYes
- Interchangeable CapsuleYes
- Receiver Width in mm197 mm
- Receiver Height in mm41 mm
- Receiver Depth in mm151 mm
- Receiver Weight in kg0,7 kg
- Transmitting Power in mW10 mW
- Selectable Frequencies380
- Switching Bandwidth in MHz72 MHz
- Frequency DisplayYes
- Frequency ScanYes
- Removable AntennaBNC
- Network ConnectionYes
- Battery Status MonitorYes
- RackkitYes
