Sennheiser ew 500 G4 965 DW Band
Quantity
-
Detail
UHF Wireless System

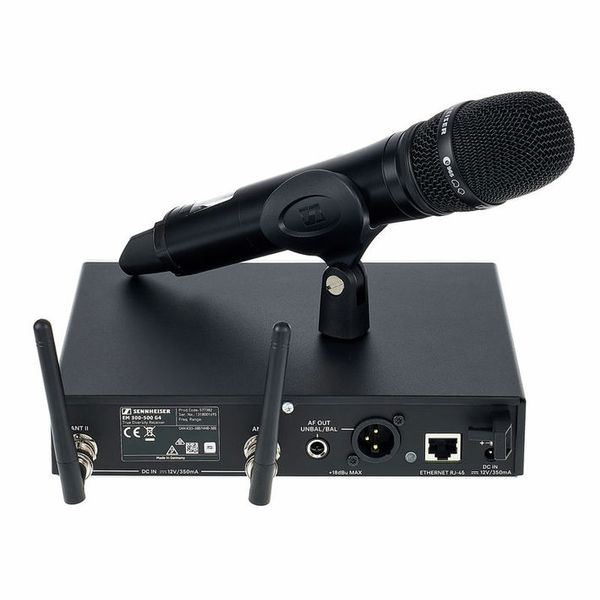

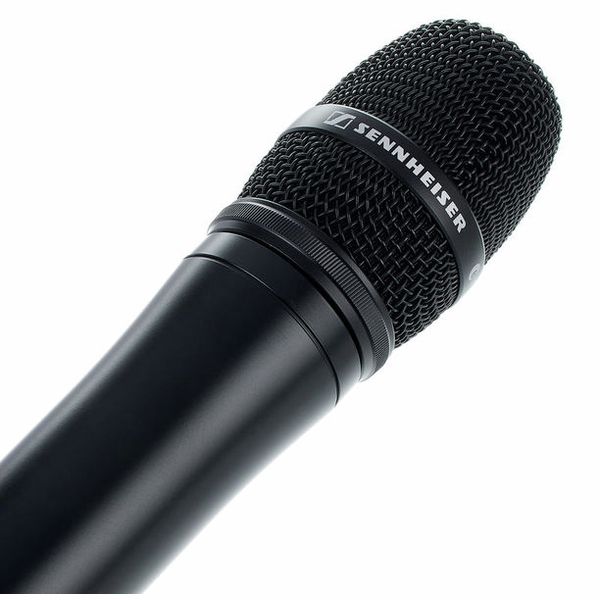

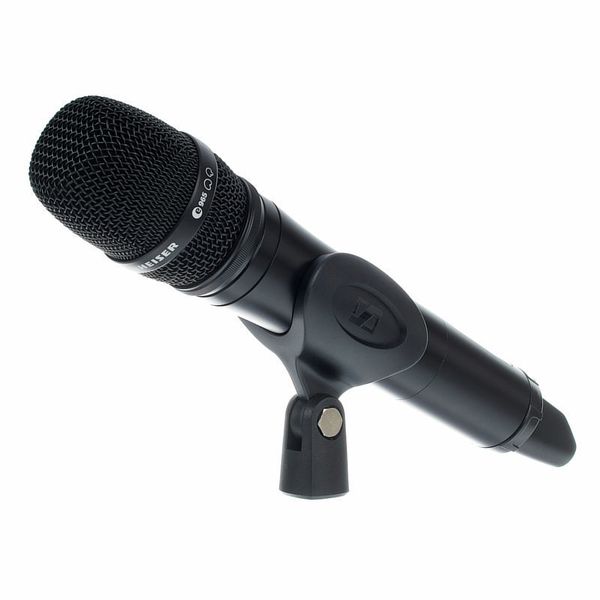

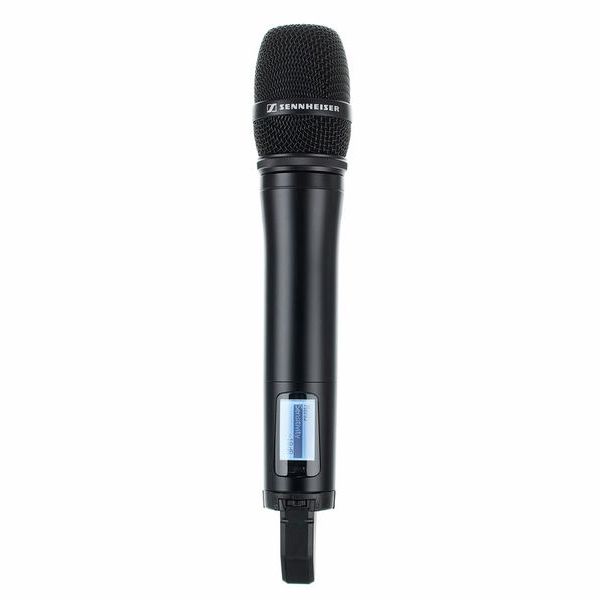

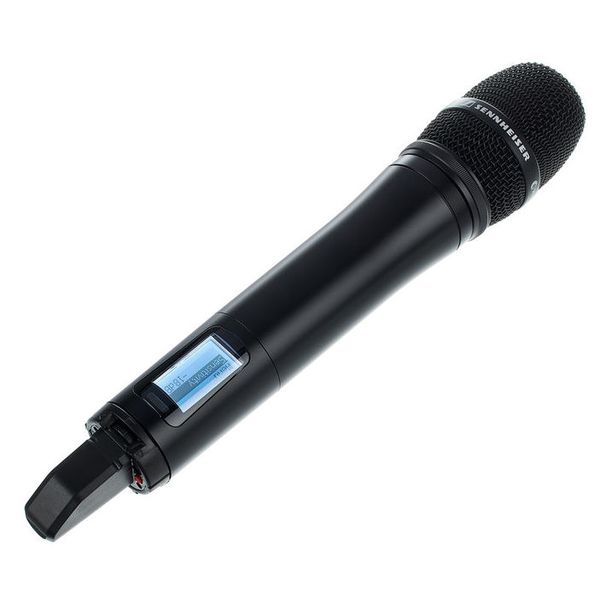

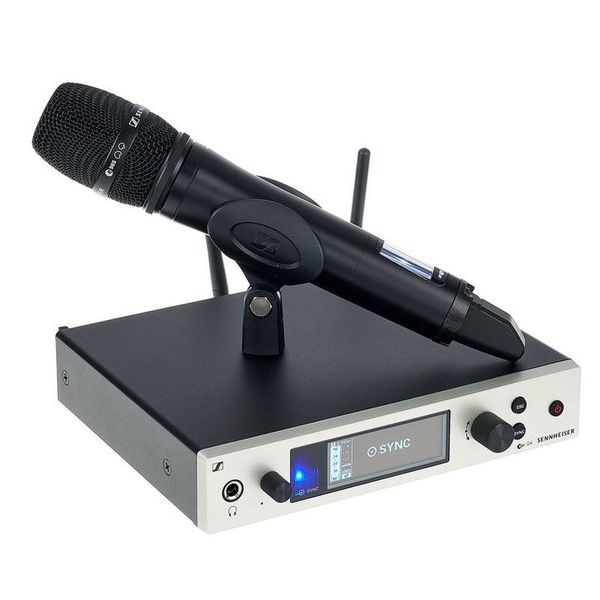

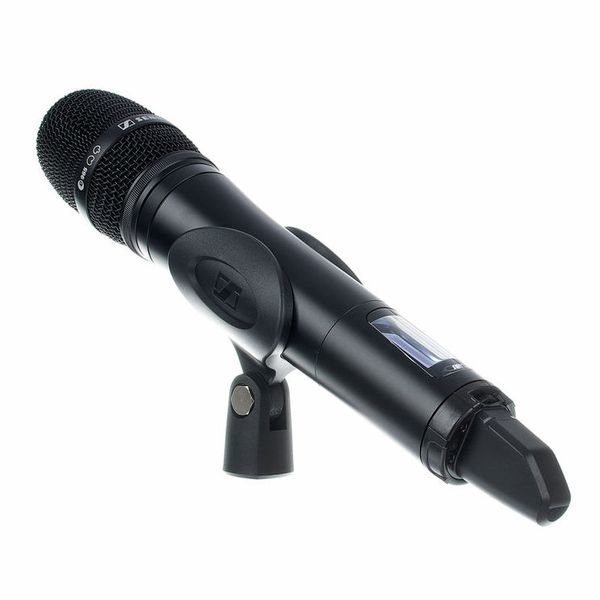

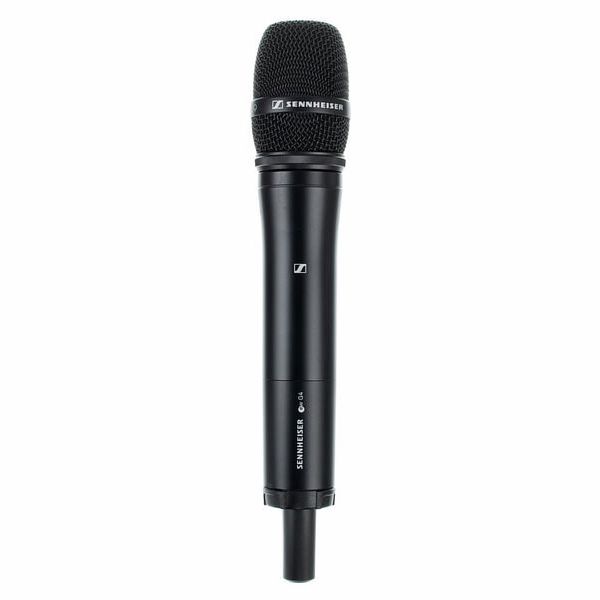

- With the SKM 500 G4 handheld transmitter, the E965 condenser changing capsule, and the EM 300-500 G4 9.5" receiver
- Frequency range: DW band (790 - 865 MHz)
- Directional characteristic: Cardioid / Supercardioid
- 75 MHz Switching bandwidth
- 20 Channel banks with up to 32 presets each
- Up to 32 compatible channels
- Network connection for frequency management and control via software WSM (Wireless System Manager)
- Frequency response: 25 - 18,000 Hz
- Frequency transmission via infrared interface

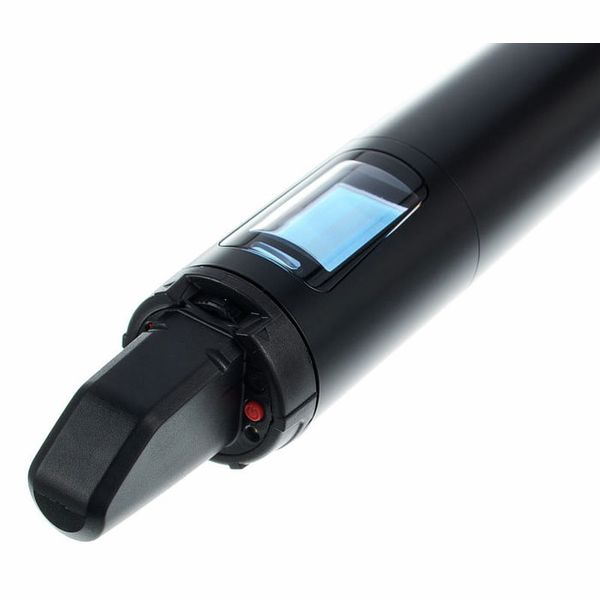

- Handheld transmitter with charging contacts for optional BA 2015 battery (NiMH)
- Pilot tone
- Automatic frequency scan feature locates available frequencies
- Integrated EQ
- Audio gain: 60 dB
- Soundcheck mode
- 4-Digit battery indicator on the transmitter and receiver
- HDX compander

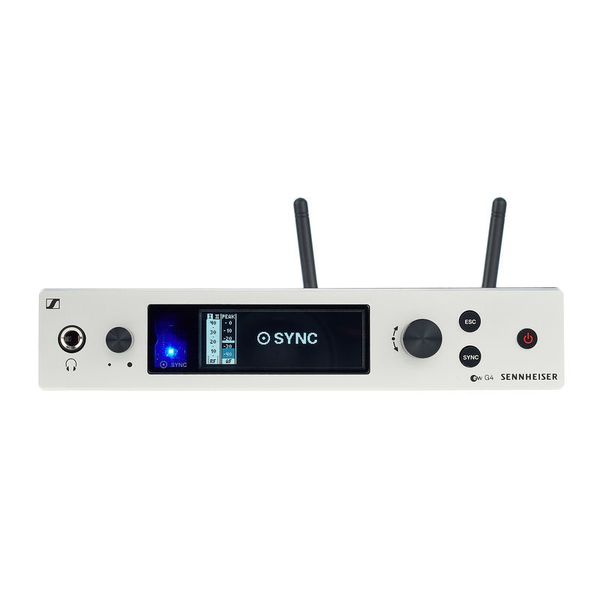

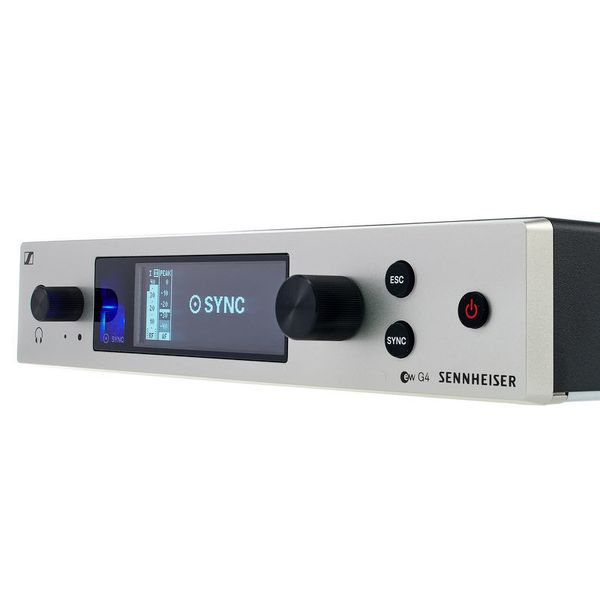

- LCD display with AF / RF level and channel display
- Switchable transmission power: 10 / 30 / 50 mW

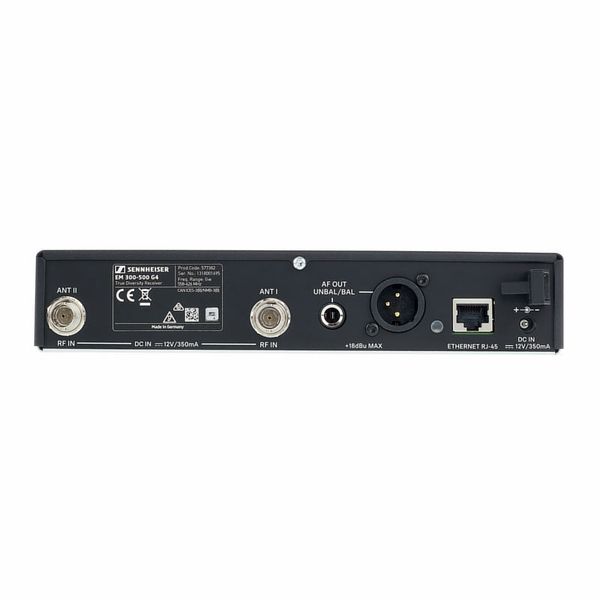

- 2x BNC antenna sockets
- XLR male balanced and jack unbalanced
- Power supply: 10.5 - 16 V DC
- Suitable capsules: Sennheiser EW, Neumann, and MD 9235 (not included, must be ordered separately)

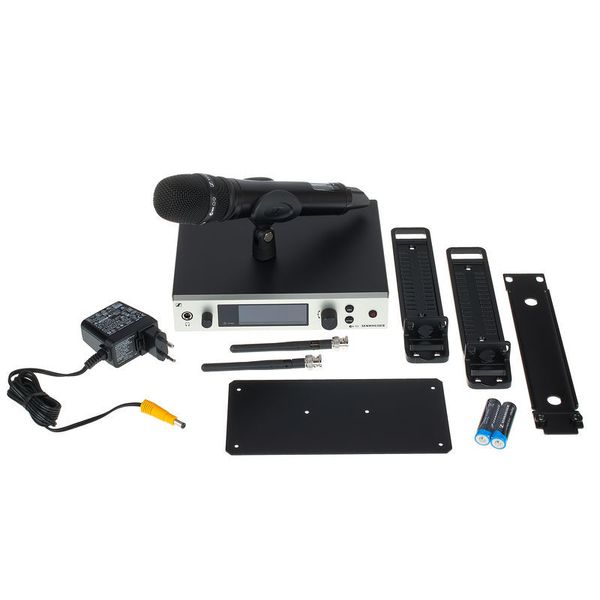

- Incl. GA 3 rackmount, microphone holder, NT2 power supply, and 2x AA batteries
- Available sinceAugust 2018
- Item number438330
- Sales Unit1 piece(s)
- Transmission technologyanalog
- Channels Handheld Transmitter1
- Capsule TypeCondenser
- PatternSuper Cardioid
- Receiver TypeStationary
- Frequency790 MHz – 865 MHz
- OutputXLR
- Charging SystemOptional
- Integrated BatteryNo
- DanteNo
- DiversityYes
- Interchangeable CapsuleYes
- Receiver Width in mm212 mm
- Receiver Height in mm43 mm
- Receiver Depth in mm202 mm
- Receiver Weight in kg1 kg
- Transmitting Power in mW50 mW
- Selectable Frequencies392
- Switching Bandwidth in MHz75 MHz
- Frequency DisplayYes
- Frequency ScanYes
- Removable AntennaBNC
- Network ConnectionYes
- Battery Status MonitorYes
- RackkitYes
