Sennheiser ew 500 G4 945 AW+ Band
Quantity
-
Detail
UHF Wireless System

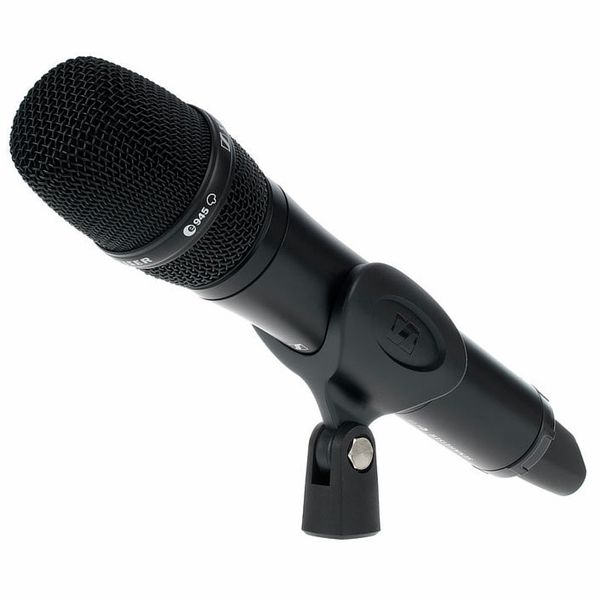

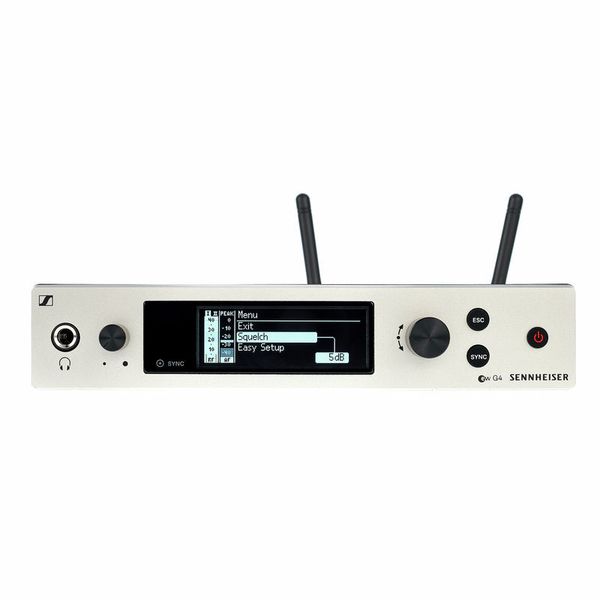

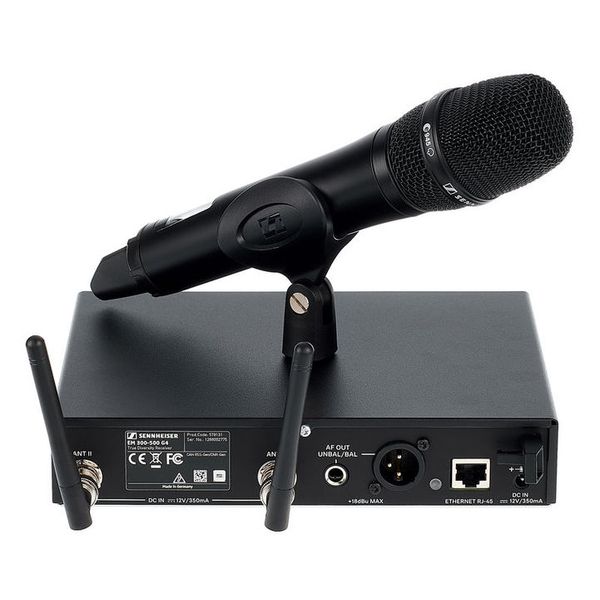

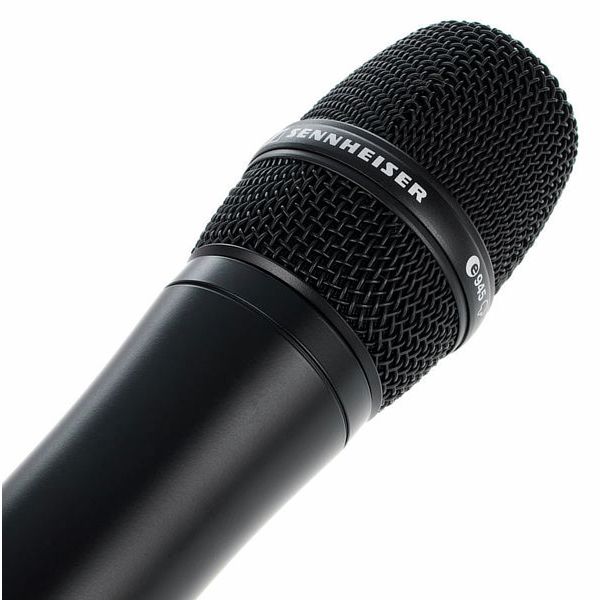

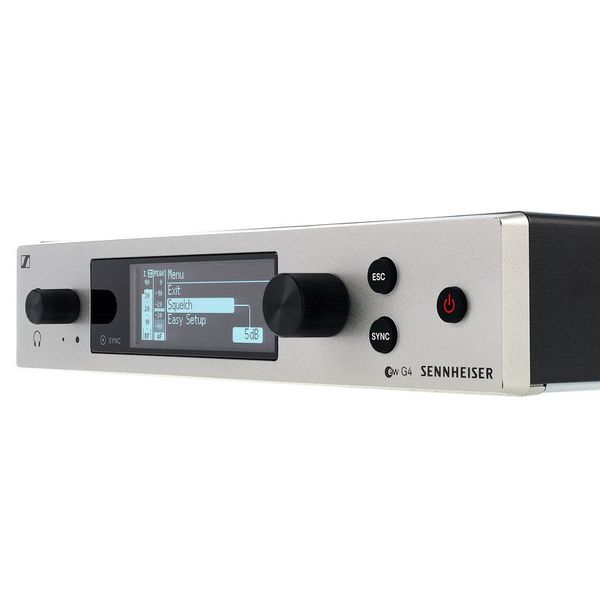

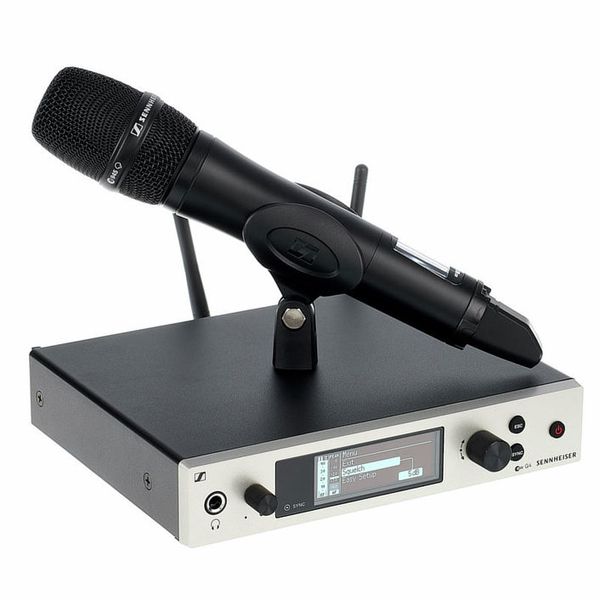

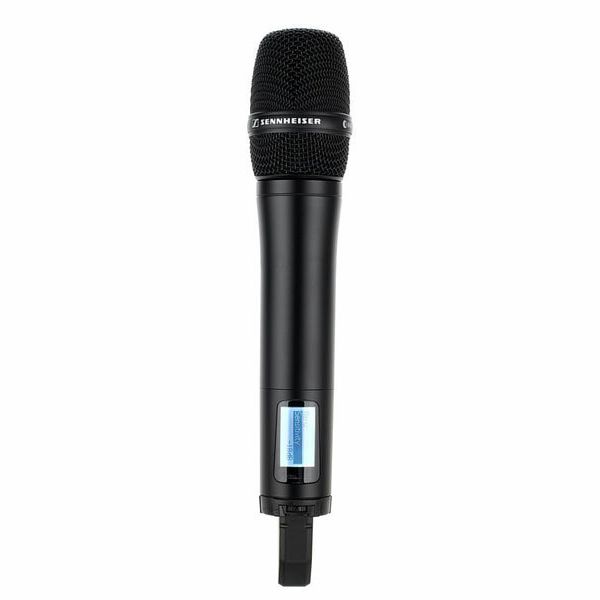

- With SKM 500 G4 handheld transmitter, dynamic E945 replaceable capsule and EM 300-500 G4 9.5" receiver
- Frequency range: AW+ Band (470 - 558 MHz)
- Polar pattern: Super-cardioid
- 88 MHz switching bandwidth
- 20 Channel banks each with up to 32 presets
- Up to 32 compatible channels
- Network connection for frequency management and control via software WSM (Wireless System Manager)
- Frequency range: 25 - 18,000 Hz
- Frequency transmission via infrared interface

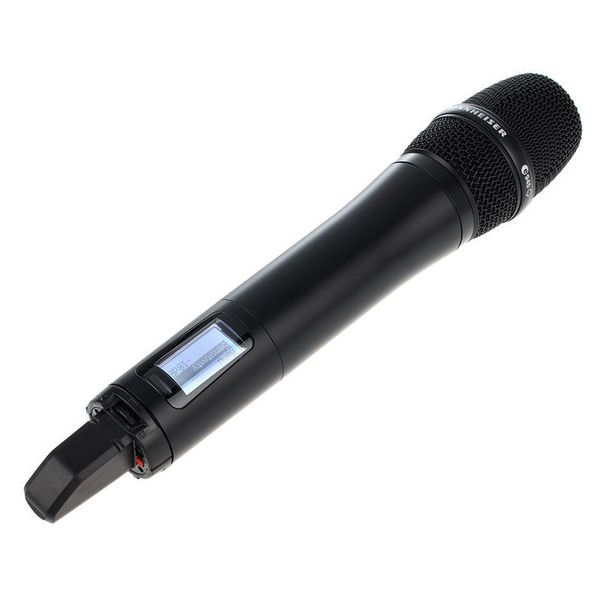

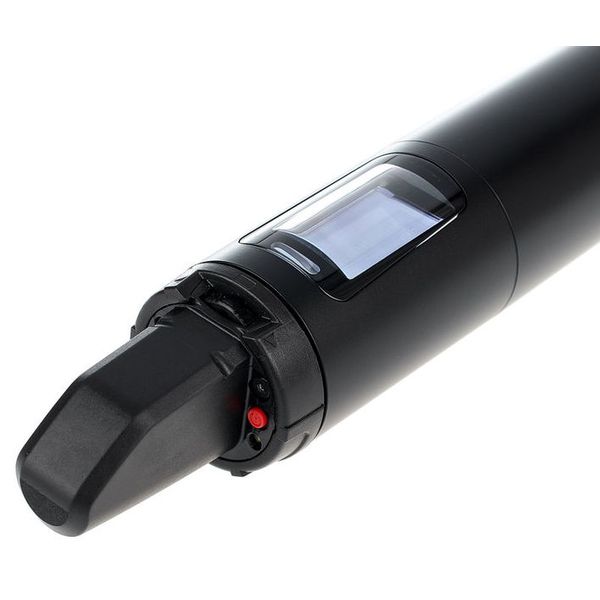

- Handheld transmitter with charging contacts for optional rechargeable battery BA 2015 (NiMH)
- Pilot tone
- Autotune for finding free frequencies
- Integrated EQ
- Audio Gain includes 60 dB
- Soundcheck Mode
- 4-Digit battery indicator on the transmitter and receiver
- HDX compander
- LCD display with NF level and channel display
- Switchable transmission power 10/30 / 50mW

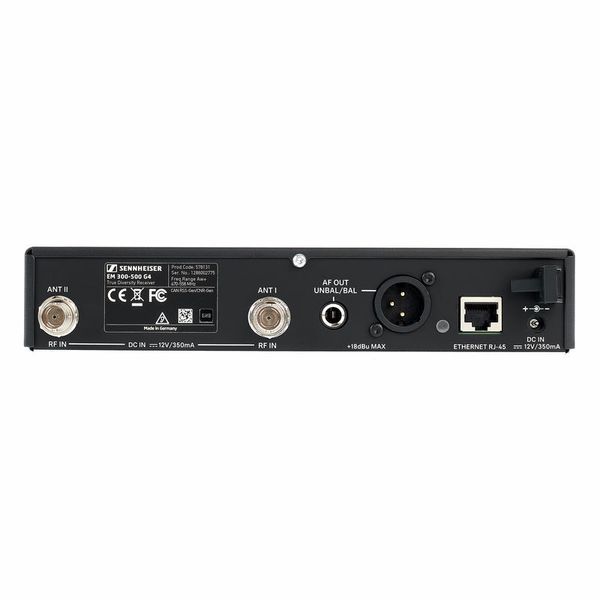

- 2 BNC antenna sockets
- XLR-Male balanced and unbalanced jack
- Mains supply 10.5 - 16 V DC
- Suitable capsules: Sennheiser EW, Neumann and MD 9235 (not included)

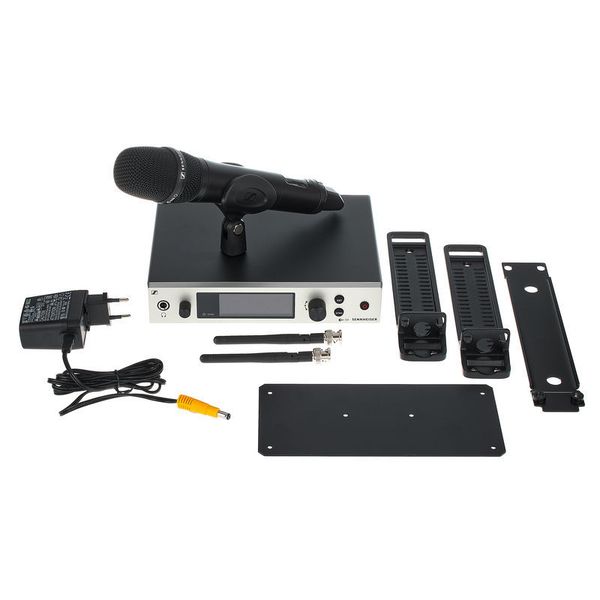

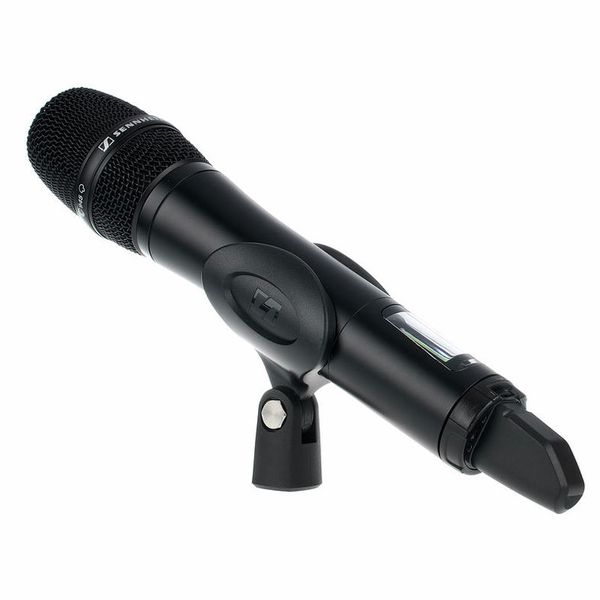

- Includes GA 3 rackmount, RJ10 connection cable, microphone holder, NT2 power adapter and 2x AA batteries
- Available sinceJune 2018
- Item number438279
- Sales Unit1 piece(s)
- Transmission technologyanalog
- Channels Handheld Transmitter1
- Capsule TypeDynamic
- PatternSuper Cardioid
- Receiver TypeStationary
- Frequency470 MHz – 558 MHz
- OutputXLR
- Charging SystemOptional
- Integrated BatteryNo
- DanteNo
- DiversityYes
- Interchangeable CapsuleYes
- Receiver Width in mm212 mm
- Receiver Height in mm43 mm
- Receiver Depth in mm202 mm
- Receiver Weight in kg1 kg
- Transmitting Power in mW50 mW
- Selectable Frequencies635
- Switching Bandwidth in MHz88 MHz
- Frequency DisplayYes
- Frequency ScanYes
- Removable AntennaBNC
- Network ConnectionYes
- Battery Status MonitorYes
- RackkitYes
