Sennheiser ew 500 G4 935 BW Band
Quantity
-
Detail
UHF Wireless System

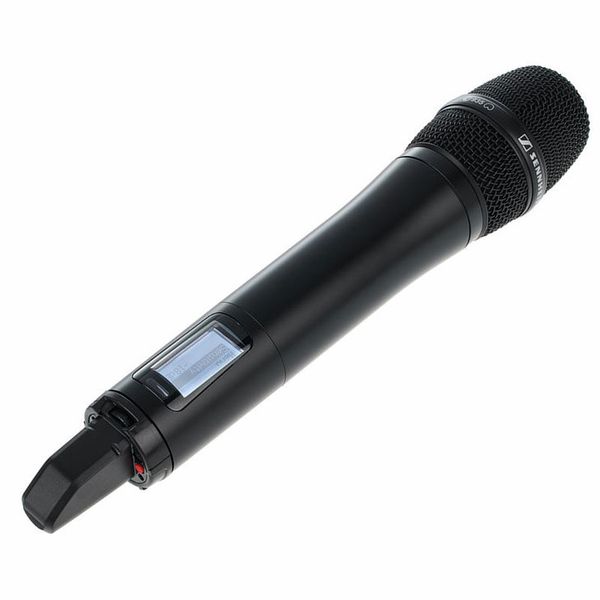

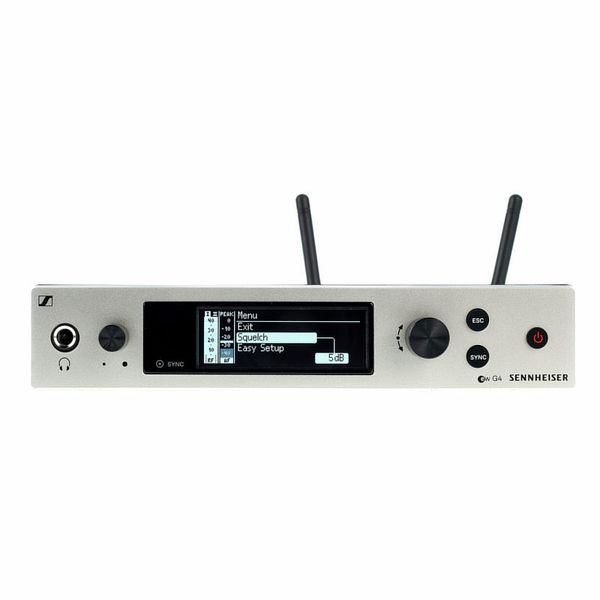

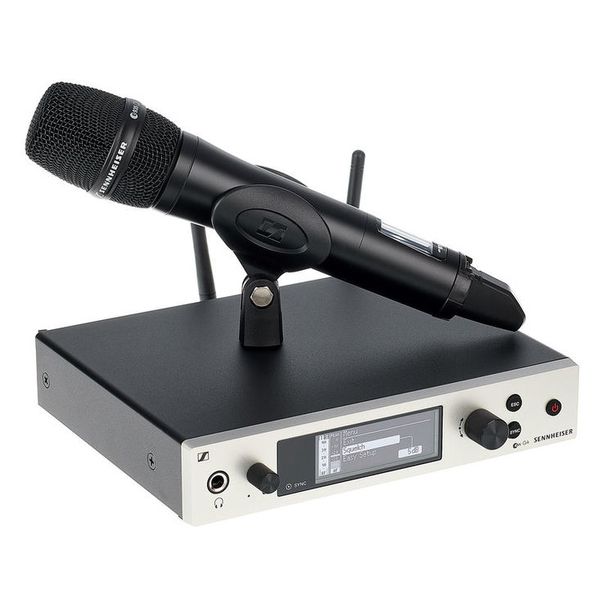

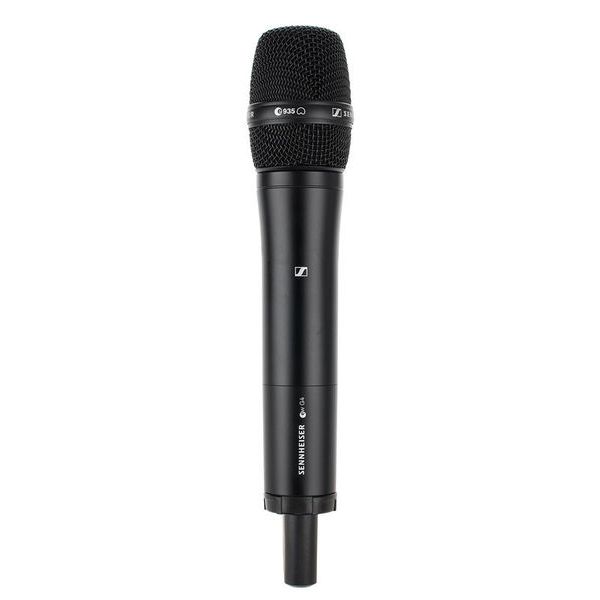

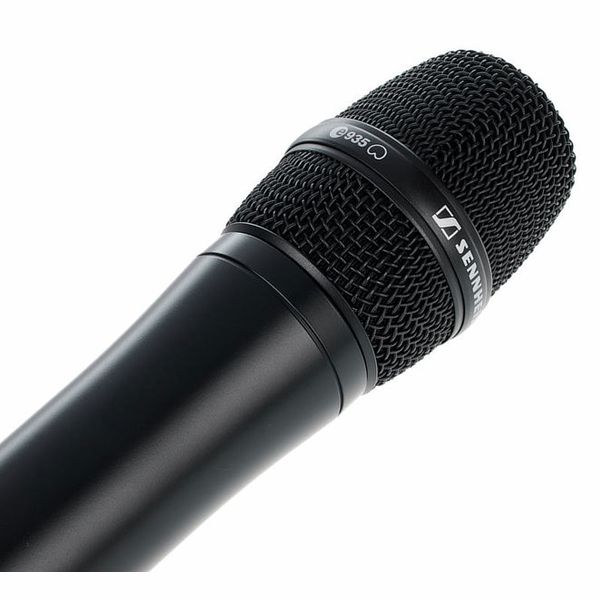

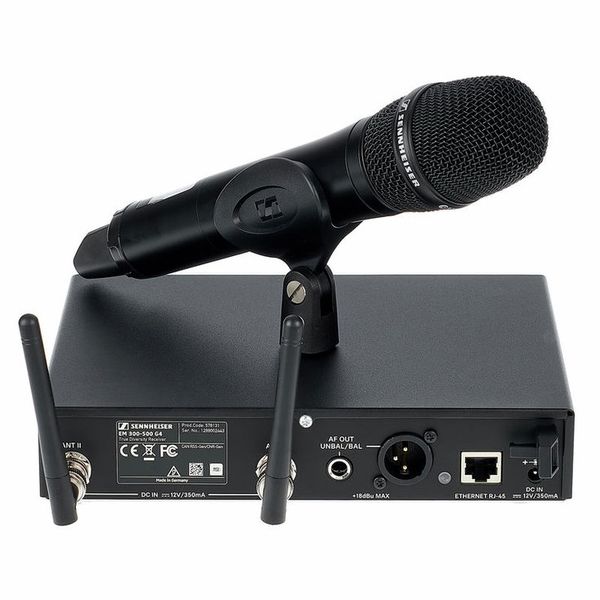

- With SKM 500 G4 handheld transmitter, dynamic E935 replaceable capsule and EM 300-500 G4 9.5" receiver
- Frequency range: BW band (626 - 698 MHz)
- Polar pattern: Cardioid
- 72 MHz switching bandwidth
- 20 Channel banks each with up to 32 presets
- Up to 32 compatible channels
- Fast frequency allocation for up to 12 receivers via link function with RJ10 connection
- Frequency response: 25 - 18.000 Hz
- Frequency transmission via infrared interface

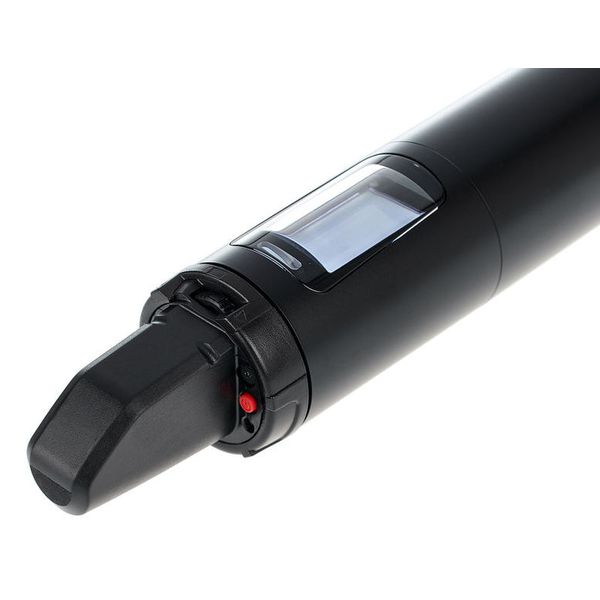

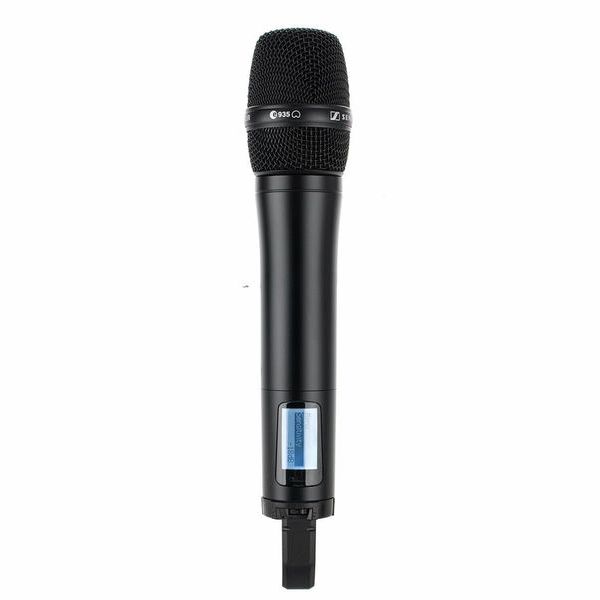

- Handheld transmitter with charging contacts for optional rechargeable battery BA 2015 (NiMH)
- Pilot tone
- Autotune for finding free frequencies
- Integrated EQ
- Audio Gain includes 60 dB
- Soundcheck Mode
- 4-Digit battery indicator on the transmitter and receiver
- HDX compander

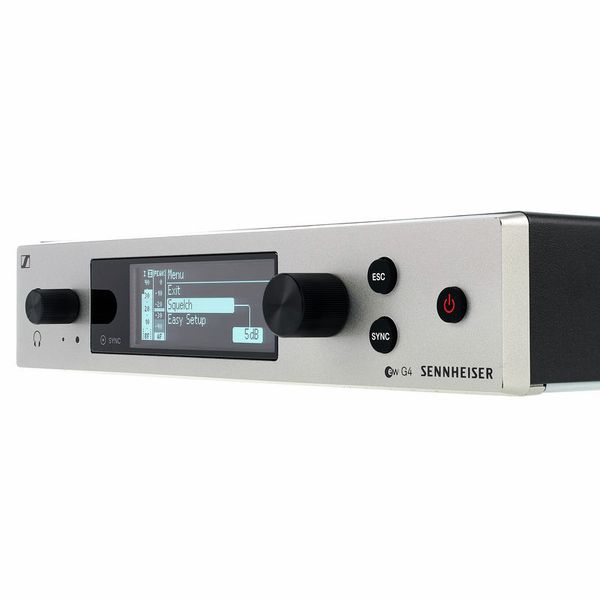

- LCD display with NF level and channel display
- Switchable transmission power 10/30 / 50mW

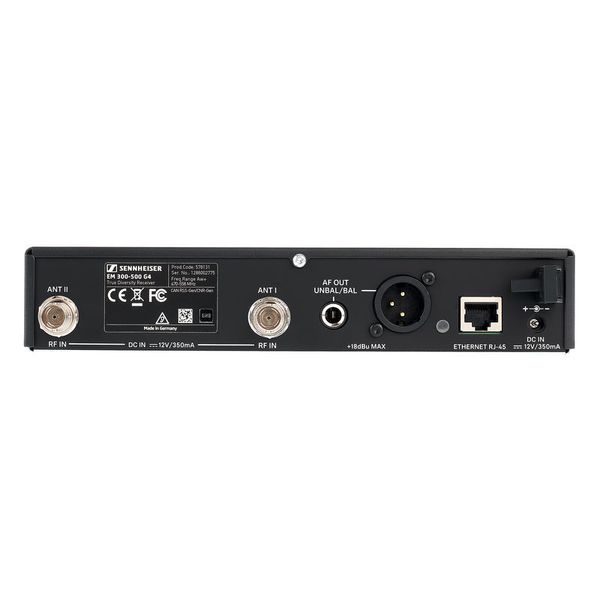

- 2 BNC antenna sockets
- XLR-Male balanced and unbalanced jack
- Mains supply 10.5 - 16 V DC
- Suitable capsules: Sennheiser EW, Neumann and MD 9235 (not included)

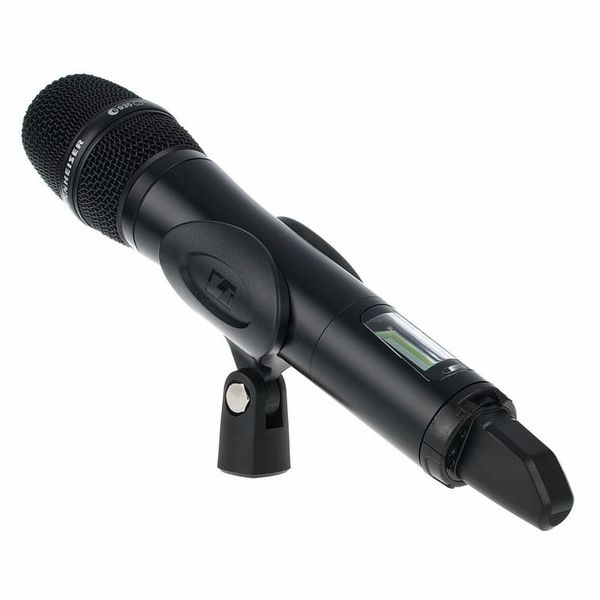

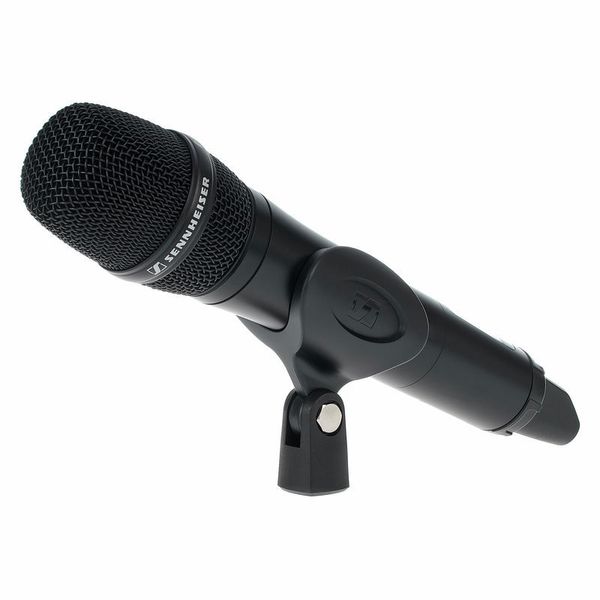

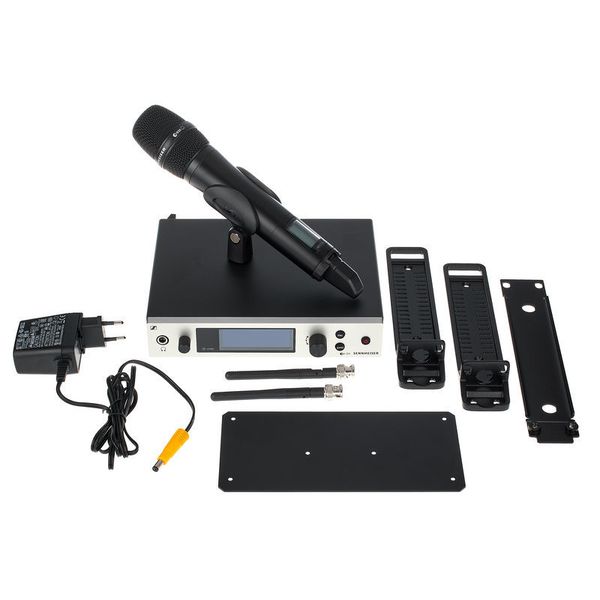

- Includes GA 3 rackmount, RJ10 connection cable, microphone holder, NT2 power adapter and 2x AA batteries
- Available sinceJuly 2018
- Item number438275
- Sales Unit1 piece(s)
- Transmission technologyanalog
- Channels Handheld Transmitter1
- Capsule TypeDynamic
- PatternCardioid
- Receiver TypeStationary
- Frequency626 MHz – 698 MHz
- OutputXLR
- Charging SystemOptional
- Integrated BatteryNo
- DanteNo
- DiversityYes
- Interchangeable CapsuleYes
- Receiver Width in mm212 mm
- Receiver Height in mm43 mm
- Receiver Depth in mm202 mm
- Receiver Weight in kg1 kg
- Transmitting Power in mW50 mW
- Selectable Frequencies640
- Switching Bandwidth in MHz72 MHz
- Frequency DisplayYes
- Frequency ScanYes
- Removable AntennaBNC
- Network ConnectionYes
- Battery Status MonitorYes
- RackkitYes
