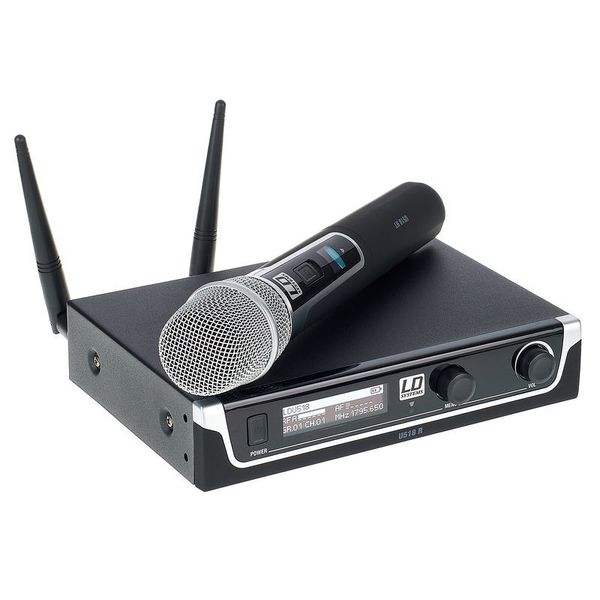

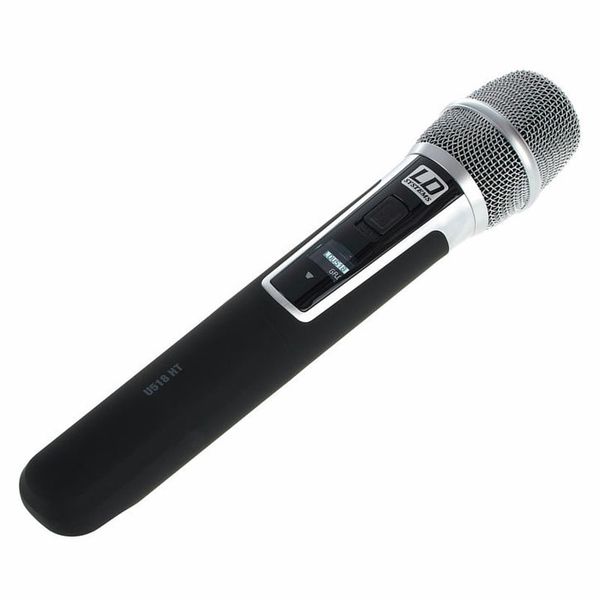

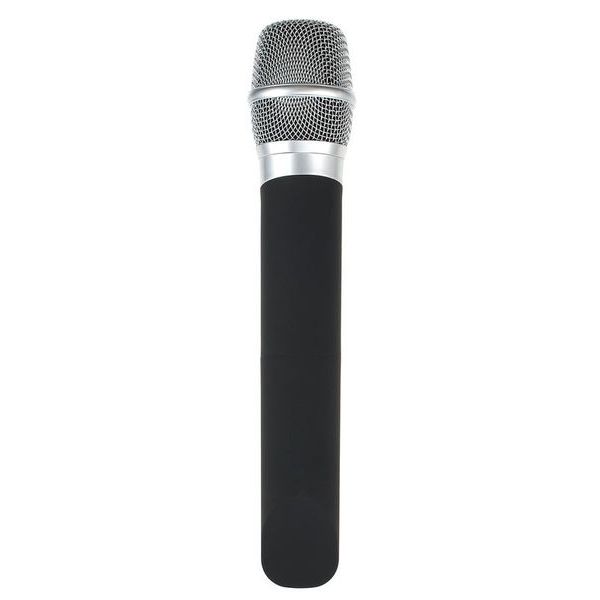

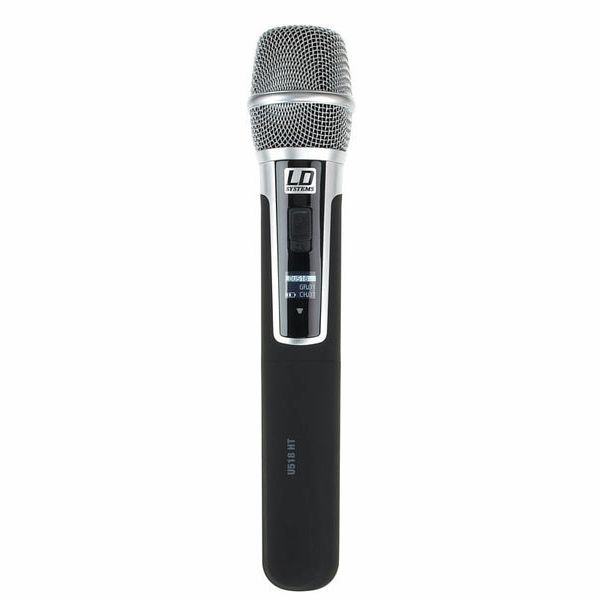

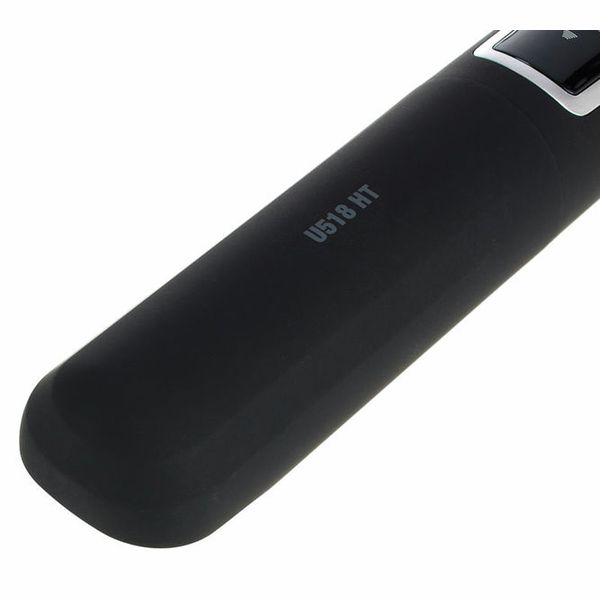

LD Systems U518 HHC
Quantity
-
Detail
UHF wireless system with remote control

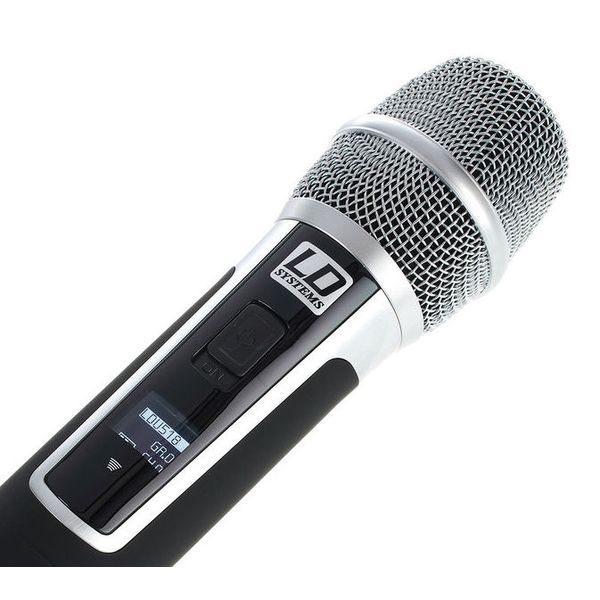

- Condenser exchange capsule
- Polar pattern: Cardioid

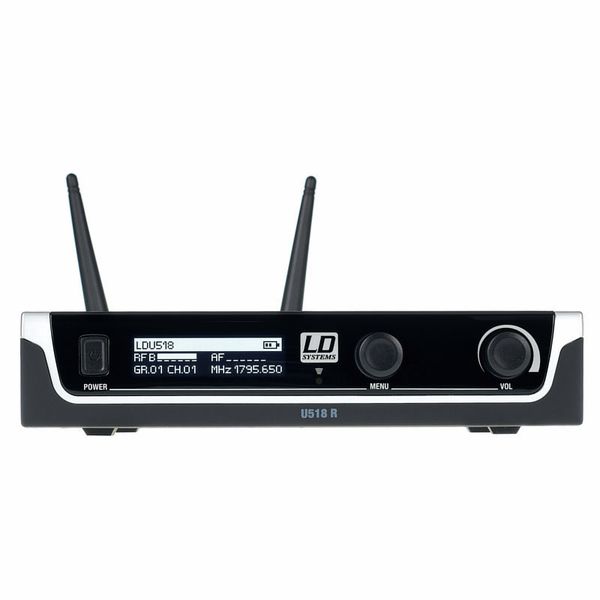

- 9.5" 1U True Diversity Receiver
- Frequency band: 1785 - 1800 MHz
- Frequency response: 60 to 16,000 Hz
- 96 Channels in 8 groups a 12 channels
- Switchable transmission power: 2, 10, 30 mW
- Frequency scan in the receiver
- Automatic frequency scan with infrared transmission of the setting from the receiver to the transmitter
- Pilot tone

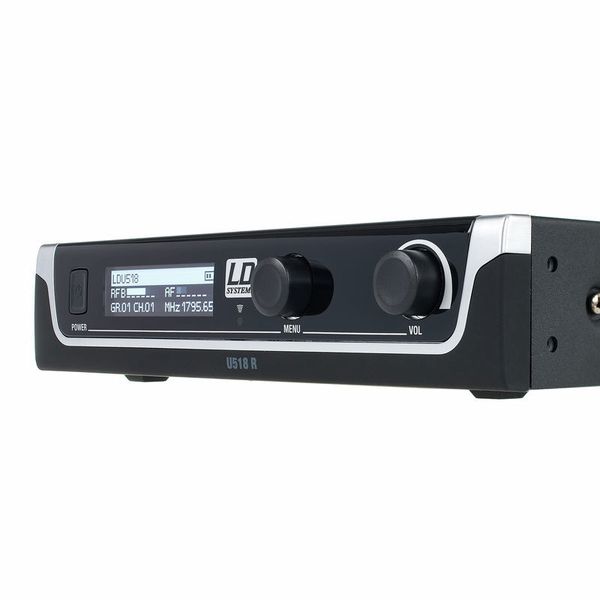

- Bright OLED display

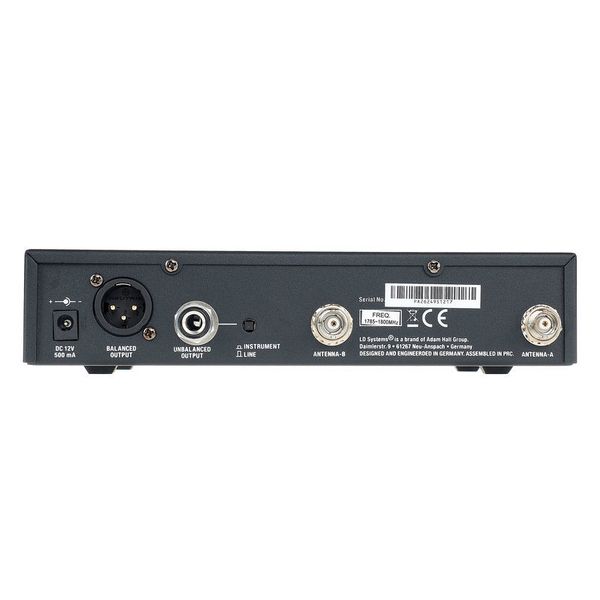

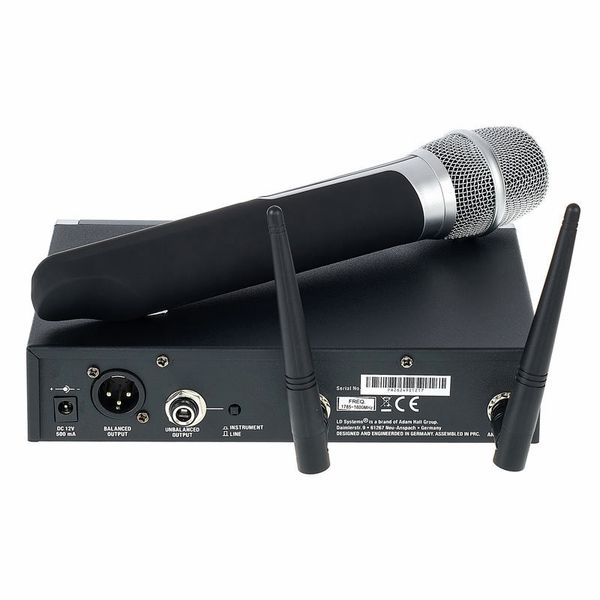

- XLR and jack output
- BNC antenna connections

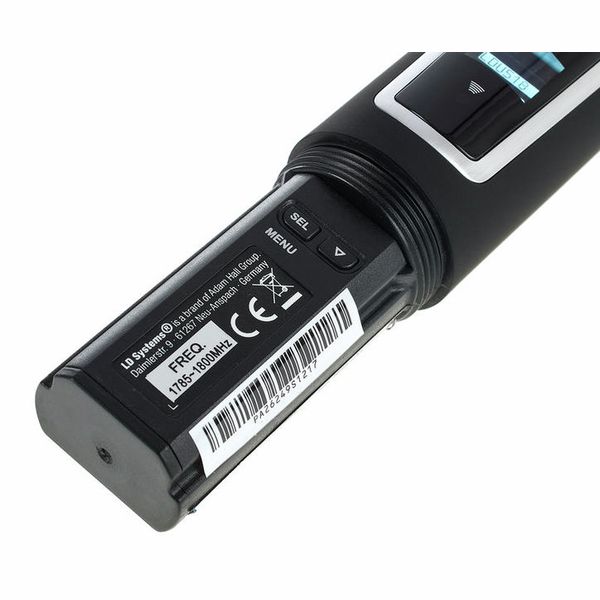

- Transmitter operation with 2 AA batteries or rechargeable batteries
- Receiver operation with 12-18 V DC power supply

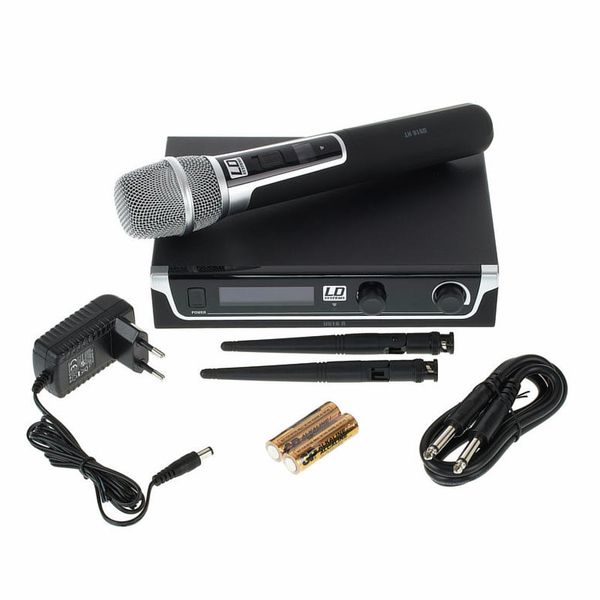

- Includes 2 x AA batteries, antennas, case and power supply
- Available sinceAugust 2018
- Item number436067
- Sales Unit1 piece(s)
- Transmission technologyanalog
- Channels Handheld Transmitter1
- Capsule TypeCondenser
- PatternCardioid
- Receiver TypeStationary
- Frequency1800 MHz
- OutputXLR
- Charging SystemNo
- Integrated BatteryNo
- DanteNo
- DiversityYes
- Interchangeable CapsuleYes
- Receiver Width in mm212 mm
- Receiver Height in mm44 mm
- Receiver Depth in mm159 mm
- Receiver Weight in kg0,9 kg
- Transmitting Power in mW30 mW
- Selectable Frequencies96
- Frequency DisplayYes
- Frequency ScanYes
- Removable AntennaBNC
- Battery Status MonitorYes
- RackkitOptional
