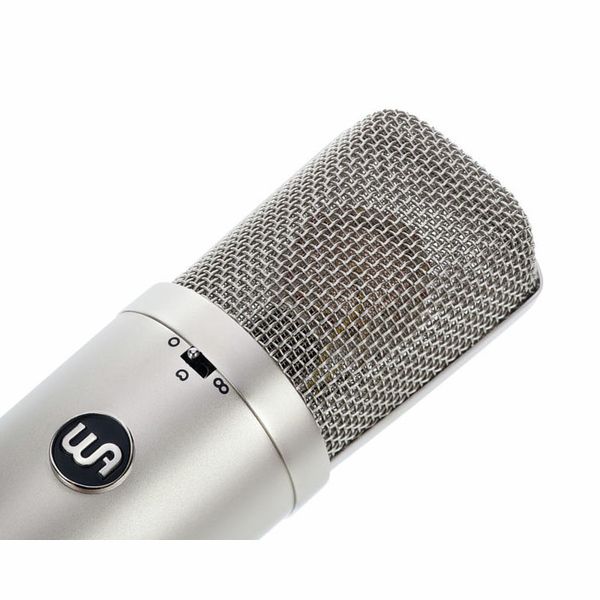

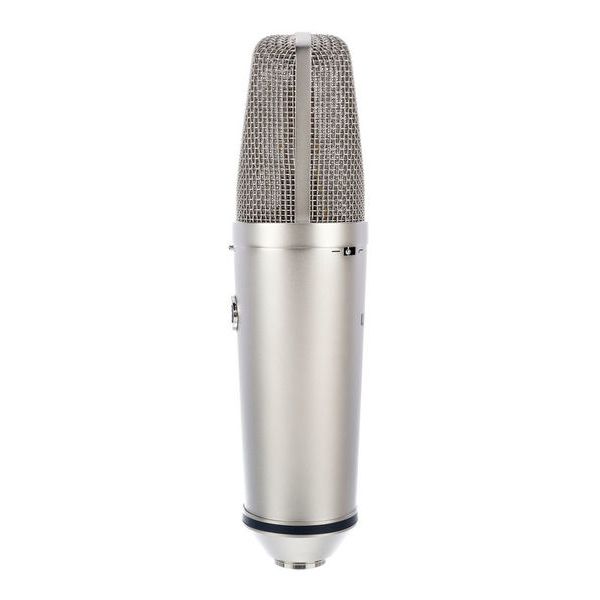

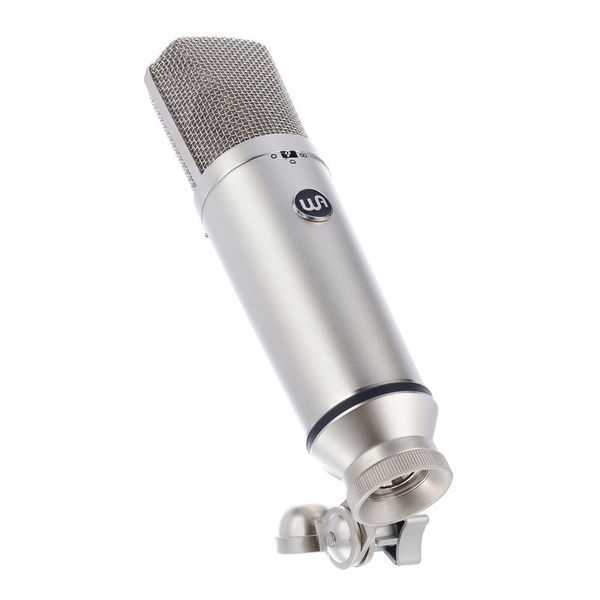

Warm Audio WA-87 R2

Large-Diaphragm Condenser Microphone

• Directional characteristic: Cardioid, Omnidirectional, Figure-8
• WA-87-B-50V capsule - Reproduction of the classic K87 capsule
• Gold-sputtered 6 ?m NOS Mylar diaphragm
• 100% with discrete circuitry with an NOS Fairchild transistor
• WIMA/Nichicon capacitors
• Cinemag USA output transformer
• Lo Cut: 80 Hz
• PAD: -10 dB
• Max. SPL (sound pressure level): 125 dB SPL (@ 1 kHz 1 kOhms, 0.5% THD (total harmonic distortion), without a pad)
• 132 dB SPL with a pad
• Signal-to-noise ratio: -117 dB
• Frequency response: 20 Hz to 20,000 Hz
• Output impedance: 150 Ohm

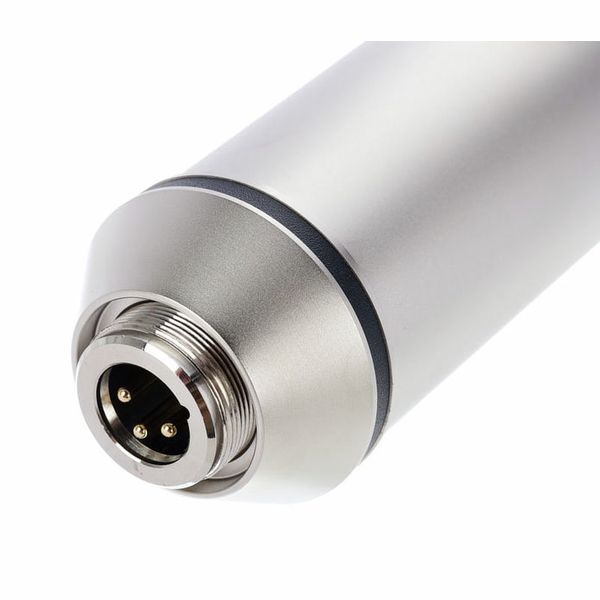

• Gold-plated 3-pin XLR connector
• Colour: Nickel

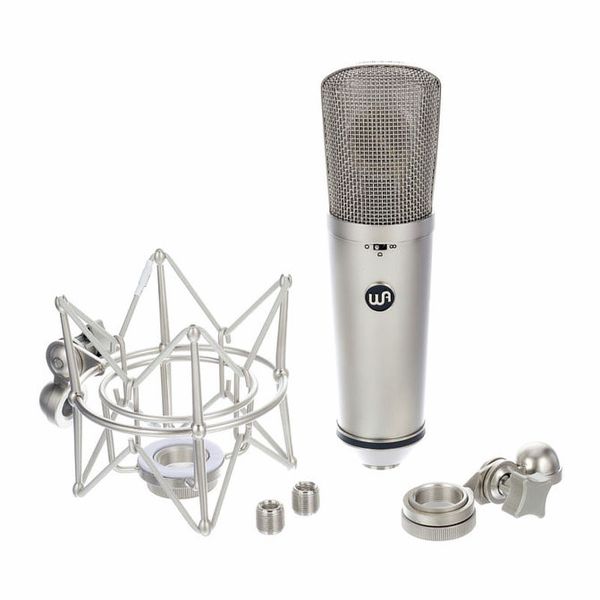

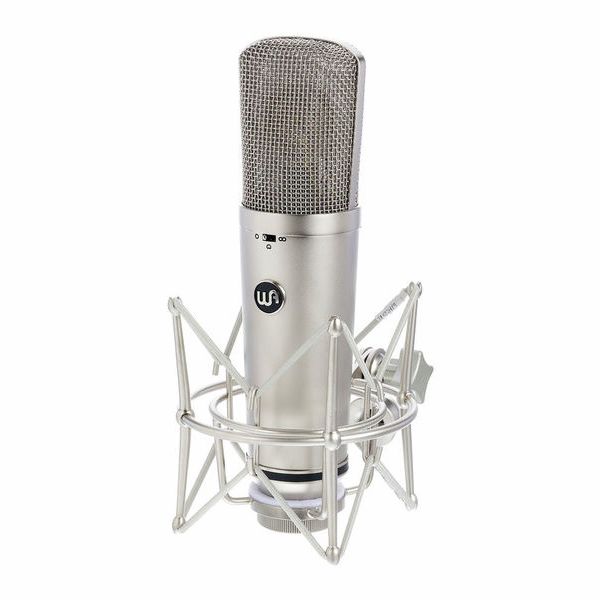

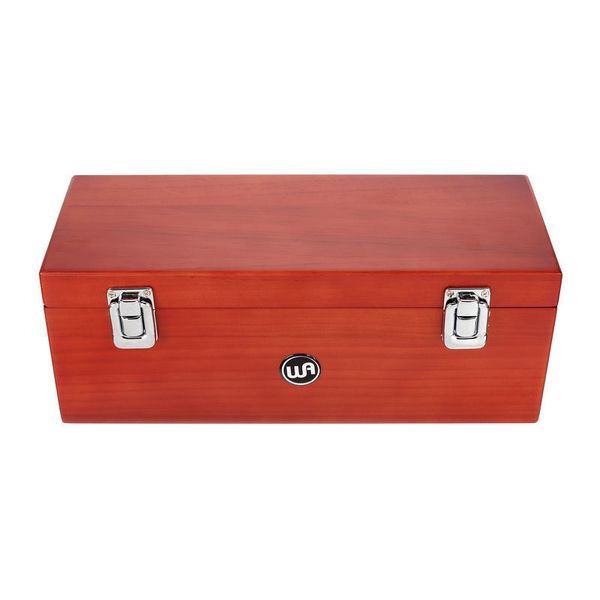

• Includes an elastic mount suspension, a microphone holder, and a wooden storage box

Note: Requires 48 V of phantom power!
