Boss RC-505 MKII

Desktop Loopstation

• For live and studio applications
• Ideal for loop artists, multi-instrumentalists, vocalists etc.
• 5 Stereo tracks with separate control
• AD/DA conversion: 32 bit / 44.1 kHz
• 48 V phantom power
• Input FX and Track FX sections with 4 effects each and 4 Quick Access banks
• Customisable FX and track buttons
• Onboard effects: 49 input FX, 53 track FX and 2 master FX types
• Mark Back function for flexibility in undo/redo operations
• Memory for 99 phrases with 5 tracks each
• Custom effects and playback settings as well as control assignments etc.
• Max. recording time: approx. 1.5 h per track and approx. 13 h total memory
• Over 200 integrated rhythm patterns and 16 drum kits
• External control via MIDI
• Optional foot switch or expression pedal
• USB audio/MIDI functionality for use with DAW software
• Phrase import/export and pattern import
• Rec/Play, Start/Stop, Undo/Redo and Tap Tempo buttons
• Level fader
• LC display

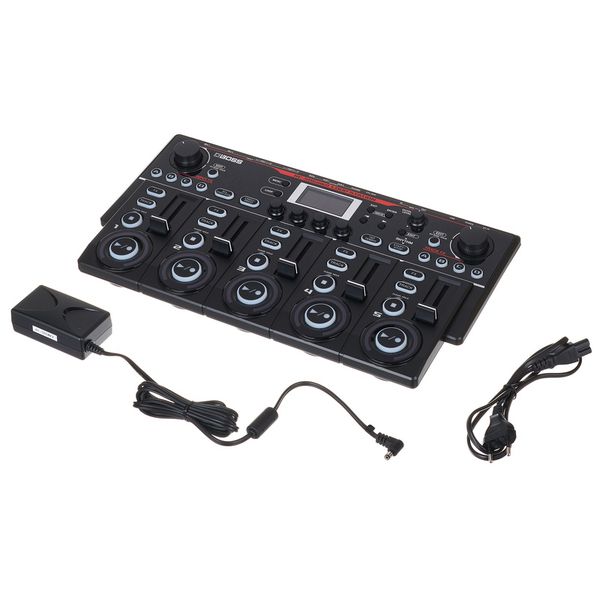

• Power supply via enclosed mains adapter
• Dimensions (W x D x H): 420 x 234 x 67 mm
• Weight: 1.8 kg

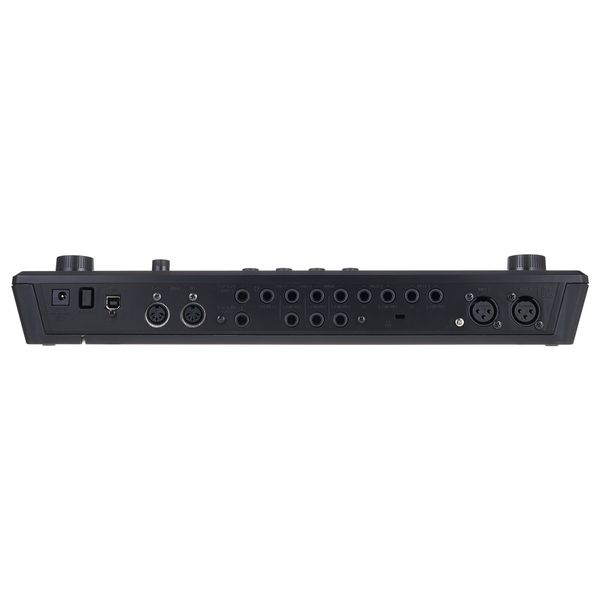

Connections:

• 2 Balanced microphone inputs: 3-pin XLR
• 2 Stereo line inputs: 6.3 mm jack
• 3 Stereo line outputs: 6.3 mm jack
• 1 Headphone output: 6.3 mm jack
• 2 CTL/EXP: 6.3 mm jack
• 1 MIDI input/output: 5-pin DIN
• 1 Type-B USB connector
• 1 Power supply connector
