Boss AD-10 Acoustic Preamp & FX

Effect Pedal

• Professional preamp with DI box for acoustic guitars with built-in pickup
• "Acoustic Resonance" preserves the natural sound of an A-guitar, which is often lost in Piezoton buyers
• 4-band EQ and variable low-cut filter - specially designed for acoustic guitars
• Multi-band compressor with MDP technology for transparent dynamic control
• Newly developed anti-feedback function
• 2 channels with independent EQ to connect 2 instruments, or multiple pickup systems
• Effects: Ambience, Delay, Chorus (different programs with adjustable parameters)
• Boost function with adjustable tune setting
• 10x slots for your own sound setups
• Built-in looper with 80 seconds recording time
• 2x XLR outputs incl. ground lift for direct connection to the PA
• 2x Jack outputs
• Headphone output
• Separate send / return, CTL or expression pedal
• USB audio interface for direct recording on the computer
• Built-in tuner
• Compact housing
• Power supply by power supply or 6x AA batteries
• Power consumption: 300 mA
• Dimensions (W x D x H): 217 x 161 x 65 mm
• Weight: 1.3 kg

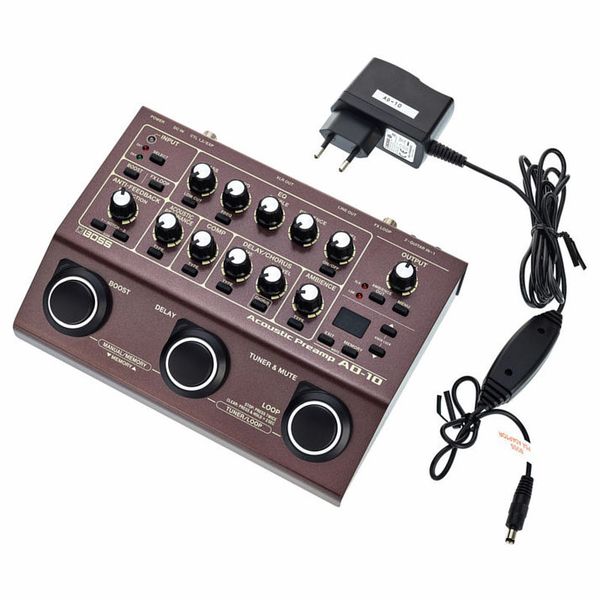

• Incl. power supply

Controls:

• 2x Input Sensitivity
• Bass
• Mid
• Treble
• Presence
• Level
• Anti-feedback
• Acoustic Resonance
• Comp
• Delay / Chorus Time
• Delay / Chorus E.Level
• Ambience
• Output Level

Push buttons:

• Input Select
• Boost
• FX loop
• Low Cut
• Mid Freq
• EQ On / Off
• Notch 1 & 2
• Acoustic Resonance Type
• Comp Type
• Delay / Chorus Type
• Chorus On / Off
• Ambience Type
• Ambience Out
• Menu
• Exit
• Memory Write
• Memory Up & Down

Handset:

• Ground lift
• Stereo / Mono
• Power On / Off
