Audio Sprockets ToneDexter II Acoustic Bundle

Bundle offer comprising

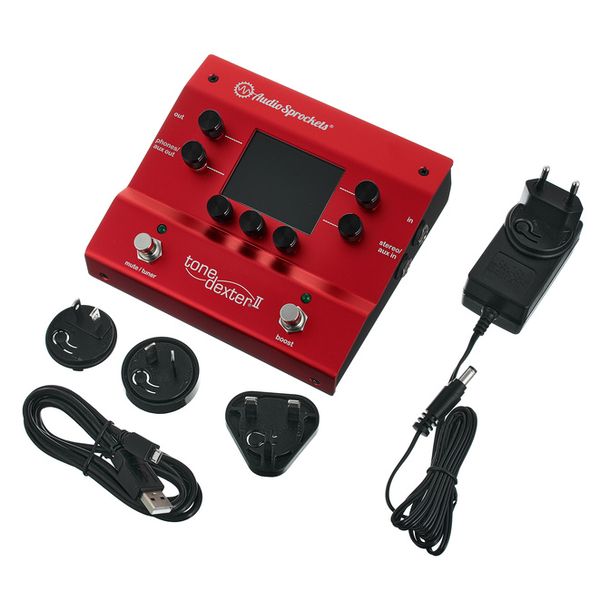

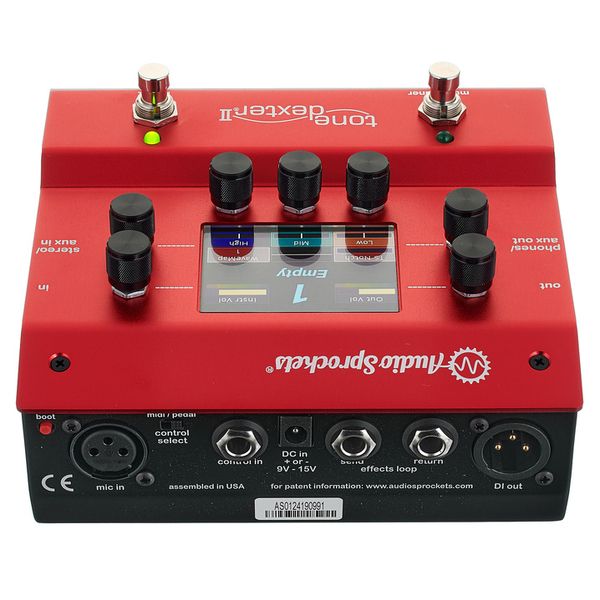

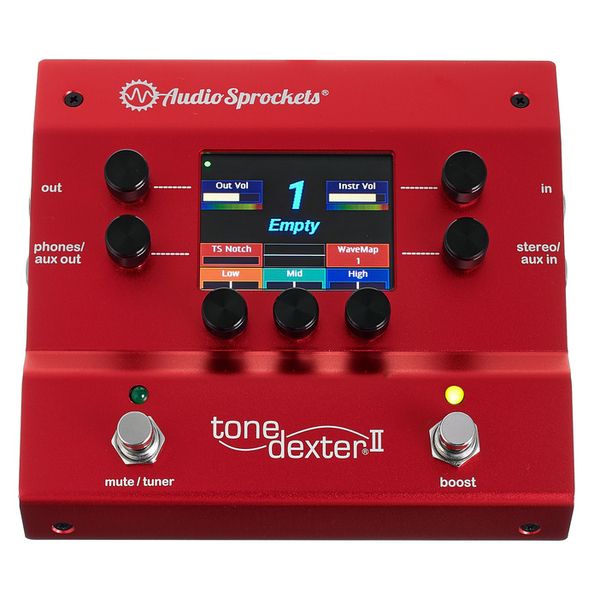

Audio Sprockets ToneDexter II Acoustic Preamp

Effect Pedal for Instruments with Piezo Pickup

• Preamp
• Restores the missing body sound on an instrument when a piezo pickup is used
• ToneDexter stores WaveMaps of your studio microphone sound, which can be recalled when only the pickup is in use
• WaveMaps transform the pickup signal so that it sounds like a microphone - rich, resonant and natural
• WaveMaps can be saved with different microphones and positions for each of the instruments used
• 32 Storable presets, tuner and USB port for connecting to the computer for updates and managing presets
• Controls: Input Level (Tap: Single/Dual Source modes), Preset Select (Tap: edit Wavemaps), Output Level (Tap: Output Sources, Boost config, Spaciousness/Character, FX Routing), Anti-Feedback (Tap: Fiter Freq/Depth/Width), Low, Mid & High (Tap: Boost/Cut, Bell/Shelf, Width, High Pass)
• Push buttons: Boot (Restart or Update Firmware)
• Switch: Control Select: Midi/Pedal
• Footswitch: Mute/Tuner, Boost
• LED: Input Level, Mute/Tune/Edit, Boost/Edit Mode
• LED display

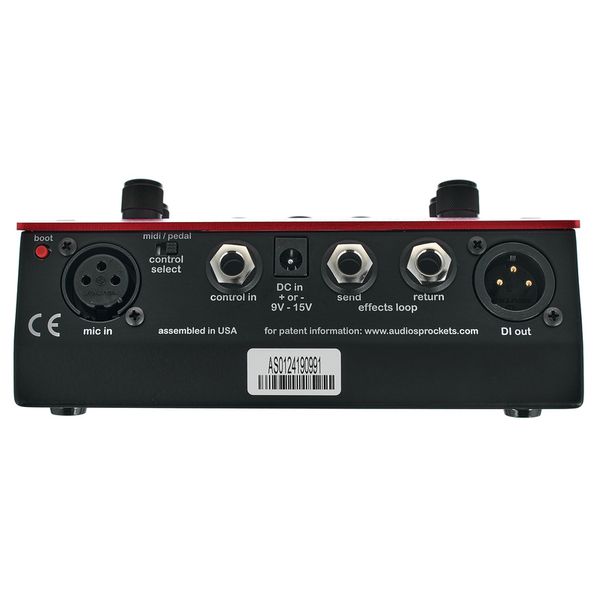

• Input: 6.3 mm jack
• Aux input: 6.3 mm stereo jack
• Mic input: XLR with switchable 48 V phantom power
• Control input: 6.3 mm stereo jack
• Output: 6.3 mm stereo jack
• Headphone output (6.3mm stereo jack)
• DI output: XLR
• FX loop send and return: 2 x 6.3 mm jack
• Power supply connection: Barrel plug 5.5 x 2.1 mm, centre negative
• Power supply via 9-15 V DC power supply
• Dimensions (W x D x H): 160 x 150 x 58 mm
• Weight: 907 g
• Includes power supply

Note: No battery operation possible

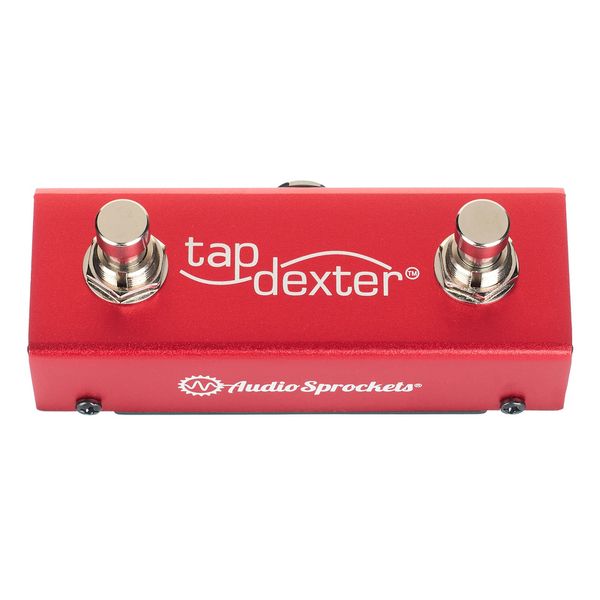

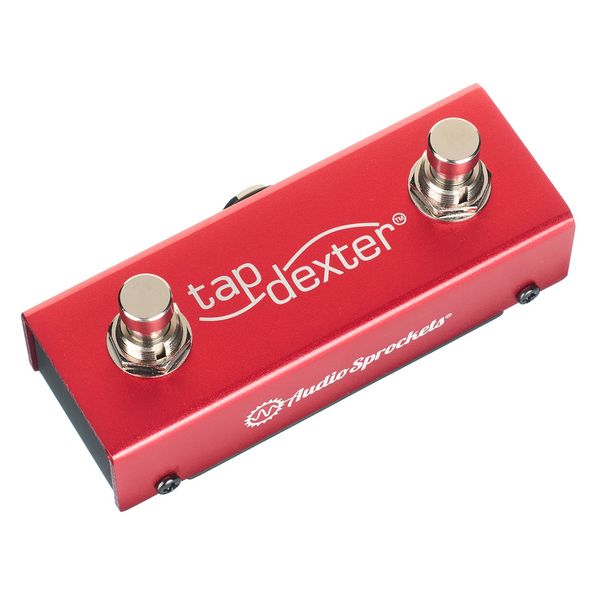

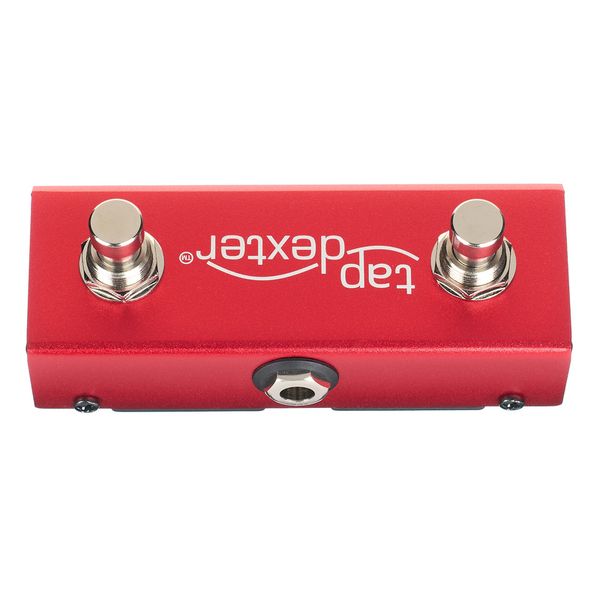

Audio Sprockets TapDexter Dual Footswitch

Foot Switch

• Suitable double foot switch for ToneDexter II (Art. 579504) - not compatible with other devices
• Allows you to scroll through WaveMap presets or activate the ‘Mute�?and ‘Boost�?functions when the ToneDexter II is not on the stage floor
• Wear-free optical switch technology
• Power supply and switching function via 6.3 mm stereo jack cable
• No battery or external power source required
• Dimensions: (L x W x H): 100 x 40 x 46 mm

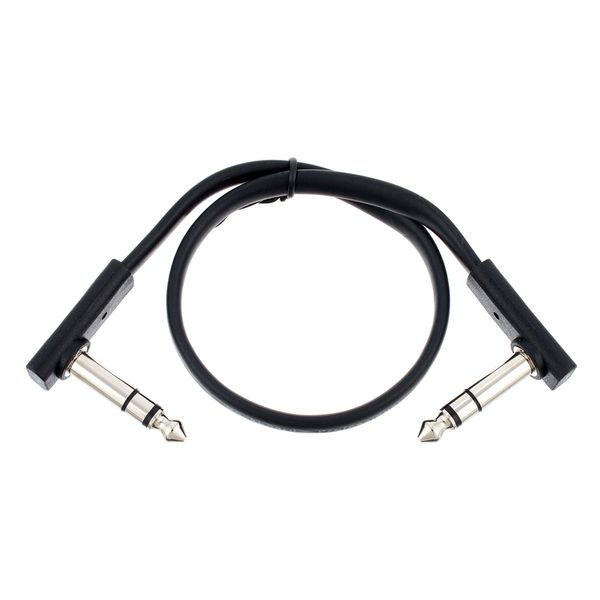

Rockboard Flat TRS Cable 30 cm BK

Patch Cable

• Length: 30 cm (11 13/16")
• Flat TRS cable with rectangular cross-section
• For connecting footswitches or expression pedals
• Space-saving and extra narrow angled jack plugs
• 2 Separate flexible copper conductors: 20 x 0.12 mm
• Wound copper shield: 34 x 0.12 mm
• Polyethylene signal insulation
• PVC external insulation
• Capacitance of less than 10 pF/decimeter
• Conductor resistance of less than 10 mOhm/decimeter
• Angled 6.3 mm stereo jack plugs
• Operating temperatures: -15°C to +70°C
• External dimensions of cable (W x H): 7 x 3 mm (rectangular)
• External dimensions of plug (W x H): 12.5 x 7.5 mm
• Colour: Black
