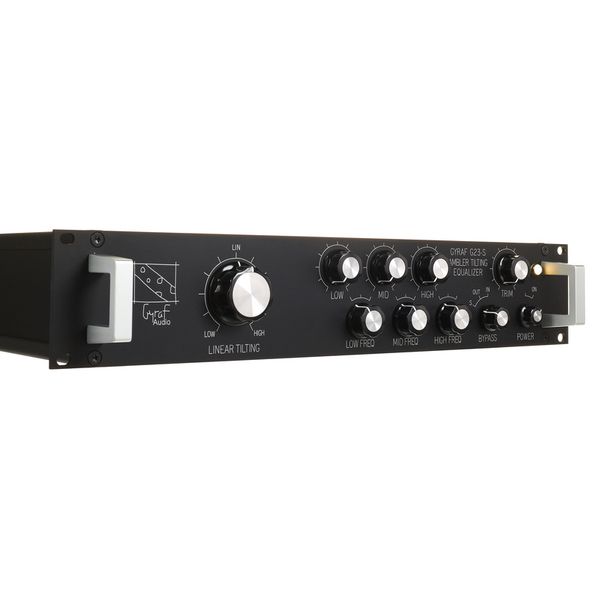

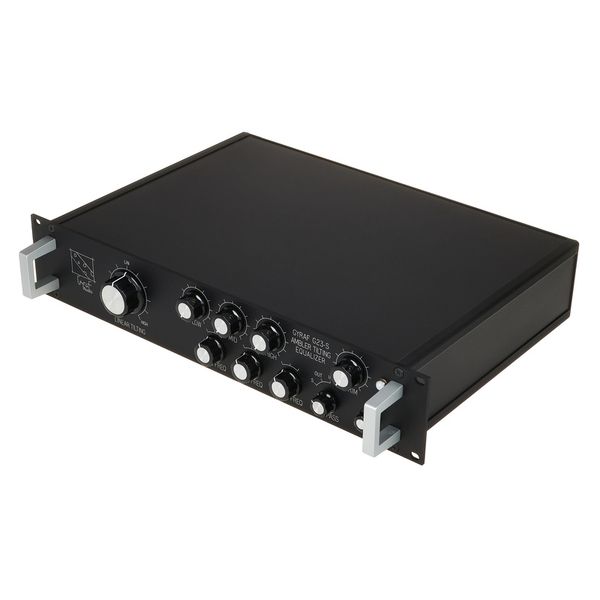

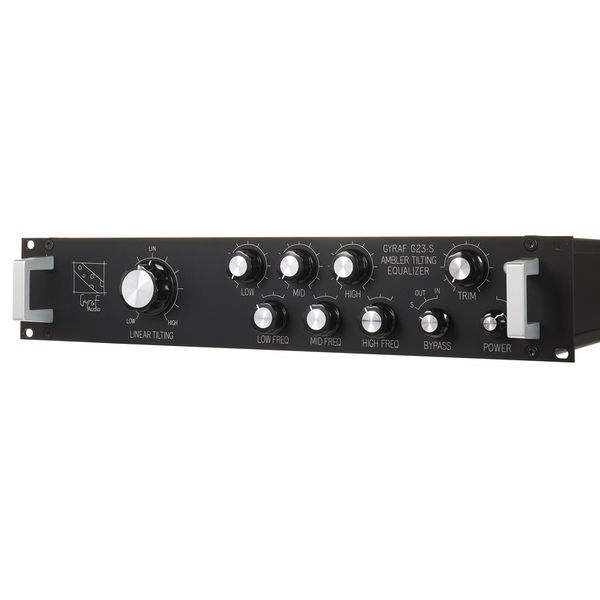

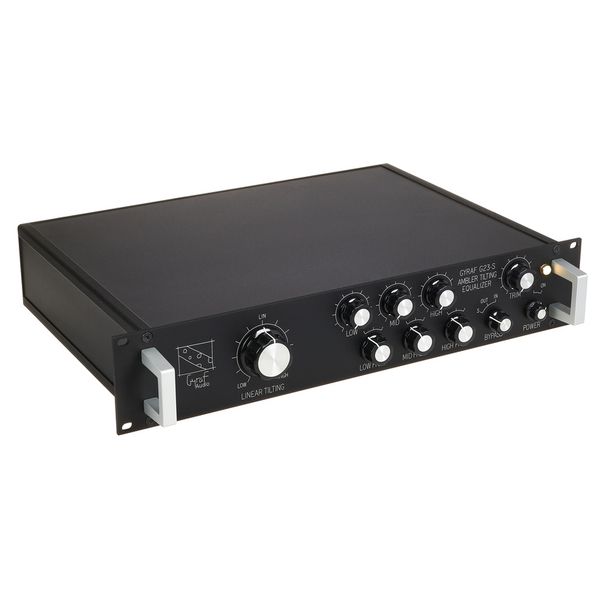

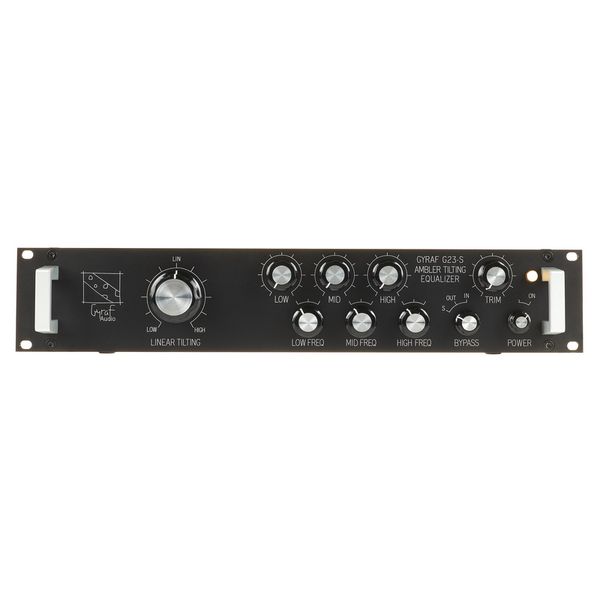

Gyraf Audio G23-S

Linear Stereo-Tilting Equaliser

• Ideal for summing applications in mixing and mastering
• Linear tilting: higher frequencies are boosted while lower frequencies are attenuated - and vice versa
• Additional 3 band EQ with boost/cut and three selectable frequencies per band
• Boost and attenuation with +/-4dB in the treble band. +/-2dB in the mid band and +/-6.5dB at low frequencies
• Relay bypass
• Adjustable overall output level
• Switchable between tube and solid state topology
• Tube amplification based on 6H23n (E88CC/6922) tubes

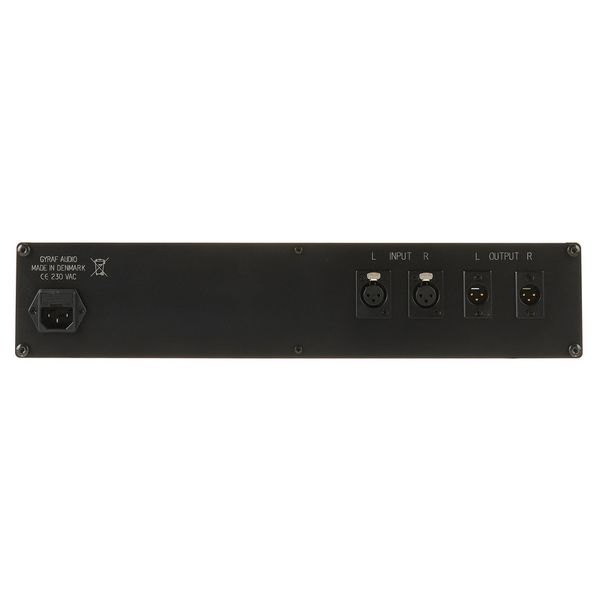

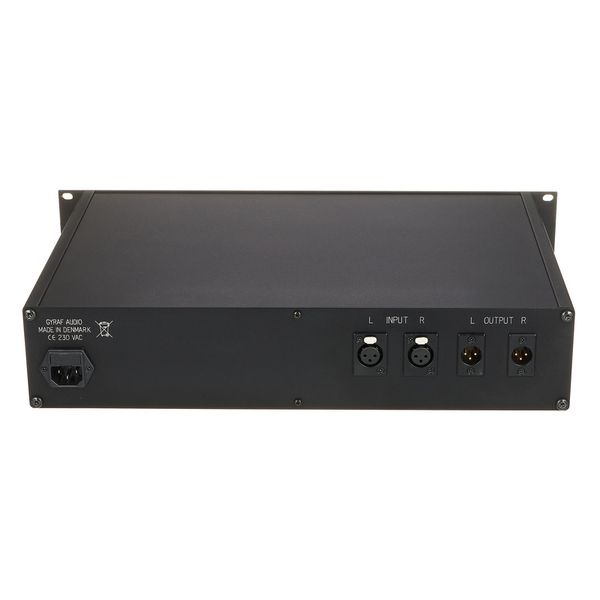

• Blanced XLR inputs and outputs
• Dimensions: 2 U, 19
• Weight: 6 kg

Note: Can only be operated with 230V mains voltage
