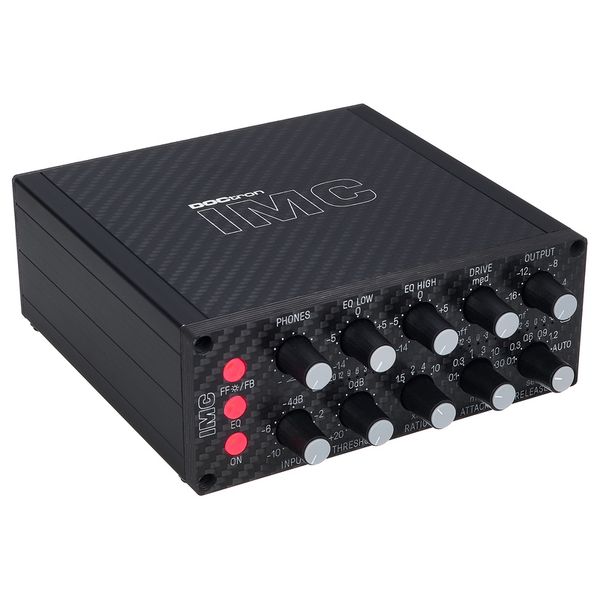

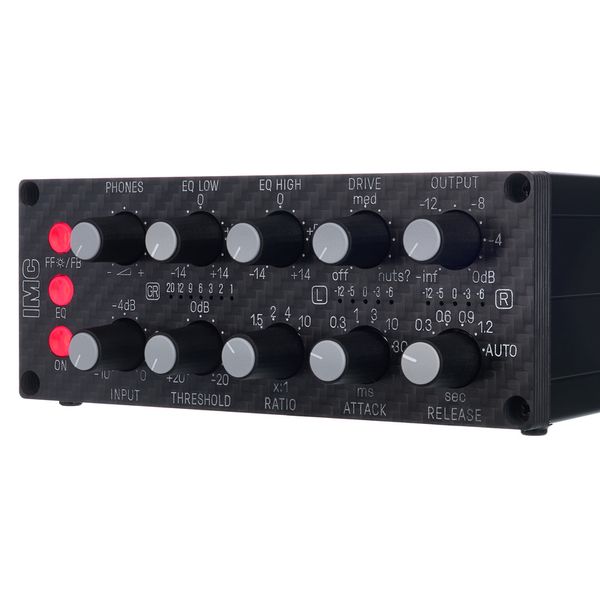

Instant Mastering Chain
- Compact analogue stereo processor for processing sum signals in live and studio applications

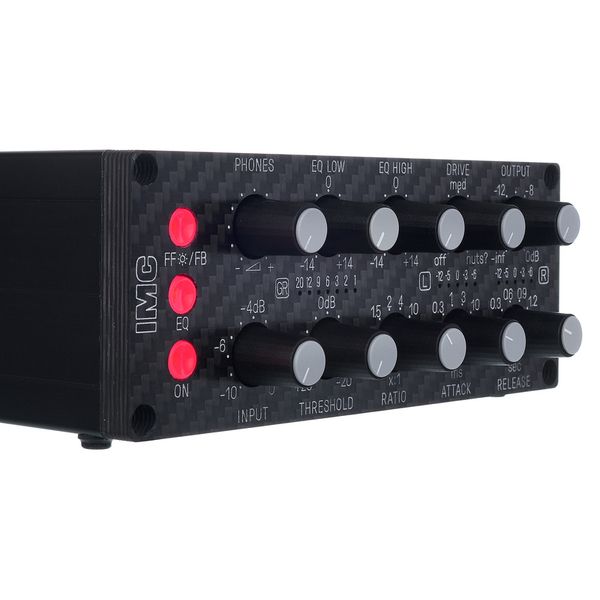

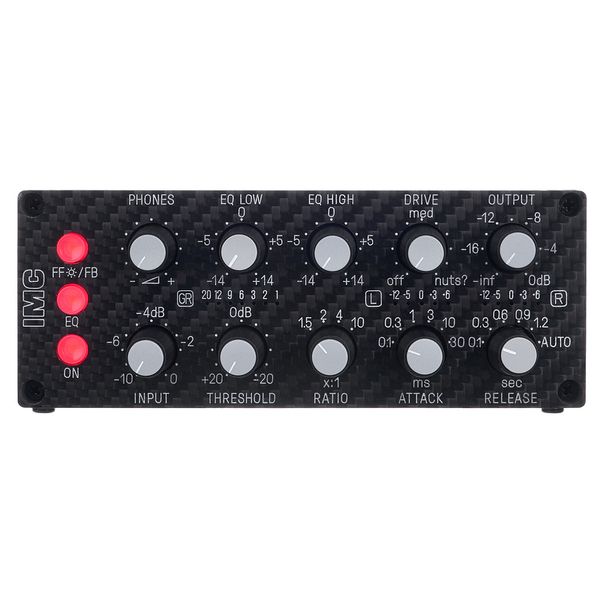

 - Adjustable input level (0 dB to -10 dB)
 - 2-band shelving equaliser (60 Hz and 12 kHz) with +/-14 dB control range and bypass switch
 - VCA compressor (THAT) with controls for threshold, ratio (1:1.5 to 1:10), attack and release (with selectable auto mode)
 - Compressor sidechain switchable between feed forward (FF) and feed backward (FB)
 - Saturation stage with Lundahl transformer and adjustable drive and output level
 - Switchable true bypass

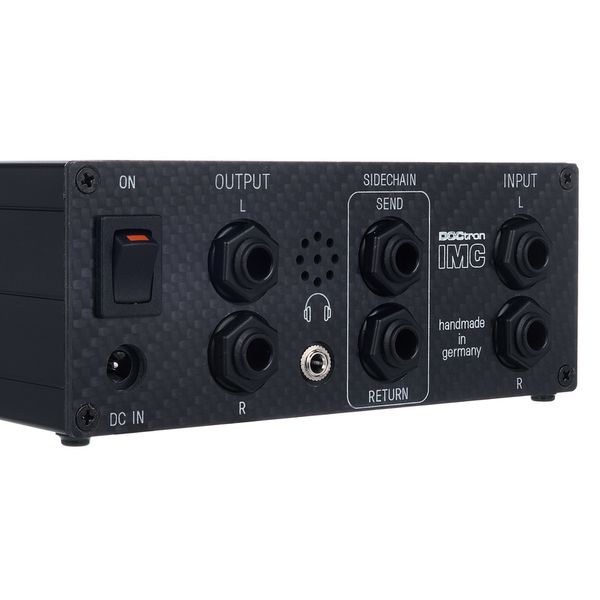

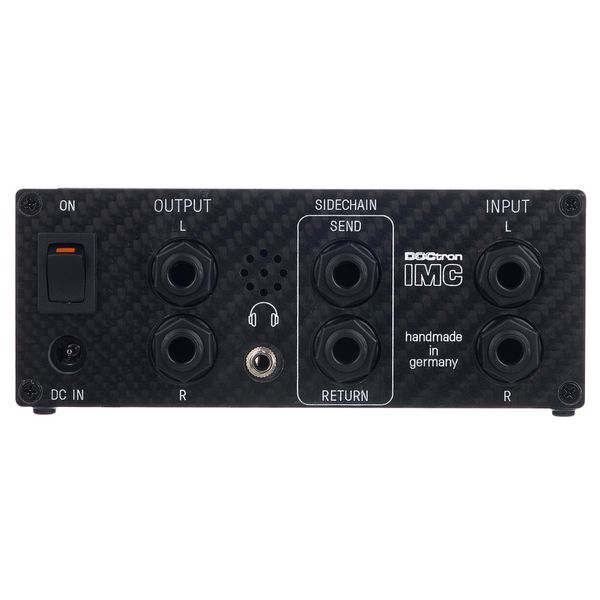

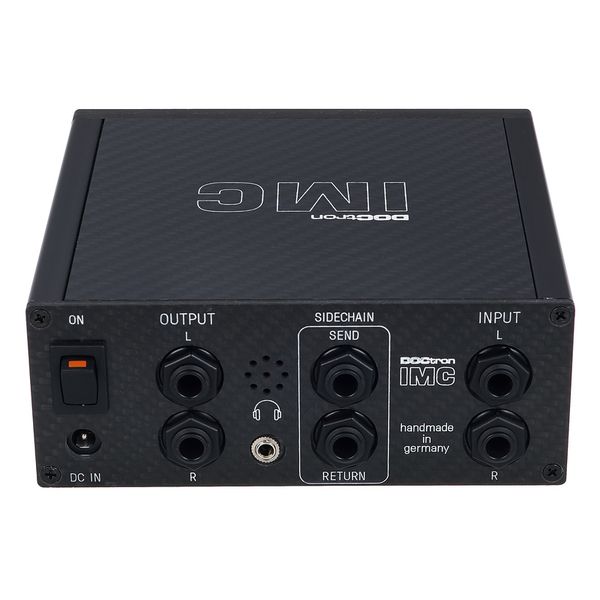

 - Stereo headphone output with level control: 3.5 mm jack
 - Stereo input/output: 6.3 mm jack, balanced
 - Sidechain send/return: 6.3 mm jack
 - Dynamic range: 108 dB A
 - Signal-to-noise ratio: -108 dB A
 - Total harmonic distortion (THD): 0.0099%
 - Max. output level: +24 dBu

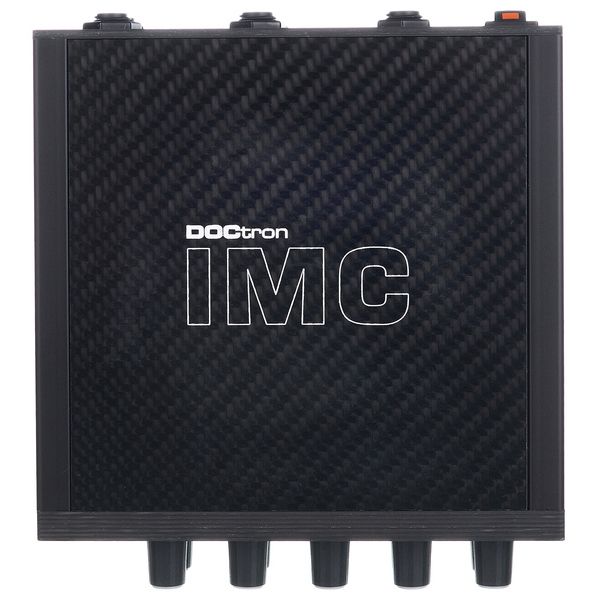

 - Solid but lightweight carbon housing
 - Dimensions (W x D x H): 146 x 143 x 56 mm
 - Weight: 990 g

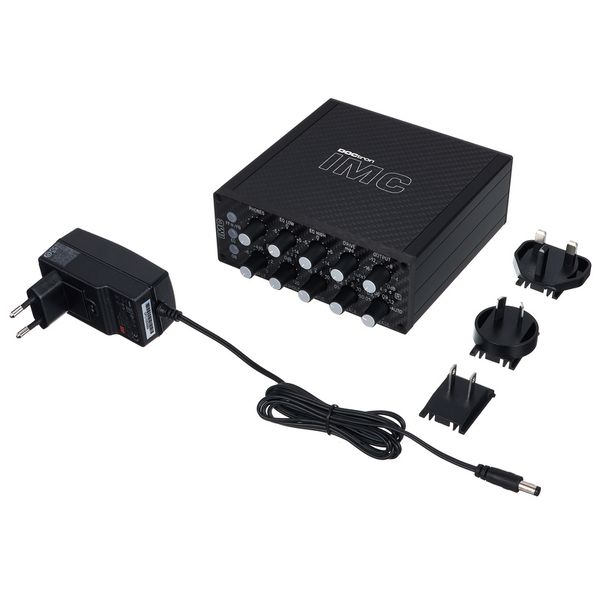

 - Includes external power supply (24 V DC, 1.0 A)

- Available sinceFebruary 2023
 - Item number560701
 - Sales Unit1 piece(s)
 - CompressorYes
 - GateNo
 - Peak LimiterYes
 - 2-Channel UnitYes
 - Attack/Release AdjustableYes
