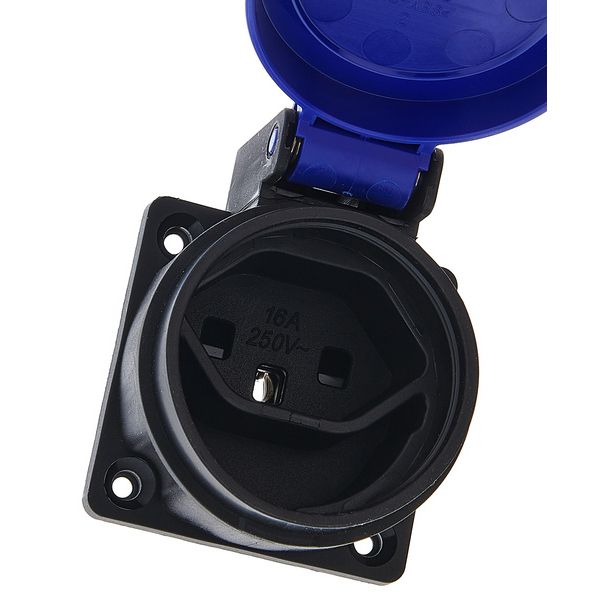

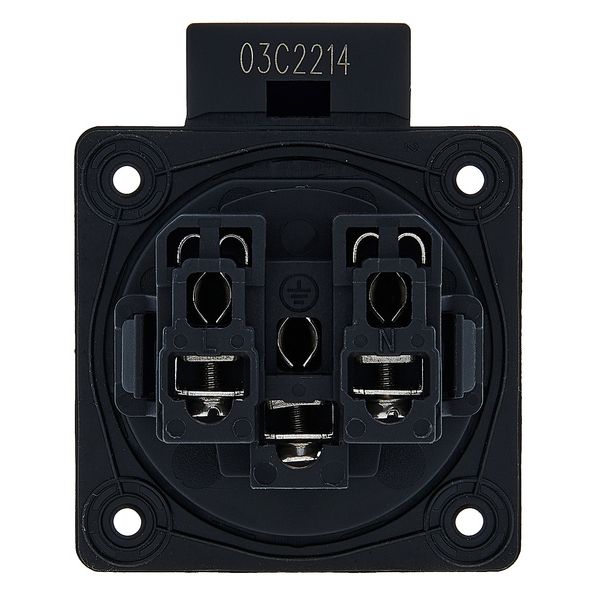

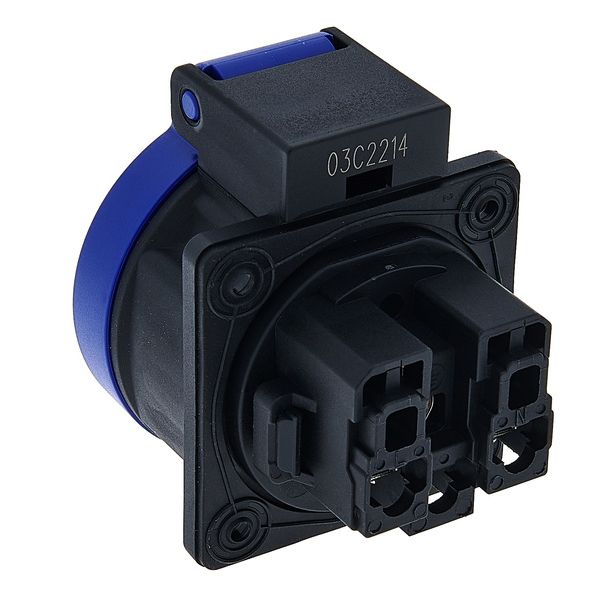

PCE 1323-0bc Safety Socket Swiss

Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Protective Contact Socket

    • Swiss standard T23 16A IP55
    • Made of plastic
    • With shutter
    • Nickel-plated screw contacts
    • Rear connection
    • Rated current: 16A
    • Rated voltage: 250V
    • Plug-in direction: straight
    • Number of pins: 3
    • Flexible cable: 0.75-2.5 mm?
    • Cable rigid: 1-2x2,5 mm?
    • Contact screws: 50 Ncm
    • Stripping length: 9-11 mm
    • Connection system: screw terminal
    • Dimensions: 50 x 50 mm
    • With hinged cover
    • Protection class: IP55
    • Weight: 58 g
    • Colour: Black/blue
    • Available sinceNovember 2022
    • Item number551638
    • Sales Unit1 piece(s)
    • TypeSwitzerland
    • ApplicationInstallation
    • Male/FemaleFemale
    • ColourBlack
    • PlugMisc.
