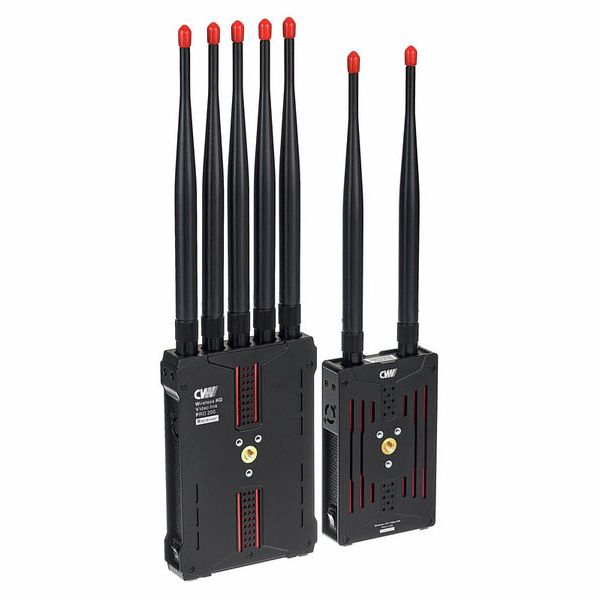

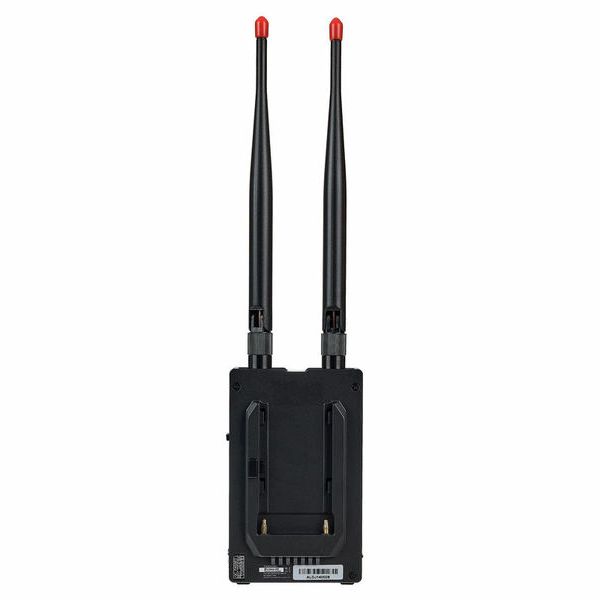

CVW Crystal Video Pro200 Set

Zero Delay Video Radio Link Set

• For distances up to 200 m without DFS
• Ultra-low latency under 1 ms
• Range up to 200 m (line-of-sight)
• Video formats: 1080p (23.98/24/25/30/50/60 fps), 1080i (50/59.94/60), 720P (50/59.94/60 fps)
• Uncompressed 4:2:2 at 10bit
• Audio formats: PCM, DTS-HD, Dolby True HD
• Frequency range (EU): 5150 - 5250 MHz / 5725 - 5825 MHz
• 3GSDI and HDMI FullHD
• Bandwidth: 40MHz
• Without DFS (indoor application)
• Frequency selection: manual with buttons (control via LED display)

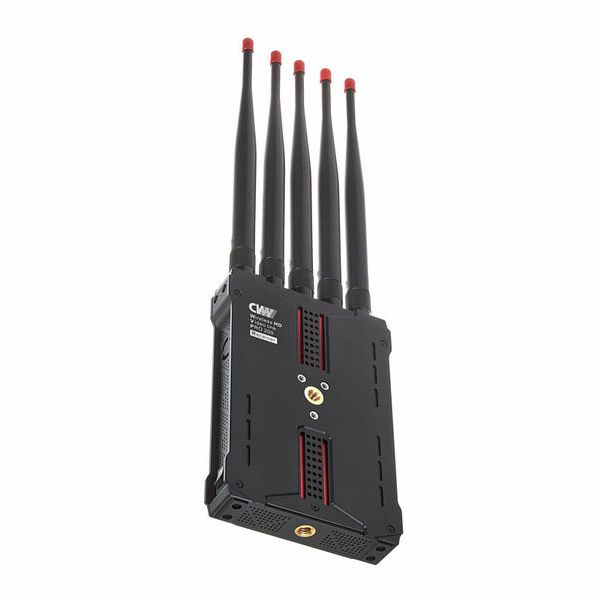

• Mounting options: ?" internal thread (hot shoe adapter included)
• Time code transmission

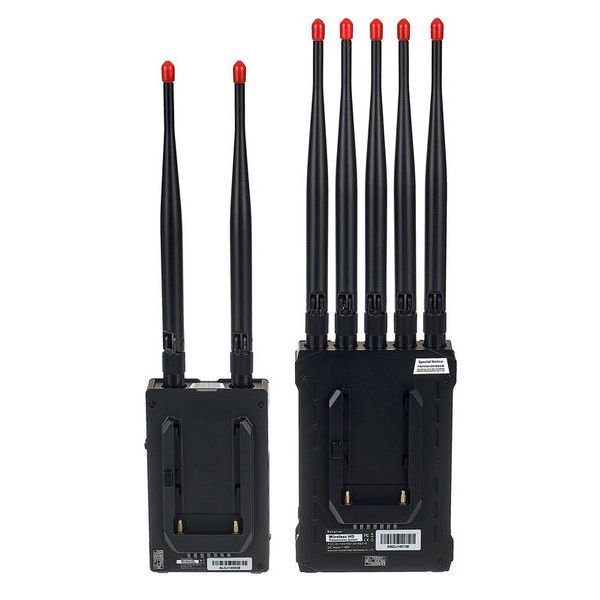

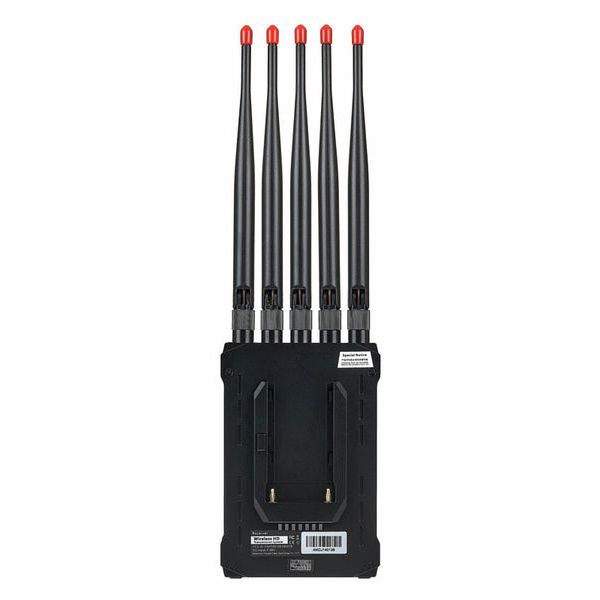

• Battery mount: SONY F-Type Battery Plate
• Suitable NP-F batteries e.g.: Baxxtar NP-F970 Art.496754 or Ansmann A-Son NP-F970 Art.#497644 (both not included in delivery)
• Power consumption: 8W (Tx), 7W (Rx)
• Temperature operating range: 0°C to 40°C
• Dimensions TX (W x H x D): 74 x 120 x 35 mm
• RX dimensions (W x H x D): 95 x 146 x 35 mm
• Case dimensions (W x H x D): 335 x 121 x 310 mm
• Weight TX: 0.226 kg
• Weight RX: 0.310 g
• Weight complete: 3.2 kg
• Colour: Black

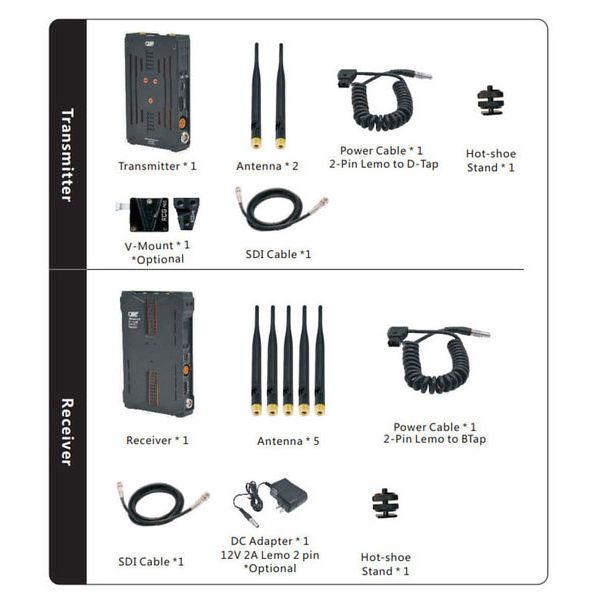

Scope of delivery:

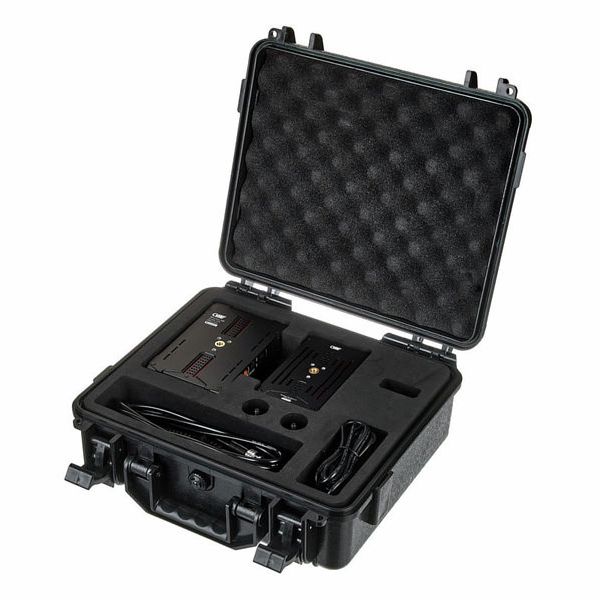

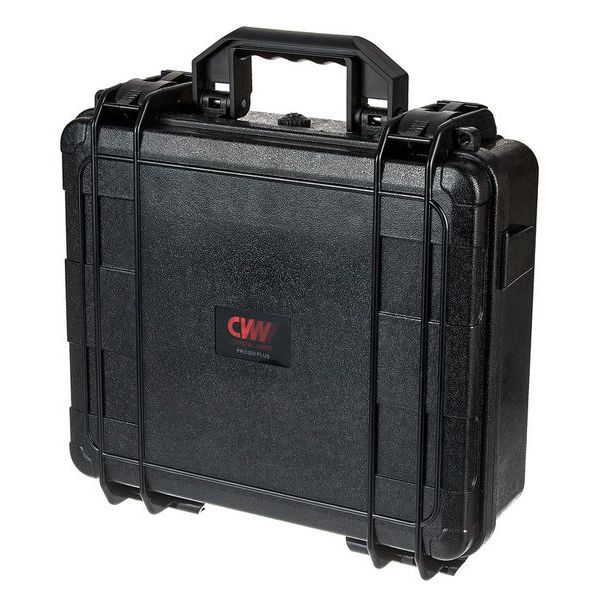

• High-quality case with custom-fit foam

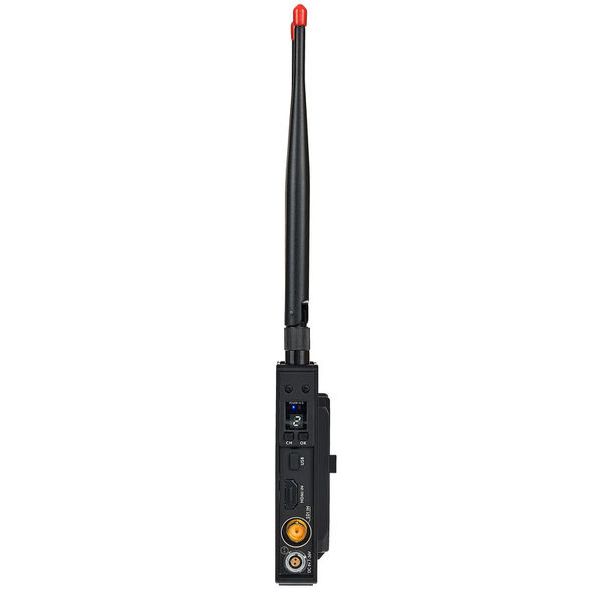

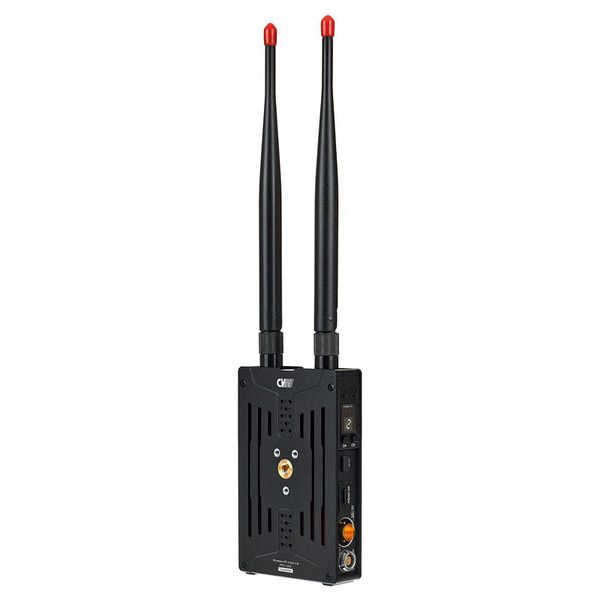

• 1 x Transmitter (with NP-F battery mount + antennas)

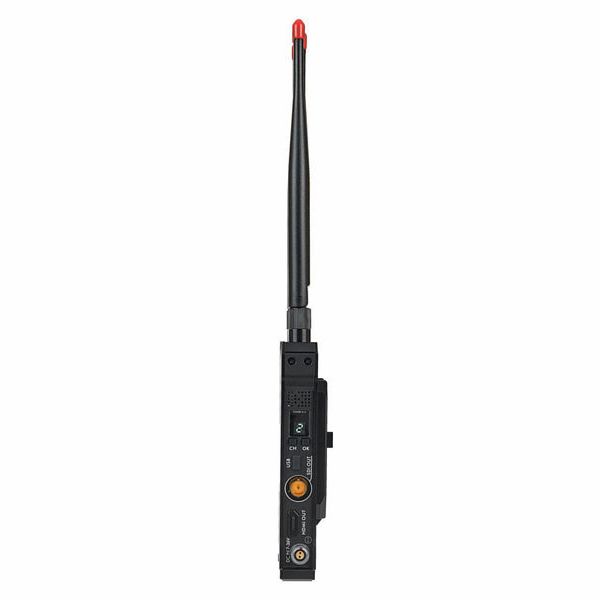

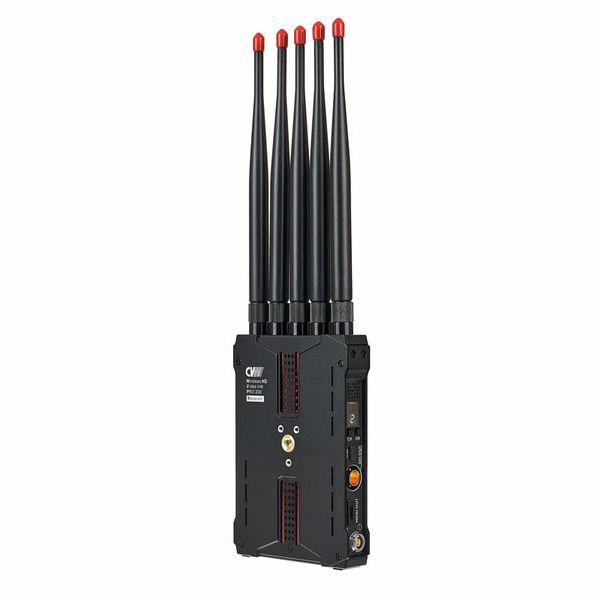

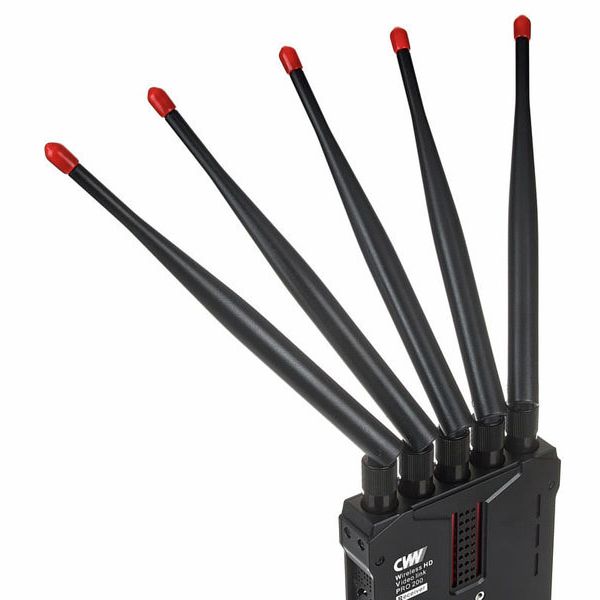

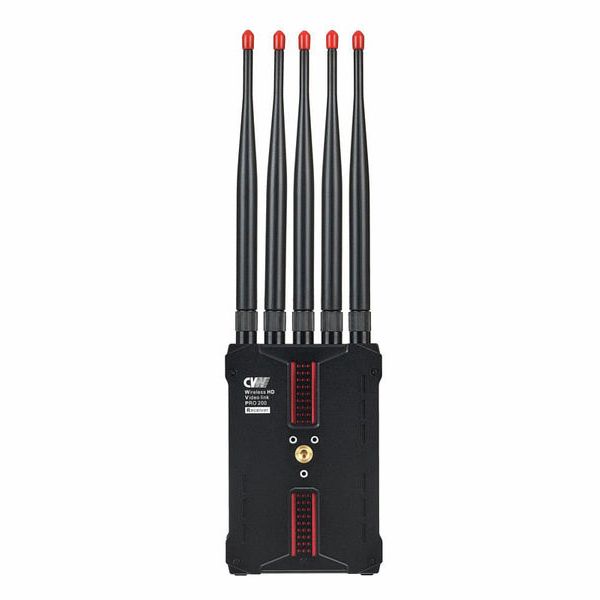

• 1 x Receiver (with NP-F battery mount + antennas)
• 2 x BNC cable (80 cm)
• 1 x Power supply unit
• 2 x DC adapter cable (D-Tap to 2pin Lemo compatible)
• Hot shoe adapter for both units
• 1 x V-Mount adapter
• 9 x Antennas

Note: In the manual of some models CVW refers to 11 channels. For the European market, CVW has only had 4 channels certified: Available channels or frequencies: Channel 1: 5170 GHz, Channel 2: 5230 GHz, Channel 3: 5755 GHz, Channel 3: 5795 GHz
