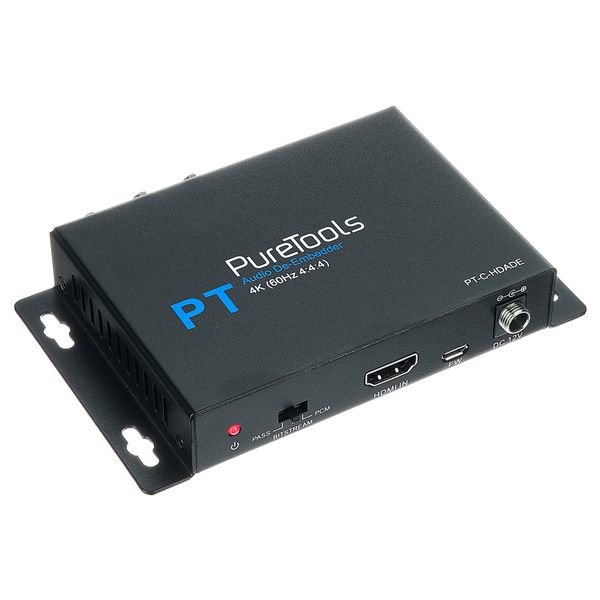

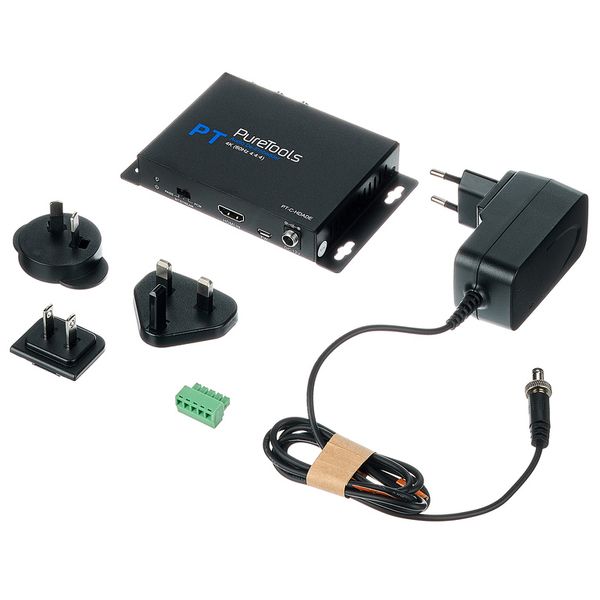

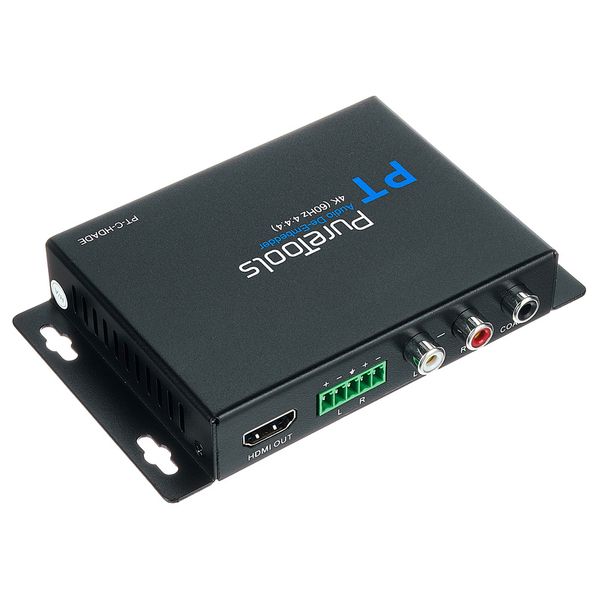

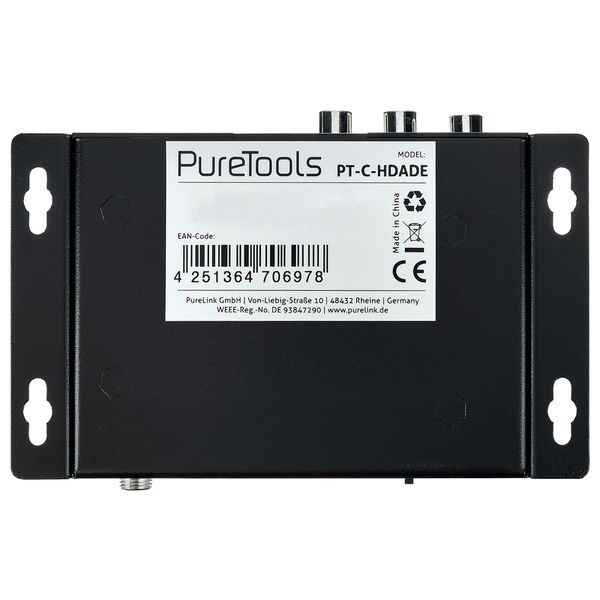

PureLink PureTools PT-C-HDADE

4K 18Gbps HDMI Audio De-Embedder

• Audio decoupling from 1 HDMI signal to 1 HDMI and 2 D/A audio outputs
• Supports 18 Gbps for resolutions up to 4K UltraHD 60 Hz
• 3 Audio modes: Pass-Through, Bitstream and PCM, formats up to DTS-HD / TrueHD
• Pass-through for CEC, EDID management for extended AVR compatibility
• No display connection required for audio output
• Power consumption: max. 3 W
• Dimensions: 129 x 21.5 x 77 mm

Connections:

• Inputs: 1 x HDMI

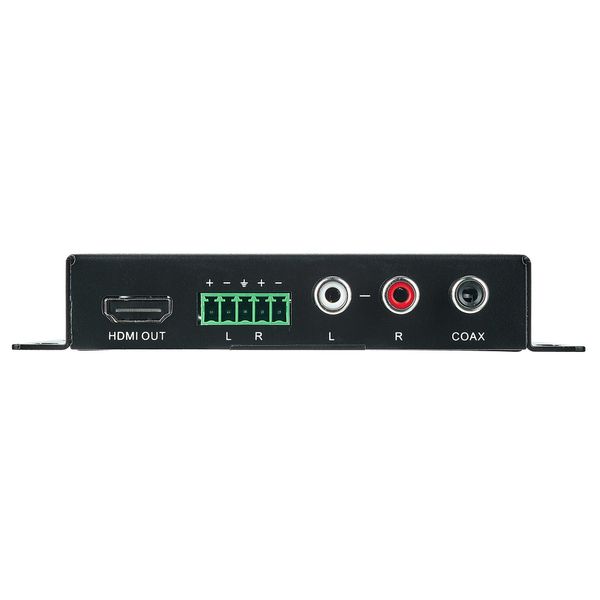

• Outputs: 1x HDMI, 1x digital audio (RCA), 1x analogue stereo (L/R RCA), 1x analogue bal. Stereo (5-pin Phoenix)
• Power connection: 12 V DC 1 A
• Control connection: 1x firmware connection (USB Micro)
