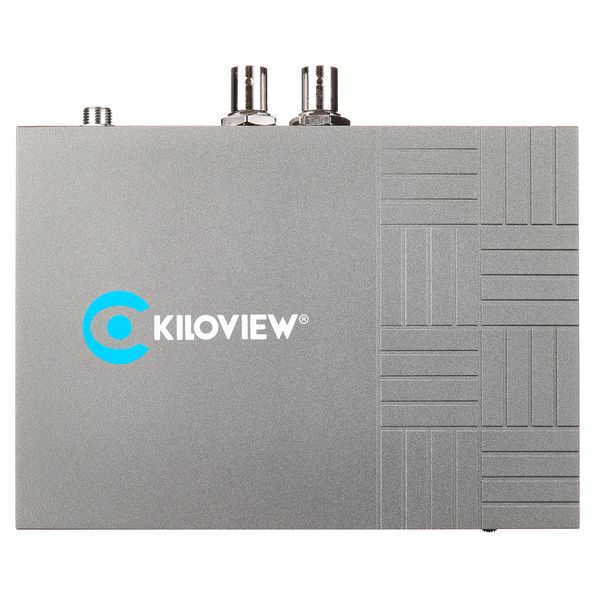

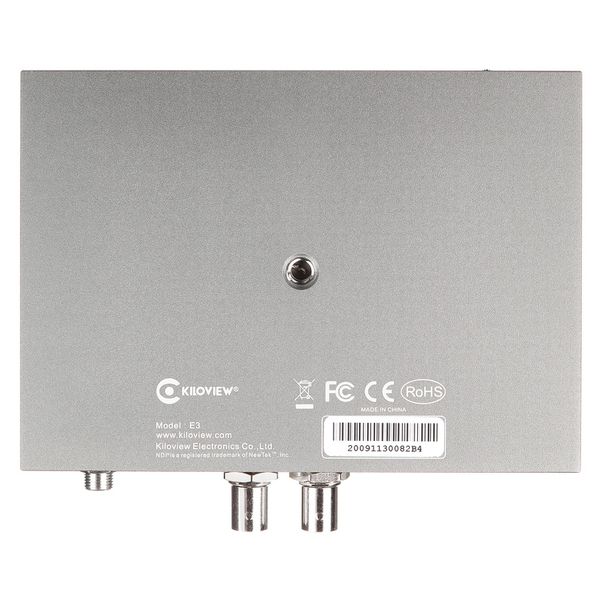

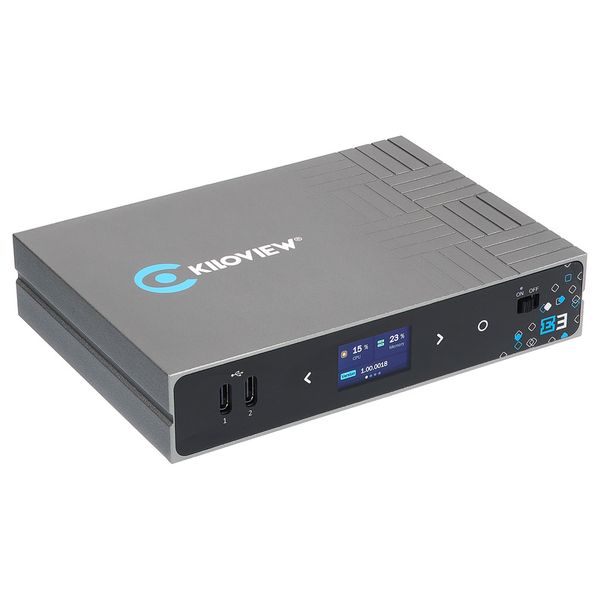

Kiloview E3 Video Encoder

Dual-Channel 4K HDMI and 3G-SDI HEVC Video Encoder

• Video encoder
• Supports simultaneous streaming and resolutions up to 4Kp30 via HDMI and 1080p60 with 3G-SDI
• H.264/ H.265 support
• Supports NDI|HX2, NDI|HX3, SRT, RTMP, RTMPS, HLS, TS over UDP, RTP and RTSP
• Up to 16 simultaneous streams (8 main streams with 8 sub-streams)
• Multi-Channel Audio
• 8 x SDI embedded Audio
• 4 x HDMI embedded audio channels
• Picture-in-Picture (PIP) and Picture-By-Picture (PBP) modes

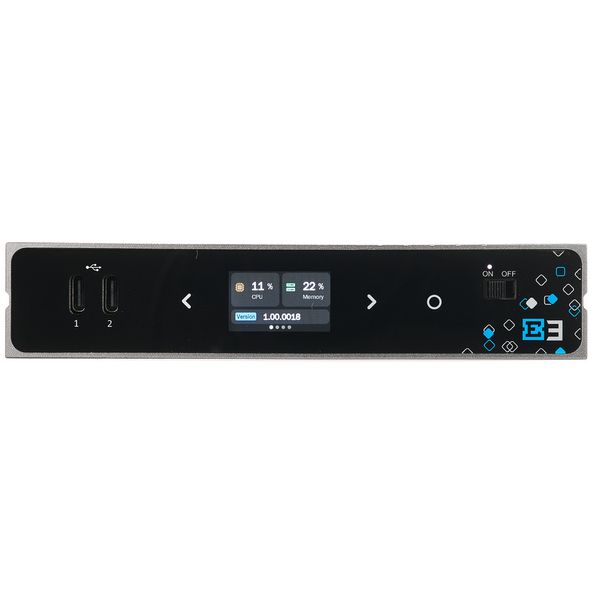

• Integrated 1.14" LC display and touch buttons
• Recording in .MOV/.MP4 via 3 USB ports or on NAS storage

Technical data:

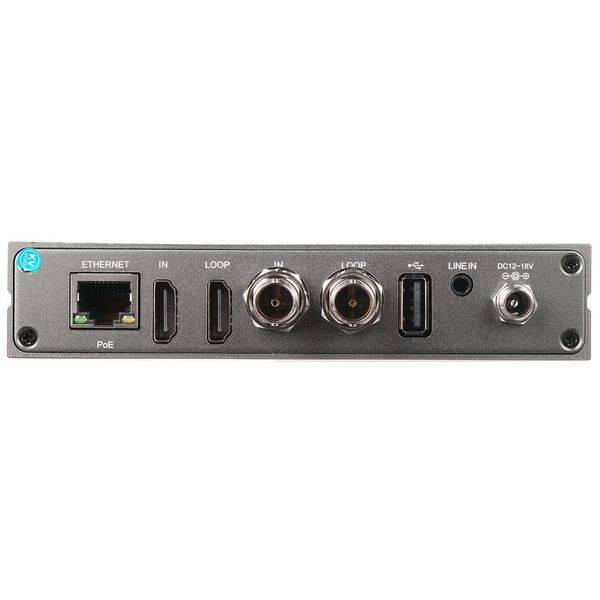

• Video input: 1x 3G-SDI (SMPTE 424M), compatible with HD-SDI (SMPTE 292M) and SD-SDI (SMPTE 259M)
• Video output: Loop-out: 1x 3G-SDI (SMPTE 424M), compatible with HD-SDI (SMPTE 292M) and SD-SDI (SMPTE 259M); Loop-out: 1x HDMI 1.4b
• Audio input: 8x channels SDI embedded audio, 4 x channels HDMI embedded audio, 1 x 3.5 mm line in
• Video formats: supported in HDMI input & loop-out: 3840 × 2160p 30 fps, 1920 × 1080p 23.98/24/25/29.97/30/50/59.94/60 fps, 1920 × 1080i 50/59.94/60 fps, 1280 × 720p, 9.97/30/50/59.94/60 fps, 720 × 576i 50 fps (PAL SD), 720 × 480i 59.94 fps (NTSC SD)
• Supported in SDI input & loop-out: 1920×1080p 23.98/24/25/29.97/30/50/59.94/60 fps, 1920×1080i 50/59.94/60 fps, 1280×720p 25/29.97/30/50/59.94/60fps, 720×576i 50 fps (PAL SD), 720×480i 59.94 fps (NTSC SD)
• Encoding formats: H.264(AVC): Baseline/Main/High profile, Level 5.1, H.265(HEVC): Main profile, Level 5.0
• Streaming protocols: NDI|HX2 / NDI|HX3 / SRT / RTMP / RTMPS / HLS / TS over UDP / RTP / RTSP Onvif (expandable for SIP/GB-T2818)
• Intercom: yes
• PTZ control: yes
• Network connection: 1x 10/100M/1000M RJ45 Ethernet port PoE support (802.3af class 3)
• USB interfaces: 2x USB 2.0 Type-C, 1x USB 2.0 Type-A
• DHCP: yes
• Management: WebRTC/KiloLink Server
• Power consumption: max. 5 W

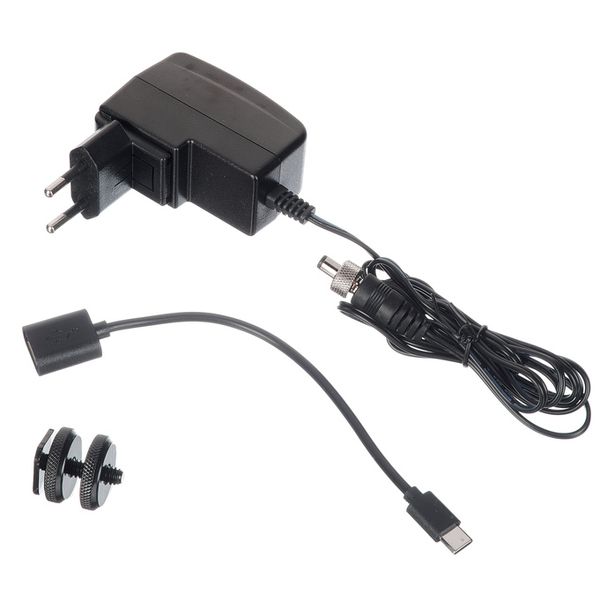

• Power supply: DC 12V / 1A
• Dimensions: 140 x 100 x 28 mm
