Elation KL Panel
Quantity
-
Detail

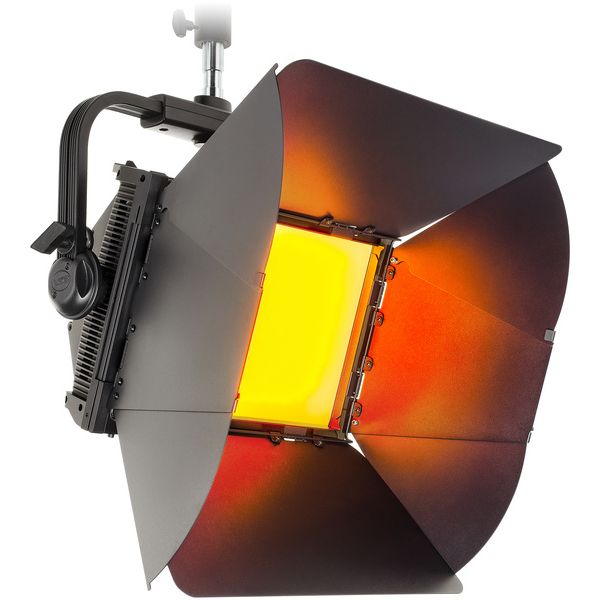

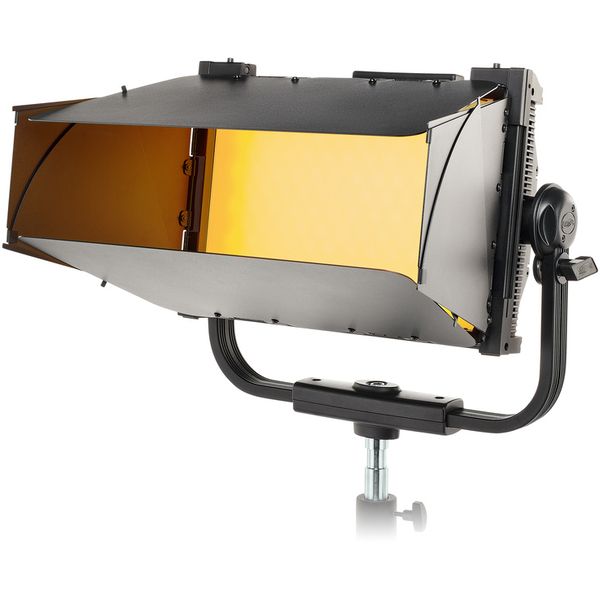

RGBWLC LED Soft Light Panel with Barn Doors

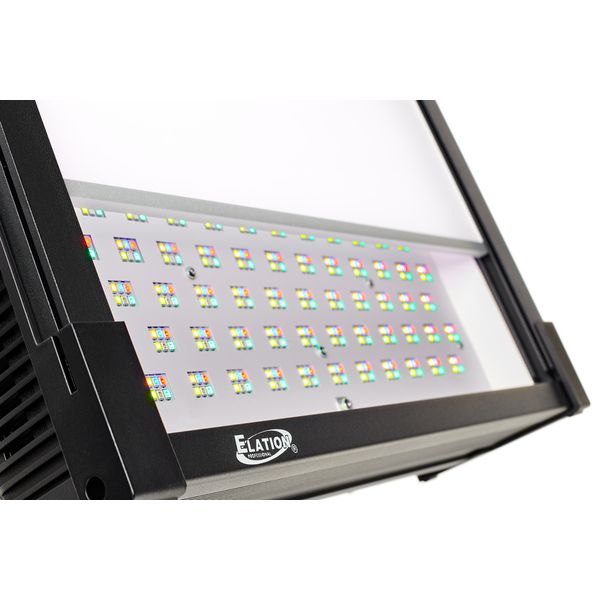

- RGBWLC under one lens
- Extended colour spectrum thanks to additional white, lime and cyan LEDs
- Manual adjustment via 3x jog wheel
- Standalone RGBWL programming
- Memory for last operating status
- Selectable PWM frequency (900 Hz - 25KHz)
- Variable dimmer curves
- Virtual colour correction (2,000 - 10,000 K)
- Green adjustment
- Virtual colour wheel
- Display password
- Software update via USB & DMX 512
- Five V USB port for the power supply of external accessories
- Connection for external battery pack (24-36 VDC, XLR 4-pin)

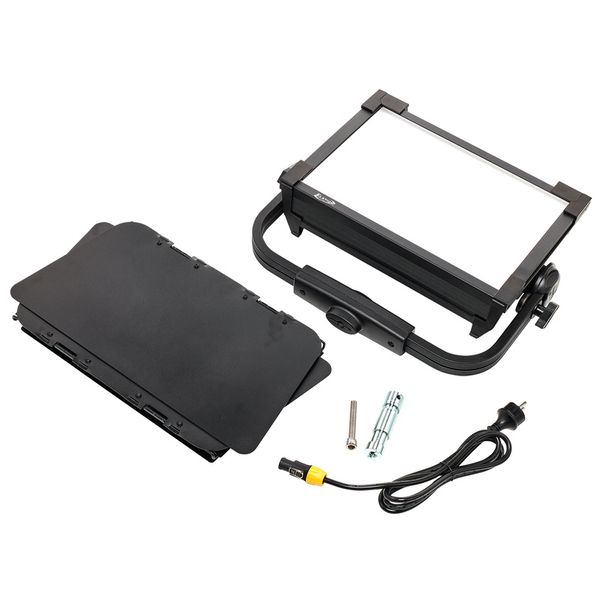

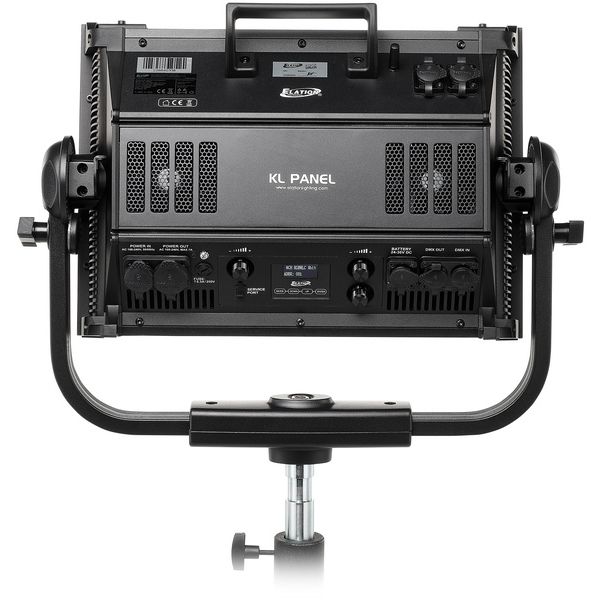

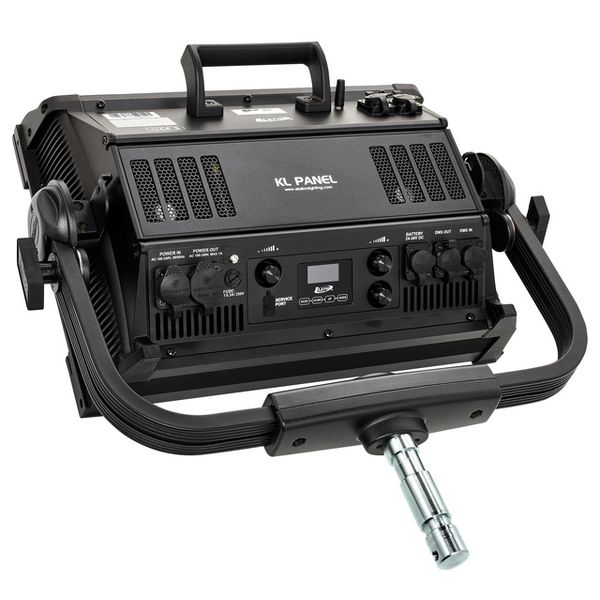

- Includes power cord, 8-wing barn doors, diffuser, bracket with 28 mm TV spigot
Technical data:

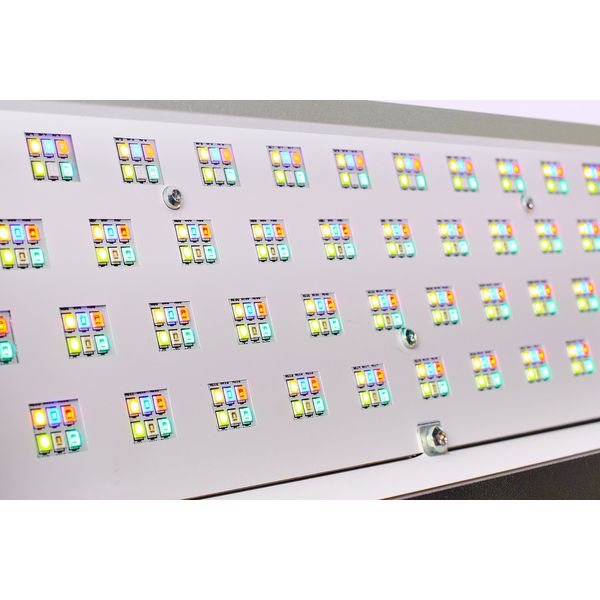

- LED type: 295 W RGBWLC LED engine, CRI 95
- Light output: 24,000 lumens
- Colour mixing: Red, green, blue, white, lime, cyan
- Dispersion angle: 100° (with diffusor)
- Cooling: Fan, temperature controlled
- Control protocols: DMX 512-A (RDM), ArtNet, sACN, E-Fly
- Number of DMX channels: 1/4/4/6/7/12/12/14/23

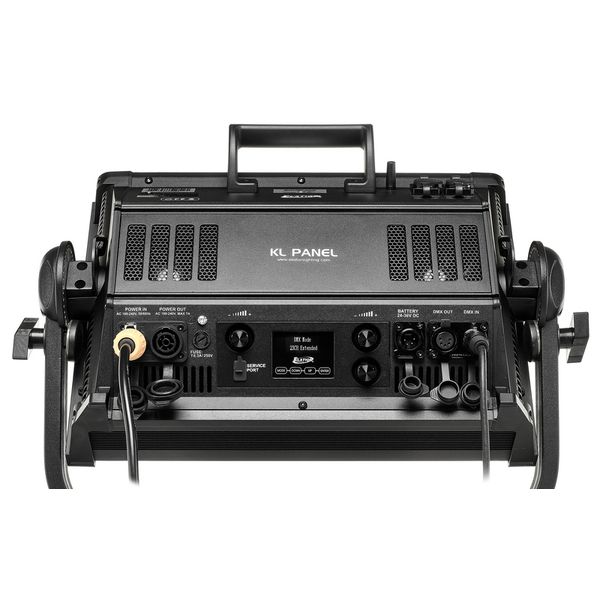

- DMX connection: 5-pin XLR in/output

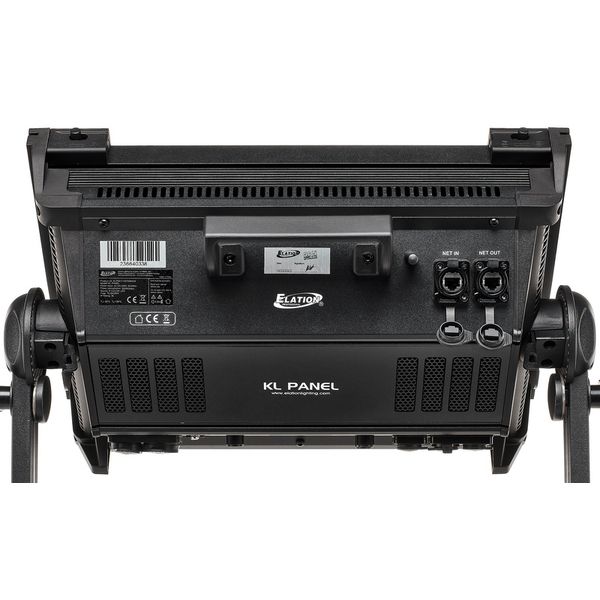

- ArtNet connection: 2x etherCON RJ 45 female
- Supply voltage: 100 - 240 V, 47-63 Hz
- Power consumption: 1.3 A at 230V
- Housing: Aluminium
- IP protection rating: IP20
- Dimensions : 52.8 x 14.1 x 41.5 cm
- Weight: 13 kg
- Colour: Black
- Available sinceApril 2021
- Item number515128
- Sales Unit1 piece(s)
- DesignLed-Panel
- Power [W]295 W
- Colour mixRGBWLC
- Colour temperature [K] up to - Colour temperature [K] from2000 – 10000
- OpticsDiffuser Filter
- CRI95
- Beam angle up to - Beam angle from101 ° – 155 °
- DMXYes
- FanlessNo
- Door panelYes
- BatteryOptional
- Stand includedNo
- IP Protection classIP20
- Case/Bag includedNo
- Pole-operatedNo
- Housing ColourBlack
- Numbers of LED?s0
- Colour mixingRGBWLC
- Remotenot supported
- wireless DMXYes
- Beam angle min.100 °
- Beam angle max.100 °
