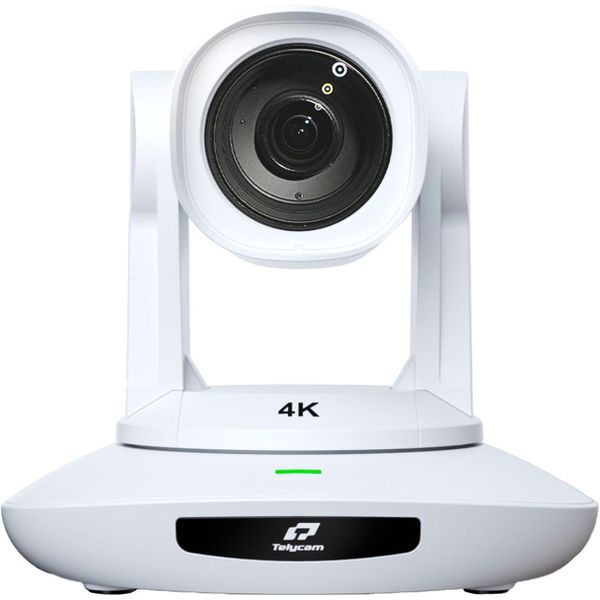

Telycam Vision+ 4KN 30X Wh

4K PTZ Camera

• With auto tracking
• Smooth 4K video at up to 60 fps
• Versatile connection options such as NDI HX3, SDI, HDMI and USB
• Integrated AI-supported auto-tracking function
• FreeD support for virtual reality productions
• Tally light on the plinth front
• SSDP for convenient network setup
• Audio with 3.5 mm line-in
• Input voltage: DC12V, POE+
• Tolerated temperature range during operation: -10 °C ~ 50 °C
• Tolerated humidity during operation: 80%
• Dimensions (L × W × H): 220 x 190 x 193.5 mm
• Weight: 1.9 kg
• Colour: Black

Technical specifications:

• 1/1.8 inch, 9MP UHD CMOS sensor
• 30x optical zoom
• Lens: 6.91~214.64 mm, F1.35~F4.6
• Horizontal angle of view: 63° (Wide)~2.1°(Tele)
• Minimum distance: 1.5 m
• Vertical viewing angle: 34.14°~1.12°
• Diagonal viewing angle: 67.08°~2.27°
• S/N ratio: 50 dB

Image parameters:

• Noise reduction: 2D & 3D
• Minimum brightness: 0.5Lux ( 50 IRE Max AGC, 1/30, F1.8)
• White balance: Auto / Manual / ATW / Push / Indoor/Outdoor/Colour Temperature
• Exposure: Auto / Manual / Shutter Priority / Iris Priority/Brightness Priority
• Anti-Flicker: OFF, 50Hz, 60Hz
• Image Flip: supported
• Mirroring: supported
• Foxus: Auto/Manual
• Iris opening: Auto / Manual
• Electronic shutter: Auto/Manual
• Gamma: supported
• Backlight compensation: supported

Video formats:

• NDI®HX3: Main Stream: 3840 x 2160 P15~60, 1920 x 1080 P15~60, 1280 x 720 P15~60, 1024 x 576 P15~60
• Sub Stream: 640 x 360 P15~30
• 3G-SDI: 1920 x 1080 P15~60, 1920 x 1080 I60/59.94/50, 1280 x 720 P15~60
• HDMI: 3840 x 2160 P15~60, 1920 x 1080 P15~60
• USB Type-C: NV12: 1920 x 1080 P50, 1280 x 720 P15, 1024 x 576P25, 800 x 448 P30
• YUYV: 1920 x 1080 P5, 1280 x 720 P15, 1024 x 576P25, 800 x 448 P30
• MJPG: 3840 x 2160 P30, 1920 x 1080 P60, 1280 x 720 P60, 1024 x 576 P60, 800 x 448 P60
• H264 / H265: 3840 x 2160 P30, 1920 x 1080 P60, 1280 x 720 P60, 1024 x 576 P60, 800 x 448 P60

IP streaming:

• Video Encoding: H.264 / H.265
• Bitrate Control: variable Bitrate (VBR) constant Bitrate (CBR)
• Bitrate Range: 1024 Kbps ~ 122800 Kbps
• Network Port Speed: 1000M
• Protocol: NDI®HX3, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP (TCP&UDP), VISCA, PELCO P/D, SSDP, FreeD, NTP, RTP Multicast, WebRTC

Pan/Tilt movement:

• Presets: Remote Controller 10
• Serial Port: 256
• Accuracy: 0.1°
• Pan rotation range: -176° ~ +176°
• Tilt otation range: -30° ~ +90°
• Pan rotation speed: 0.1° ~ 80°/s
• Tilt rotation speed: 0.1° ~ 60°/s

I/O interface:

• Control port: RS232(RS485), NDI®HX
• Video port: NDI®HX3, SDI, HMDI, USB Type-C
• Audio port: Stereo 3.5 mm linear inputs
• Tally: Supported
• POE+: supported
• Daisy chain: Supported
