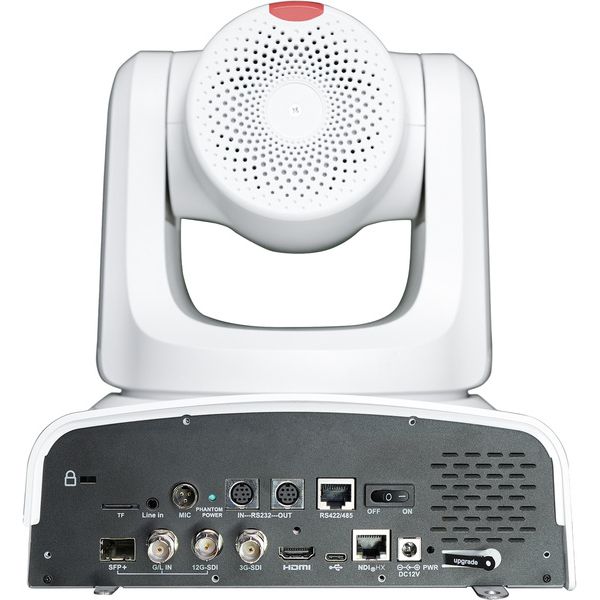

Telycam Explore SE Wh

4K PTZ Camera

• Equipped with fast PDAF autofocus
• 30x optical zoom and versatile connection options such as NDI, NDI HX, 12G-SDI, 3G-SDI, HDMI, USB and SFP+
• Genlock for synchronisation in multi-camera productions
• FreeD Integration for Virtual Productions
• Audio with 3.5 mm line-in and mini XLR with phantom splicing
• SSDP for convenient network setup
• Local backup via microSD card
• Dual tally light on the front and back for quick identification from all sides
• CROP output: supports different image sections in parallel (e.g. long shot and close-up)
• Auto-Tracking
• Input voltage: DC12V
• POE++ (IEEE802.3bt)
• Tolerated temperature range during operation: -10 °C ~ 50 °C
• Tolerated humidity during operation: <=80 %
• Dimensions (L × W × H): 232.5 x 264 x 269 mm
• Weight: 4.6 kg
• Colour: White

Technical specifications:

• Sensor: 1/1.8 inch, 9MP UHD CMOS
• 30x optical zoom
• Lens: f=6.91 ~ 214.64 mm, F1.35 ~ F4.6
• Horizontal aperture angle: 63° (Wide) ~ 2.1° (Tele)
• Vertical angle of view (AOV): 34.14° ~ 1.12°
• Diagonal angle of view: 67.08° ~ 2.27°
• Minimum distance: Wide: 30 cm / Tele: 150 cm
• S/N Ratio: >=50 dB

Image parameters:

• Noise reduction: 2D & 3D
• Minimum illumination: 0.5 lux (50 IRE Max AGC, 1/30, F1.8)
• White balance: Auto / Manual / ATW / Push / Indoor / Outdoor / Colour Temperature
• Exposure: Auto / Manual / Aperture priority / Aperture priority / Brightness priority
• Anti-Flicker: OFF / 50Hz / 60Hz
• Image Flip / Mirroring: supported
• Focus / Iris / Electronic shutter: Auto / Manual
• Gamma: supported
• Backlight compensation: supported

Video formats:

• 12G-SDI: 3840 2160 P60/50/30/25/59.94/29.97/24/23.98, 1920 1080 P60/50/30/25/59.94/29.97/24/23.98, 1920 1080 I60/50/59.94, 1280 720 P60/50/30/25/59.94/29.97
• 3G-SDI: 1920 1080 P60/59.94/50/30/29.97/25/24/23.98, 1920 1080 I60/59.94/50, 1280
• HDMI2.0: 3840 2160 P60/50/30/25/59.94/29.97/24/23.98, 1920 1080 P60/50/30/25/59.94/29.97/24/23.98, 1920 1080 I60/50/59.94, 1280 720 P60/50/30/25/59.94/29.97
• NDI HX3: Main Stream: 3840 2160 P15 ~ 60, 1920 1080 P15~60, 1280 720 P15~60, 1024 576 P15~60
• Sub Stream: 640
• SFP+: 3840 2160 P60/50/30/25/59.94/29.97/24/23.98, 1920 1080 P60/50/30/25/59.94/29.97/24/23.98, 1920 1080 I60/50/59.94, 1280 720 P60/50/30/25/59.94/29.9
• USB Type-C: NV12: 1920 1080 P5, 1280 720 P15, 1024 576 P25, 800 448 P30
• YUYV: 1920 1080 P5, 1280 720 P15, 1024 576 P25, 800 448 P30
• MJPG: 3840 2160 P30, 1920 1080 P60, 1280 720 P60, 1024 576 P60, 800
• H264/H265: 3840 2160 P30, 1920 1080 P60, 1280 720 P60, 1024 576 P60, 800

IP streaming:

• Video encoding: H.264/H.265
• Bitrate Control: Variable bitrate (VBR) / Constant bitrate (CBR)
• Bitrate Range: 1024 Kbps ~ 122800 Kbps
• Network Port Speed: 1000M
• Protocols: NDI,NDI HX3, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP(TCP&UDP), VISCA, PELCO P/D, SSDP, FreeD, NTP, RTP Multicast, WebRTC

Pan/Tilt movement:

• Preset: Remote controller: 10
• Serial port: 256
• Accuracy: 0.1°
• Pan rotation range: -176° ~ +176°
• Tilt rotation range: -90° ~ +90°
• Pan rotation speed: 0.1° ~ 80°/s
• Tilt rotation speed: 0.1° ~ 60°/s

I/O interface:

• Control Port: RS232, RS485, RS422, RJ45, USB, NDI HX
• Video Port: NDI, NDI HX3, HDMI 2.0, 12G-SDI, 3G-SDI, SFP+
• USB Type-C
• Audio port: Mini XLR (with phantom splicing)
• Stereo 3.5 mm Line in
• Tally: supported
• POE++: supported
• Daisy chain: supported
