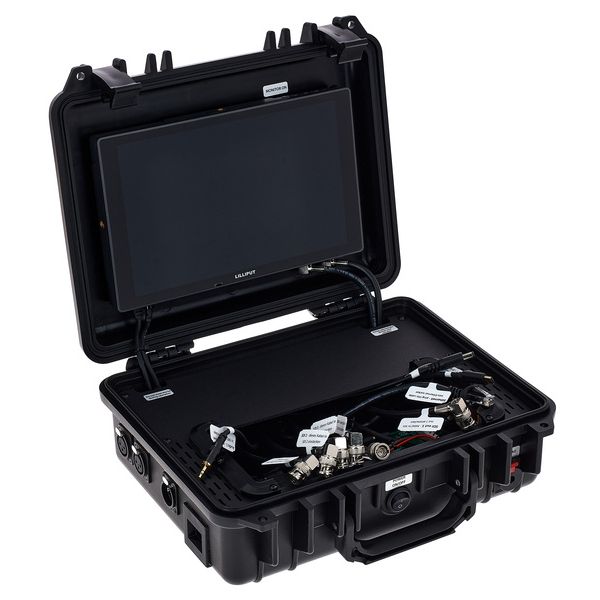

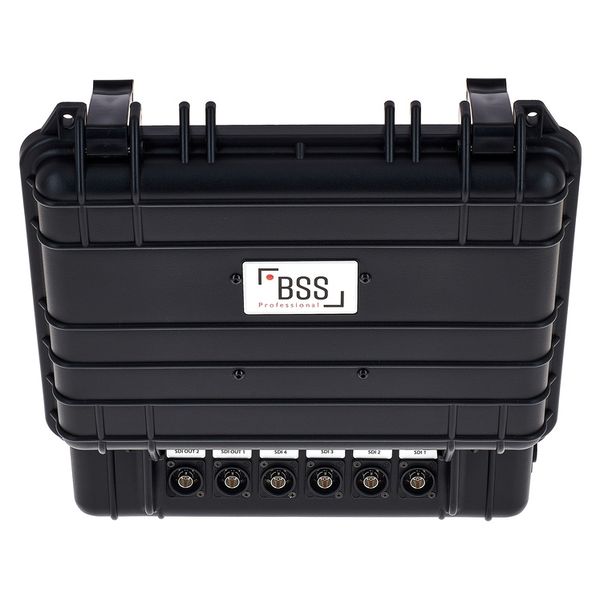

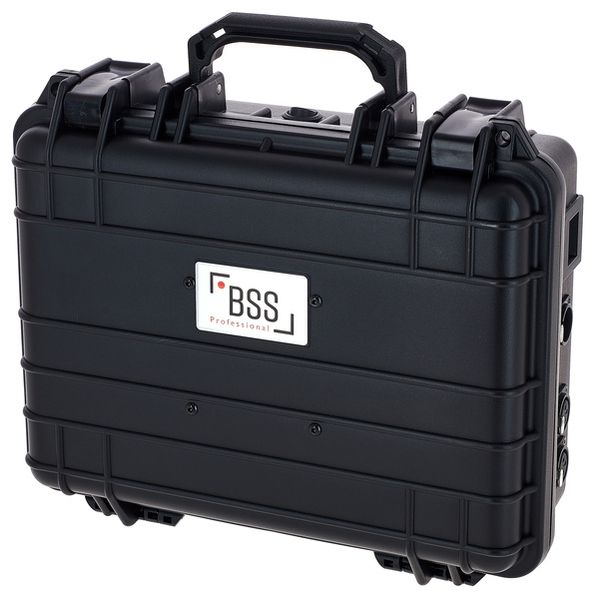

BSS Pro Case Atem SDI

Mobile Professional All-In-One Streaming Setup Case

• For Blackmagic Design ATEM SDI ISO video mixer (video mixer not included, must be installed by the customer)
• Withstands frequent wear and tear

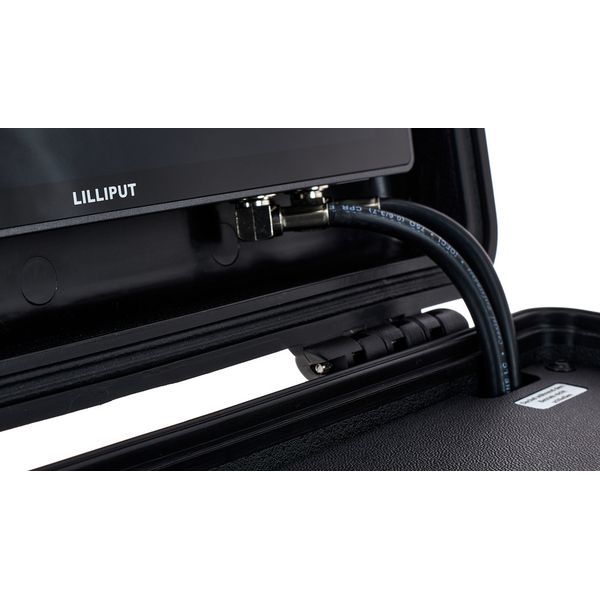

• With ergonomically adjustable 10.1" screen
• BNC branded connection sockets for long service life
• USB-A charging port for powering additional accessories
• Quick to set up - place, open and switch on
• No need to wire the screen with data and power connections - a built-in power supply unit powers all components
• All cable connections are easily accessible and routed to the outside on three sides of the ATEM SDI case

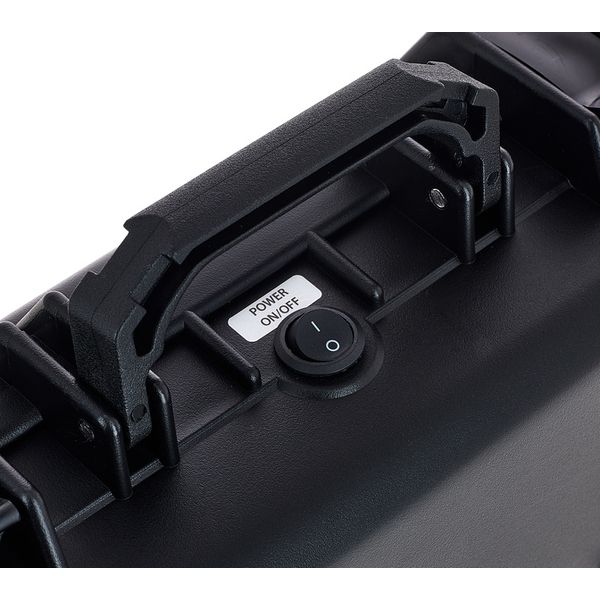

• One on/off switch for all components

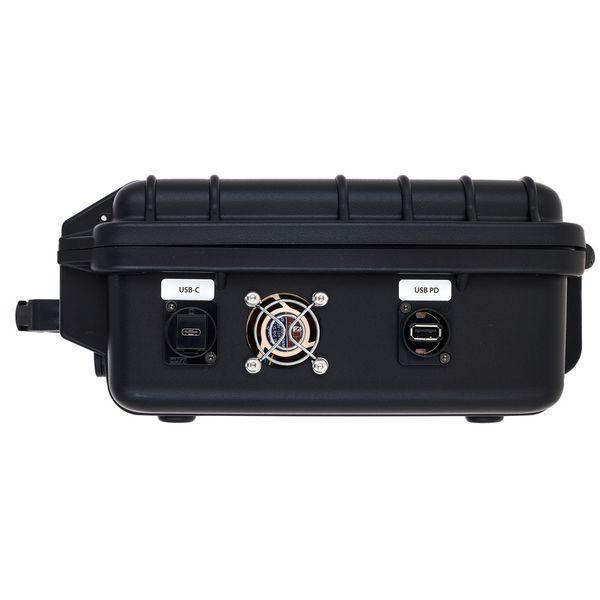

• Thermostat with controlled, quiet fan
• Fatigue-free view thanks to ergonomically adjustable 10.1" screen
• USB-A charging port for accessories such as smartphones or tablets
• All components are protected in the hard case and safe for transport
• Sustainable technical design - cover plate made from regenerated, high-quality plastic

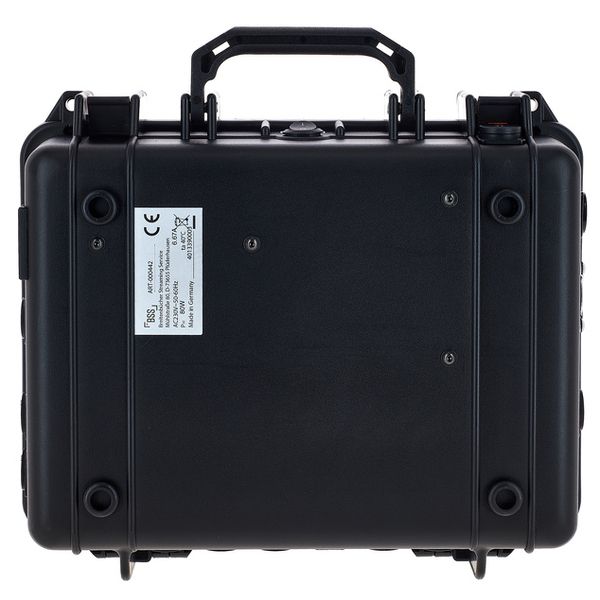

• Connected load: 230V/50Hz
• Power: 12V / 5A / 60W
• Dimensions: 330 x 280 x 120 mm
• Weight: approx. 4.4 kg

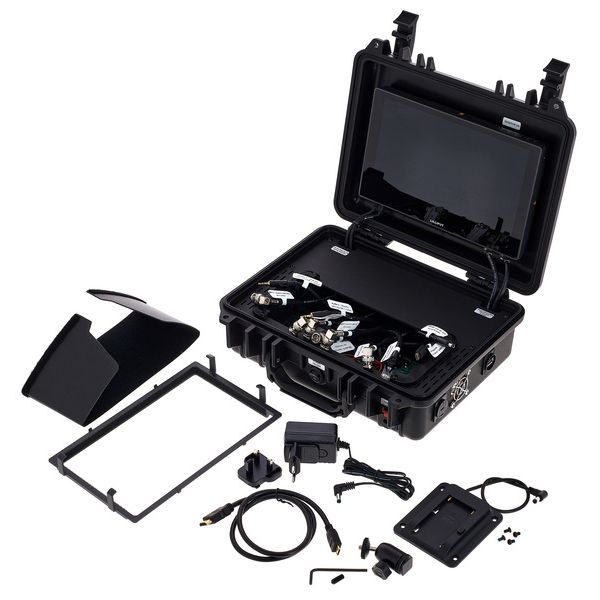

• Includes 230 V connection cable (1.80 m) with safety plug (CEE7/7) and 2x adapter cable XLR 3-pole - 3.5 mm stereo jack (0.7 m)

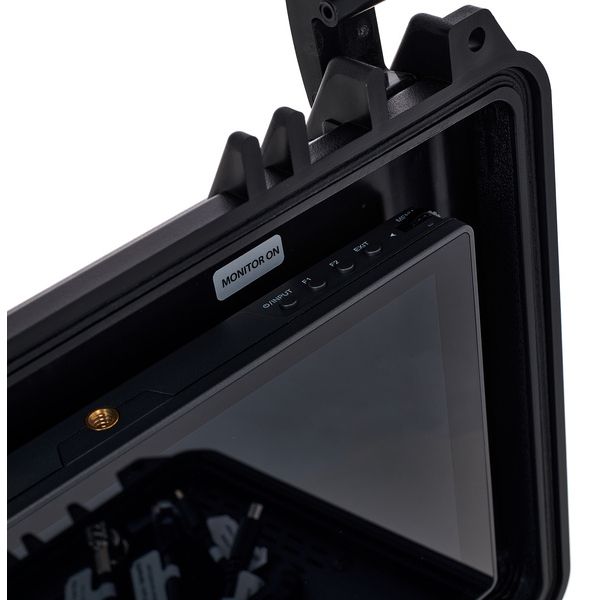

Technical data screen:

• Size - diagonal: 10.1" (16:10)
• Screen technology: IPS
• Resolution: 1920x1200 (WUXGA)
• Brightness: 320 cd/m?
• Contrast: 1000:1
• Viewing angle: 175°/175° (H/V)
• Supported formats: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30

Connections screen:

• HDMI-in
• HDMI-out
• SDI-in
• SDI-out
• Audio-out
• Power 12V

Connections case:

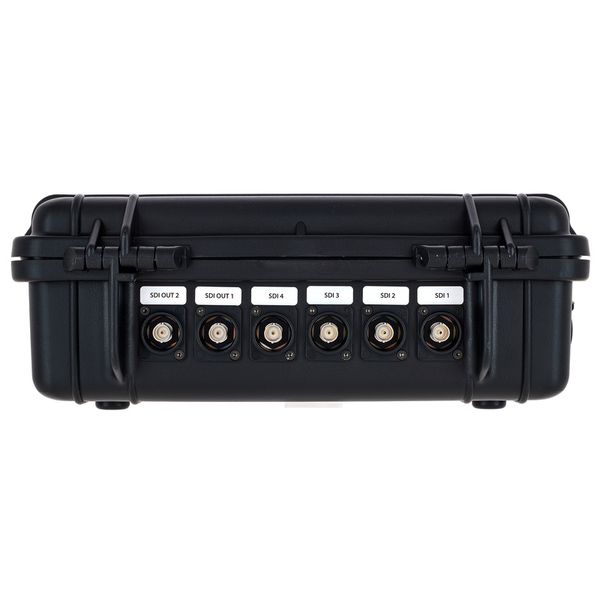

• Video inputs: 4x SDI (BNC sockets)

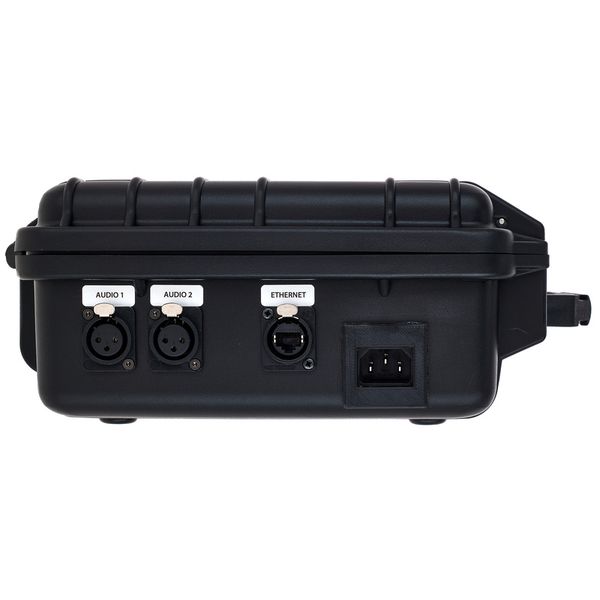

• Audio inputs: 2x XLR socket (unbalanced) stereo circuitry
• Data inputs/outputs: RJ45 socket (Ethernet)
• USB C
• Video outputs: 2x SDI-Out (SDI-Out 2 shows duplicated monitor signal)

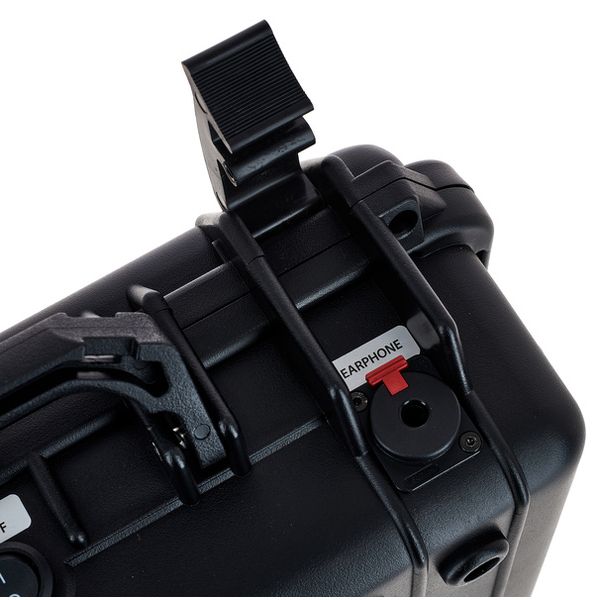

• Audio outputs: Headphone output 6.35 mm stereo jack
